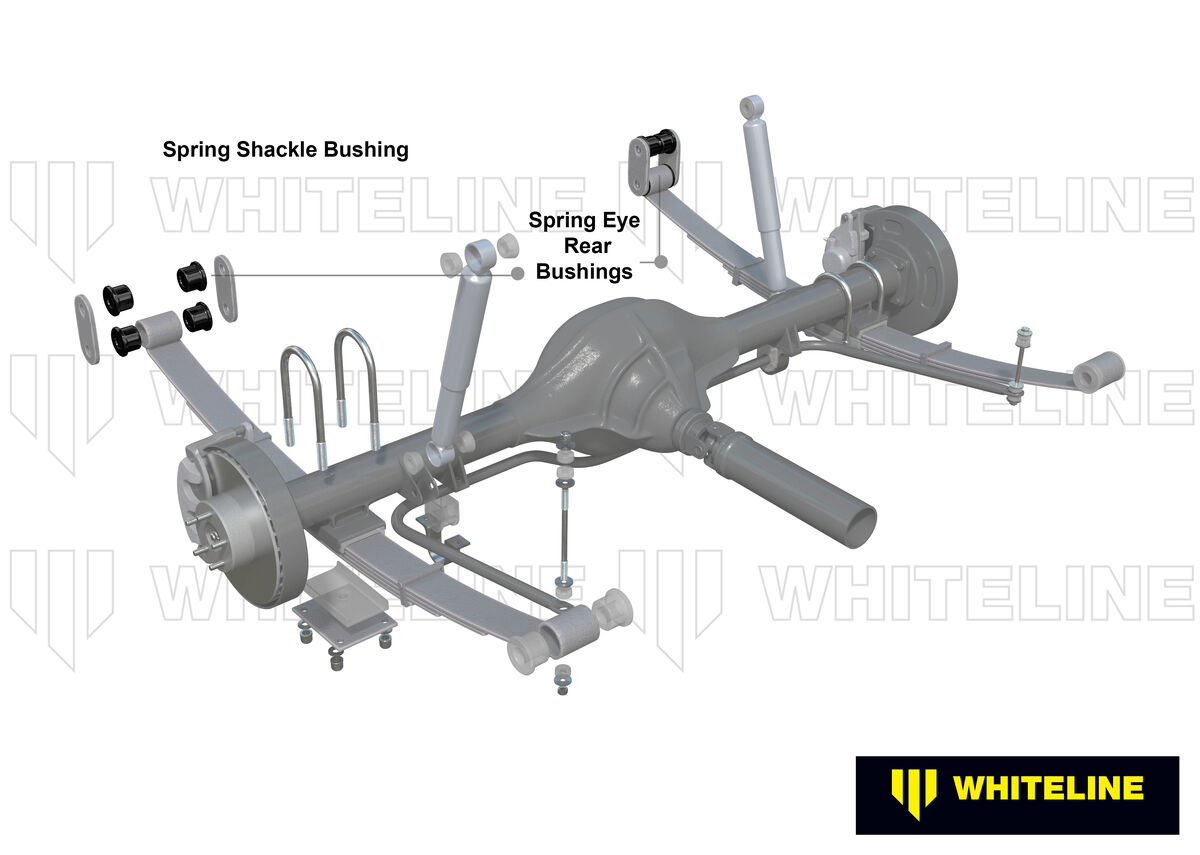

Whiteline Rear Leaf Spring - Rear Eye and Shackle Bushing Kit to Suit Toyota Hilux 2005-on and Foton Tunland P201

SKU: W73255

Benefit Note: A critical service item for any leaf sprung vehicle. High kilometres and heavy load carrying causes excessive wear on rubber bushings. Whiteline's signature black bushings are made tough and offer outstanding abrasion resistance, high load bearing capability (4WD's, utes and towing), flexibility, increased tensile strength and chemical resistance to oil, grease, ozone and weathering.


Kit Specifications

Bush Type 1 - Shackle Bushing 1 - Shackle Bushing
Bush Quantity 4 mm 4 mm
OD (A) 30.5 mm 30.3 mm
ID (B) 19 mm 18.8 mm
Length (C) 32.5 mm 48.2 mm
Flange Thickness (D) 4.5 mm 4.5 mm
Flange OD (E) 44 mm 40 mm
C/Tube Quantity
C/Tube ODxIDxL
Similar Bushing Size Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing
Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 1 1
QTY 4 4
OD (A) 30.5 30.3
ID (B) 19 18.8
Length (C) 32.5 48.2
FL (D) 4.5 4.5
FLOD (E) 44 40
C/Tube Qty
C/Tube Size
Similar Bushings Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.217kg0.48lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW73255
Components Per8 Bushings
Kits Required1
Sub brandReplacement
Product NoteBoosts handling and performance, while optimising suspension geometry; the perfect, complete upgrade. Includes: 8 Bushings
EAN9319924376940
  • Lifetime Warranty
Brand Whiteline
SKU W73255
Unit Of Measure Kit
