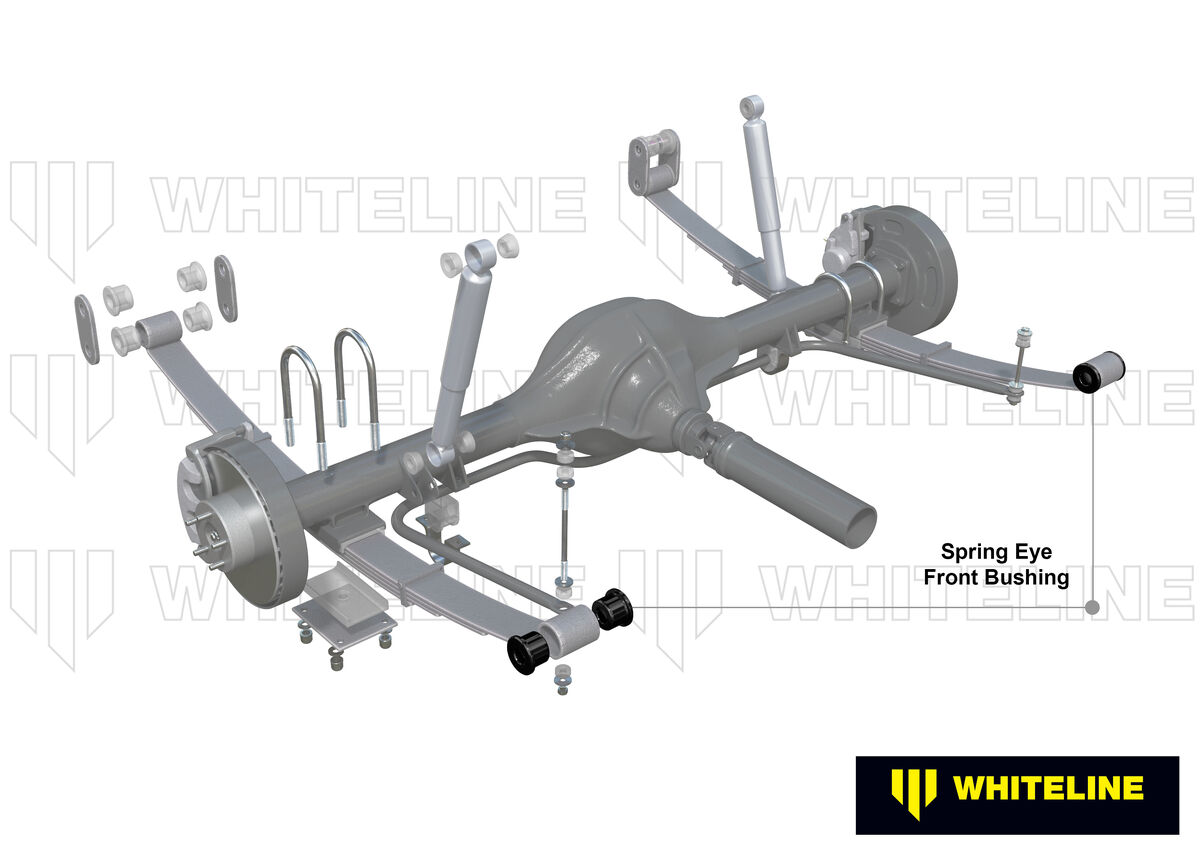

Whiteline Rear Leaf Spring - Front Eye Bushing Kit to Suit Ford F150 Svt Raptor 4wd

SKU: W73433

Benefit Note: A critical service item for any leaf sprung vehicle. High kilometres and heavy load carrying causes excessive wear on rubber bushings. Whiteline's signature black bushings are made tough and offer outstanding abrasion resistance, high load bearing capability (4WD's, utes and towing), flexibility, increased tensile strength and chemical resistance to oil, grease, ozone and weathering.

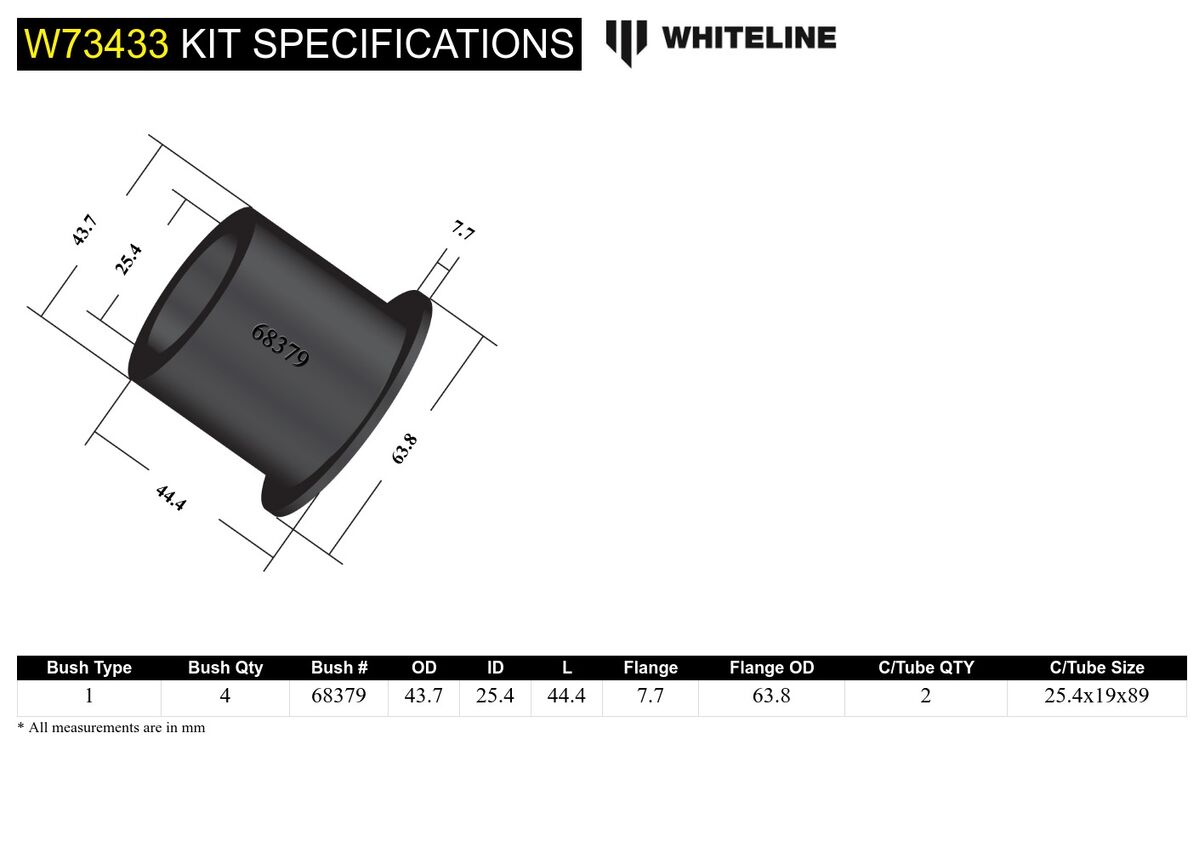

Kit Specifications

Bush Type 1 - Shackle Bushing
Bush Quantity 4 mm
OD (A) 43.7 mm
ID (B) 25.4 mm
Length (C) 44.4 mm
Flange Thickness (D) 7.7 mm
Flange OD (E) 63.8 mm
C/Tube Quantity 2
C/Tube ODxIDxL 25.4x19x89 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 1
QTY 4
OD (A) 43.7
ID (B) 25.4
Length (C) 44.4
FL (D) 7.7
FLOD (E) 63.8
C/Tube Qty 2
C/Tube Size 25.4x19x89
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.62kg1.37lbs
Length10cm3.94"
Width26cm10.24"
Height16cm6.3"

Misc. Product Information

More Information
SKUW73433
Components Per4 Bushings, 2 Tubes
Kits Required1
Sub brandReplacement

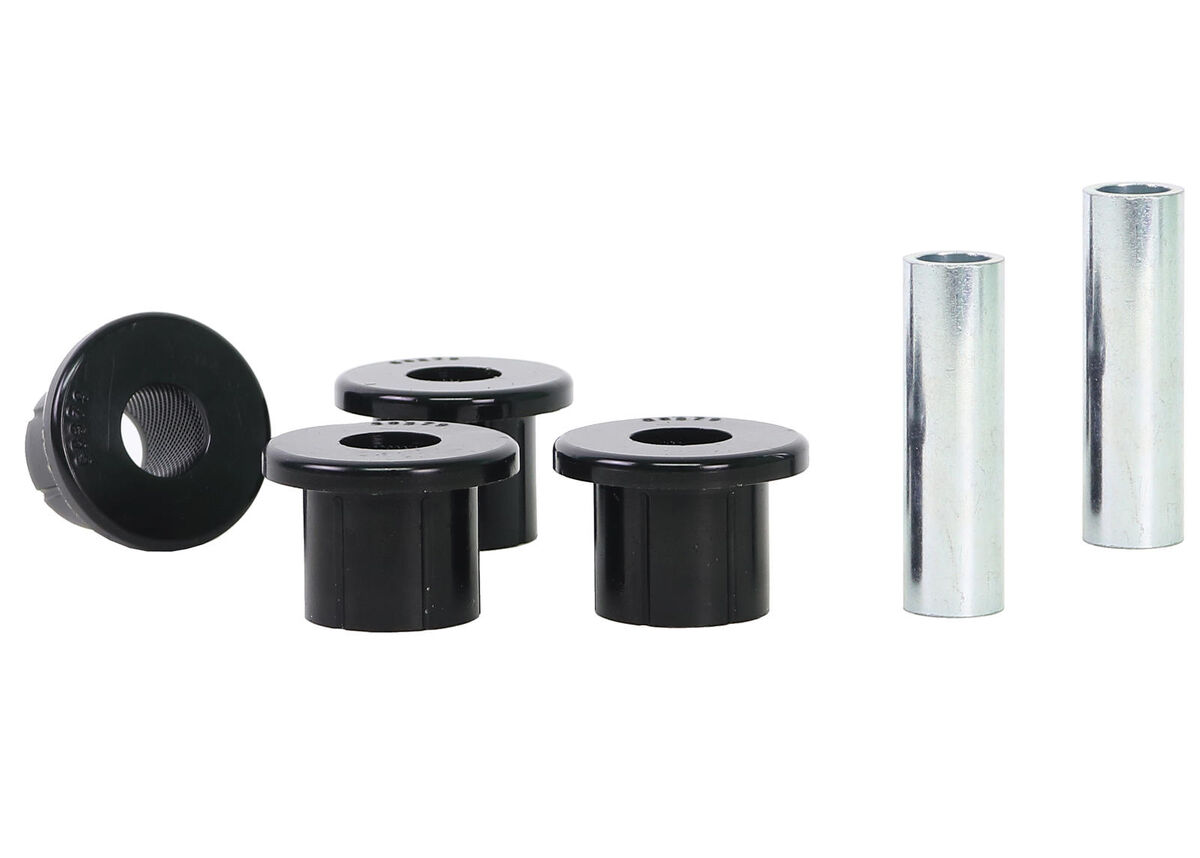

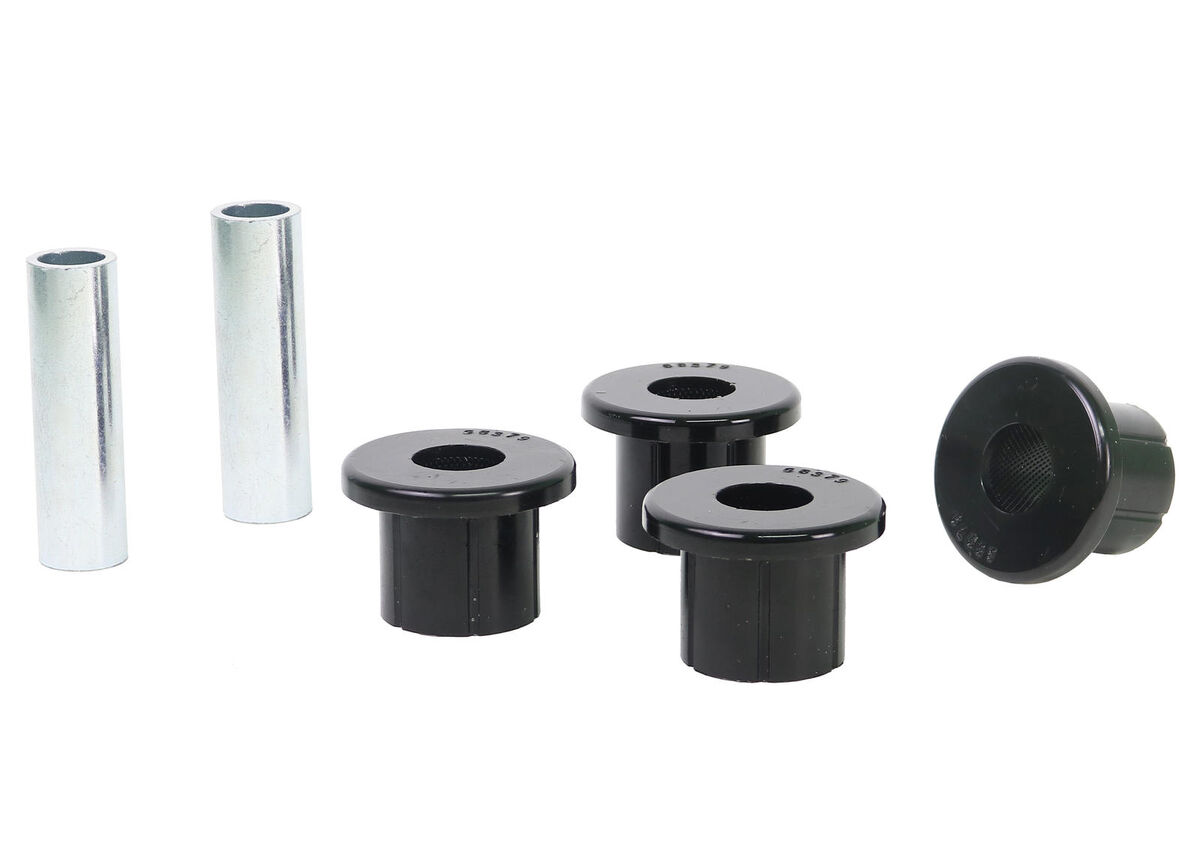

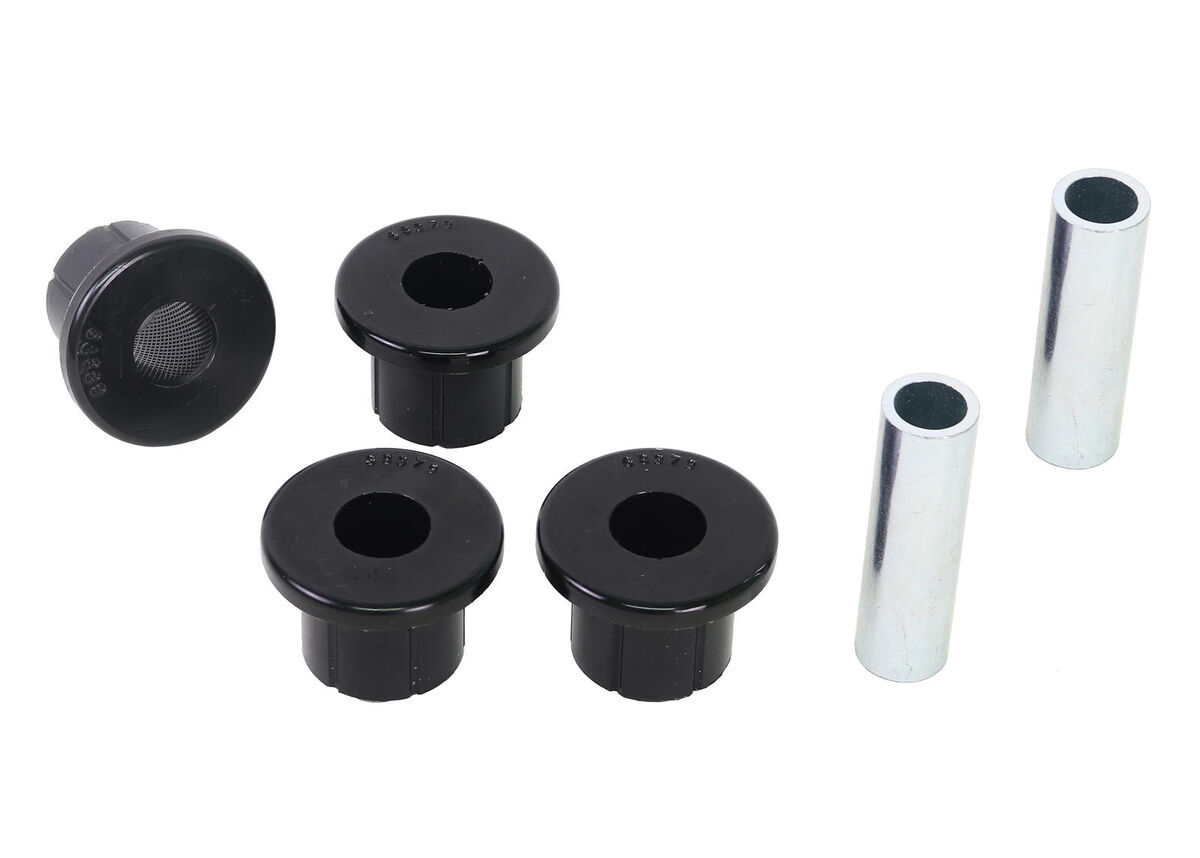

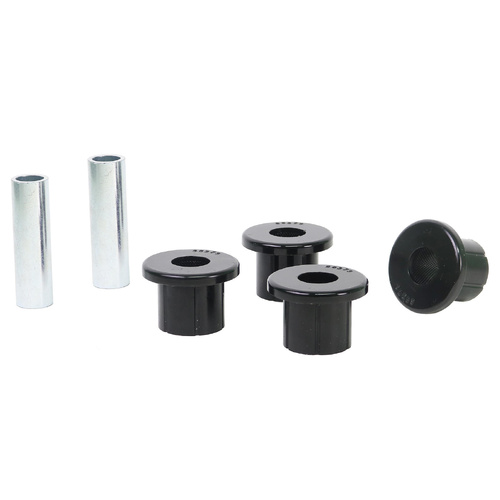

Product NoteBalances comfort with performance while minimising noise and vibrations; the perfect, complete upgrade. Includes: 4 Bushings & 2 Tubes
EAN9319924396863
  • Lifetime Warranty
Brand Whiteline
SKU W73433
Unit Of Measure Kit
