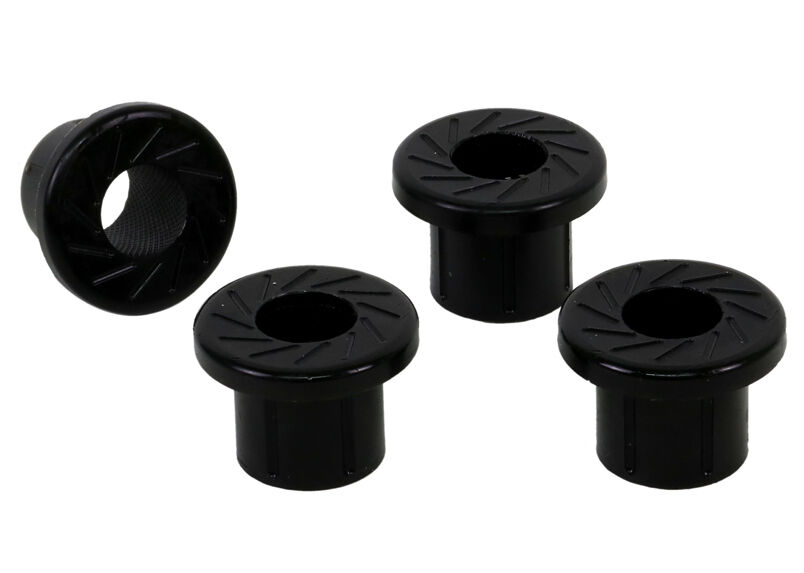

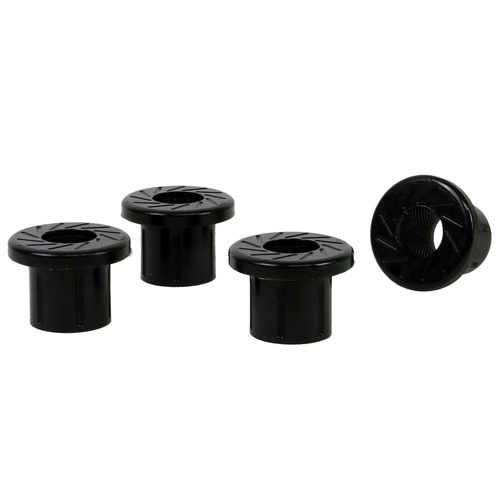

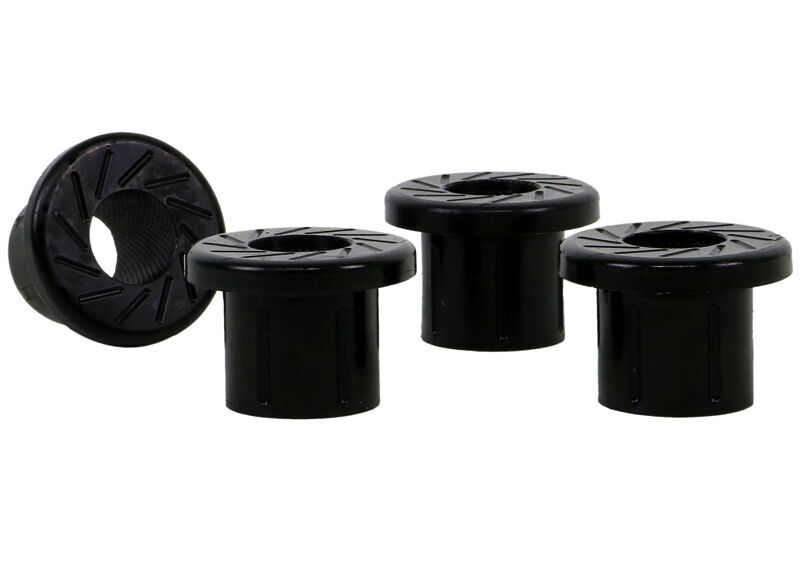

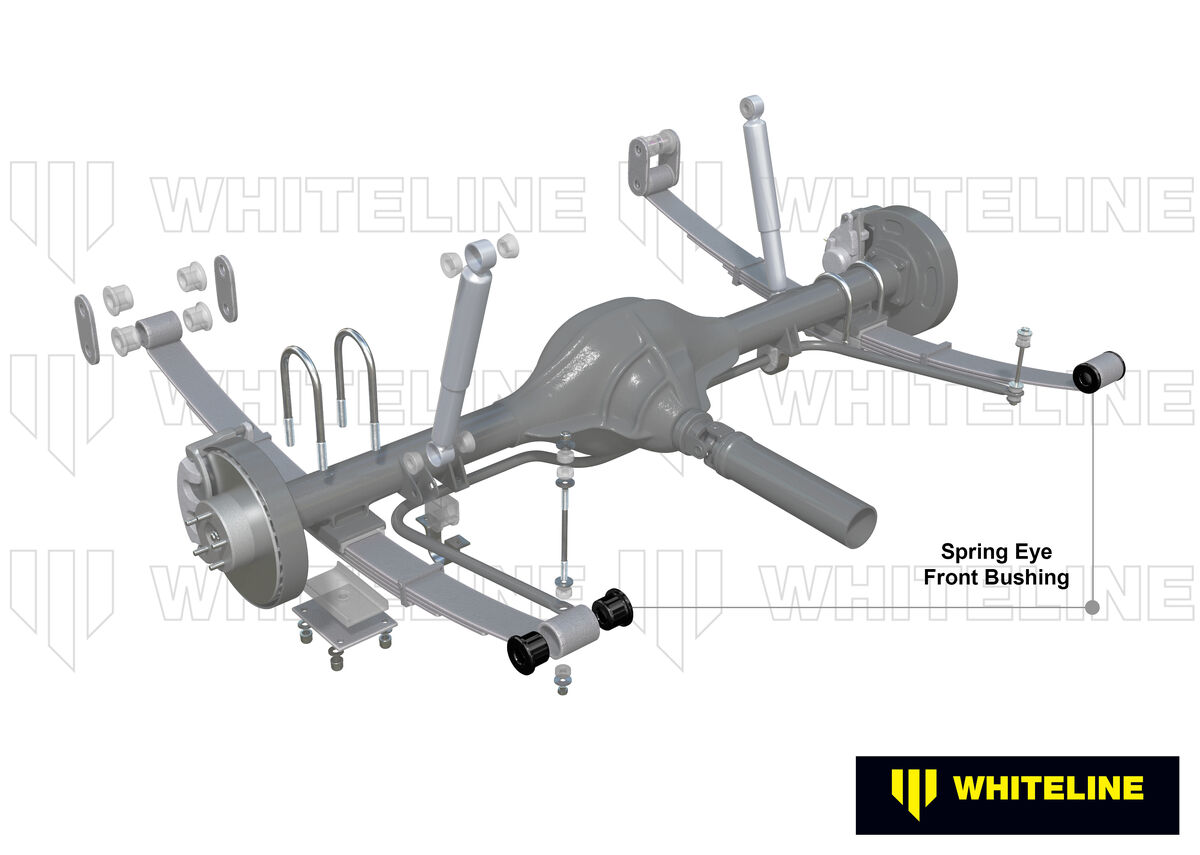

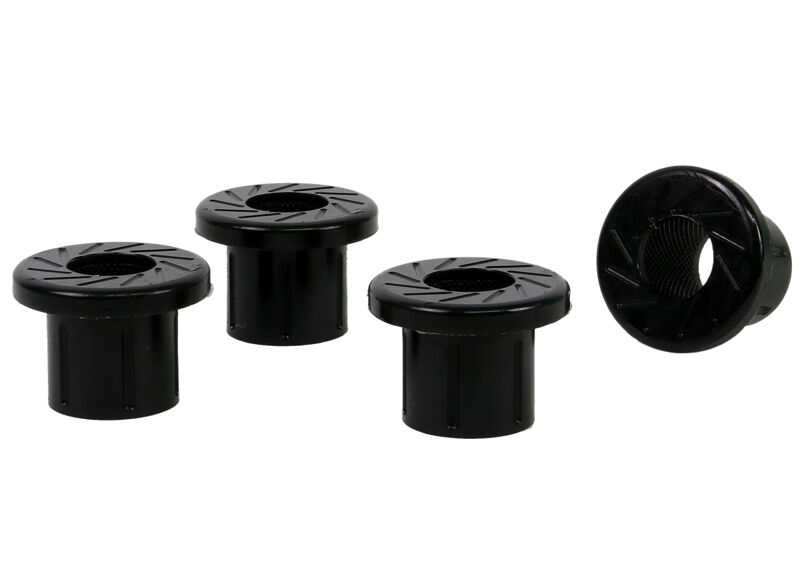

Whiteline Rear Leaf Spring - Front Eye Bushing Kit to Suit Toyota HiLux 2005-on and Foton Tunland P201 2wd

SKU: W73426

Benefit Note: A critical service item for any leaf sprung vehicle. High kilometres and heavy load carrying causes excessive wear on rubber bushings. Whiteline's signature black bushings are made tough and offer outstanding abrasion resistance, high load bearing capability (4WD's, utes and towing), flexibility, increased tensile strength and chemical resistance to oil, grease, ozone and weathering.


Kit Specifications

Bush Type 1 - Shackle Bushing
Bush Quantity 4 mm
OD (A) 35 mm
ID (B) 23 mm
Length (C) 36 mm
Flange Thickness (D) 7.4 mm
Flange OD (E) 52 mm
C/Tube Quantity
C/Tube ODxIDxL
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 1
QTY 4
OD (A) 35
ID (B) 23
Length (C) 36.0
FL (D) 7.4
FLOD (E) 52
C/Tube Qty
C/Tube Size
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.145kg0.32lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW73426
Components Per4 Bushings
Kits Required1
Sub brandReplacement
Product NoteBoosts handling and performance, while optimising suspension geometry; the perfect, complete upgrade. Includes: 4 Bushings
EAN9319924399574
  • Lifetime Warranty
Brand Whiteline
SKU W73426
Unit Of Measure Kit
