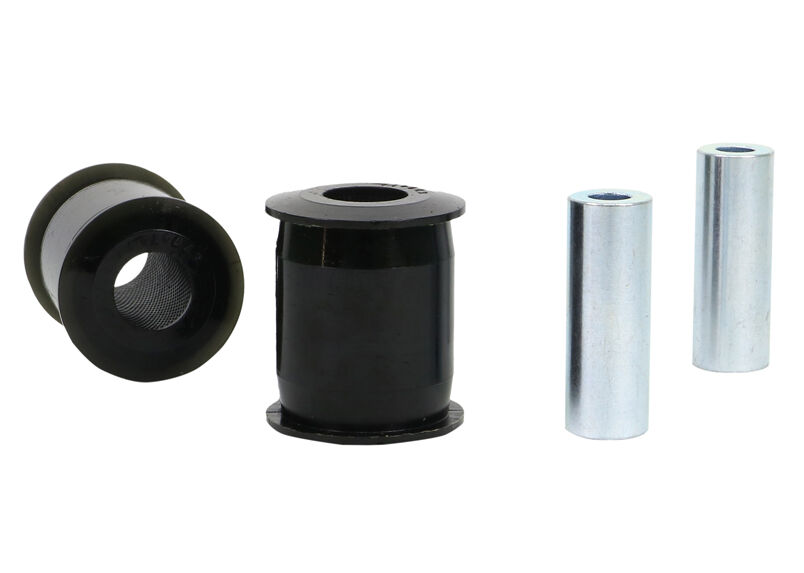

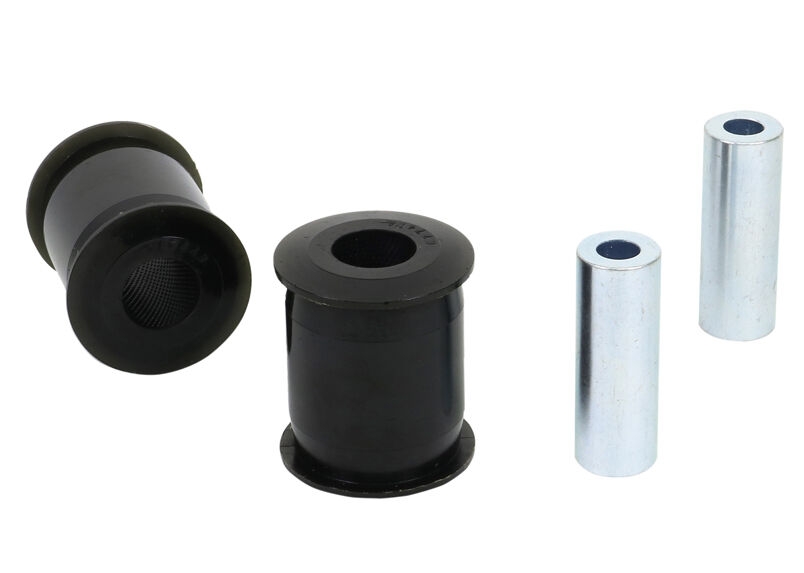

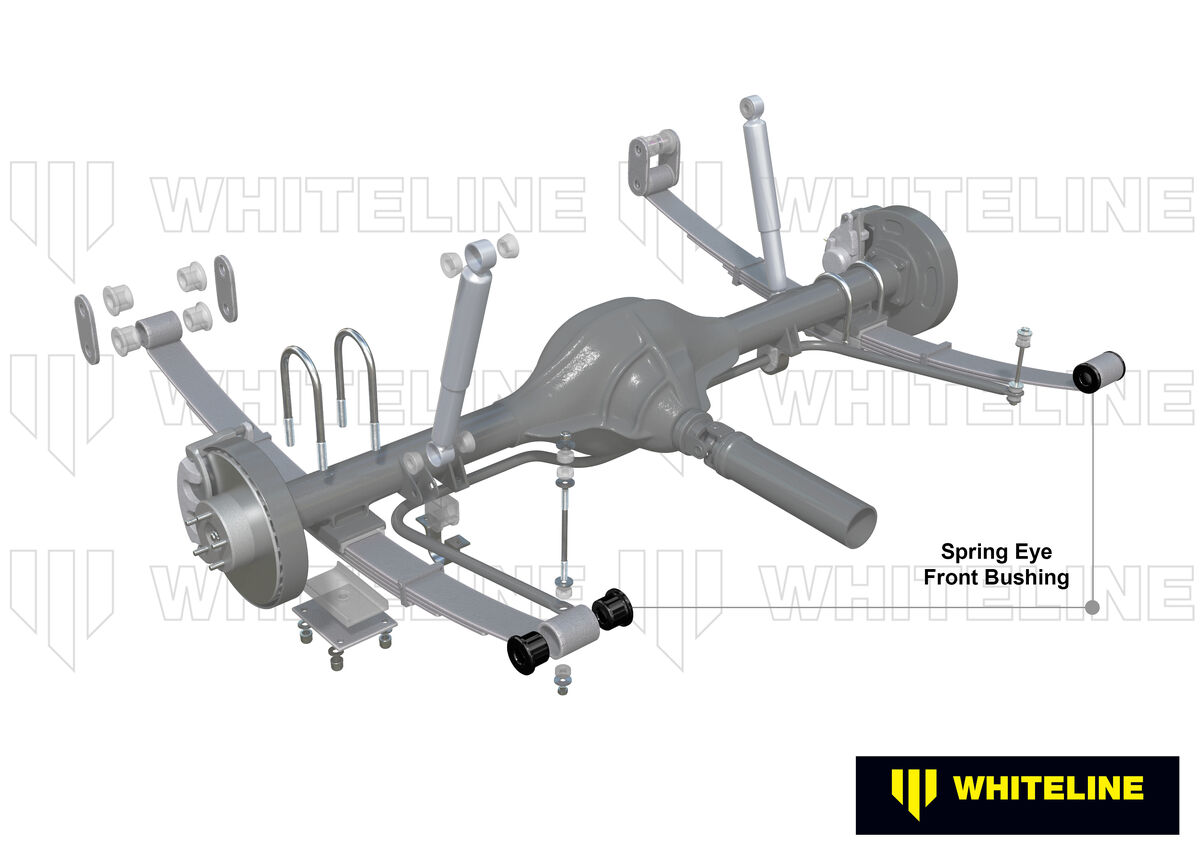

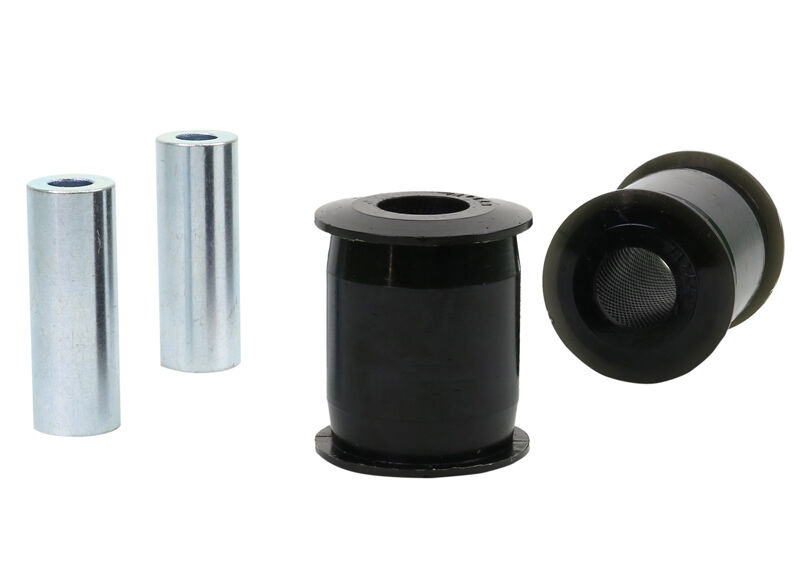

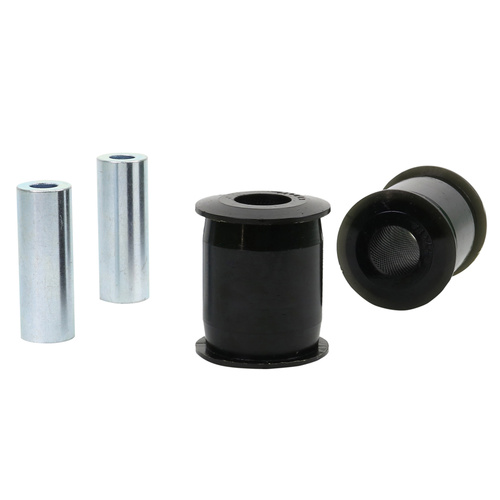

Whiteline Rear Leaf Spring - Front Eye Bushing Kit to Suit Hyundai iLoad TQ and LDV G10 SV

SKU: W73407

Benefit Note: A critical service item for any leaf sprung vehicle. High kilometres and heavy load carrying causes excessive wear on rubber bushings. Whiteline's signature black bushings are made tough and offer outstanding abrasion resistance, high load bearing capability (4WD's, utes and towing), flexibility, increased tensile strength and chemical resistance to oil, grease, ozone and weathering.

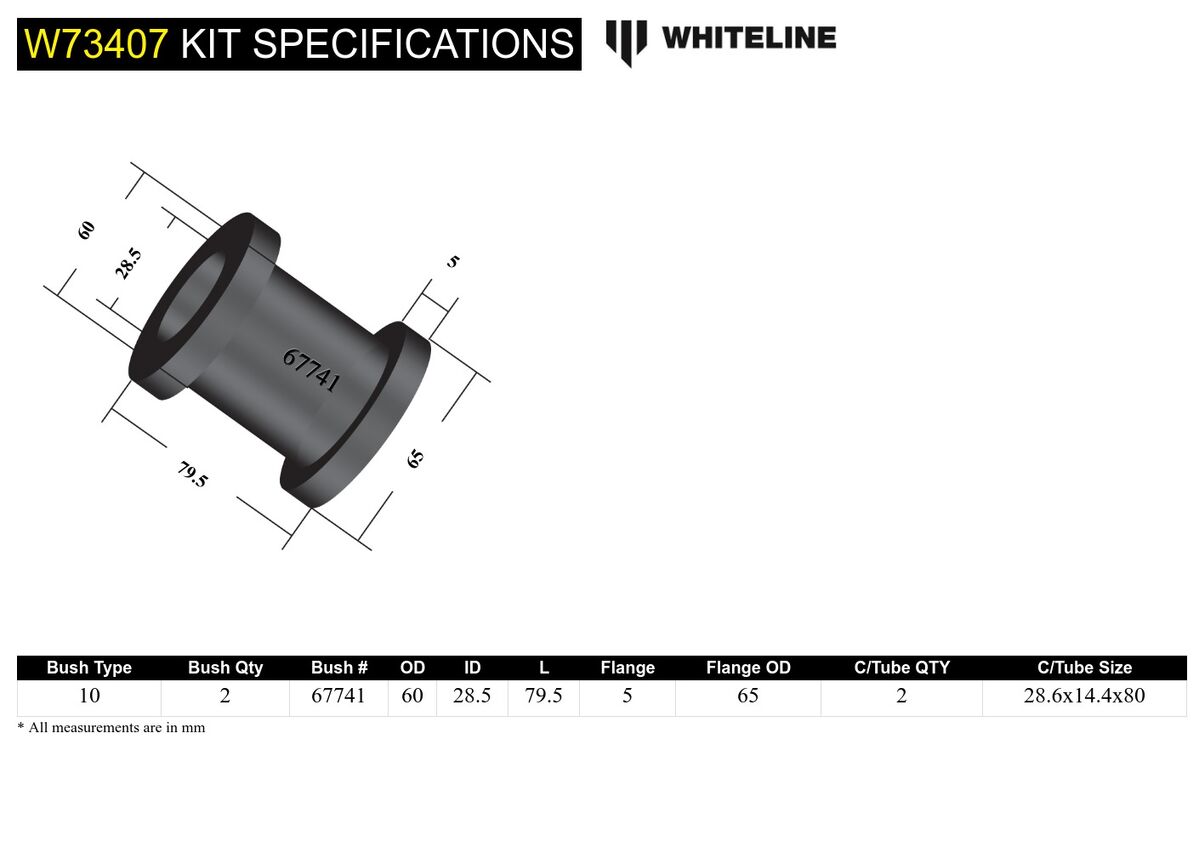

Kit Specifications

Bush Type 10 - Cotton Reel With & Without Tapper Bushing
Bush Quantity 2 mm
OD (A) 60 mm
ID (B) 28.5 mm
Length (C) 79.5 mm
Flange Thickness (D) 5 mm
Flange OD (E) 65 mm
C/Tube Quantity 2
C/Tube ODxIDxL 28.6x14.4x80 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 10 - Cotton Reel With & Without Tapper Bushing

Bushing Design Dimensions (mm)

Bush Type 10
QTY 2
OD (A) 60
ID (B) 28.5
Length (C) 79.5
FL (D) 5
FLOD (E) 65
C/Tube Qty 2
C/Tube Size 28.6x14.4x80
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 10

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight1.001kg2.21lbs
Length10cm3.94"
Width26cm10.24"
Height16cm6.3"

Misc. Product Information

More Information
SKUW73407
Components Per2 Bushings, 2 Tubes
Kits Required1
Sub brandReplacement
Product NoteMaximises grip and stability for better control; the perfect, complete upgrade. Includes: 2 Bushings & 2 Tubes
EAN9319924390083
  • Lifetime Warranty
Brand Whiteline
SKU W73407
Unit Of Measure Kit
