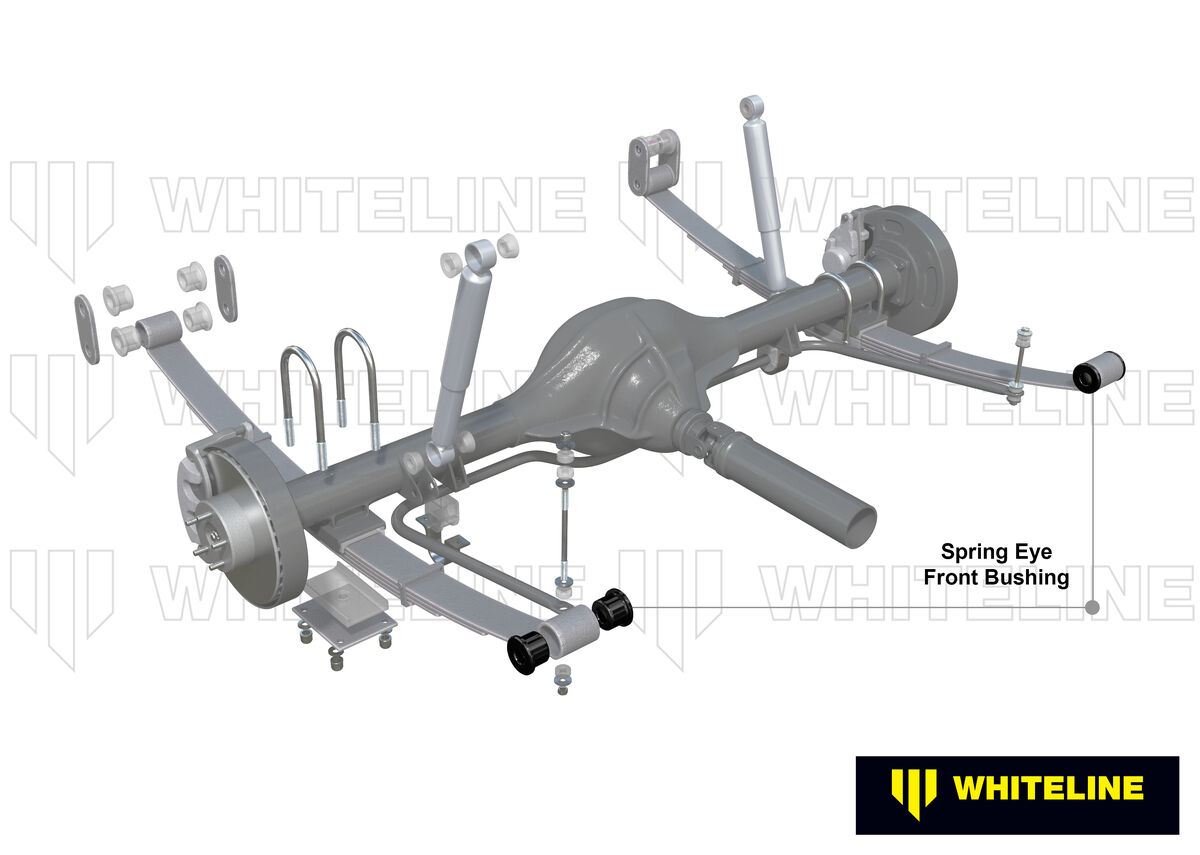

Whiteline Rear Leaf Spring - Front Eye Bushing Kit to Suit Ford Falcon/Fairlane XR-AU and Mustang Classic

SKU: W71103

Benefit Note: A critical service item for any leaf sprung vehicle. High kilometres and heavy load carrying causes excessive wear on rubber bushings. Whiteline's signature black bushings are made tough and offer outstanding abrasion resistance, high load bearing capability (4WD's, utes and towing), flexibility, increased tensile strength and chemical resistance to oil, grease, ozone and weathering.

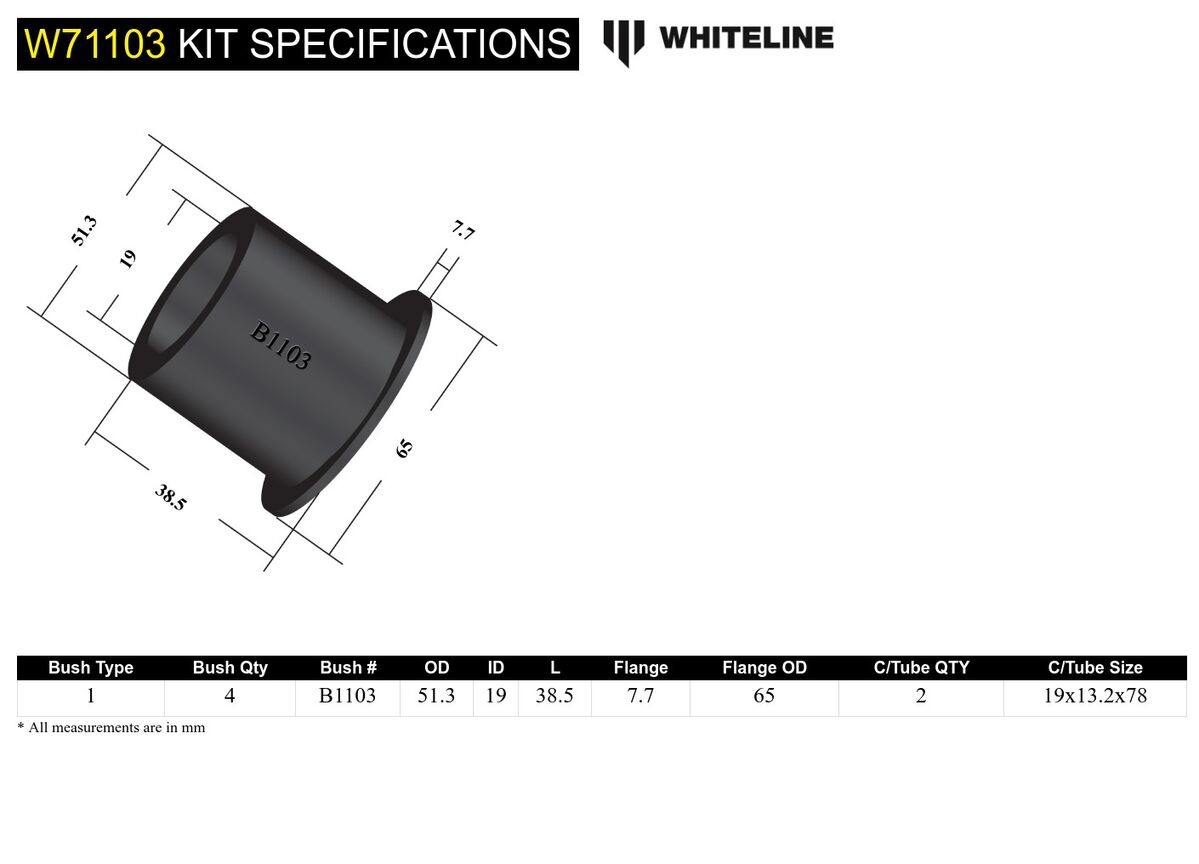

Kit Specifications

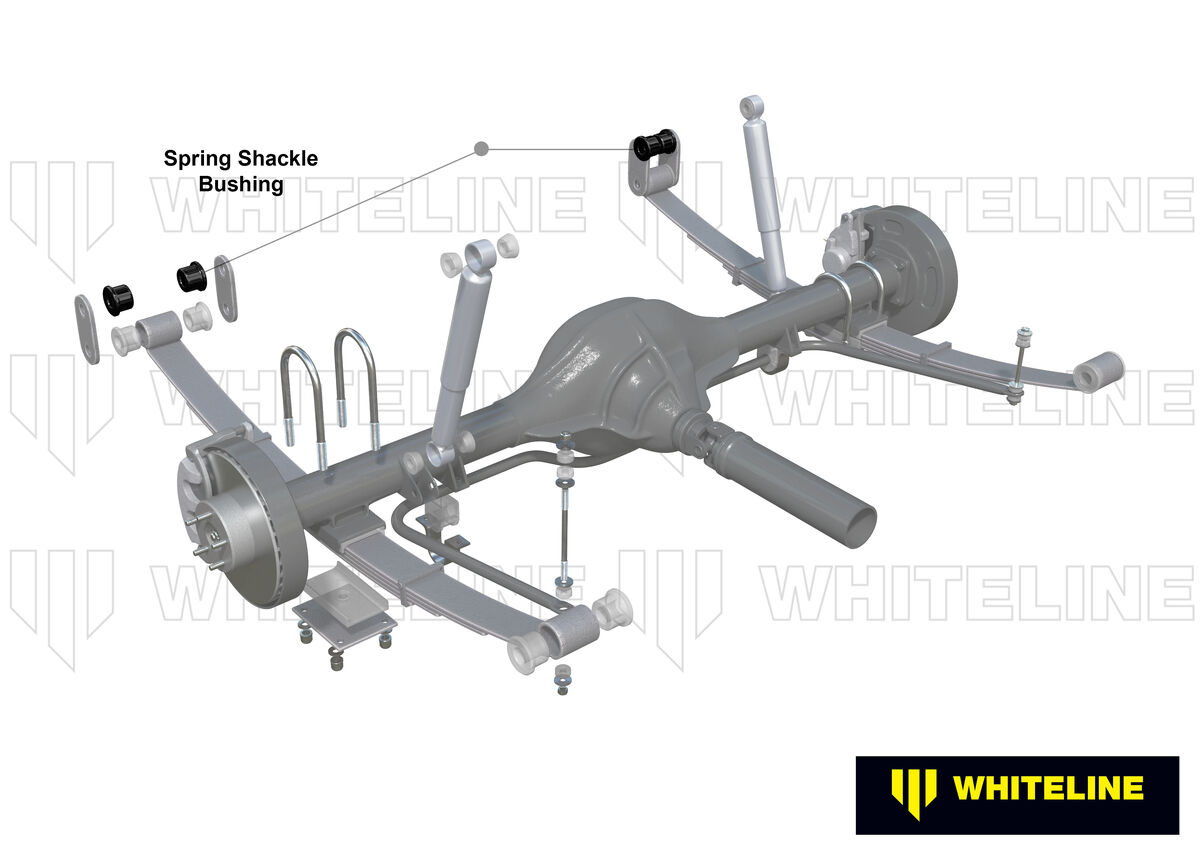

Bush Type 1 - Shackle Bushing
Bush Quantity 4 mm
OD (A) 51.3 mm
ID (B) 19 mm
Length (C) 38.5 mm
Flange Thickness (D) 7.7 mm
Flange OD (E) 65 mm
C/Tube Quantity 2
C/Tube ODxIDxL 19x13.2x78 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 1
QTY 4
OD (A) 51.3
ID (B) 19
Length (C) 38.5
FL (D) 7.7
FLOD (E) 65
C/Tube Qty 2
C/Tube Size 19x13.2x78
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.567kg1.25lbs
Length10cm3.94"
Width26cm10.24"
Height16cm6.3"

Misc. Product Information

More Information
SKUW71103
Components Per4 Bushings, 2 Tubes
Kits Required1
Sub brandReplacement

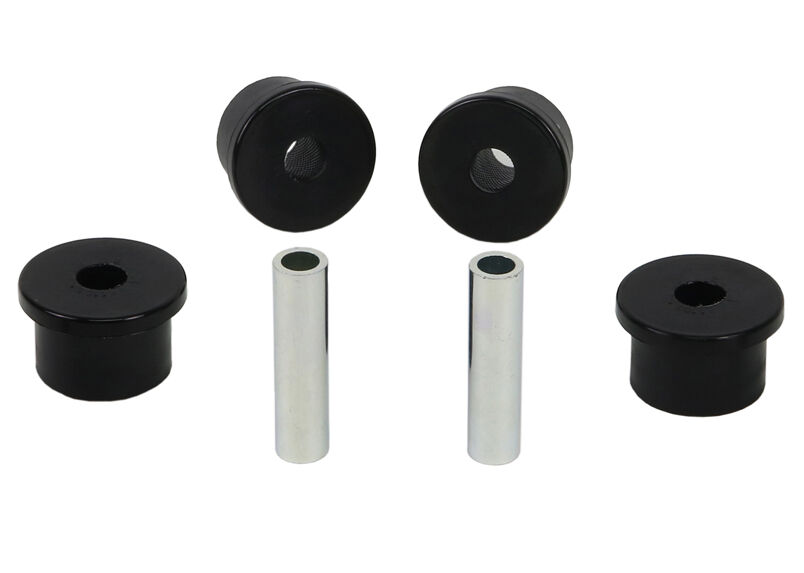

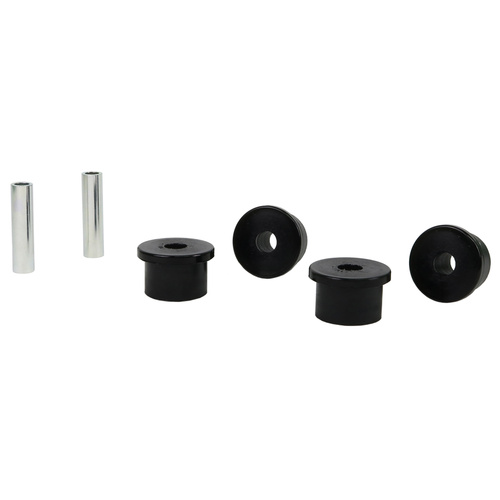

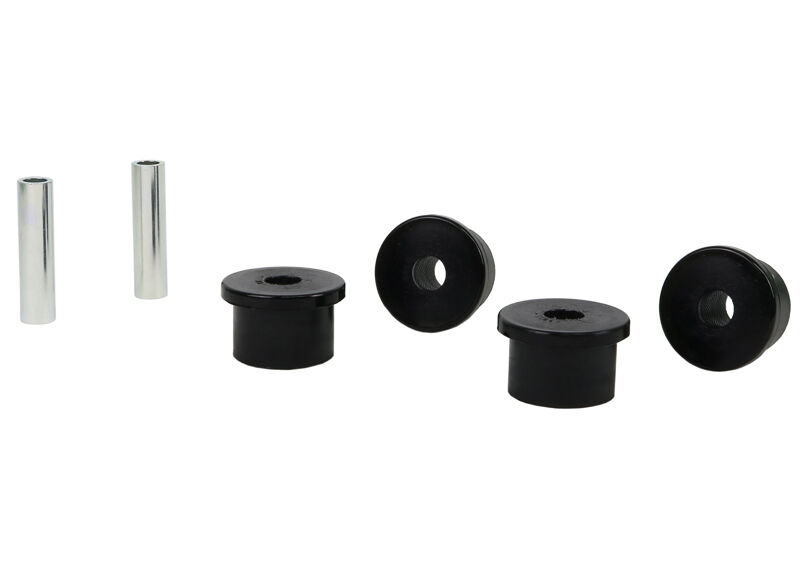

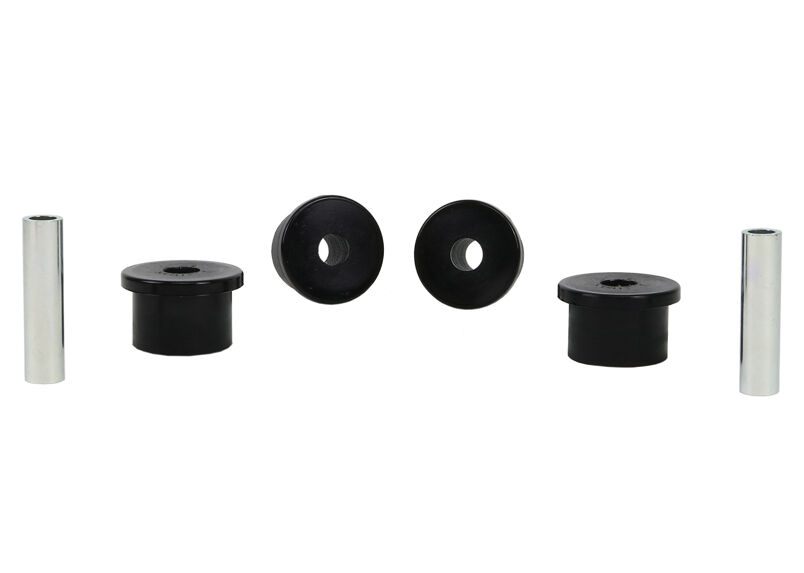

Product NoteBuilt tough for better durability and long-lasting performance; the perfect, complete upgrade. Includes: 4 Bushings & 2 Tubes
EAN9319924355334
  • Lifetime Warranty
Brand Whiteline
SKU W71103
Unit Of Measure Kit
