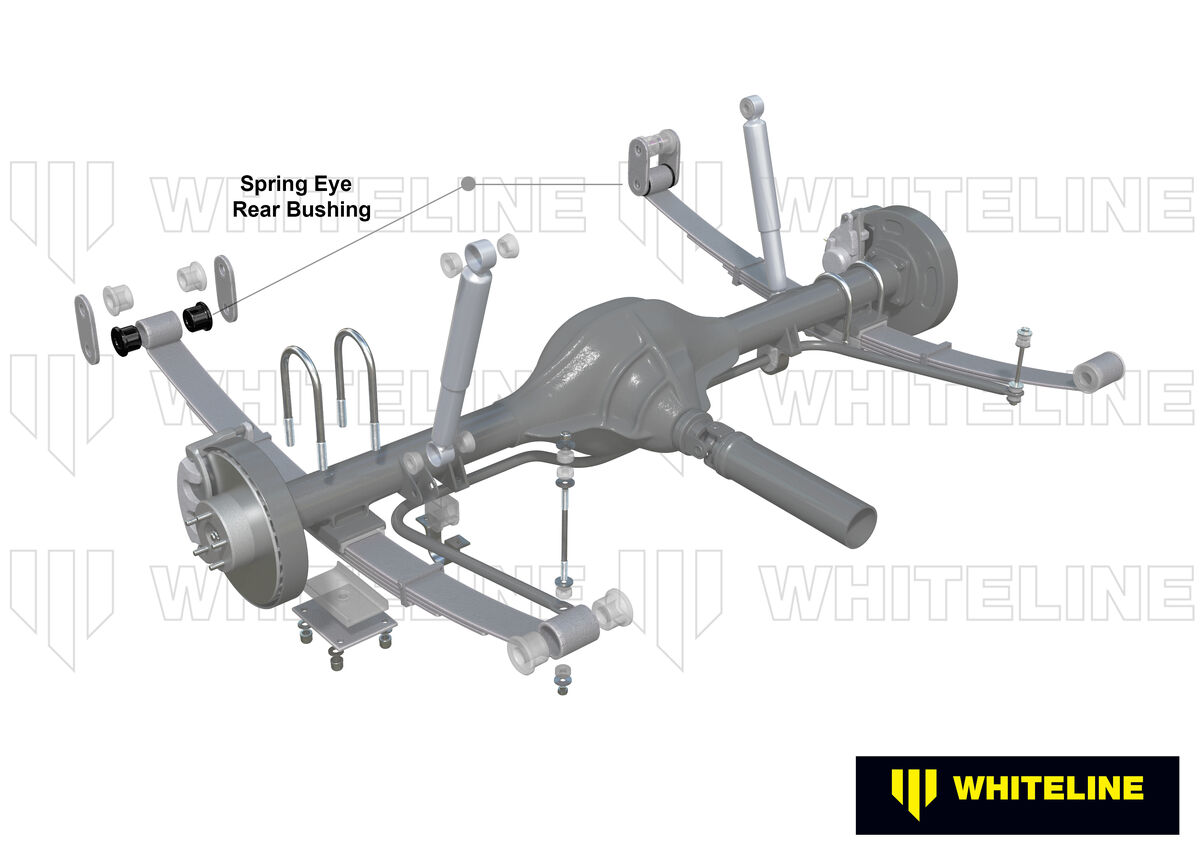

Whiteline Rear Leaf Spring - Bushing Kit to Suit Ford F100

SKU: W72133

Benefit Note: A critical service item for any leaf sprung vehicle. High kilometres and heavy load carrying causes excessive wear on rubber bushings. Whiteline's signature black bushings are made tough and offer outstanding abrasion resistance, high load bearing capability (4WD's, utes and towing), flexibility, increased tensile strength and chemical resistance to oil, grease, ozone and weathering.


Kit Specifications

Bush Type 16 - Shell Without Flange Bushing
Bush Quantity 2 mm
OD (A) 31.8 mm
ID (B) 18.8 mm
Length (C) 76.5 mm
Flange Thickness (D) 6.5 mm
Flange OD (E) 28.6 mm
C/Tube Quantity 2
C/Tube ODxIDxL 19x14.3x76 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 16 - Shell Without Flange Bushing

Bushing Design Dimensions (mm)

Bush Type 16
QTY 2
OD (A) 31.8
ID (B) 18.8
Length (C) 76.5
FL (D) 6.5
FLOD (E) 28.6
C/Tube Qty 2
C/Tube Size 19x14.3x76
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 16

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.384kg0.85lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW72133

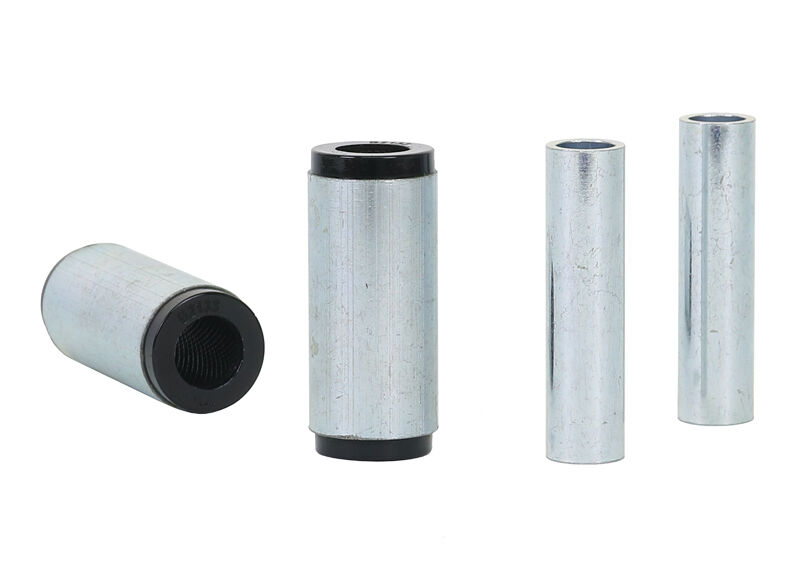

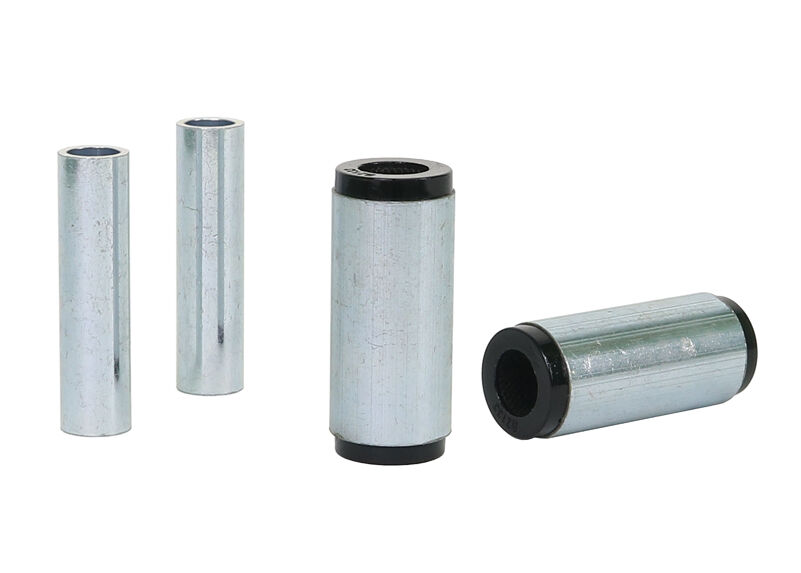

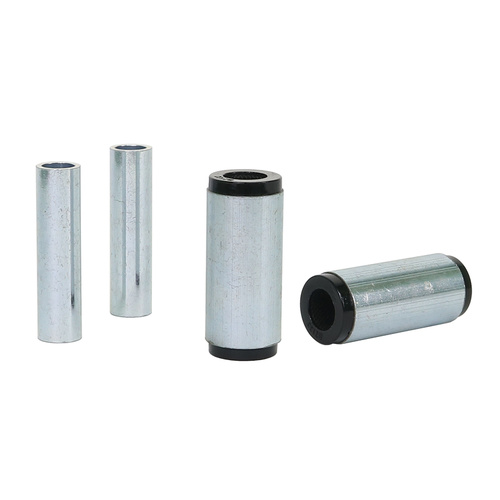

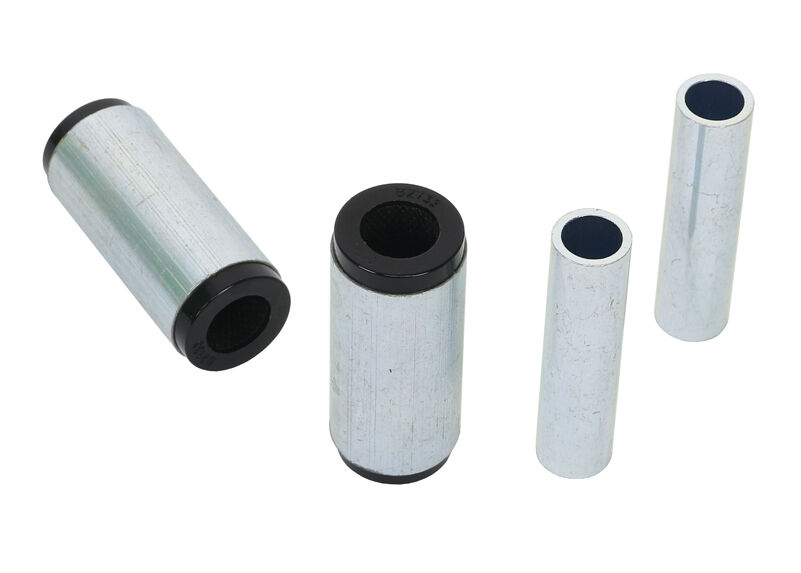

Components Per2 Shell Bushings, 2 Tubes
Kits Required3
Sub brandReplacement
Product NoteBalances comfort with performance while minimising noise and vibrations; the perfect, complete upgrade. Includes: 2 Shell Bushings & 2 Tubes
EAN9319924356270
  • Lifetime Warranty
Brand Whiteline
SKU W72133
Unit Of Measure Kit
