Whiteline Rear Leaf Spring - Bushing Kit to Suit Ford Courier, Econovan and Mazda B Series Bravo

SKU: W71424

Benefit Note: A critical service item for any leaf sprung vehicle. High kilometres and heavy load carrying causes excessive wear on rubber bushings. Whiteline's signature black bushings are made tough and offer outstanding abrasion resistance, high load bearing capability (4WD's, utes and towing), flexibility, increased tensile strength and chemical resistance to oil, grease, ozone and weathering.

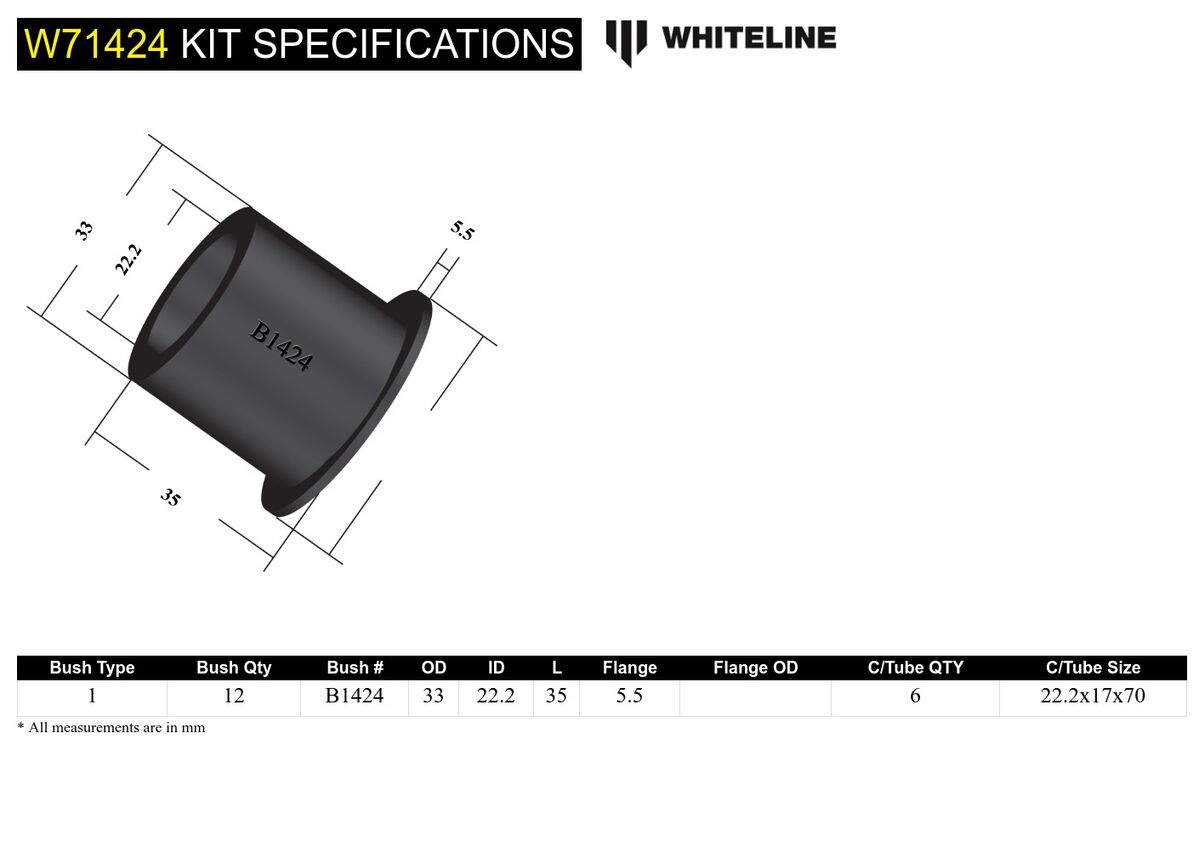

Kit Specifications

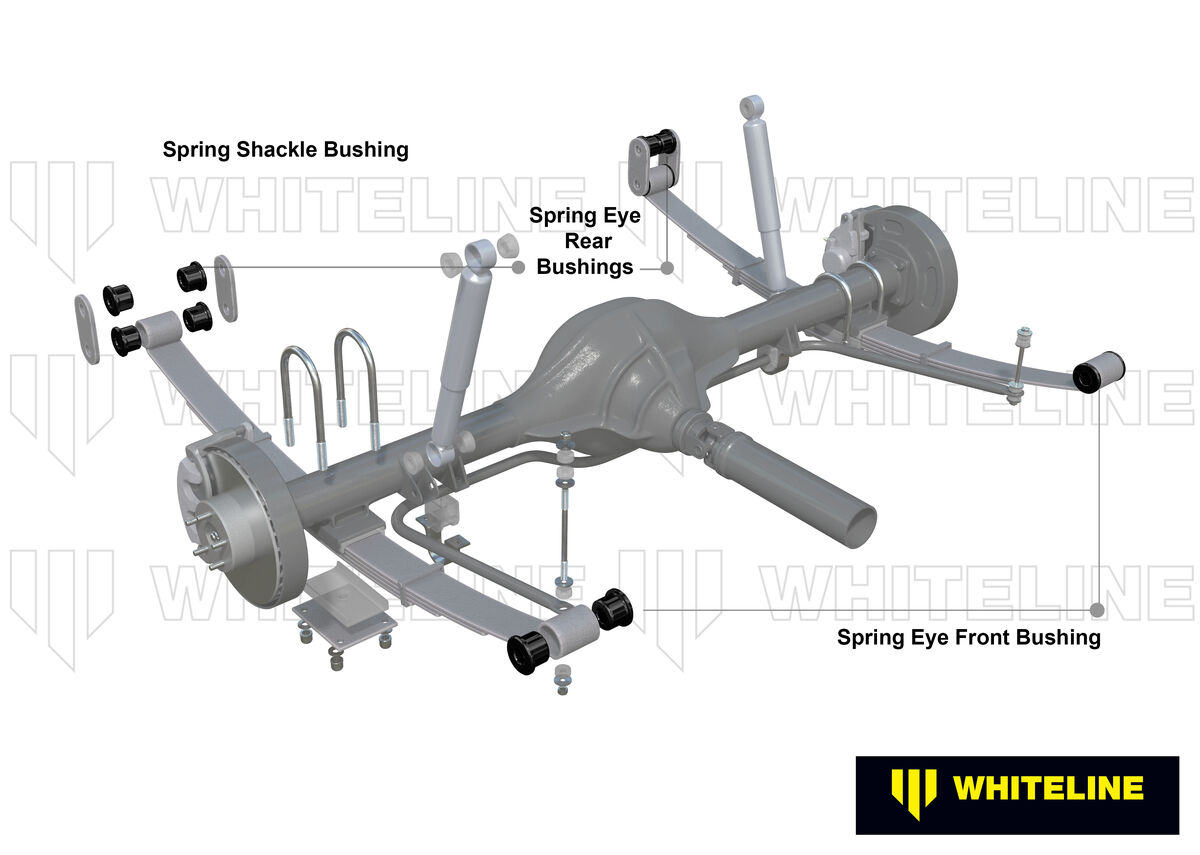

Bush Type 1 - Shackle Bushing
Bush Quantity 12 mm
OD (A) 33 mm
ID (B) 22.2 mm
Length (C) 35 mm
Flange Thickness (D) 5.5 mm
Flange OD (E)
C/Tube Quantity 6
C/Tube ODxIDxL 22.2x17x70 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 1
QTY 12
OD (A) 33
ID (B) 22.2
Length (C) 35.0
FL (D) 5.5
FLOD (E)
C/Tube Qty 6
C/Tube Size 22.2x17x70
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.845kg1.86lbs
Length10cm3.94"
Width26cm10.24"
Height16cm6.3"

Misc. Product Information

More Information
SKUW71424

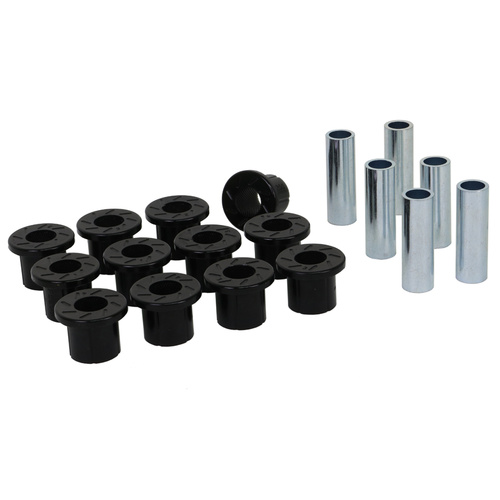

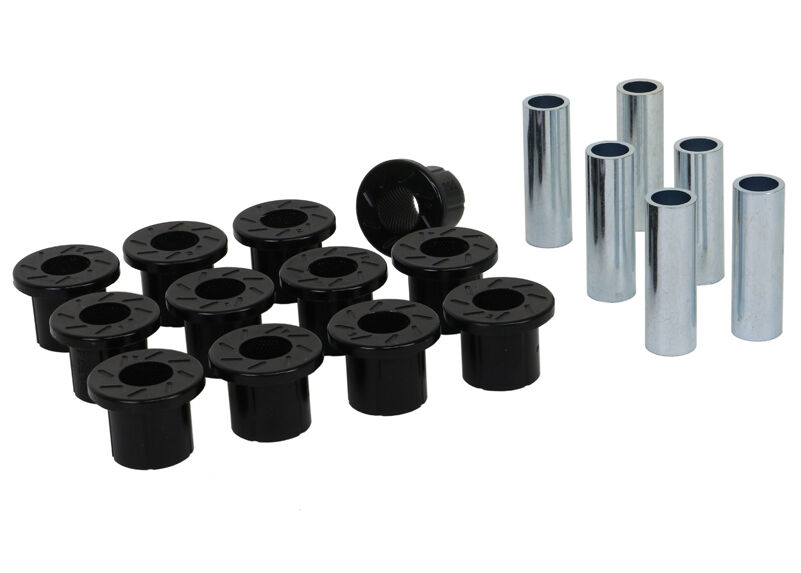

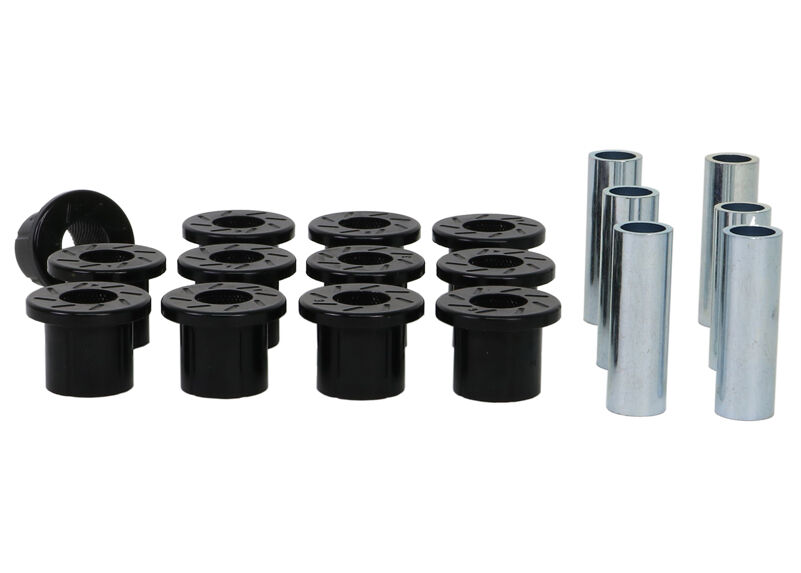

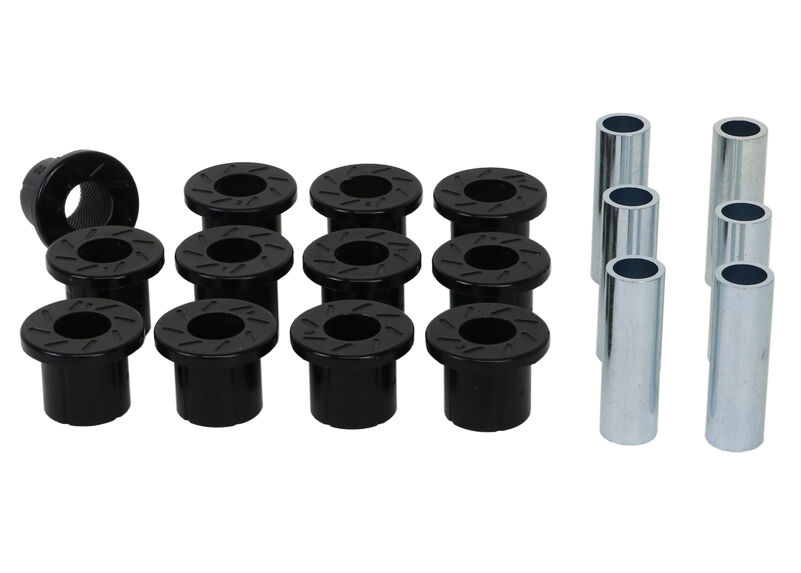

Components Per12 Bushings, 6 Tubes
Kits Required1
Sub brandReplacement
Product NoteBuilt tough for better durability and long-lasting performance; the perfect, complete upgrade. Includes: 12 Bushings & 6 Tubes
EAN9319924355648
  • Lifetime Warranty
Brand Whiteline
SKU W71424
Unit Of Measure Kit
