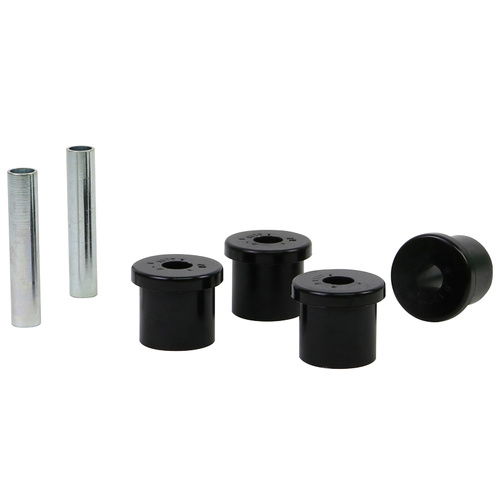

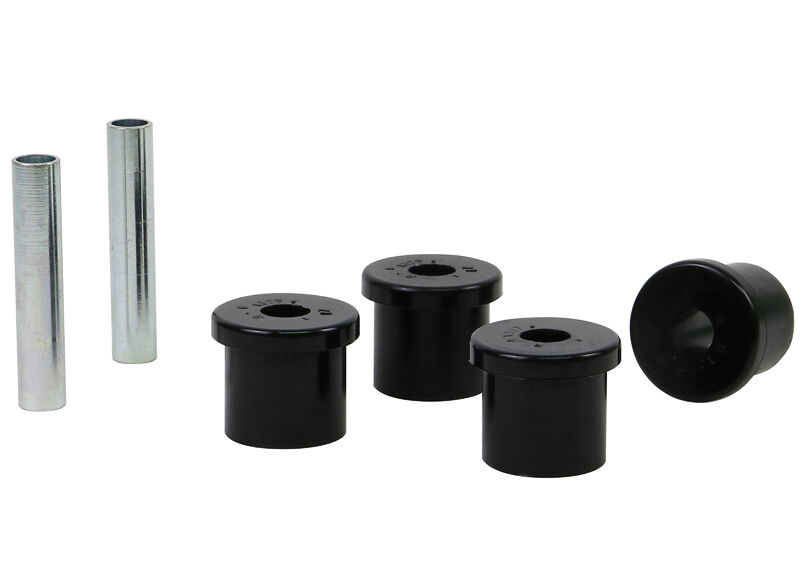

Whiteline Rear Leaf Spring - Bushing Kit to Suit Chrysler Valiant and Nissan 260C, 280C

SKU: W71377

Benefit Note: A critical service item for any leaf sprung vehicle. High kilometres and heavy load carrying causes excessive wear on rubber bushings. Whiteline's signature black bushings are made tough and offer outstanding abrasion resistance, high load bearing capability (4WD's, utes and towing), flexibility, increased tensile strength and chemical resistance to oil, grease, ozone and weathering.


Kit Specifications

Bush Type 1 - Shackle Bushing
Bush Quantity 4 mm
OD (A) 35.5 mm
ID (B) 14.4 mm
Length (C) 35.5 mm
Flange Thickness (D) 7.2 mm
Flange OD (E)
C/Tube Quantity 2
C/Tube ODxIDxL 14.4x11x76 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

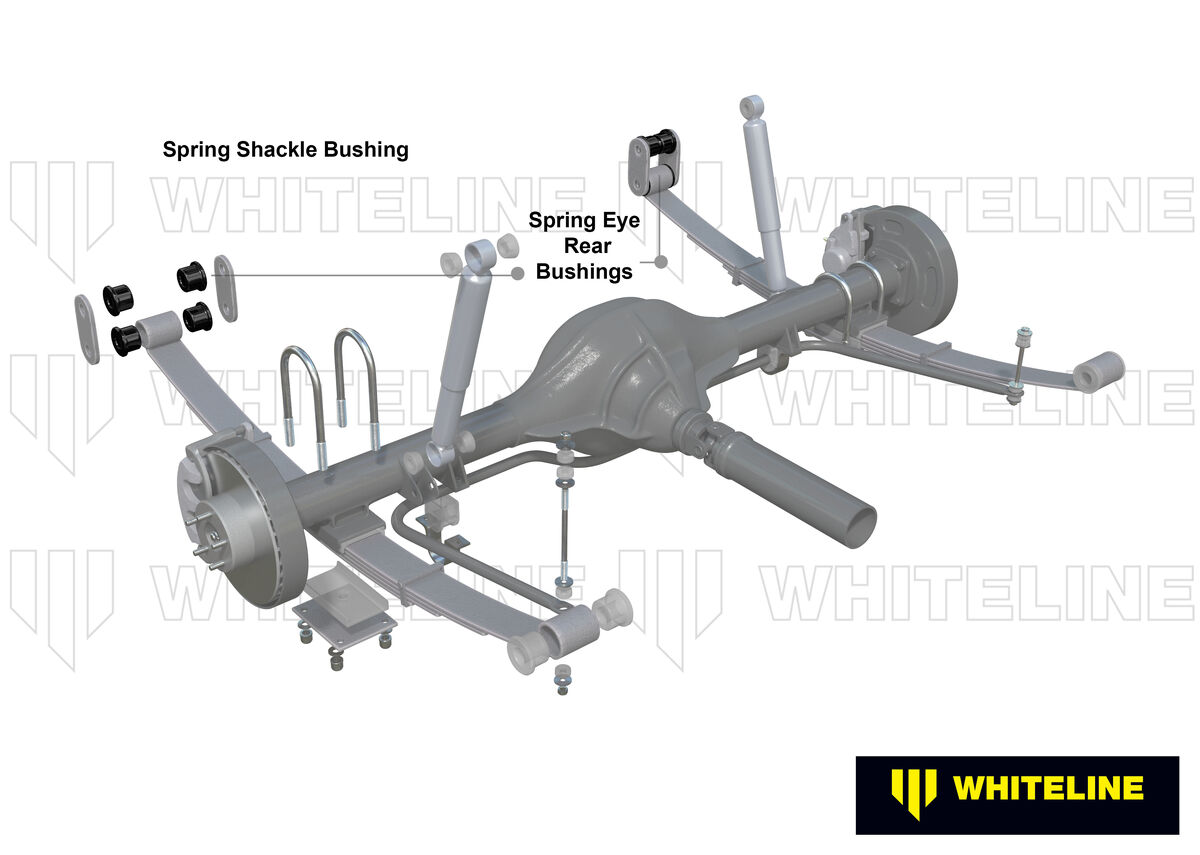

Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 1
QTY 4
OD (A) 35.5
ID (B) 14.4
Length (C) 35.5
FL (D) 7.2
FLOD (E)
C/Tube Qty 2
C/Tube Size 14.4x11x76
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.256kg0.56lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW71377

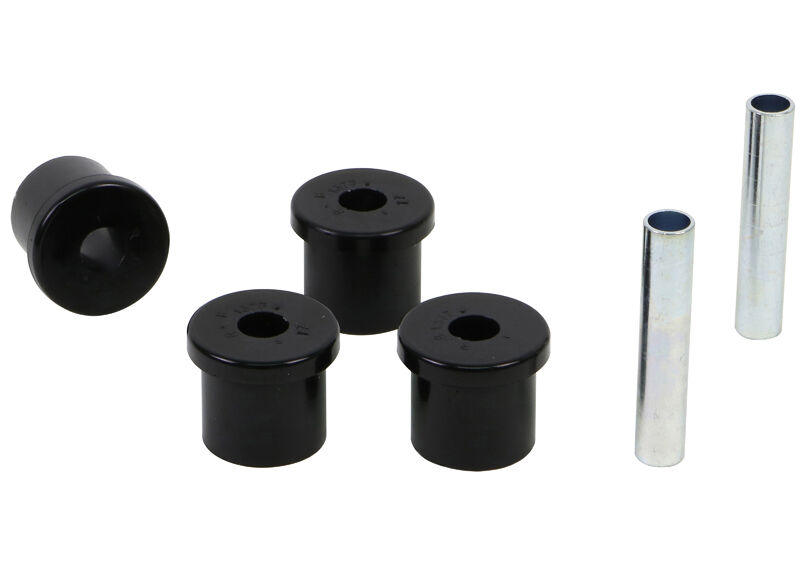

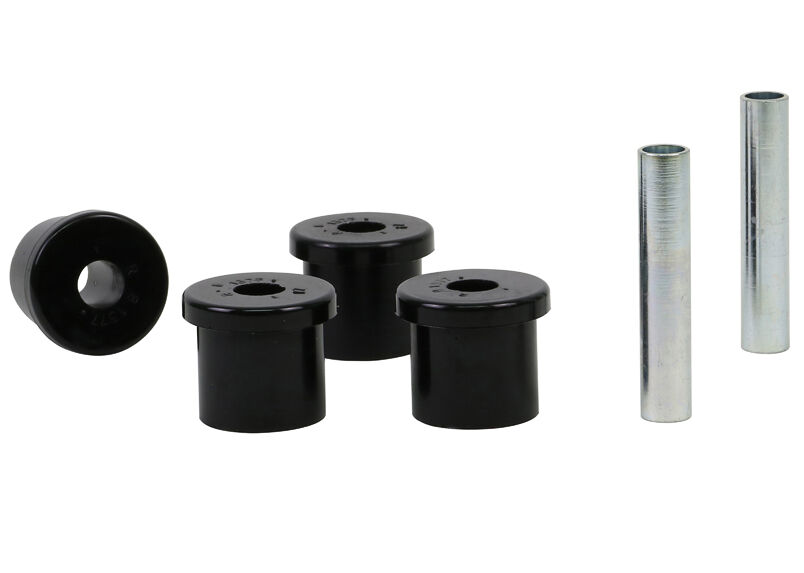

Components Per4 Bushings, 2 Tubes
Kits Required1
Sub brandReplacement
Product NoteBalances comfort with performance while minimising noise and vibrations; the perfect, complete upgrade. Includes: 4 Bushings & 2 Tubes
EAN9319924355518
  • Lifetime Warranty
Brand Whiteline
SKU W71377
Unit Of Measure Kit
