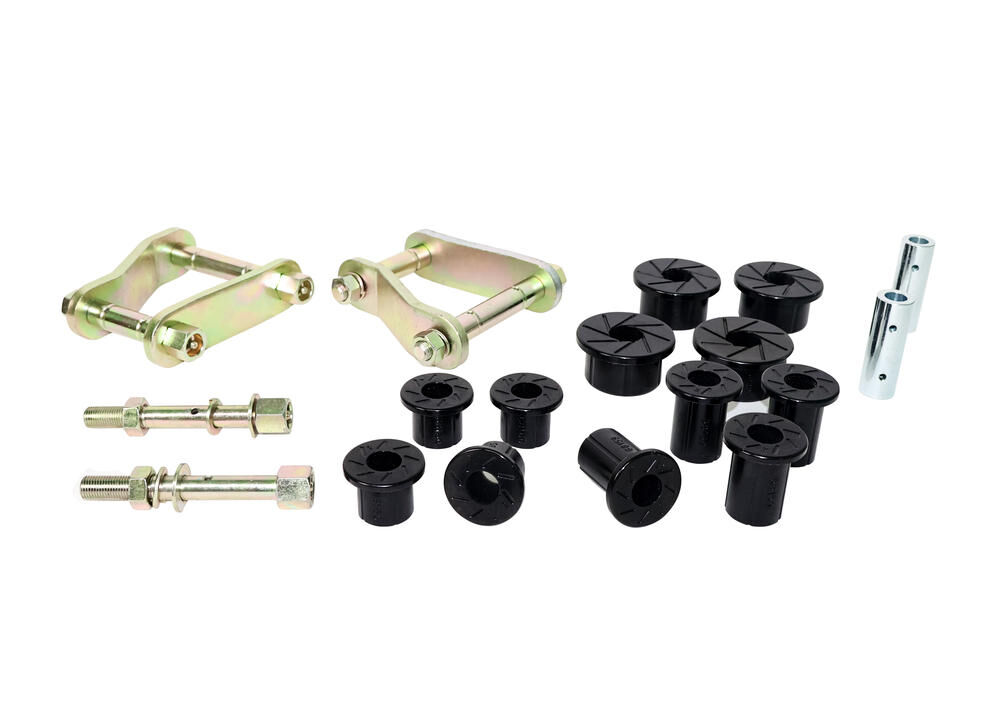

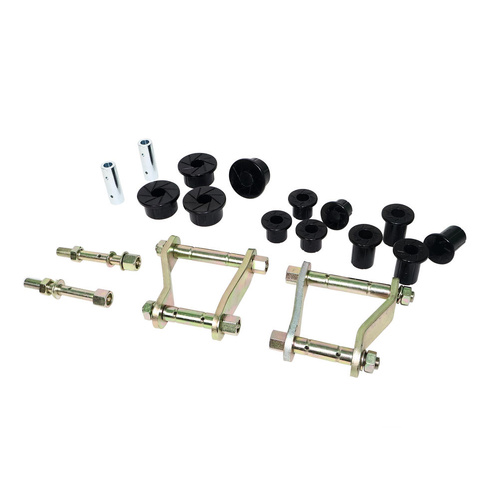

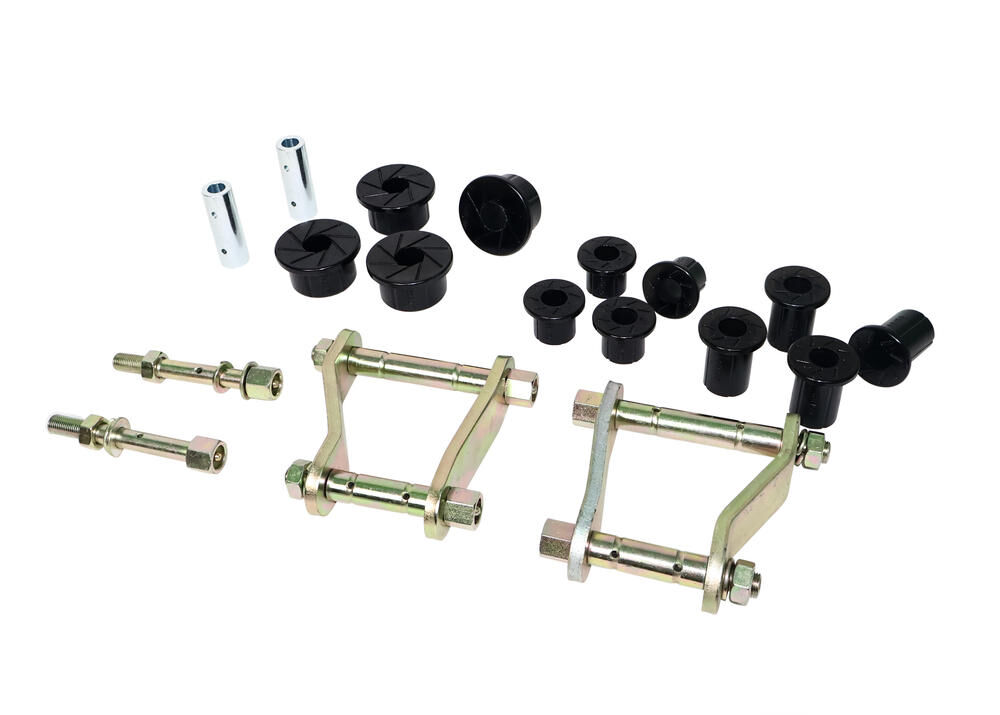

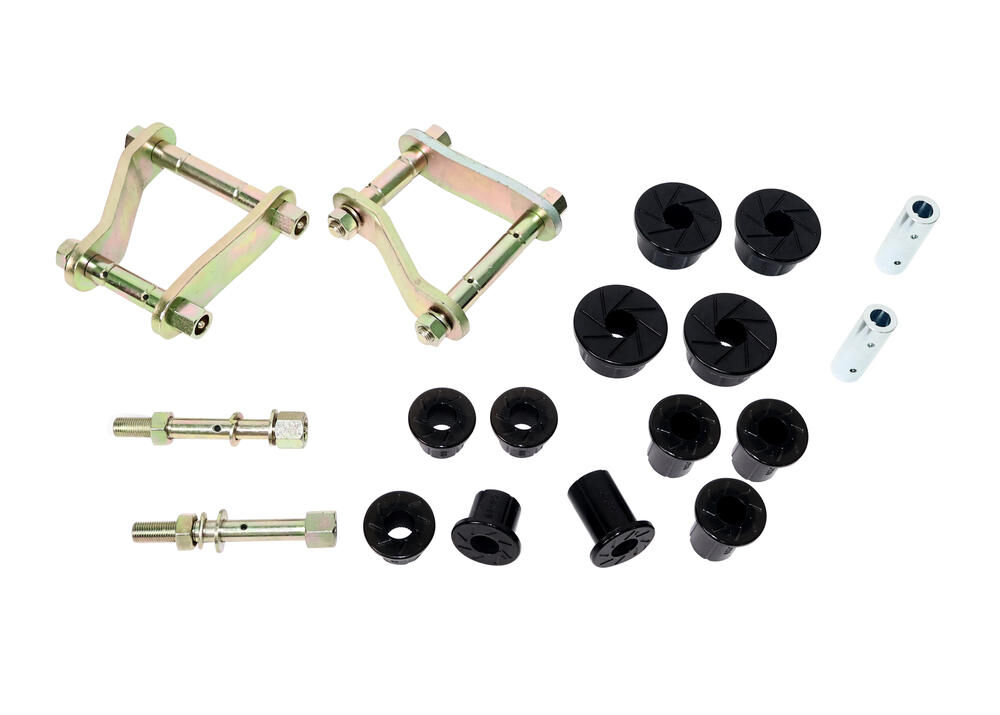

Kit Contains:

Greaseable Fixed Pins, Greaseable Shackles, W73392, W73395 and W73396 - essential to 'Activate More grip'

• Rear Spring - Greaseable Fixed Pin Kit
• Rear Spring - Greaseable Shackle Kit
• Rear Spring - Front Eye Bushing Kit
• Rear Spring - Rear Eye Bushing Kit
• Rear Spring - Shackle Bushing Kit

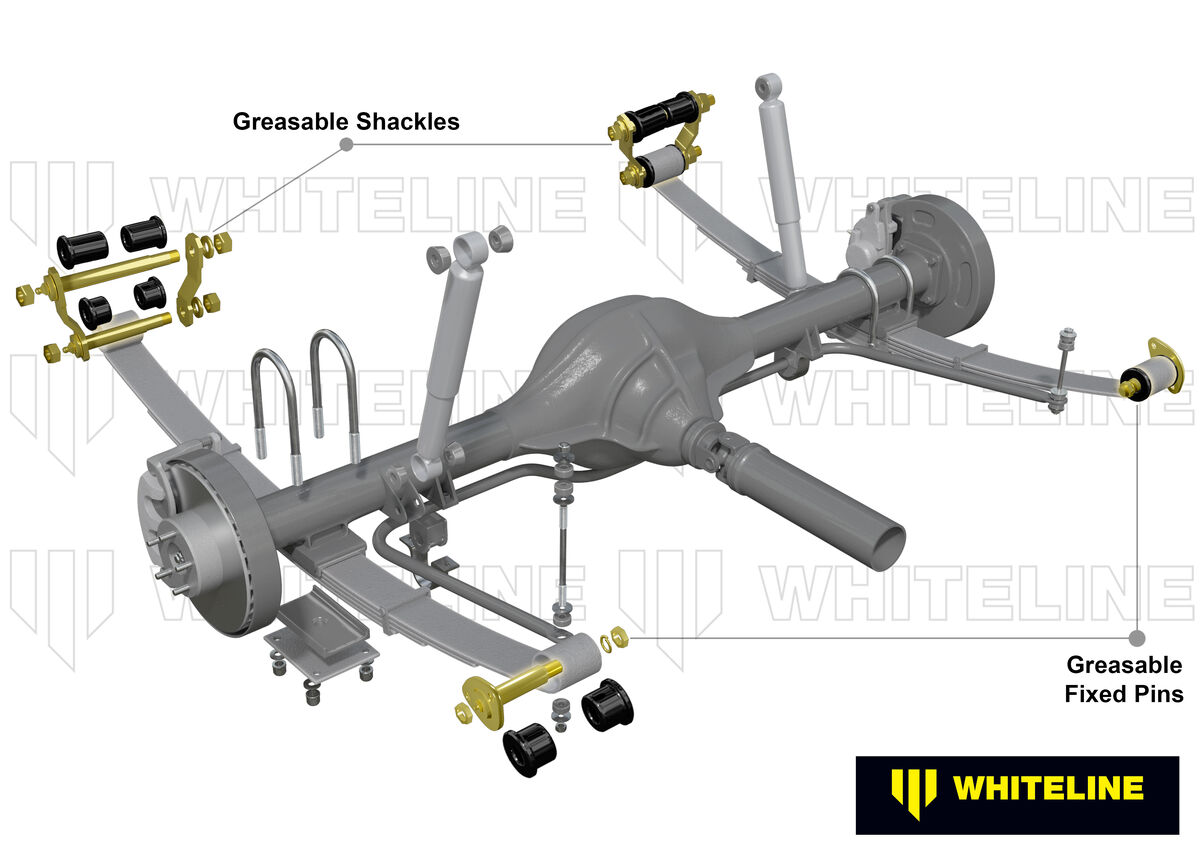

The Shackles and Fixed Pins are often overlooked when upgrading the suspension of a 4WD. By fitting the complete package of Greasable Shackles, Fixed Pins and Bushing kit the rear end of any 4WD will handle just about anything that is throw at it! Benefit Note: The Shackles and Fixed Pins are often overlooked when upgrading the suspension of a 4WD. Original shackles and fixed pins corrode and destroy the bushings and it is the leaf spring bushings that stabilise the movement of the rear axle. Worn or inferior bushes in this area will cause the solid rear axle to move and impart rear end passive steer to the vehicle leading to the vehicle 'wandering' all over the road and be unstable under heavy braking. This can be especially noticeable carrying a load or towing a boat or caravan. By fitting the complete package of Whiteline Greaseable Shackles, Fixed Pins and Bushing kit the rear end of any 4WD will handle just about anything that is throw at it!

Kit Specifications

Bush Type	20 - Misc
Bush Quantity	2 mm
OD (A)
ID (B)
Length (C)
Flange Thickness (D)
Flange OD (E)
C/Tube Quantity
C/Tube ODxIDxL
Similar Bushing Size	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

Units	cm/kg	in/lbs
Weight	4.56kg	10.05lbs
Length	38cm	14.96"
Width	20cm	7.87"
Height	9cm	3.54"

Misc. Product Information

More Information

SKU	WEK114
Components Per	2 Shackles, 2 Pins, 12 Bushings, 4 Tubes
Kits Required	1
Sub brand	Performance
Product Note	Let your vehicle handle anything you throw at it with a complete greaseable shackle and fixed pin upgrade to activate more grip. Includes: Rear Spring Greaseable Fixed Pin and Shackle Kits, Rear Spring Front Eye, Rear Eye and Shackle Bushing Kits.
EAN	9319924464548
