Whiteline Rear Differential Mount - Rear Bushing Kit to Suit Mazda MX-5 NC and RX-8 FE

SKU: W93394

Benefit Note: Whiteline's differential bushing solutions ensure pinion angles are maintained while delivering an improved gear shift resulting in reduced initial torque loss and greater power transfer to the wheels.

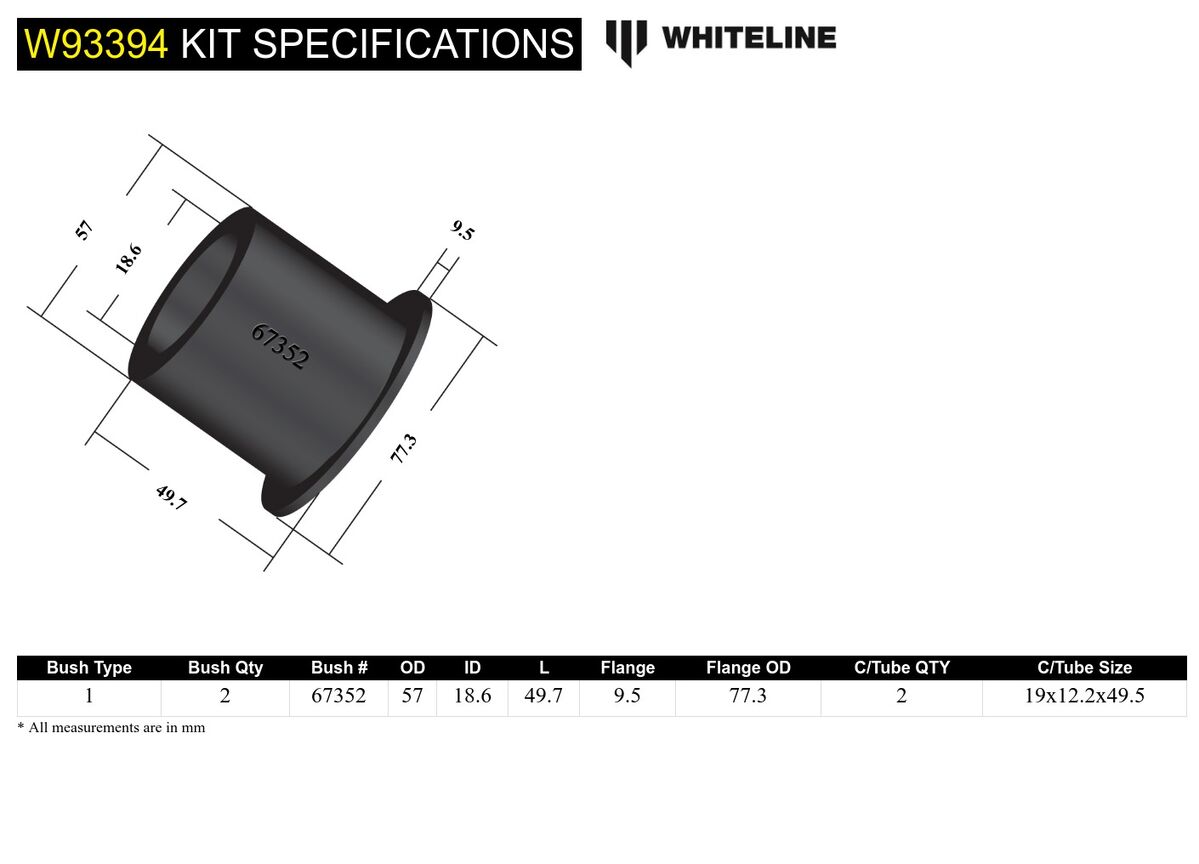

Kit Specifications

Bush Type 1 - Shackle Bushing
Bush Quantity 2 mm
OD (A) 57 mm
ID (B) 18.6 mm
Length (C) 49.7 mm
Flange Thickness (D) 9.5 mm
Flange OD (E) 77.3 mm
C/Tube Quantity 2
C/Tube ODxIDxL 19x12.2x49.5 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 1
QTY 2
OD (A) 57
ID (B) 18.6
Length (C) 49.7
FL (D) 9.5
FLOD (E) 77.3
C/Tube Qty 2
C/Tube Size 19x12.2x49.5
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.376kg0.83lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW93394

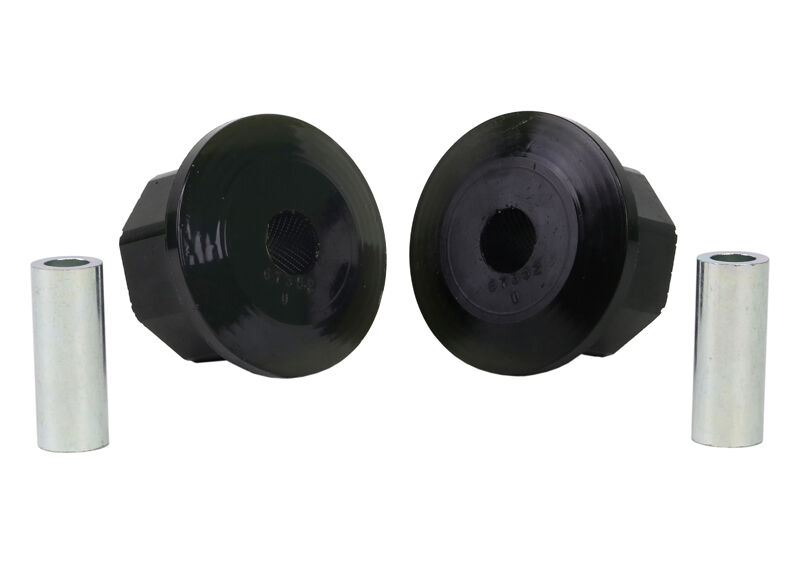

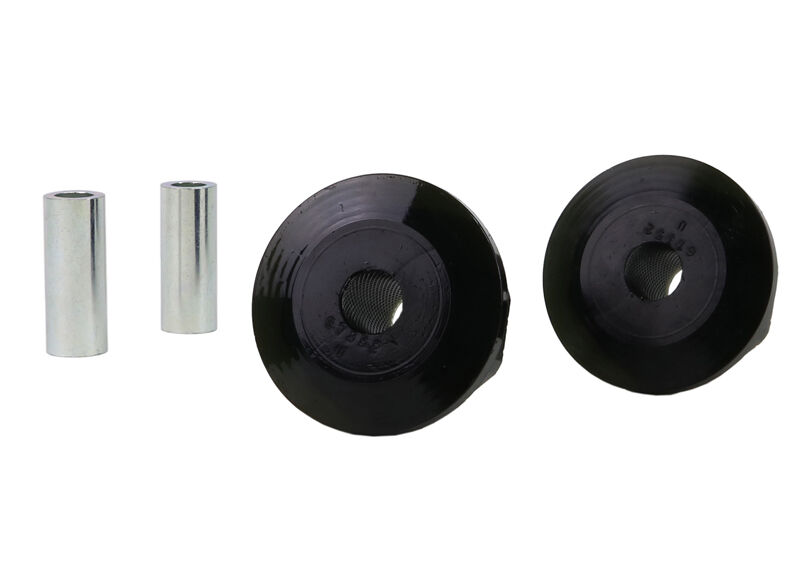

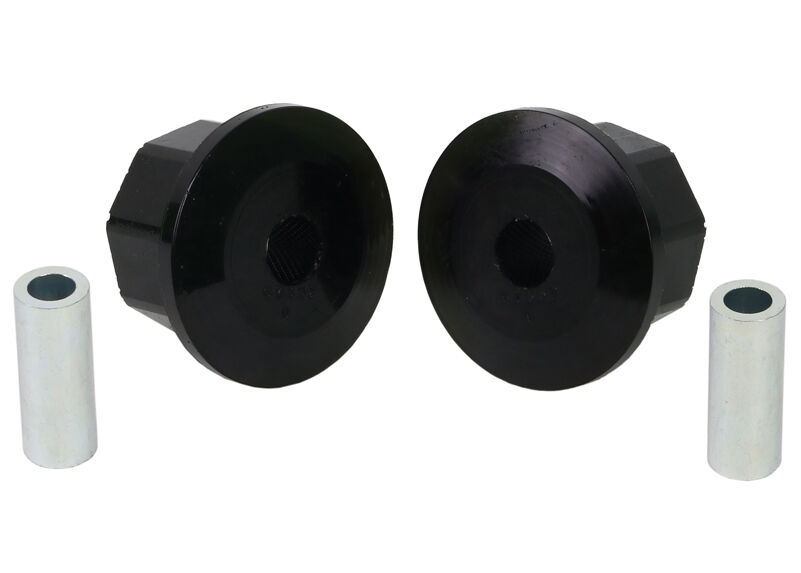

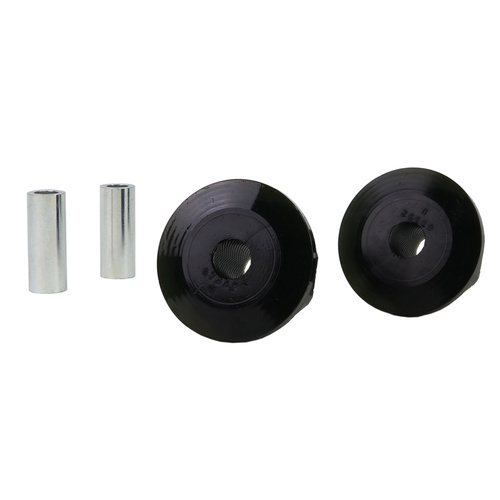

Components Per2 Bushings, 2 Tubes
Kits Required1
Sub brandReplacement
Product NoteBalances comfort with performance while minimising noise and vibrations; the perfect, complete upgrade. Includes: 2 Bushings & 2 Tubes
EAN9319924383382
  • Lifetime Warranty
Brand Whiteline
SKU W93394
Unit Of Measure Kit
