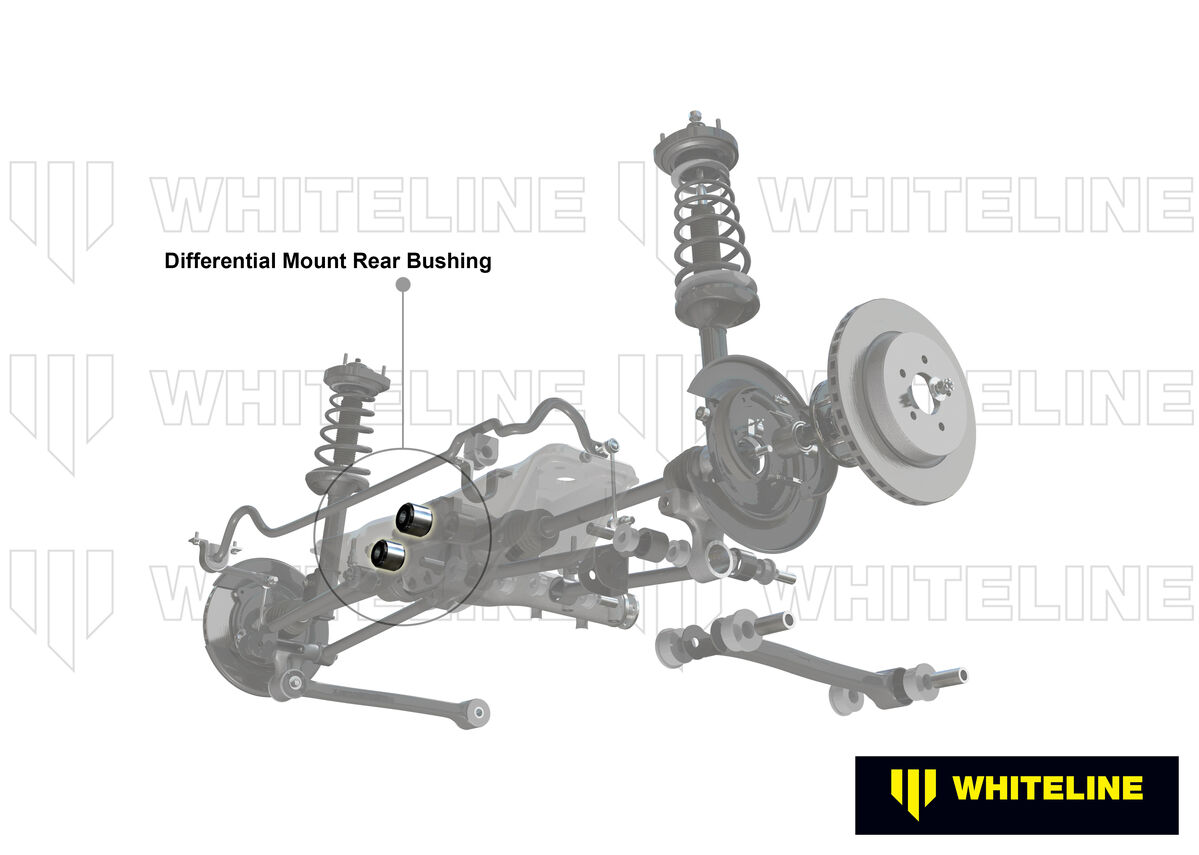

Whiteline Rear Differential Mount - Rear Bushing Kit to Suit Subaru Impreza GD incl WRX/STi

SKU: W92835

Benefit Note: Whiteline's differential bushing solutions ensure pinion angles are maintained while delivering an improved gear shift resulting in reduced initial torque loss and greater power transfer to the wheels.


Kit Specifications

Bush Type 16 - Shell Without Flange Bushing
Bush Quantity 2 mm
OD (A) 54.8 mm
ID (B) 19 mm
Length (C) 47.3 mm
Flange Thickness (D) 7 mm
Flange OD (E) 50 mm
C/Tube Quantity 2
C/Tube ODxIDxL 19x14.3x47 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 16 - Shell Without Flange Bushing

Bushing Design Dimensions (mm)

Bush Type 16
QTY 2
OD (A) 54.8
ID (B) 19
Length (C) 47.3
FL (D) 7
FLOD (E) 50
C/Tube Qty 2
C/Tube Size 19x14.3x47
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 16

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.42kg0.93lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW92835

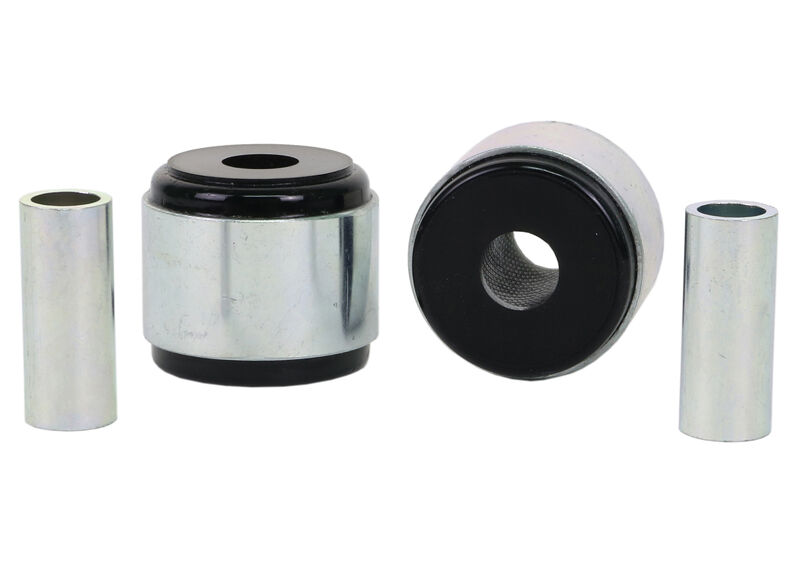

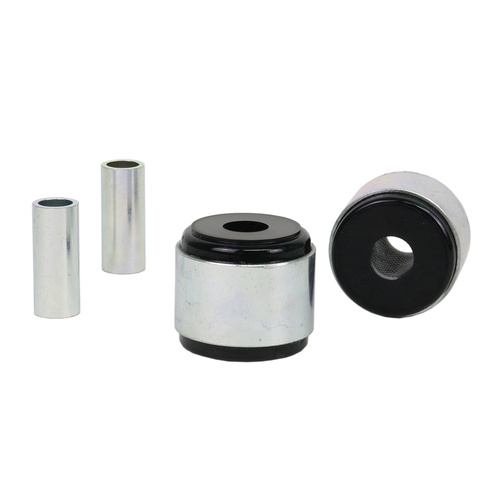

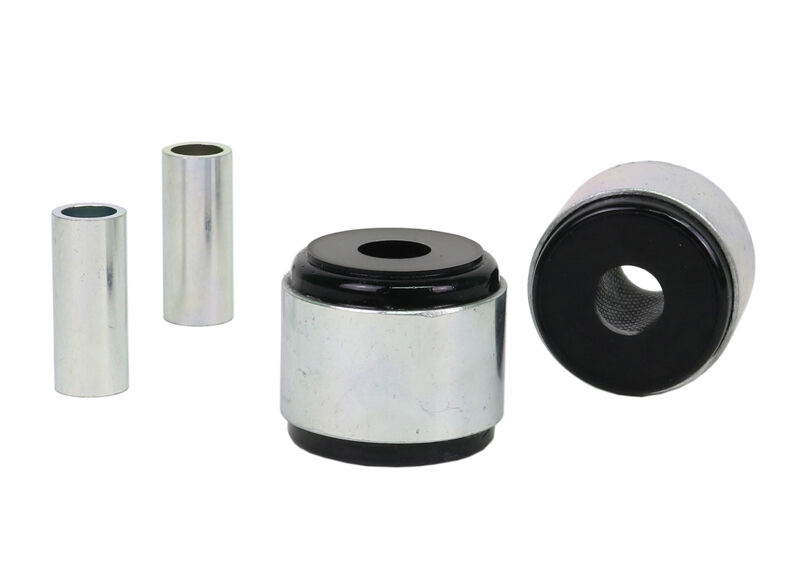

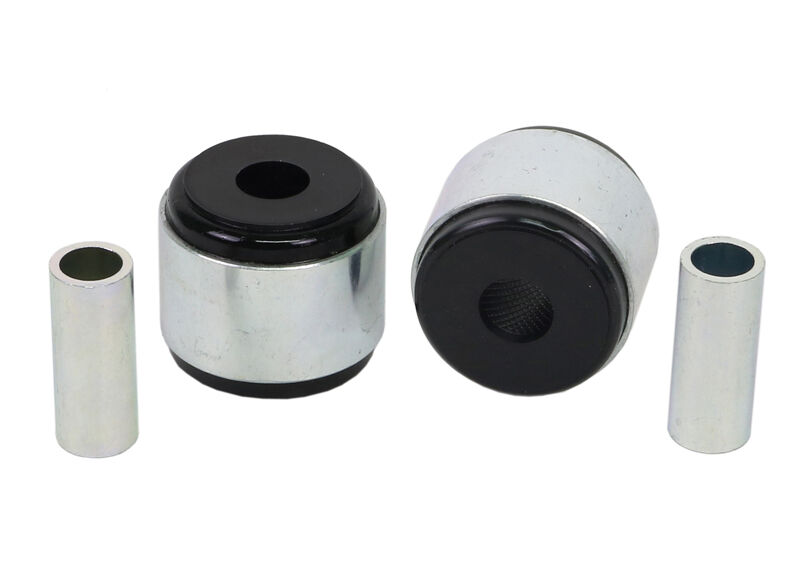

Components Per2 Shell Bushings, 2 Tubes
Kits Required1
Sub brandReplacement
Product NoteMaximises grip and stability for better control; the perfect, complete upgrade. Includes: 2 Shell Bushings & 2 Tubes
EAN9319924358137
  • Lifetime Warranty
Brand Whiteline
SKU W92835
Unit Of Measure Kit
