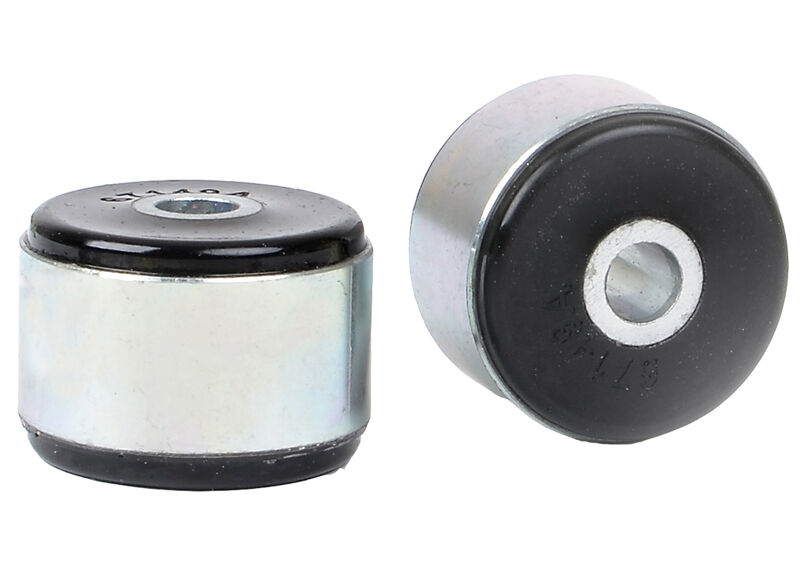

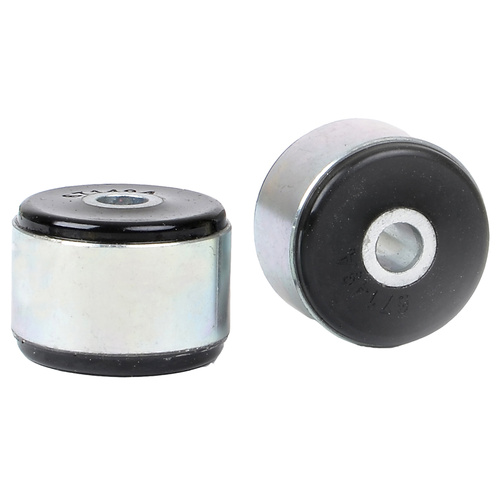

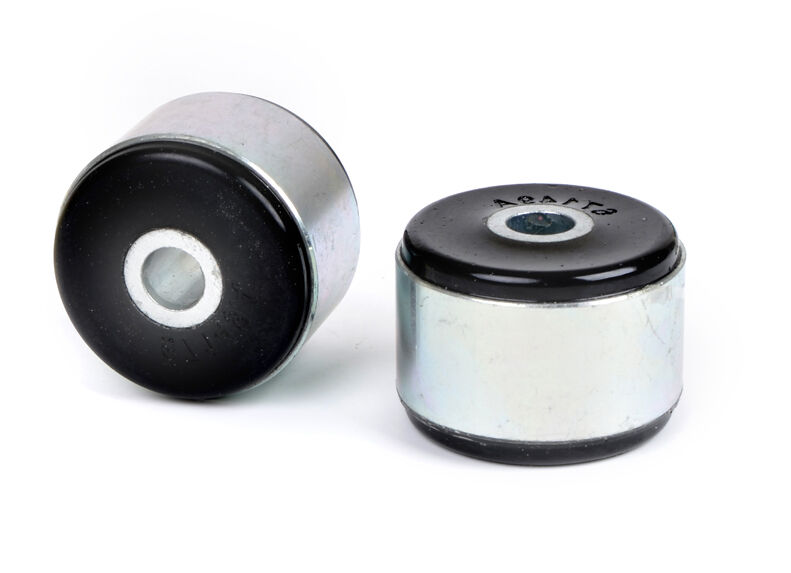

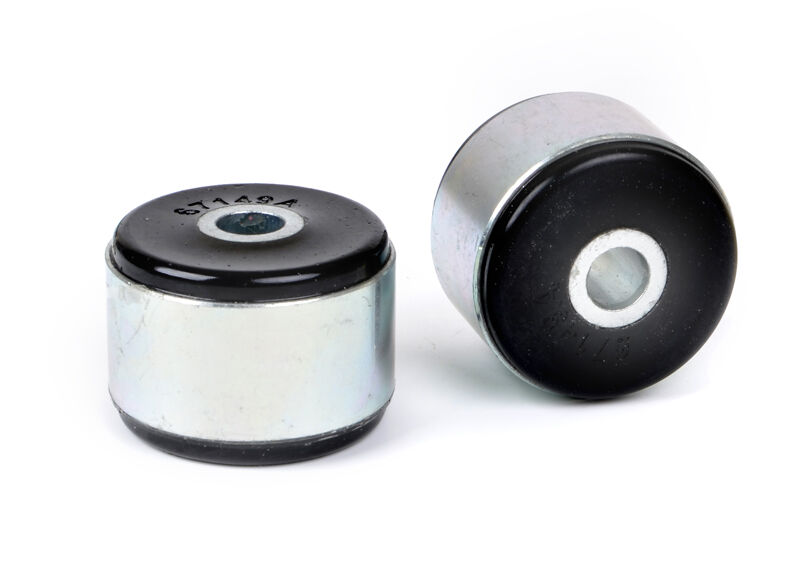

Whiteline Rear Differential Mount - Rear Bushing Kit to Suit Subaru Forester, Impreza WRX/STi, Levorg, Liberty and Outback

SKU: KDT940

Benefit Note: Whiteline's differential bushing solutions ensure pinion angles are maintained while delivering an improved gear shift resulting in reduced initial torque loss and greater power transfer to the wheels.


Kit Specifications

Bush Type 16 - Shell Without Flange Bushing
Bush Quantity 2 mm
OD (A) 60 mm
ID (B) 14.2 mm
Length (C) 42.2 mm
Flange Thickness (D) 5 mm
Flange OD (E)
C/Tube Quantity
C/Tube ODxIDxL
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 16 - Shell Without Flange Bushing

Bushing Design Dimensions (mm)

Bush Type 16
QTY 2
OD (A) 60
ID (B) 14.2
Length (C) 42.2
FL (D) 5
FLOD (E)
C/Tube Qty
C/Tube Size
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 16

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.23kg0.51lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUKDT940
Components Per2 Shell Bushings
Kits Required1
Sub brandPerformance
Product NoteCreates a consistent drive no matter the surface; the perfect, complete upgrade. Includes: 2 Shell Bushings
EAN9319924402632
  • 3 years warranty or up to 60,000km
Brand Whiteline
SKU KDT940
Unit Of Measure Kit
