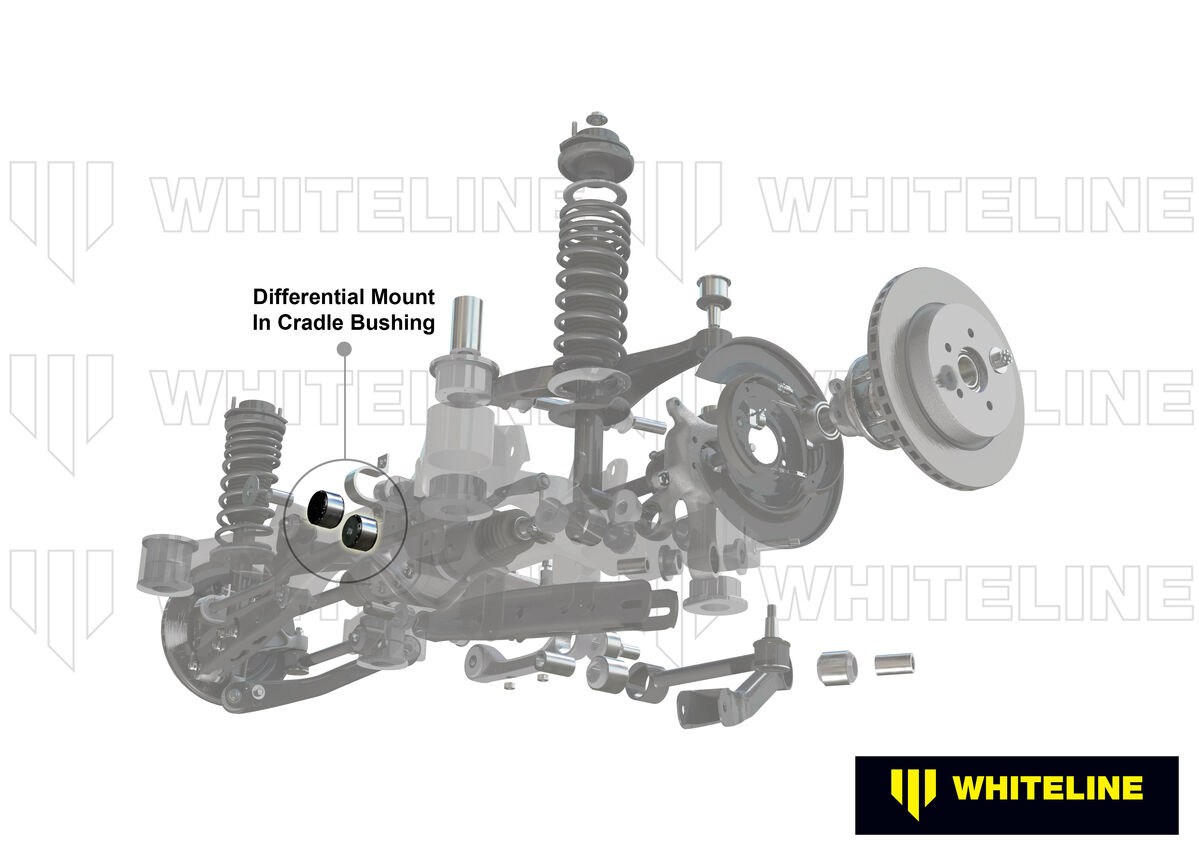

Whiteline Rear Differential Mount - Rear Bushing Kit to Suit Subaru Forester, Impreza, Levorg, Liberty and XV

SKU: KDT906

Benefit Note: Whiteline's differential bushing solutions ensure pinion angles are maintained while delivering an improved gear shift resulting in reduced initial torque loss and greater power transfer to the wheels.


Kit Specifications

Bush Type 16 - Shell Without Flange Bushing
Bush Quantity 2 mm
OD (A) 60 mm
ID (B) 24.7 mm
Length (C) 38.2 mm
Flange Thickness (D) 3.85 mm
Flange OD (E) 57.2 mm
C/Tube Quantity 2
C/Tube ODxIDxL 25x14.3x38 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 16 - Shell Without Flange Bushing

Bushing Design Dimensions (mm)

Bush Type 16
QTY 2
OD (A) 60
ID (B) 24.7
Length (C) 38.2
FL (D) 3.85
FLOD (E) 57.2
C/Tube Qty 2
C/Tube Size 25x14.3x38
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 16

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.6895kg1.52lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUKDT906

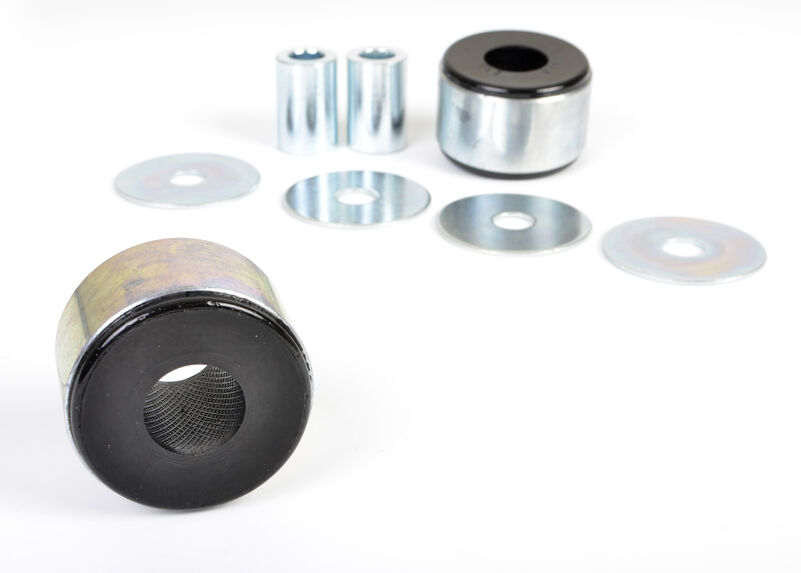

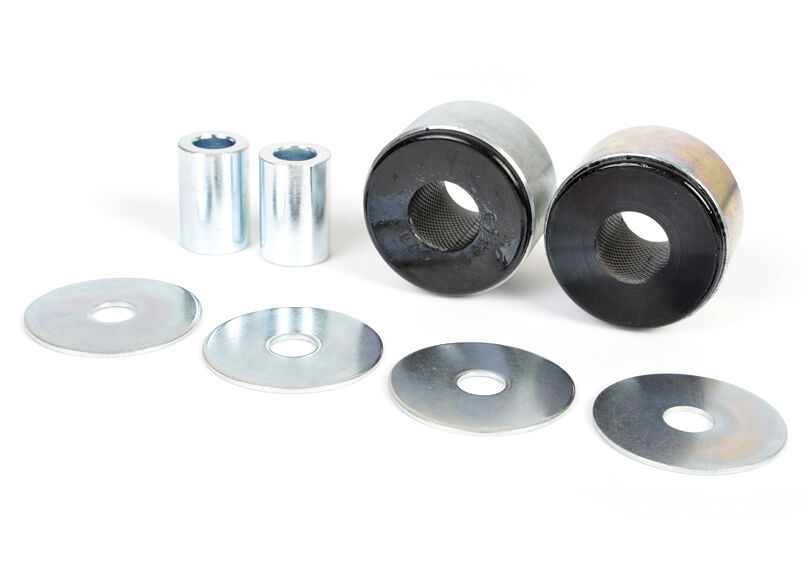

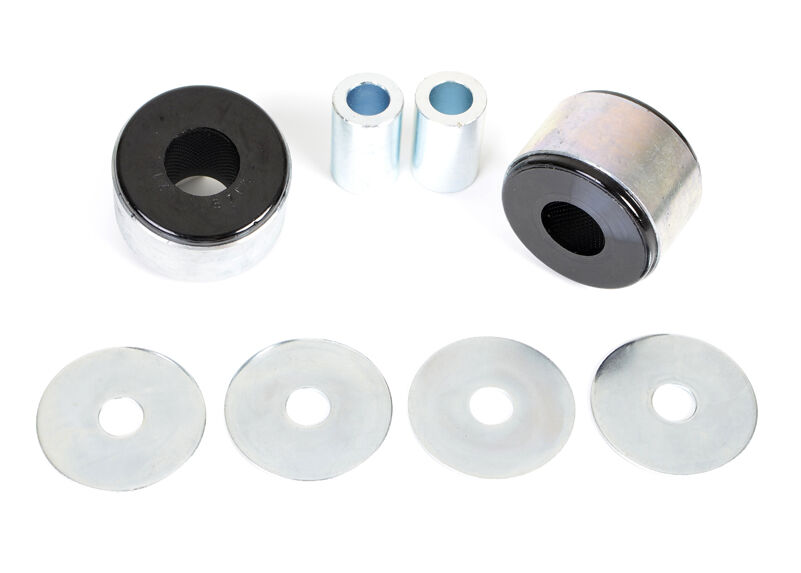

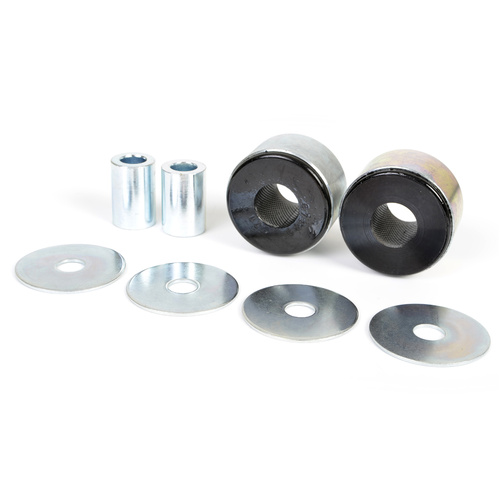

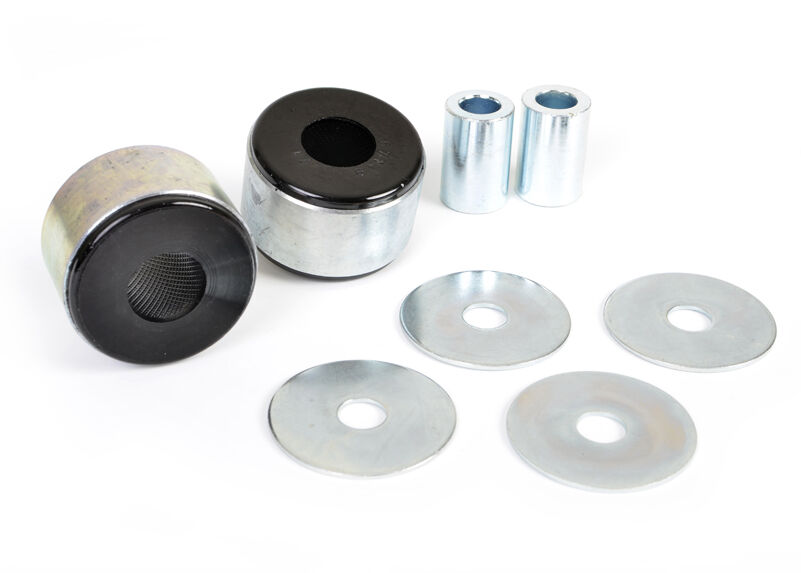

Components Per2 Shell Bushings, 2 Tubes, 4 Washers
Kits Required1
Sub brandPerformance
Product NoteMaximises grip and stability for better control; the perfect, complete upgrade. Includes: 2 Shell Bushings, 2 Tubes & 4 Washers
EAN9319924377381
  • Lifetime Warranty
Brand Whiteline
SKU KDT906
Unit Of Measure Kit
