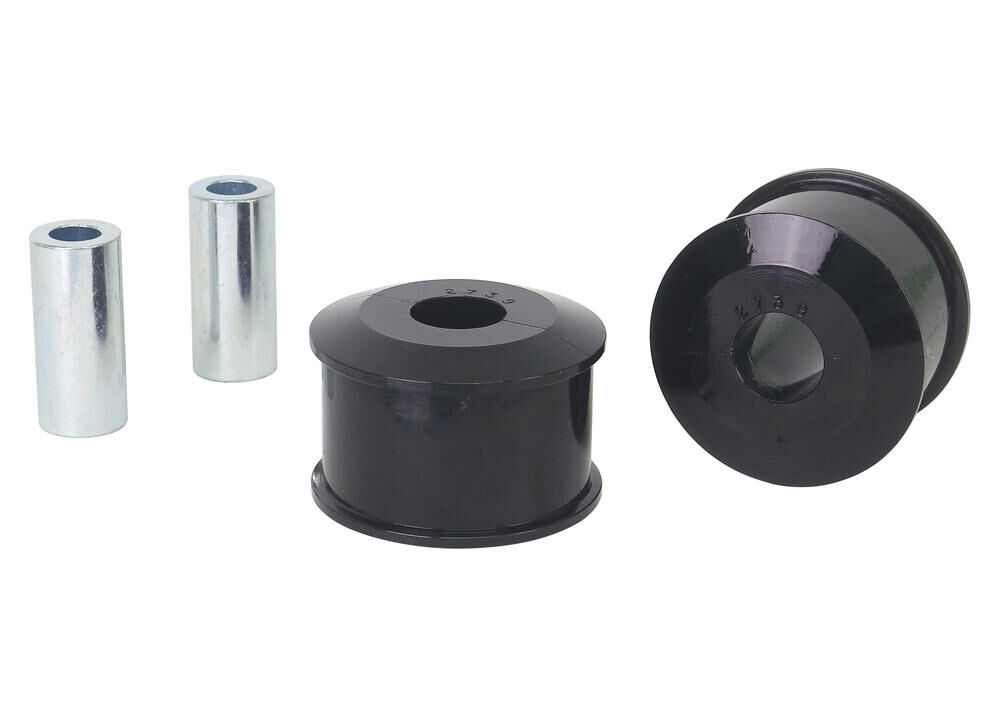

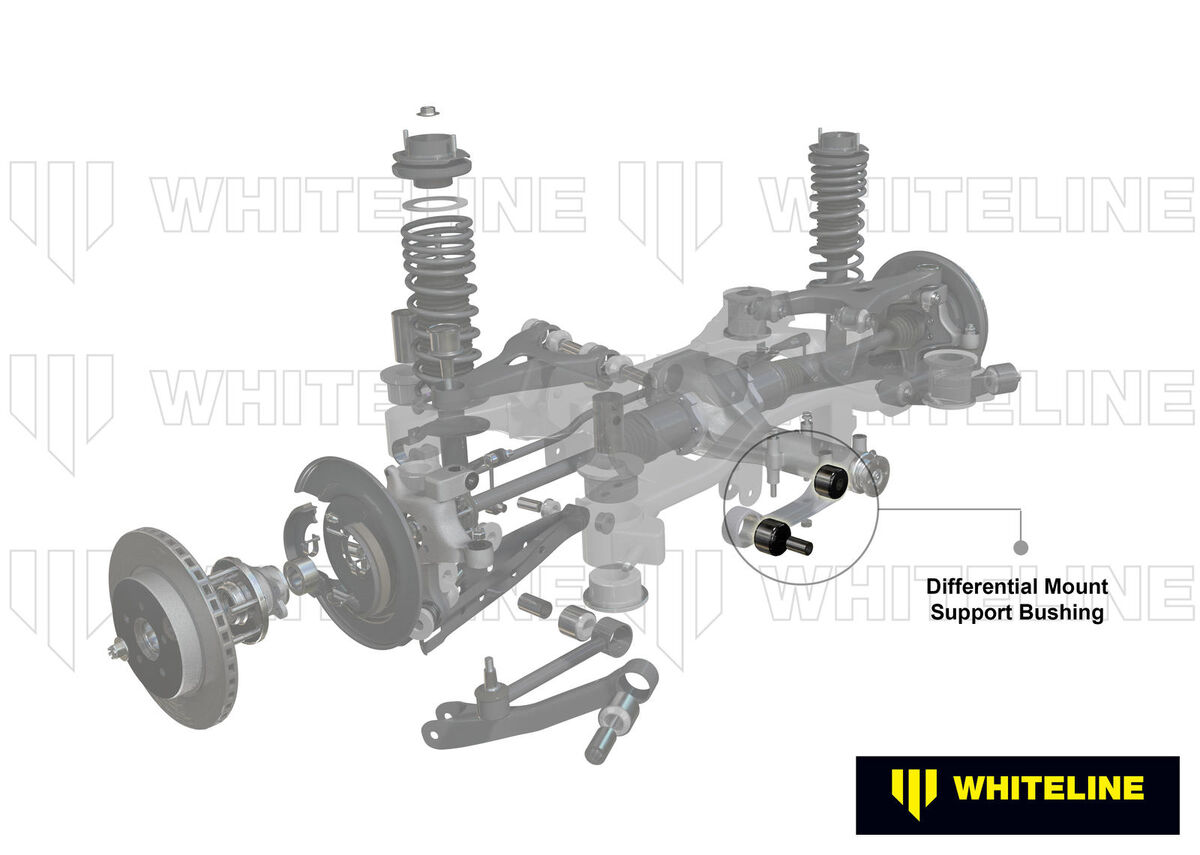

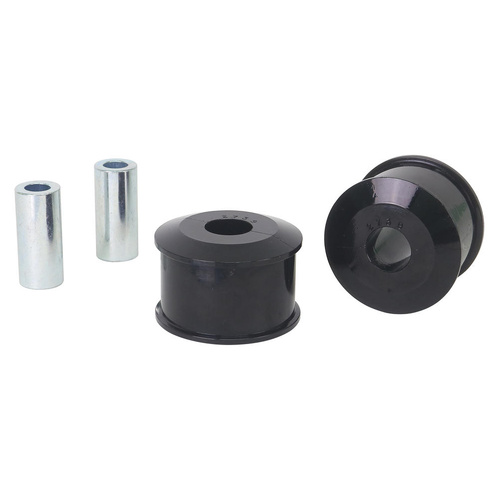

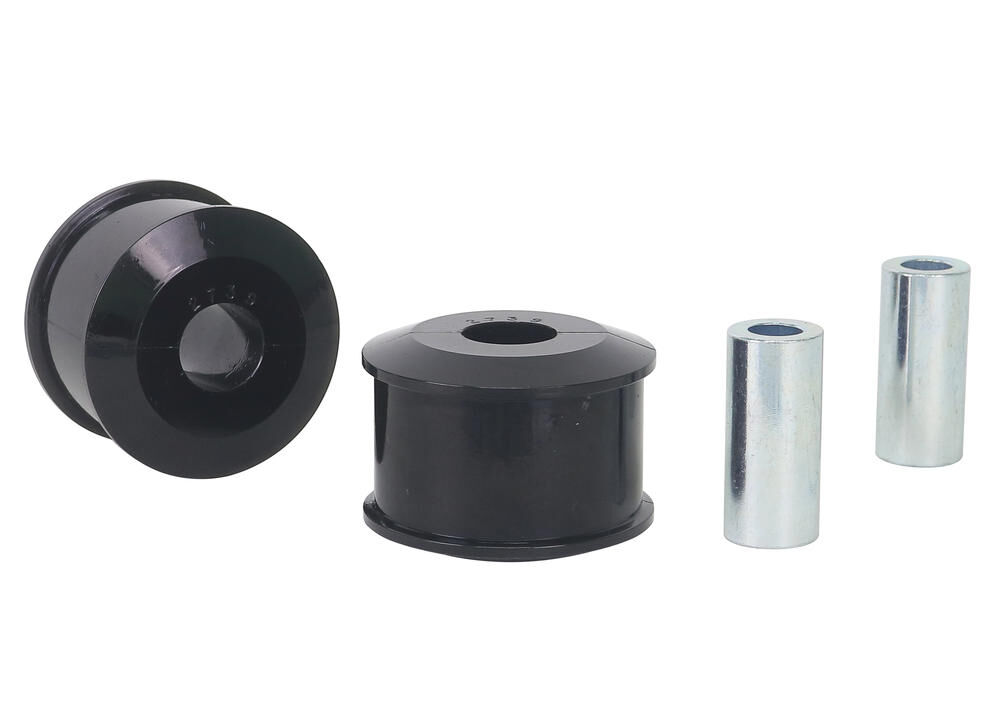

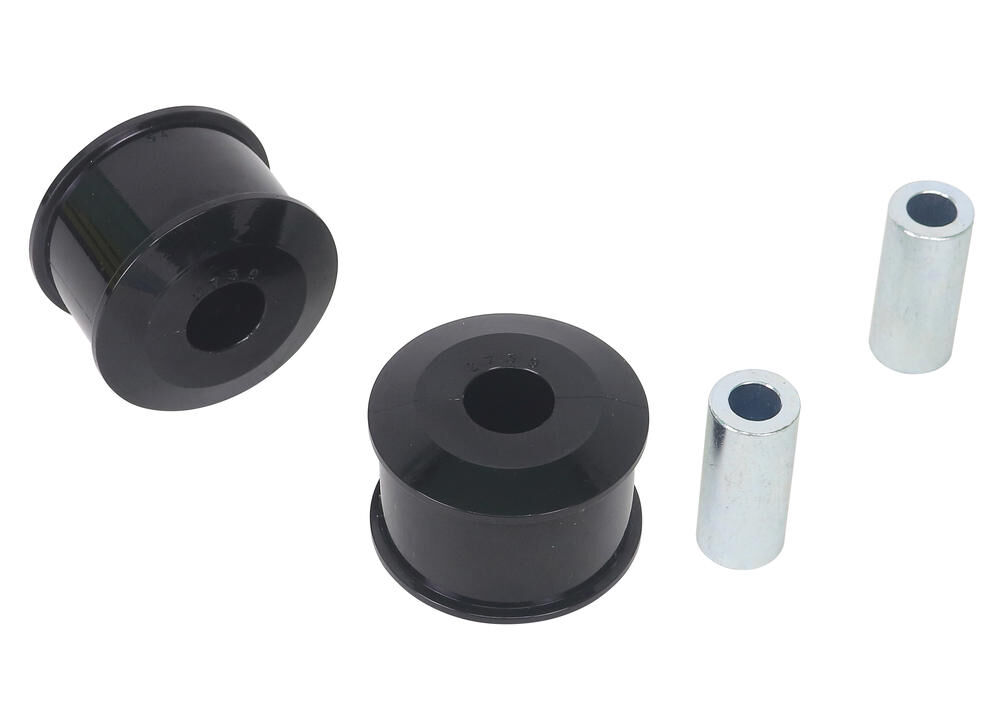

Whiteline Rear Differential Mount - Front Bushing Kit to Suit Mitsubishi Pajero NM-NX

SKU: W93422

Benefit Note: Whiteline's differential bushing solutions ensure pinion angles are maintained while delivering an improved gear shift resulting in reduced initial torque loss and greater power transfer to the wheels.

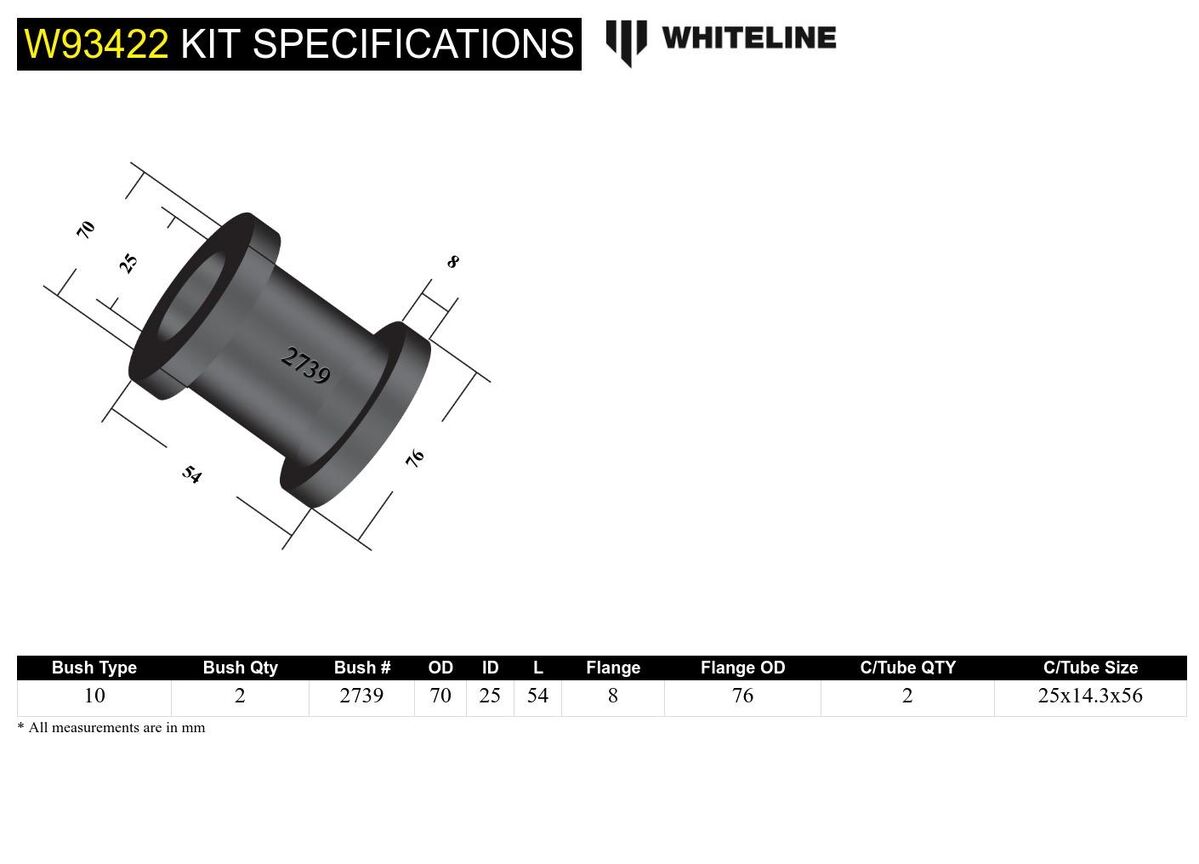

Kit Specifications

Bush Type 10 - Cotton Reel With & Without Tapper Bushing
Bush Quantity 2 mm
OD (A) 70 mm
ID (B) 25 mm
Length (C) 54 mm
Flange Thickness (D) 8 mm
Flange OD (E) 76 mm
C/Tube Quantity 2
C/Tube ODxIDxL 25x14.3x56 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 10 - Cotton Reel With & Without Tapper Bushing

Bushing Design Dimensions (mm)

Bush Type 10
QTY 2
OD (A) 70
ID (B) 25
Length (C) 54.0
FL (D) 8
FLOD (E) 76
C/Tube Qty 2
C/Tube Size 25x14.3x56
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 10

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.621kg1.37lbs
Length10cm3.94"
Width26cm10.24"
Height16cm6.3"

Misc. Product Information

More Information
SKUW93422
Components Per4 Bushings, 2 Tubes
Kits Required1
Sub brandReplacement
Product NoteCreates a consistent drive no matter the surface; the perfect, complete upgrade. Includes: 4 Bushings & 2 Tubes
EAN9319924402670
  • Lifetime Warranty
Brand Whiteline
SKU W93422
Unit Of Measure Kit
