Whiteline Rear Differential Mount - Front Bushing Kit to Suit Ford Falcon/Fairlane BA-FGX, Territory SX-SZ and FPV

SKU: W93402

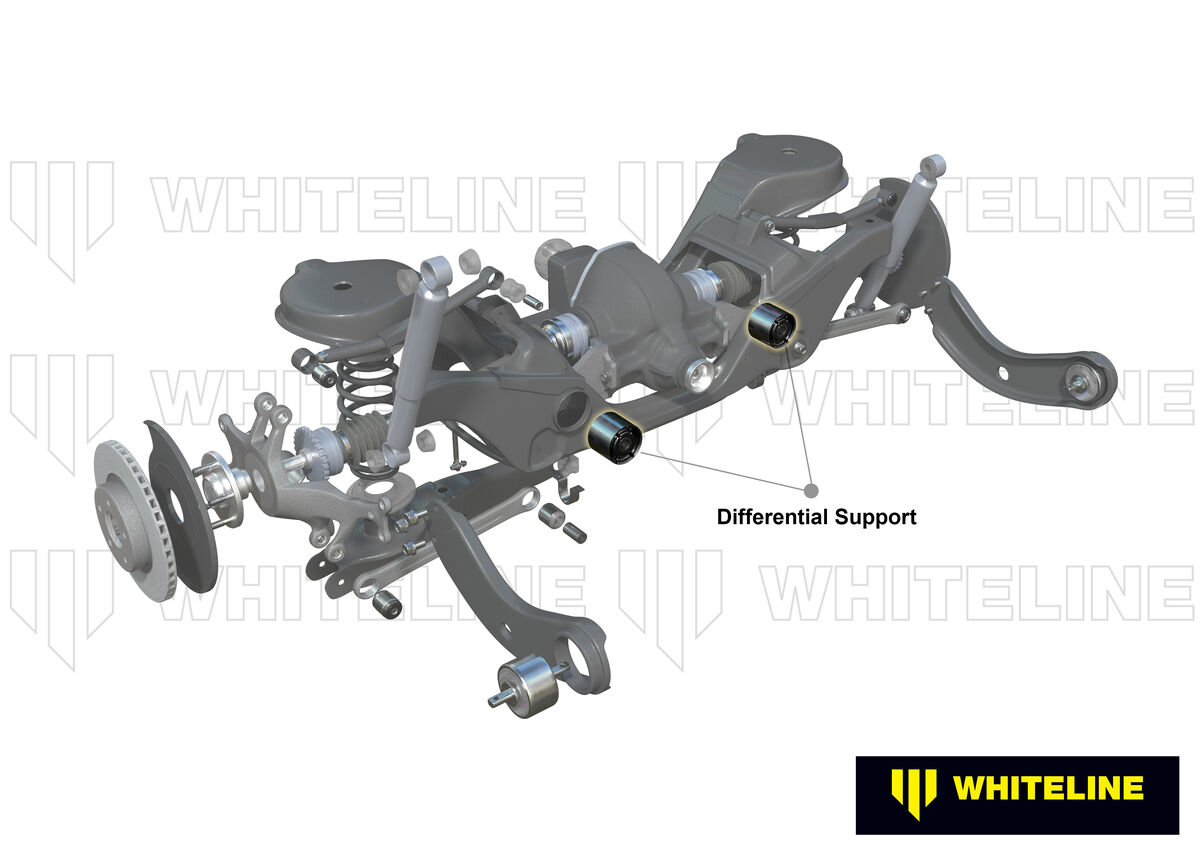

Benefit Note: Critical service item for the rear suspension. Whiteline's direct replacement differential solution replaces the OEM high wearing front mounts on the rear of the Falcon/ Territory differential. Steel cased design and dampening zones ensures optimum performance and superior durability to original equipment.


Kit Specifications

Bush Type 1 - Shackle Bushing
Bush Quantity 4 mm
OD (A) 71.8 mm
ID (B) 23.8 mm
Length (C) 29.5 mm
Flange Thickness (D) 1.8 mm
Flange OD (E) 78 mm
C/Tube Quantity 2
C/Tube ODxIDxL 24x14x45 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 1
QTY 4
OD (A) 71.8
ID (B) 23.8
Length (C) 29.5
FL (D) 1.8
FLOD (E) 78
C/Tube Qty 2
C/Tube Size 24x14x45
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.992kg2.19lbs
Length10cm3.94"
Width26cm10.24"
Height16cm6.3"

Misc. Product Information

More Information
SKUW93402

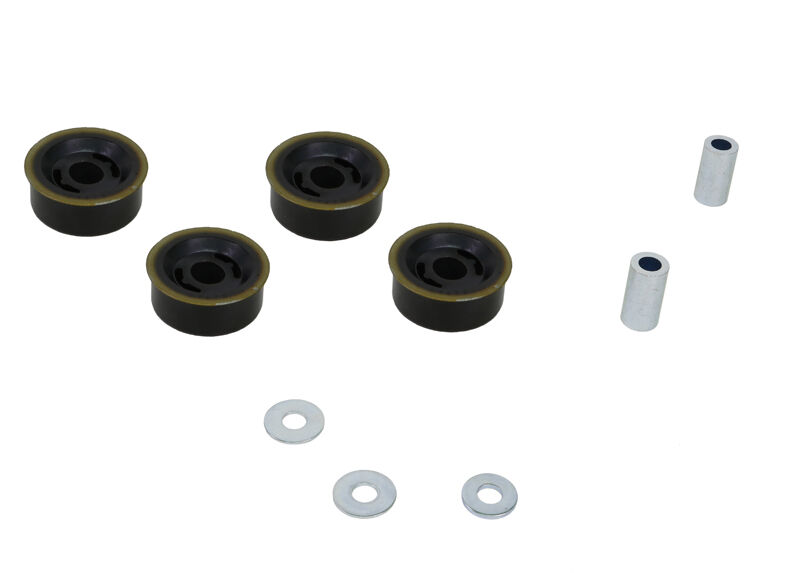

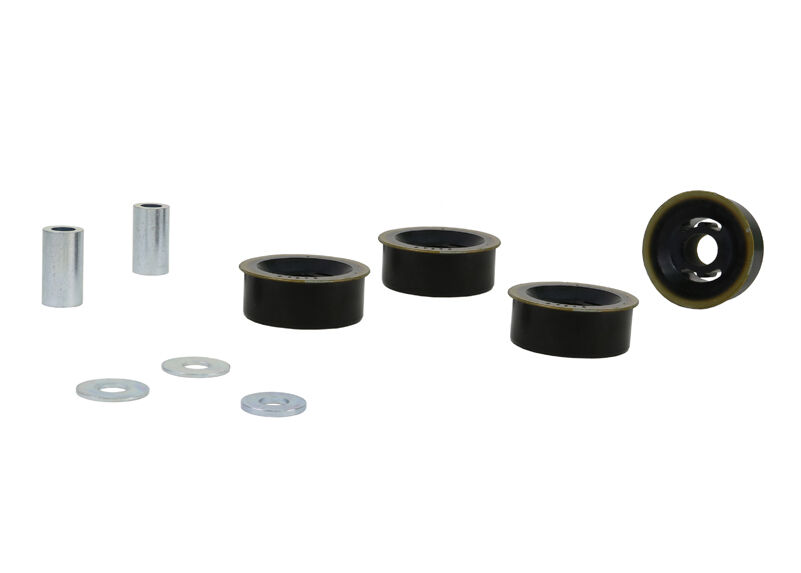

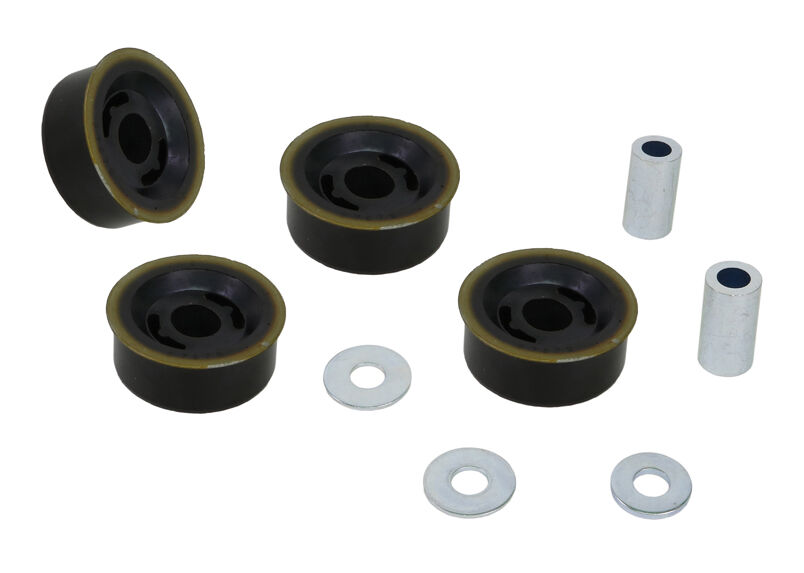

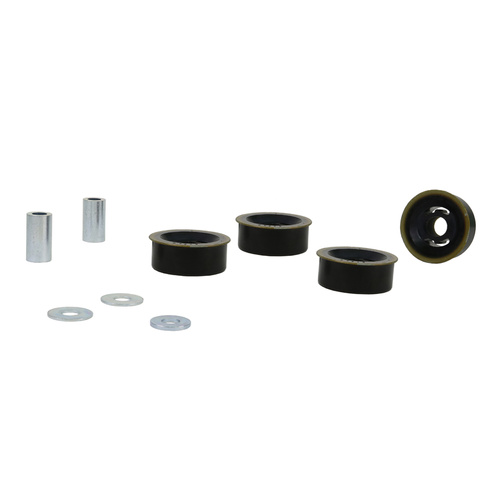

Components Per4 Bushings, 2 Tubes, 3 Washers
Kits Required1
Sub brandReplacement
Product NoteBuilt tough for better durability and long-lasting performance; the perfect, complete upgrade. Includes: 4 Bushings, 2 Tubes & 3 Washers
EAN9319924388677
  • Lifetime Warranty
Brand Whiteline
SKU W93402
Unit Of Measure Kit
