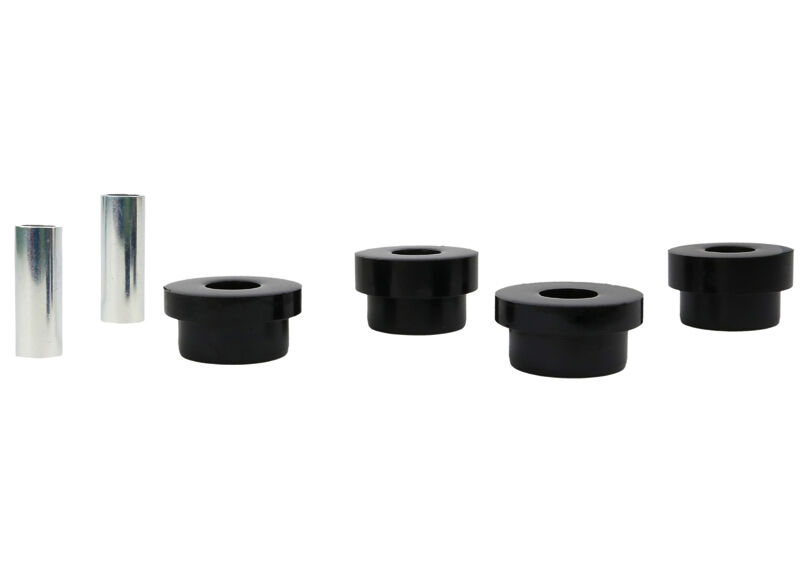

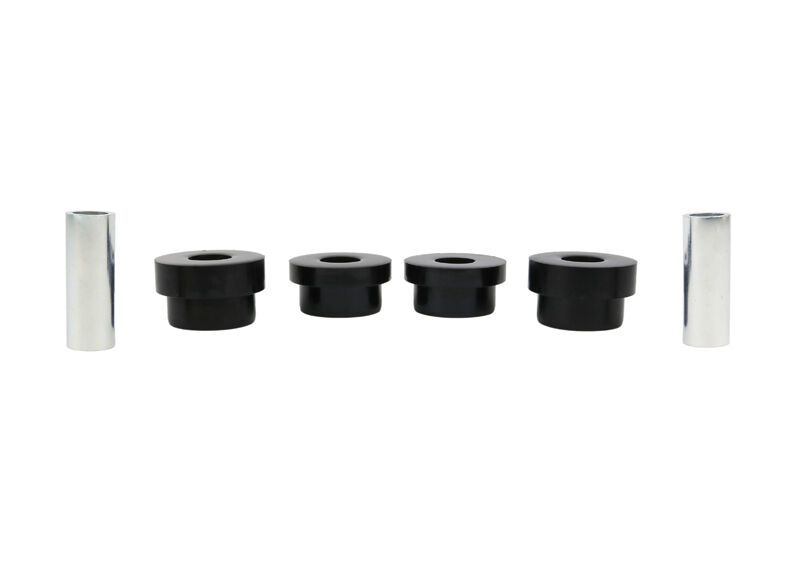

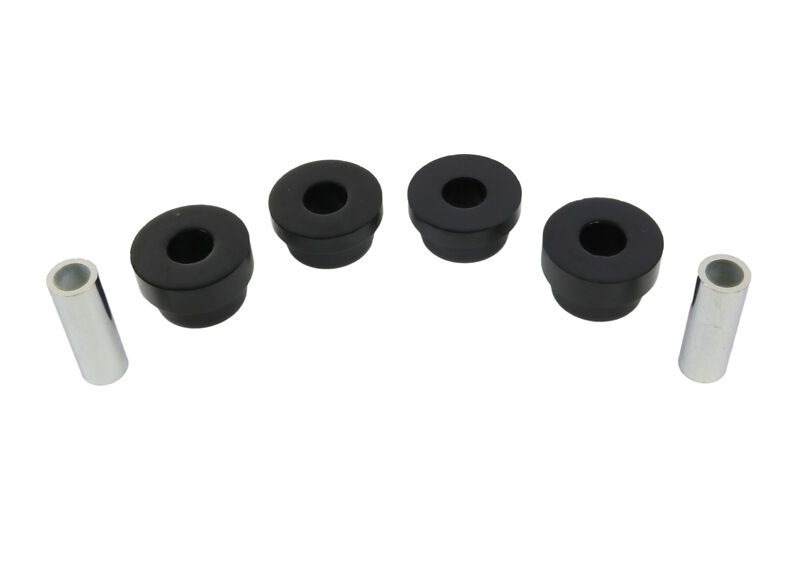

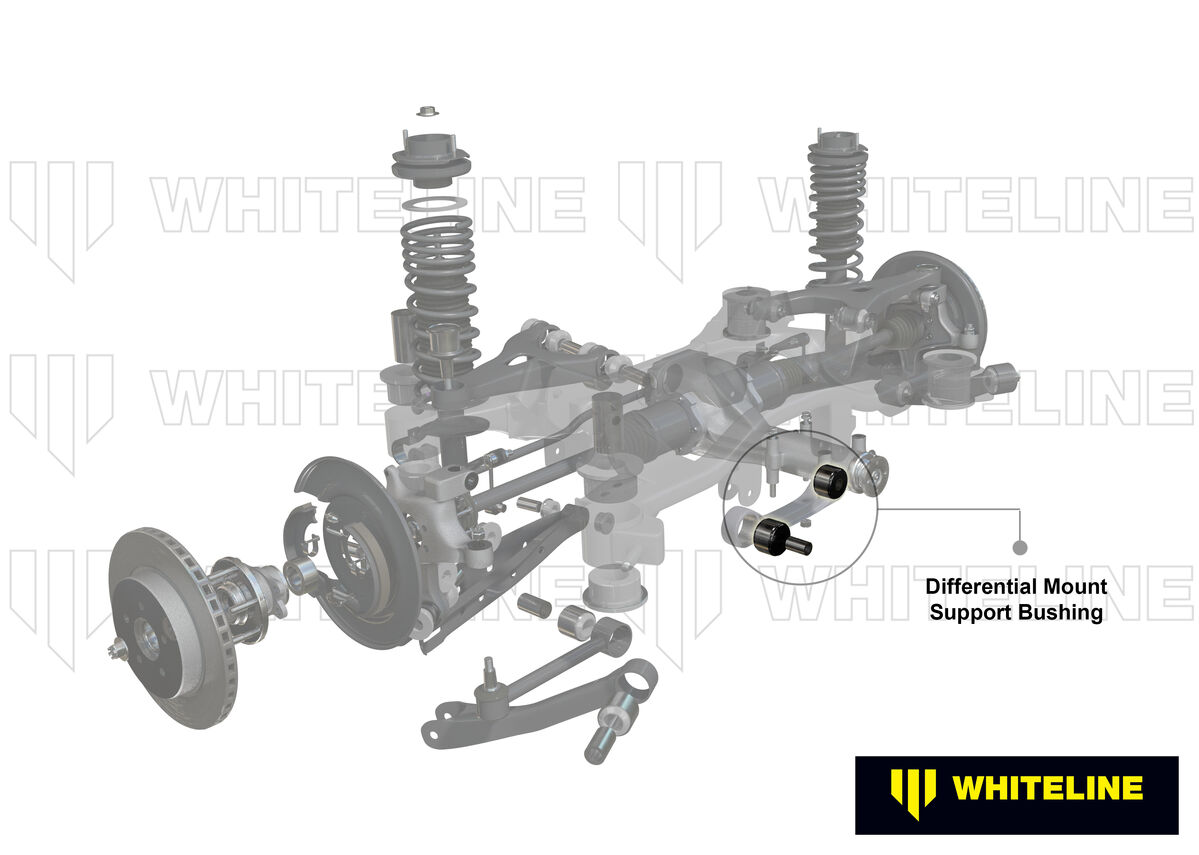

Whiteline Rear Differential Mount - Front Bushing Kit to Suit Mitsubishi Lancer Evo 4 5 6 7 8 9

SKU: W0592

Benefit Note: Whiteline's differential bushing solutions ensure pinion angles are maintained while delivering an improved gear shift resulting in reduced initial torque loss and greater power transfer to the wheels.


Kit Specifications

Bush Type 1 - Shackle Bushing 1 - Shackle Bushing
Bush Quantity 2 mm 2 mm
OD (A) 45.3 mm 45.3 mm
ID (B) 22.2 mm 22.2 mm
Length (C) 27.5 mm 33.3 mm
Flange Thickness (D) 10.5 mm 16.3 mm
Flange OD (E) 56 mm 56 mm
C/Tube Quantity 2 2
C/Tube ODxIDxL 22.2x16.2x62 mm 22.2x16.2x62 mm
Similar Bushing Size Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing
Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 1 1
QTY 2 2
OD (A) 45.3 45.3
ID (B) 22.2 22.2
Length (C) 27.5 33.3
FL (D) 10.5 16.3
FLOD (E) 56 56
C/Tube Qty 2 2
C/Tube Size 22.2x16.2x62 22.2x16.2x62
Similar Bushings Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.4kg0.88lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW0592
Components Per4 Bushings, 2 Tubes
Kits Required1
Sub brandPerformance
Product NoteMaximises grip and stability for better control; the perfect, complete upgrade. Includes: 4 Bushings & 2 Tubes
EAN9319924344789
  • Lifetime Warranty
Brand Whiteline
SKU W0592
Unit Of Measure Kit
