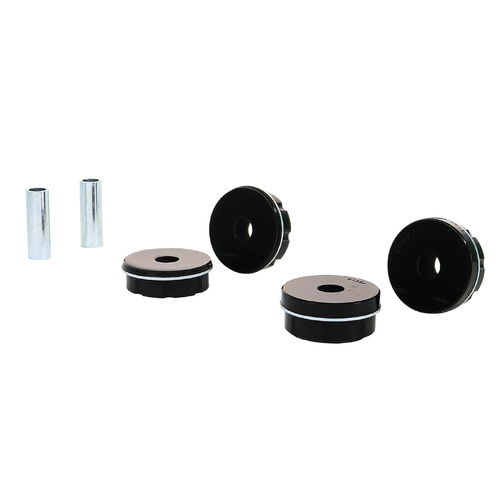

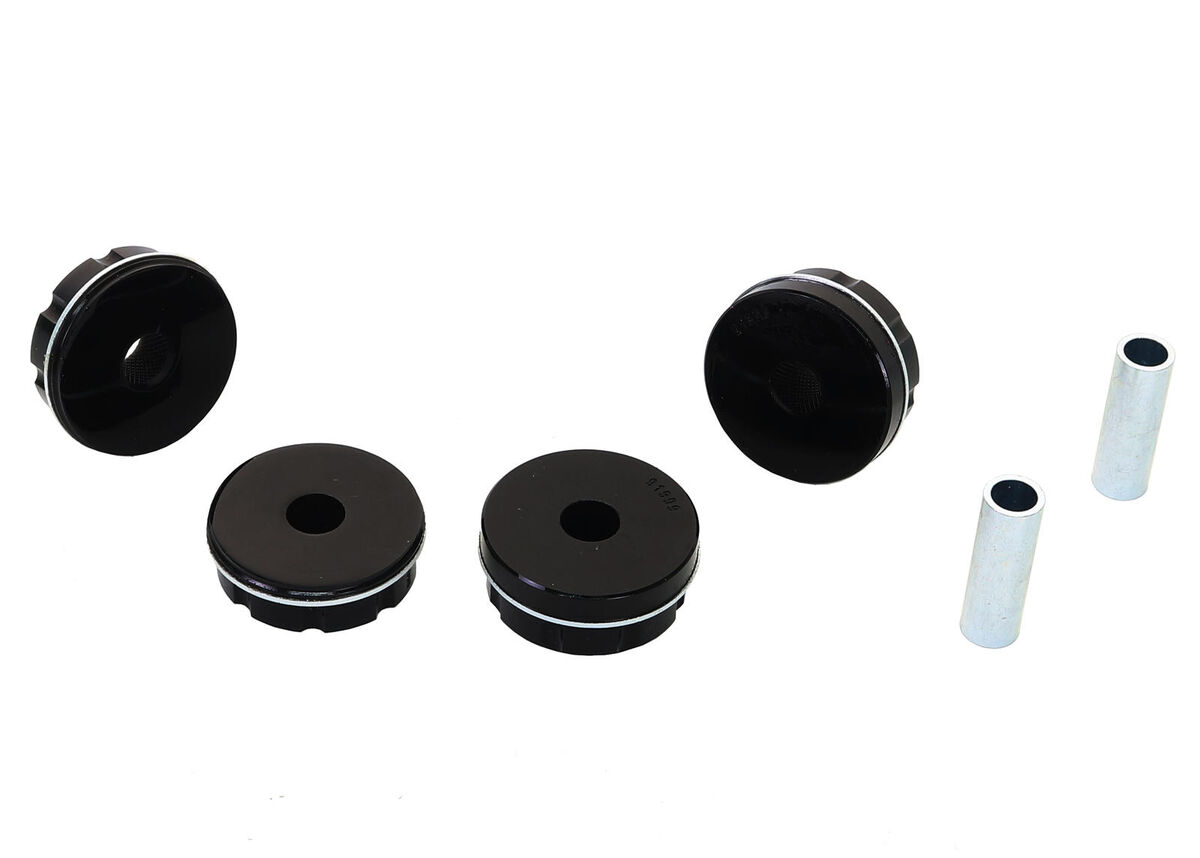

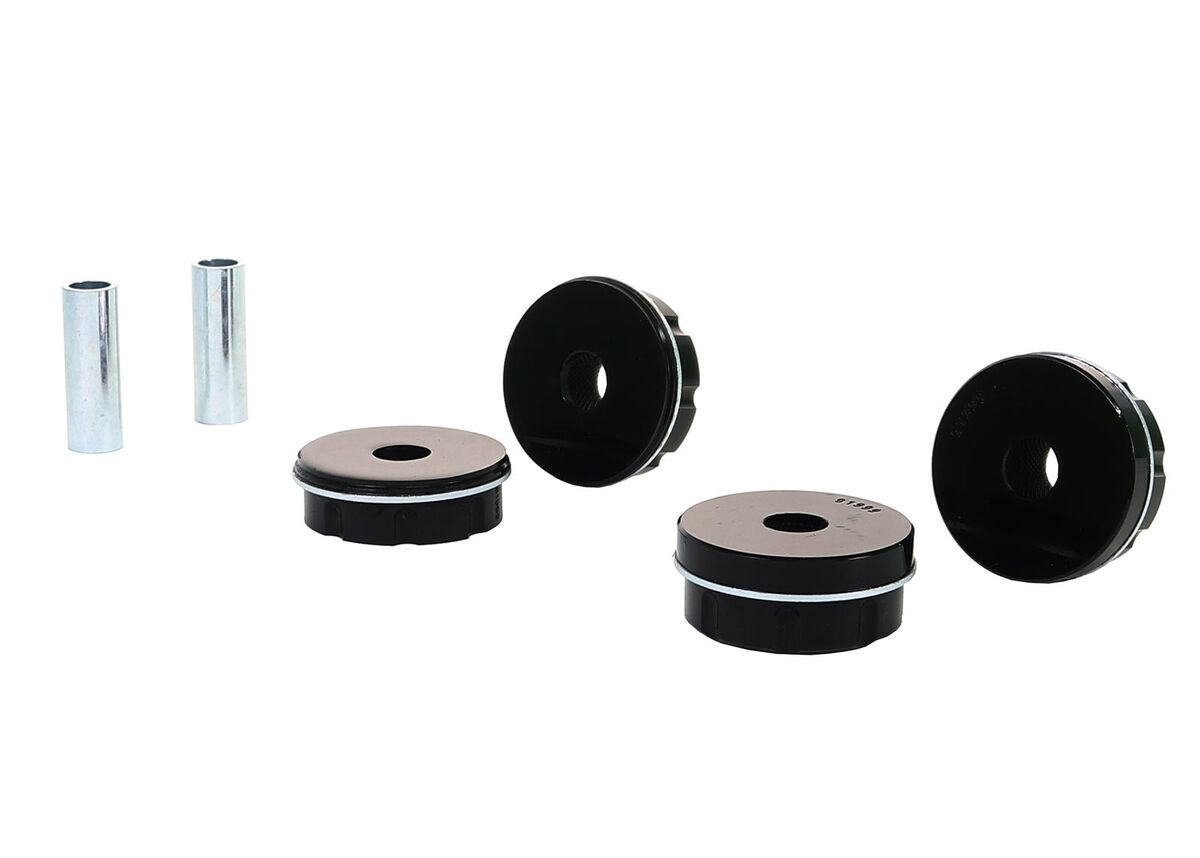

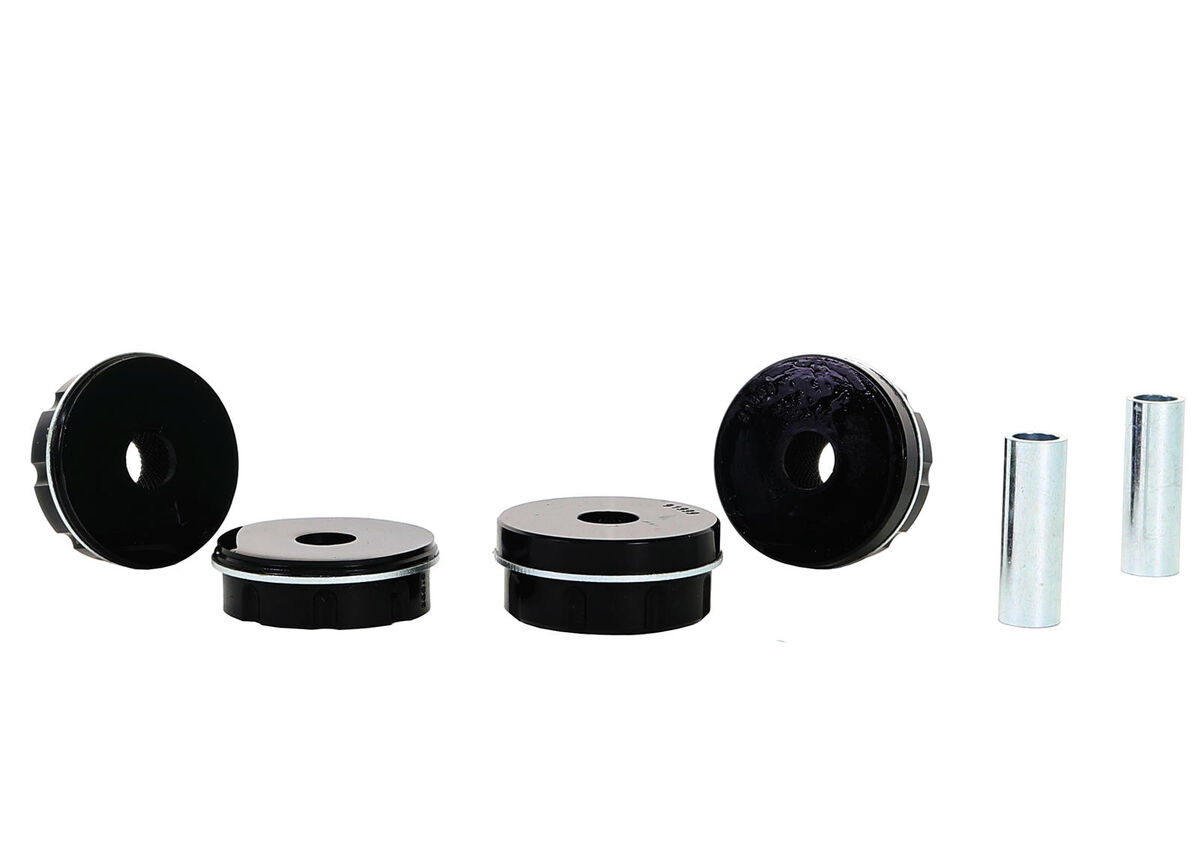

Whiteline Rear Differential Mount - Front Bushing Kit to Suit Subaru Forester, Impreza and Liberty

SKU: KDT979

Benefit Note: Whiteline's differential bushing solutions ensure pinion angles are maintained while delivering an improved gear shift resulting in reduced initial torque loss and greater power transfer to the wheels.


Kit Specifications

Bush Type 1 - Shackle Bushing 1 - Shackle Bushing
Bush Quantity 2 mm 2 mm
OD (A) 63.5 mm 63.5 mm
ID (B) 19 mm 19 mm
Length (C) 29.5 mm 21.5 mm
Flange Thickness (D) 12.5 mm 4.5 mm
Flange OD (E) 68 mm 70 mm
C/Tube Quantity 2 2
C/Tube ODxIDxL 19x14.3x57 mm 19x14.3x57 mm
Similar Bushing Size Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing
Bushing Type 1 - Shackle Bushing

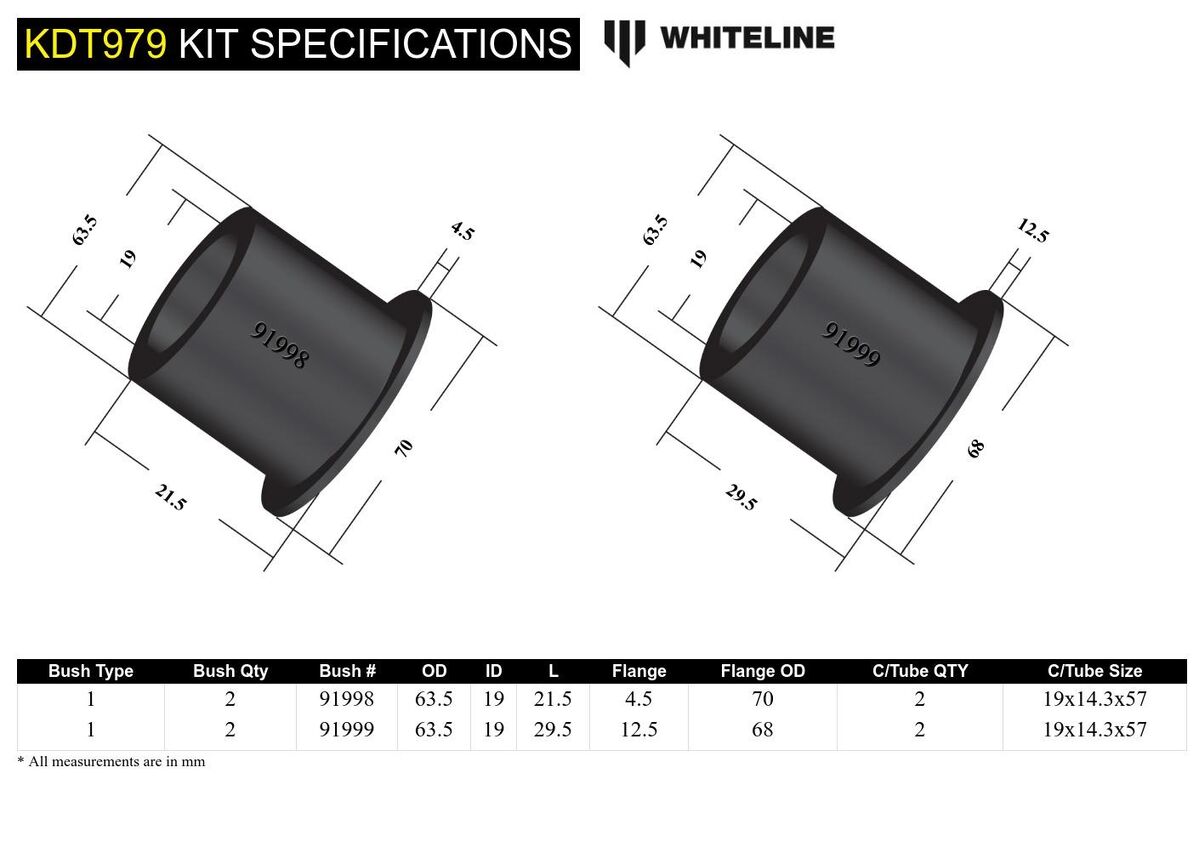

Bushing Design Dimensions (mm)

Bush Type 1 1
QTY 2 2
OD (A) 63.5 63.5
ID (B) 19 19
Length (C) 29.5 21.5
FL (D) 12.5 4.5
FLOD (E) 68 70
C/Tube Qty 2 2
C/Tube Size 19x14.3x57 19x14.3x57
Similar Bushings Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.613kg1.35lbs
Length10cm3.94"
Width26cm10.24"
Height16cm6.3"

Misc. Product Information

More Information
SKUKDT979
Components Per4 Bushings, 2 Tubes
Kits Required1
Sub brandPerformance
Product NoteMaximises grip and stability for better control; the perfect, complete upgrade. Includes: 4 Bushings & 2 Tubes
EAN9319924464968
  • 3 years warranty or up to 60,000km
Brand Whiteline
SKU KDT979
Unit Of Measure Kit
