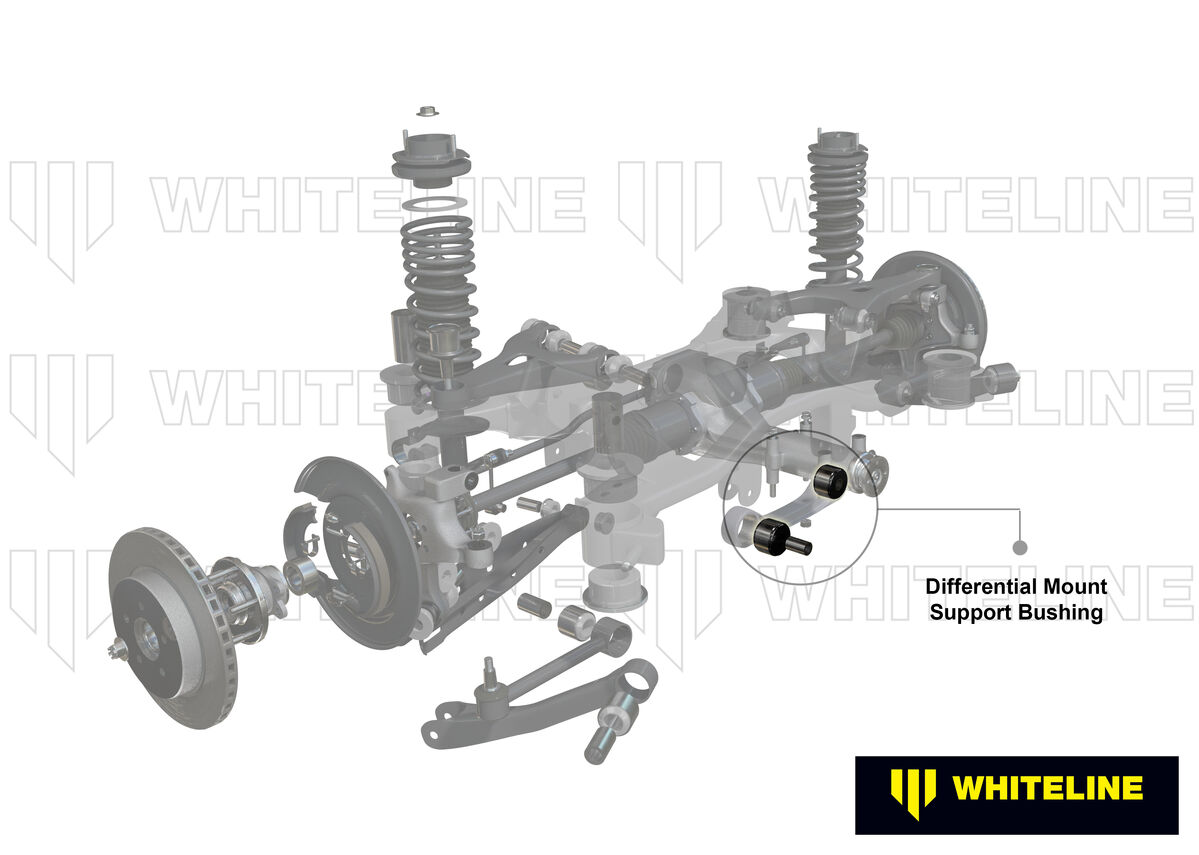

Whiteline Rear Differential Mount - Front Bushing Kit to Suit Mitsubishi Lancer Evo 1 2 3 4 5 6 7 8 9

SKU: KDT964

Benefit Note: Whiteline's differential bushing solutions ensure pinion angles are maintained while delivering an improved gear shift resulting in reduced initial torque loss and greater power transfer to the wheels.


Kit Specifications

Bush Type 1 - Shackle Bushing 1 - Shackle Bushing
Bush Quantity 2 mm 2 mm
OD (A) 52.2 mm 54.3 mm
ID (B) 25 mm 25 mm
Length (C) 24.1 mm 29.6 mm
Flange Thickness (D) 7.5 mm 13 mm
Flange OD (E) 63.4 mm 63.6 mm
C/Tube Quantity 2 2
C/Tube ODxIDxL 25.4x18.2x56 mm 25.4x18.2x56 mm
Similar Bushing Size Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing
Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 1 1
QTY 2 2
OD (A) 52.2 54.3
ID (B) 25 25
Length (C) 24.1 29.6
FL (D) 7.5 13
FLOD (E) 63.4 63.6
C/Tube Qty 2 2
C/Tube Size 25.4x18.2x56 25.4x18.2x56
Similar Bushings Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.657kg1.45lbs
Length10cm3.94"
Width26cm10.24"
Height16cm6.3"

Misc. Product Information

More Information
SKUKDT964

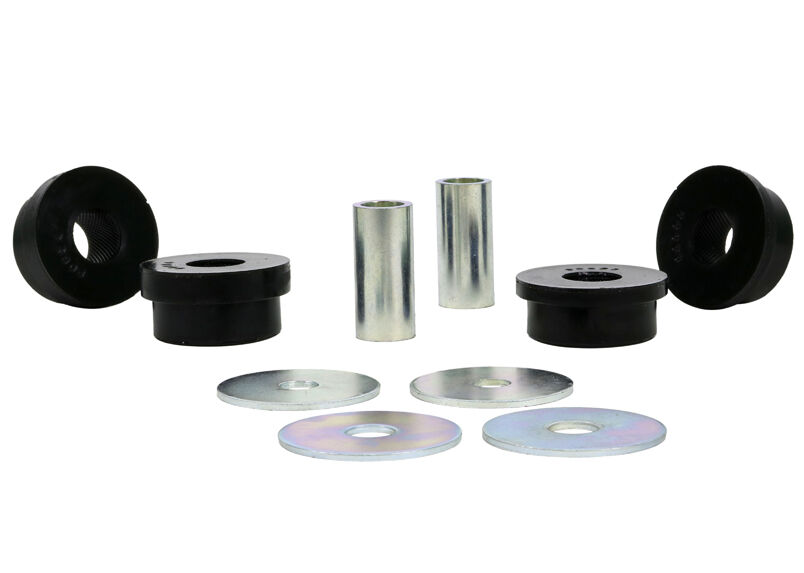

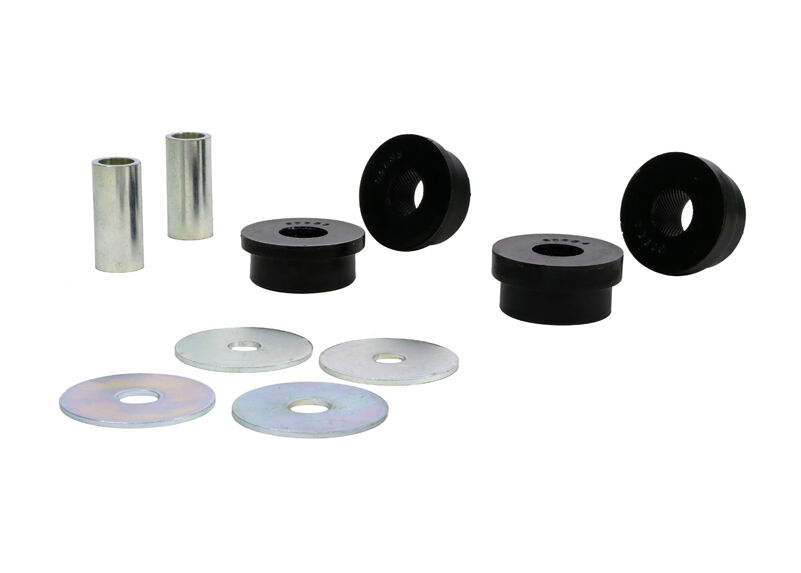

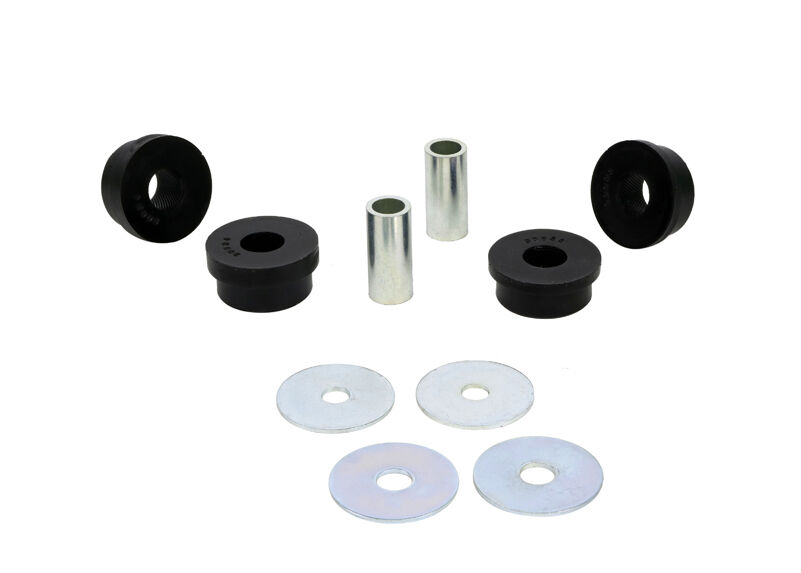

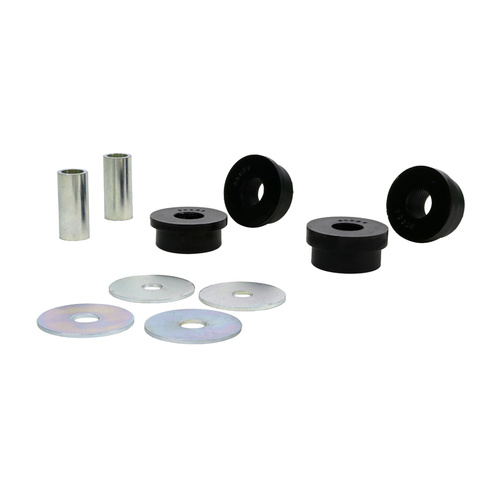

Components Per4 Bushings, 2 Tubes, 4 Washers
Kits Required1
Sub brandPerformance
Product NoteBalances comfort with performance while minimising noise and vibrations; the perfect, complete upgrade. Includes: 4 Bushings, 2 Tubes & 4 Washers
EAN9319924450503
  • 3 years warranty or up to 60,000km
Brand Whiteline
SKU KDT964
Unit Of Measure Kit
