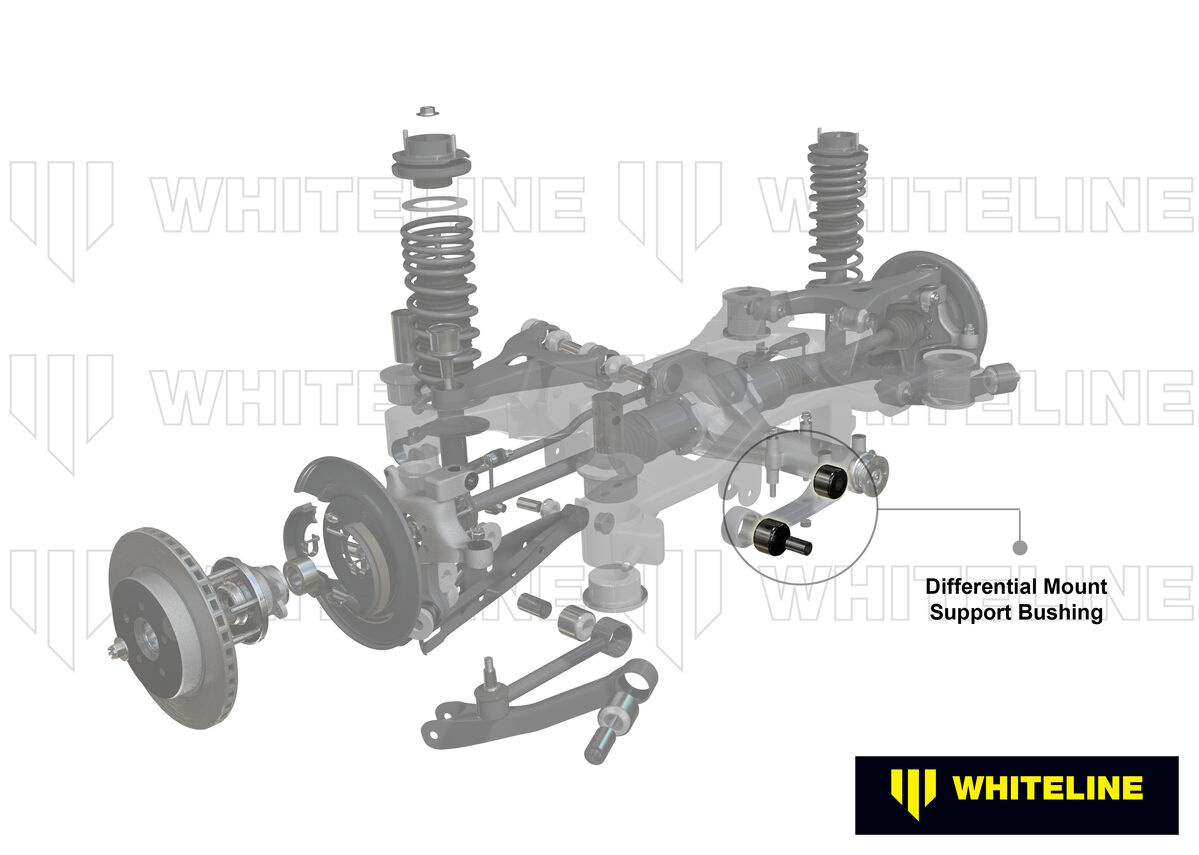

Whiteline Rear Differential Mount - Front Bushing Kit to Suit Mitsubishi Lancer CJ, CY Ralliart Awd

SKU: KDT909

Benefit Note: Whiteline's differential bushing solutions ensure pinion angles are maintained while delivering an improved gear shift resulting in reduced initial torque loss and greater power transfer to the wheels.

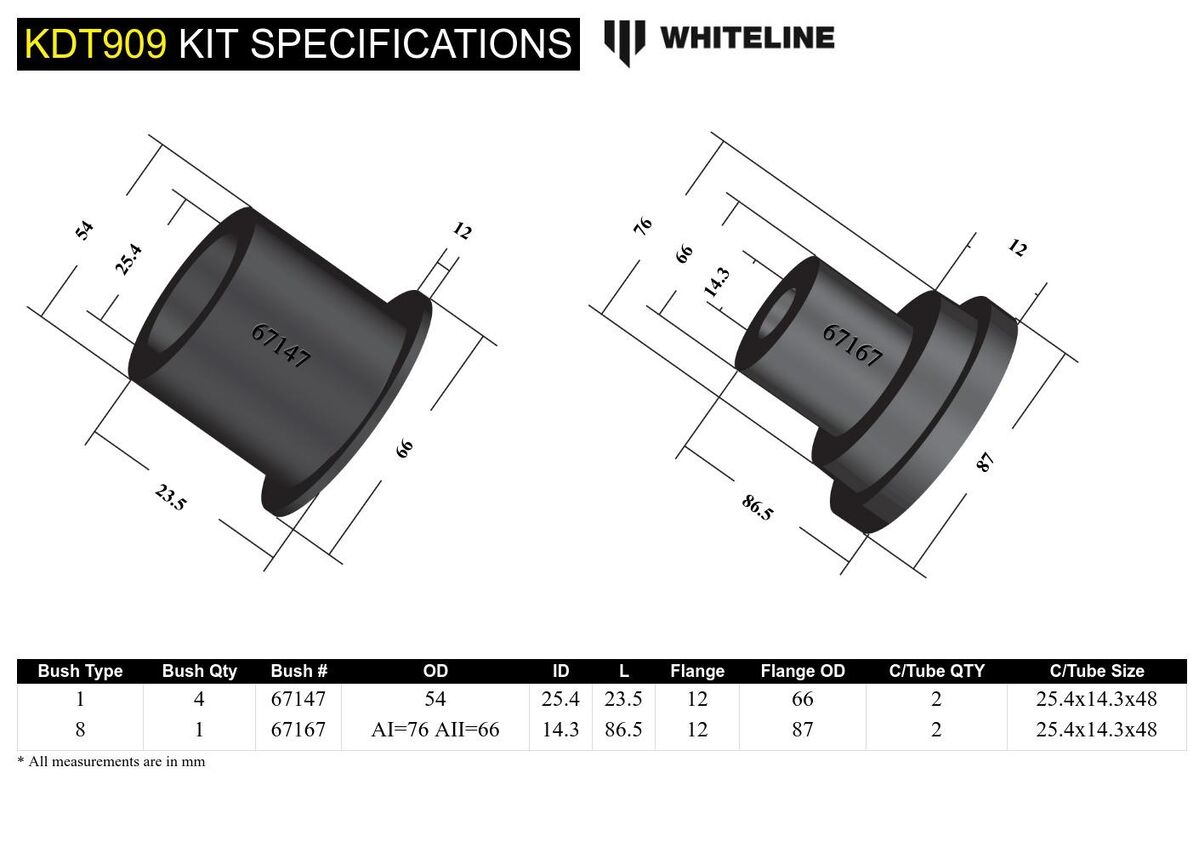

Kit Specifications

Bush Type 1 - Shackle Bushing 8 - Stepped OD Shackle Bushing
Bush Quantity 4 mm 1 mm
OD (A) 54 mm AI=76 AII=66 mm
ID (B) 25.4 mm 14.3 mm
Length (C) 23.5 mm 86.5 mm
Flange Thickness (D) 12 mm 12 mm
Flange OD (E) 66 mm 87 mm
C/Tube Quantity 2 2
C/Tube ODxIDxL 25.4x14.3x48 mm 25.4x14.3x48 mm
Similar Bushing Size Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing
Bushing Type 8 - Stepped OD Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 1 8
QTY 4 1
OD (A) 54 AI=76 AII=66
ID (B) 25.4 14.3
Length (C) 23.5 86.5
FL (D) 12 12
FLOD (E) 66 87
C/Tube Qty 2 2
C/Tube Size 25.4x14.3x48 25.4x14.3x48
Similar Bushings Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1
Bushing Type 8

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight1.07kg2.36lbs
Length10cm3.94"
Width26cm10.24"
Height16cm6.3"

Misc. Product Information

More Information
SKUKDT909

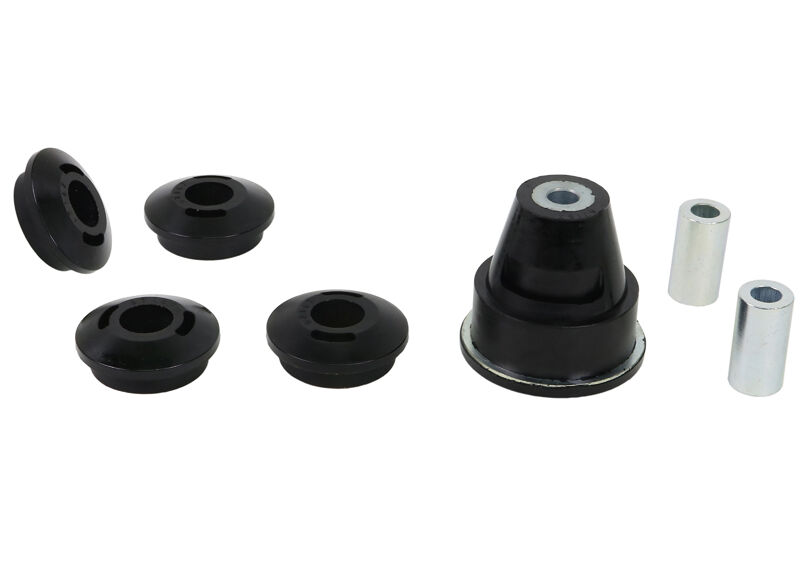

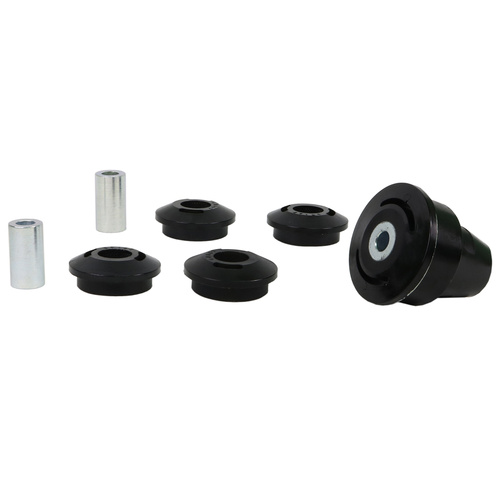

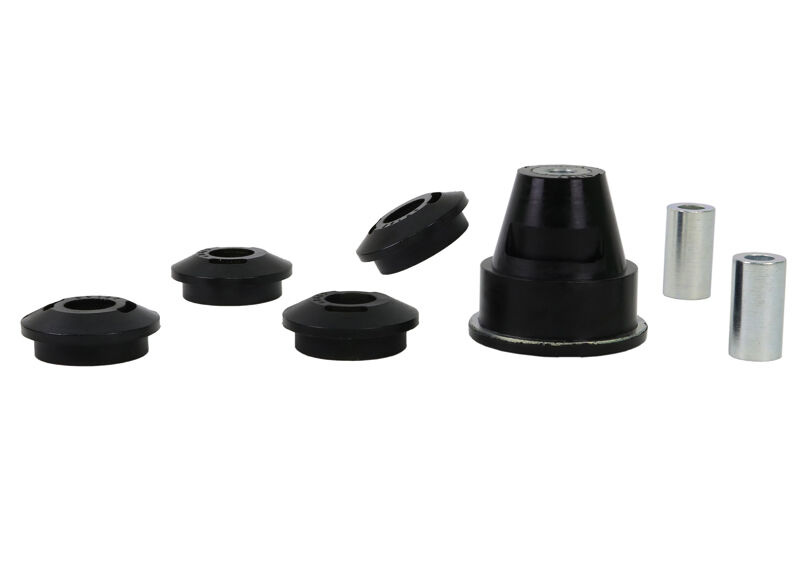

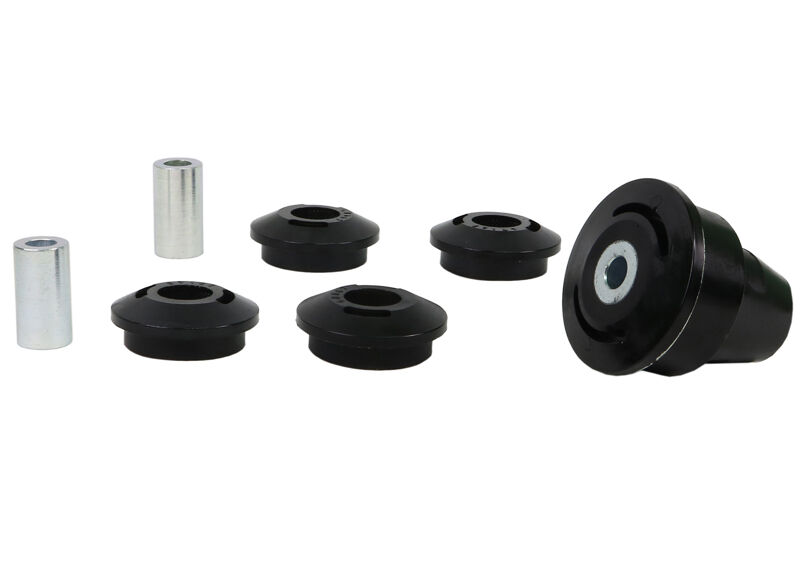

Components Per5 Bushings, 2 Tubes
Kits Required1
Sub brandPerformance
Product NoteBuilt tough for better durability and long-lasting performance; the perfect, complete upgrade. Includes: 5 Bushings & 2 Tubes
EAN9319924378920
  • Lifetime Warranty
Brand Whiteline
SKU KDT909
Unit Of Measure Kit
