Whiteline Rear Differential Mount - Bushing Kit to Suit Holden Commodore VE, VF and HSV

SKU: W93356

Benefit Note: Whiteline's differential bushing solutions ensure pinion angles are maintained while delivering an improved gear shift resulting in reduced initial torque loss and greater power transfer to the wheels.


Kit Specifications

Bush Type 1 - Shackle Bushing 1 - Shackle Bushing
Bush Quantity 4 mm 2 mm
OD (A) 60.2 mm 60.2 mm
ID (B) 29.8 mm 29.8 mm
Length (C) 29 mm 29 mm
Flange Thickness (D) 7 mm 7.5 mm
Flange OD (E) 70 mm 70 mm
C/Tube Quantity 3 3
C/Tube ODxIDxL 30x12.2x60 mm 30x12.2x60 mm
Similar Bushing Size Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing
Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 1 1
QTY 4 2
OD (A) 60.2 60.2
ID (B) 29.8 29.8
Length (C) 29.0 29.0
FL (D) 7 7.5
FLOD (E) 70 70
C/Tube Qty 3 3
C/Tube Size 30x12.2x60 30x12.2x60
Similar Bushings Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight1.31kg2.89lbs
Length10cm3.94"
Width26cm10.24"
Height16cm6.3"

Misc. Product Information

More Information
SKUW93356

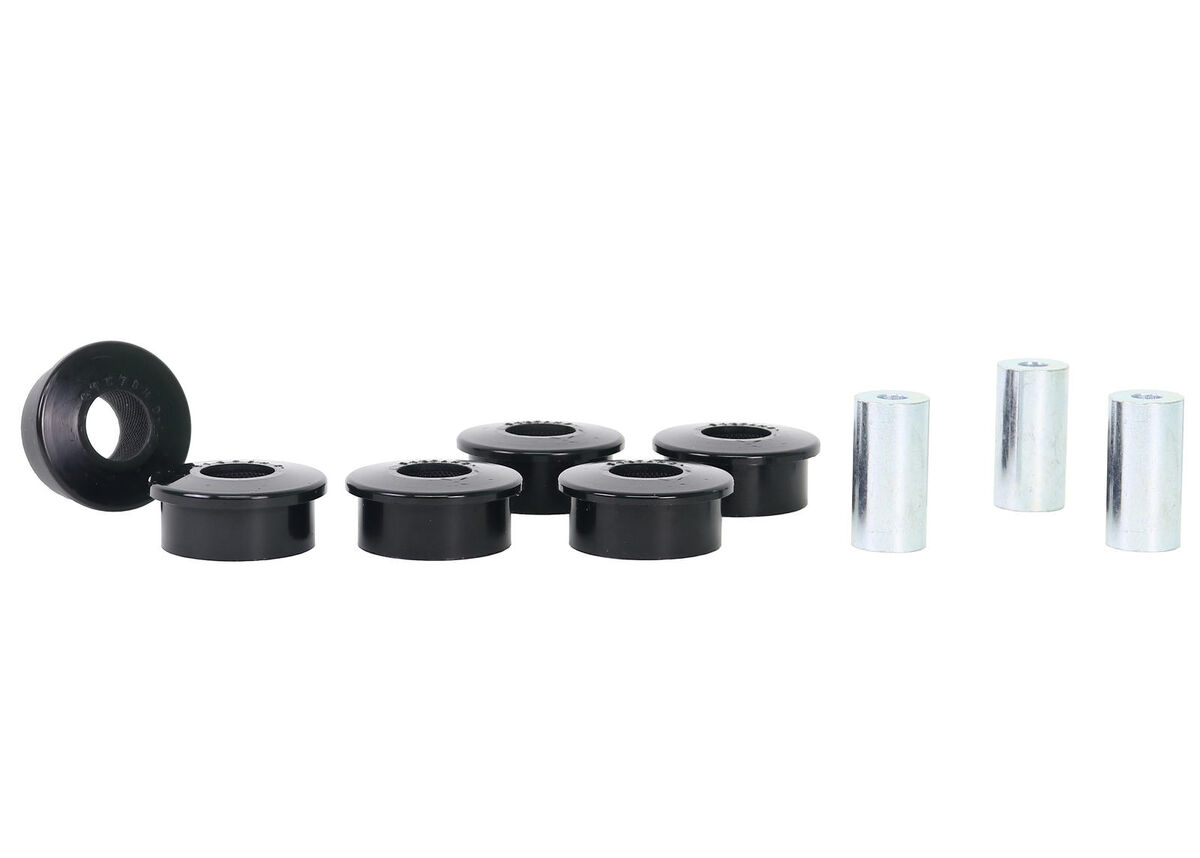

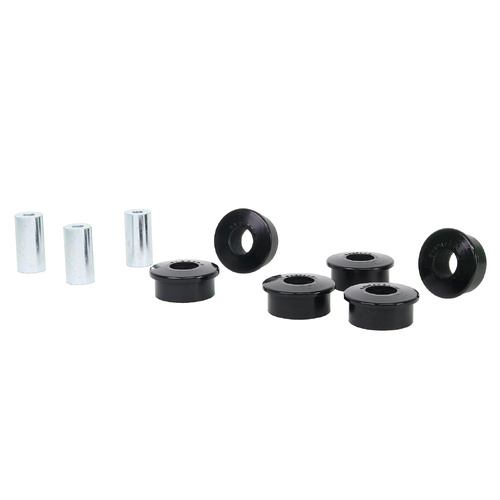

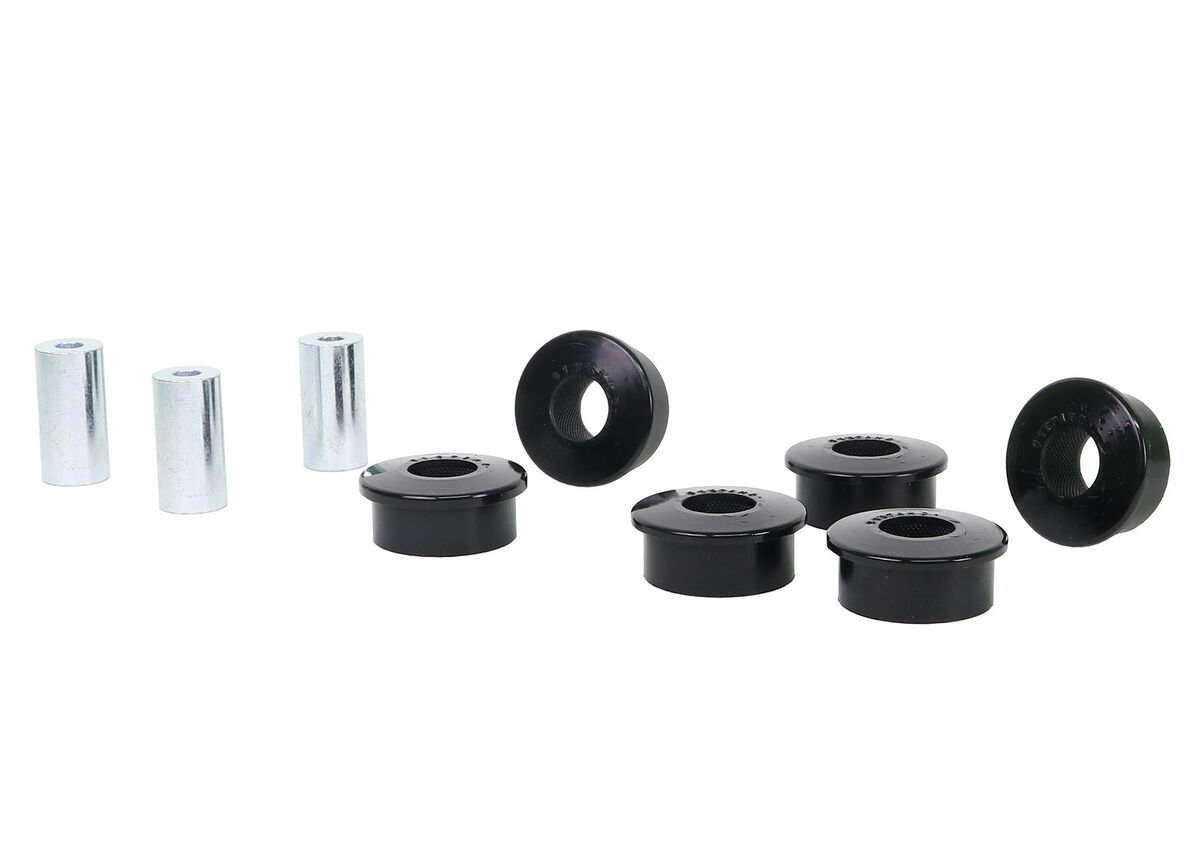

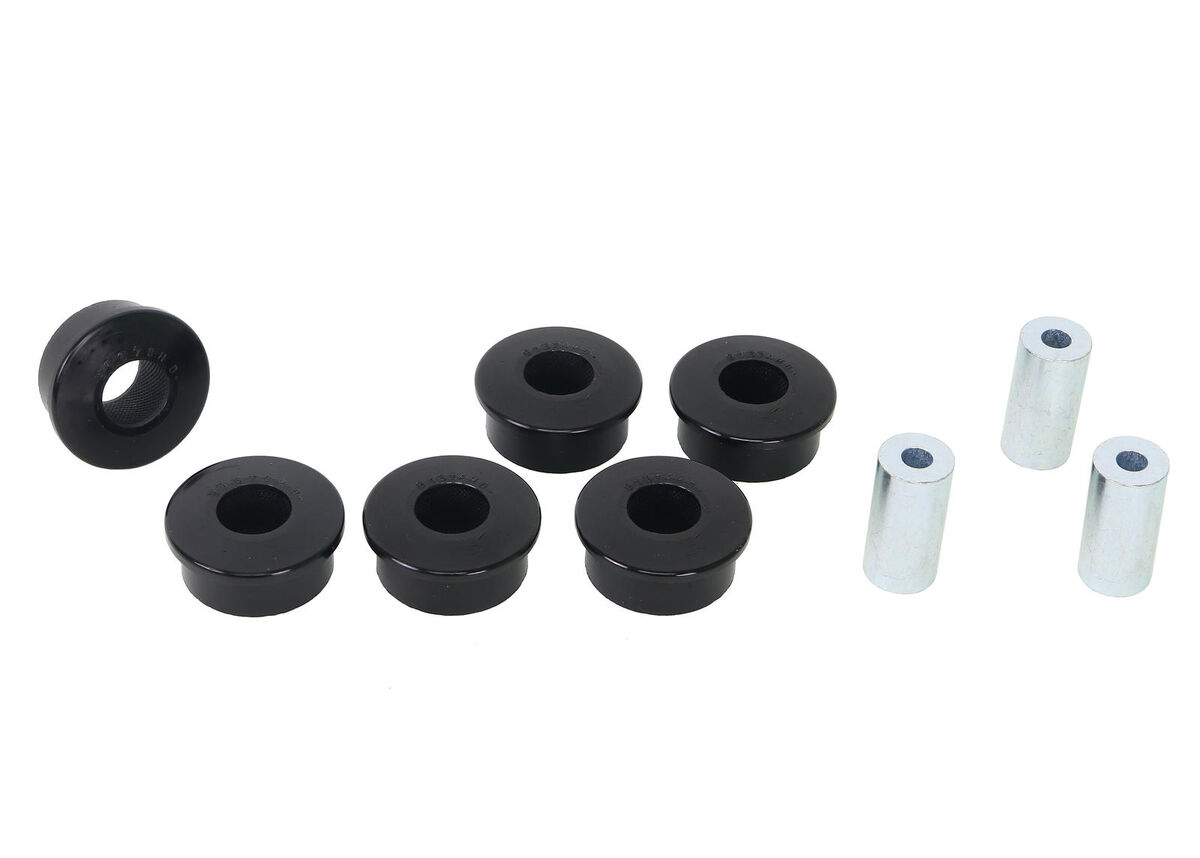

Components Per6 Bushings, 3 Tubes
Kits Required1
Sub brandReplacement
Product NoteBalances comfort with performance while minimising noise and vibrations; the perfect, complete upgrade. Includes: 6 Bushings & 3 Tubes
EAN9319924380558
  • Lifetime Warranty
Brand Whiteline
SKU W93356
Unit Of Measure Kit
