Whiteline Rear Differential Mount - Bushing Kit to Suit Nissan 1600, 180B, 240K and Bluebird

SKU: W92460

Benefit Note: Whiteline's differential bushing solutions ensure pinion angles are maintained while delivering an improved gear shift resulting in reduced initial torque loss and greater power transfer to the wheels.

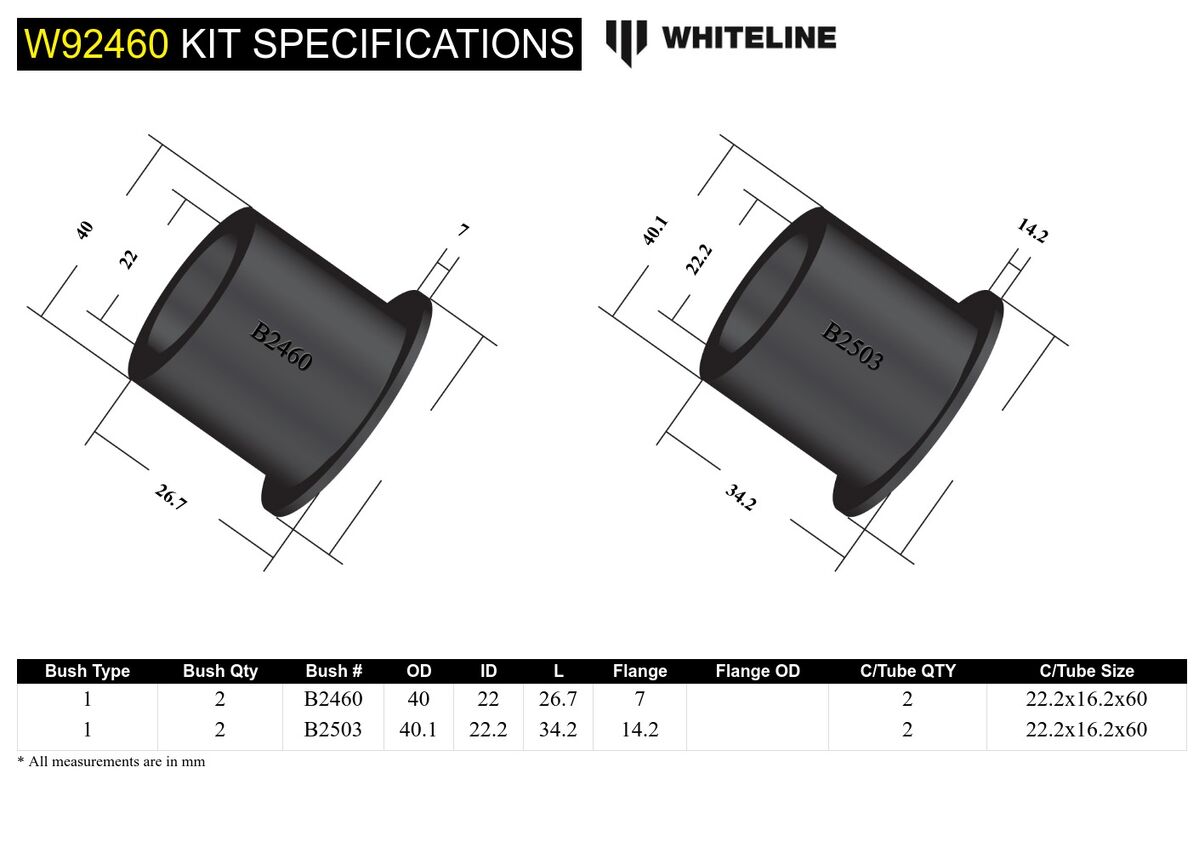

Kit Specifications

Bush Type 1 - Shackle Bushing 1 - Shackle Bushing
Bush Quantity 2 mm 2 mm
OD (A) 40 mm 40.1 mm
ID (B) 22 mm 22.2 mm
Length (C) 26.7 mm 34.2 mm
Flange Thickness (D) 7 mm 14.2 mm
Flange OD (E)
C/Tube Quantity 2 2
C/Tube ODxIDxL 22.2x16.2x60 mm 22.2x16.2x60 mm
Similar Bushing Size Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing
Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 1 1
QTY 2 2
OD (A) 40 40.1
ID (B) 22 22.2
Length (C) 26.7 34.2
FL (D) 7 14.2
FLOD (E)
C/Tube Qty 2 2
C/Tube Size 22.2x16.2x60 22.2x16.2x60
Similar Bushings Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.45kg0.99lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW92460
Components Per4 Bushings, 2 Tubes
Kits Required1
Sub brandReplacement
Product NoteCreates a consistent drive no matter the surface; the perfect, complete upgrade. Includes: 4 Bushings & 2 Tubes
EAN9319924357956
  • Lifetime Warranty
Brand Whiteline
SKU W92460
Unit Of Measure Kit
