Whiteline Rear Differential Mount - Bushing Kit to Suit BMW 3 Series, X3 and Z4

SKU: KDT982

Benefit Note: Whiteline's differential bushing solutions ensure pinion angles are maintained while delivering an improved gear shift resulting in reduced initial torque loss and greater power transfer to the wheels.

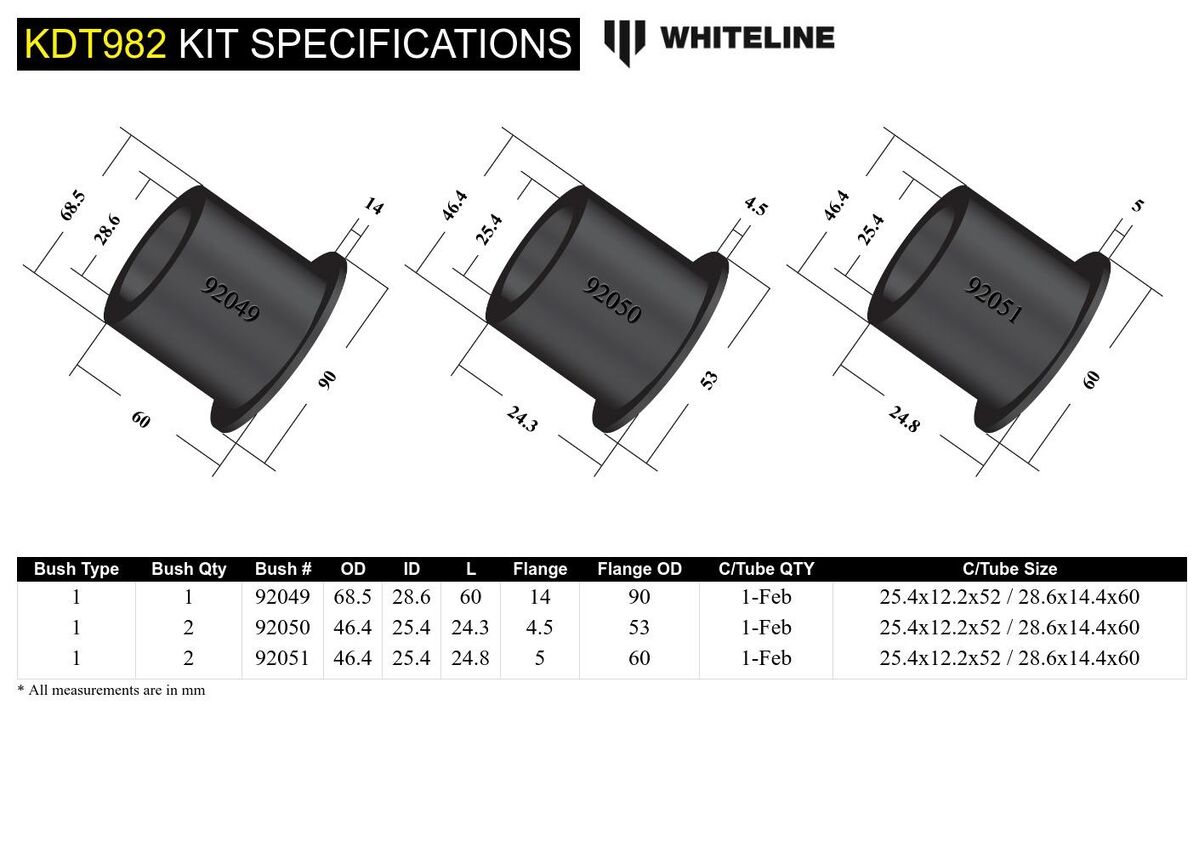

Kit Specifications

Bush Type 1 - Shackle Bushing 1 - Shackle Bushing 1 - Shackle Bushing
Bush Quantity 2 mm 1 mm 2 mm
OD (A) 46.4 mm 68.5 mm 46.4 mm
ID (B) 25.4 mm 28.6 mm 25.4 mm
Length (C) 24.3 mm 60 mm 24.8 mm
Flange Thickness (D) 4.5 mm 14 mm 5 mm
Flange OD (E) 53 mm 90 mm 60 mm
C/Tube Quantity 1 / 2 1 / 2 1 / 2
C/Tube ODxIDxL 25.4x12.2x52 / 28.6x14.4x60 mm 25.4x12.2x52 / 28.6x14.4x60 mm 25.4x12.2x52 / 28.6x14.4x60 mm
Similar Bushing Size Click Here Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing
Bushing Type 1 - Shackle Bushing
Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 1 1 1
QTY 2 1 2
OD (A) 46.4 68.5 46.4
ID (B) 25.4 28.6 25.4
Length (C) 24.3 60.0 24.8
FL (D) 4.5 14 5
FLOD (E) 53 90 60
C/Tube Qty 1 / 2 1 / 2 1 / 2
C/Tube Size 25.4x12.2x52 / 28.6x14.4x60 25.4x12.2x52 / 28.6x14.4x60 25.4x12.2x52 / 28.6x14.4x60
Similar Bushings Click Here Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight1.4kg3.09lbs
Length30cm11.81"
Width10cm3.94"
Height20cm7.87"

Misc. Product Information

More Information
SKUKDT982

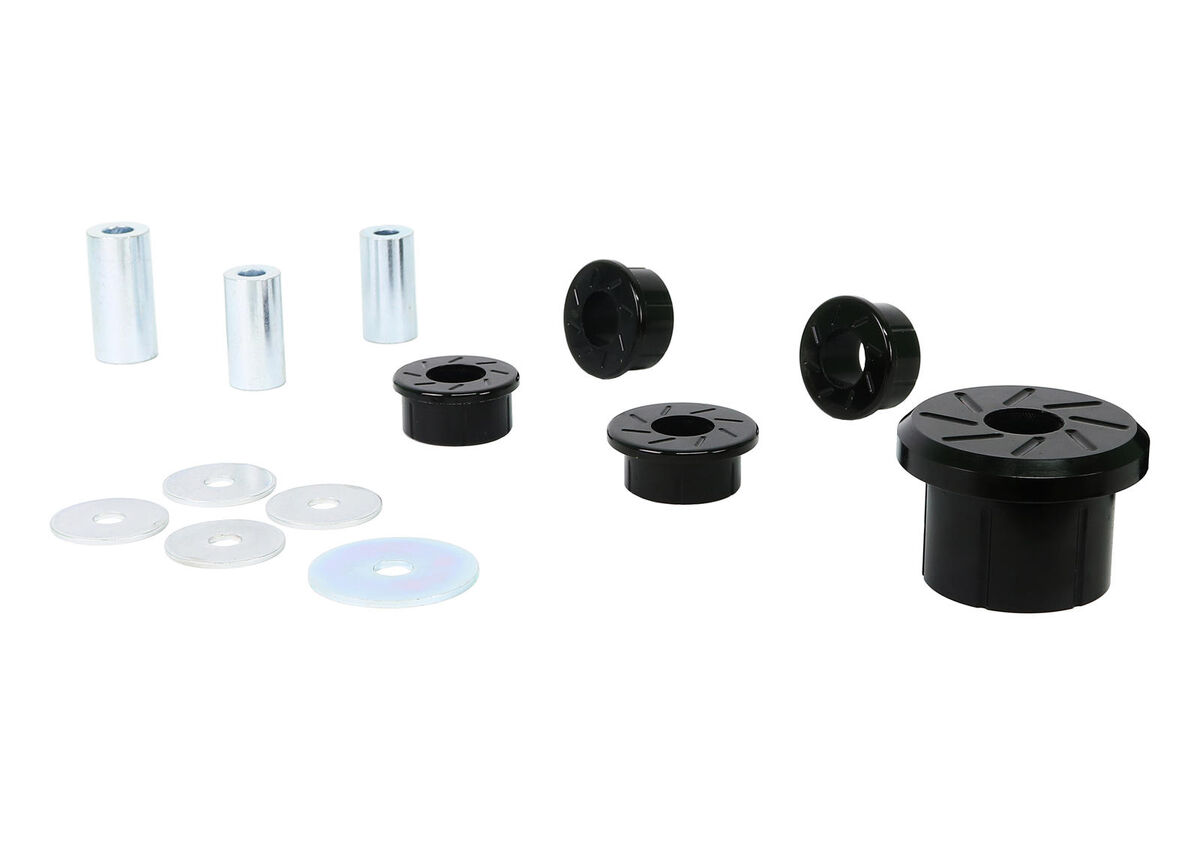

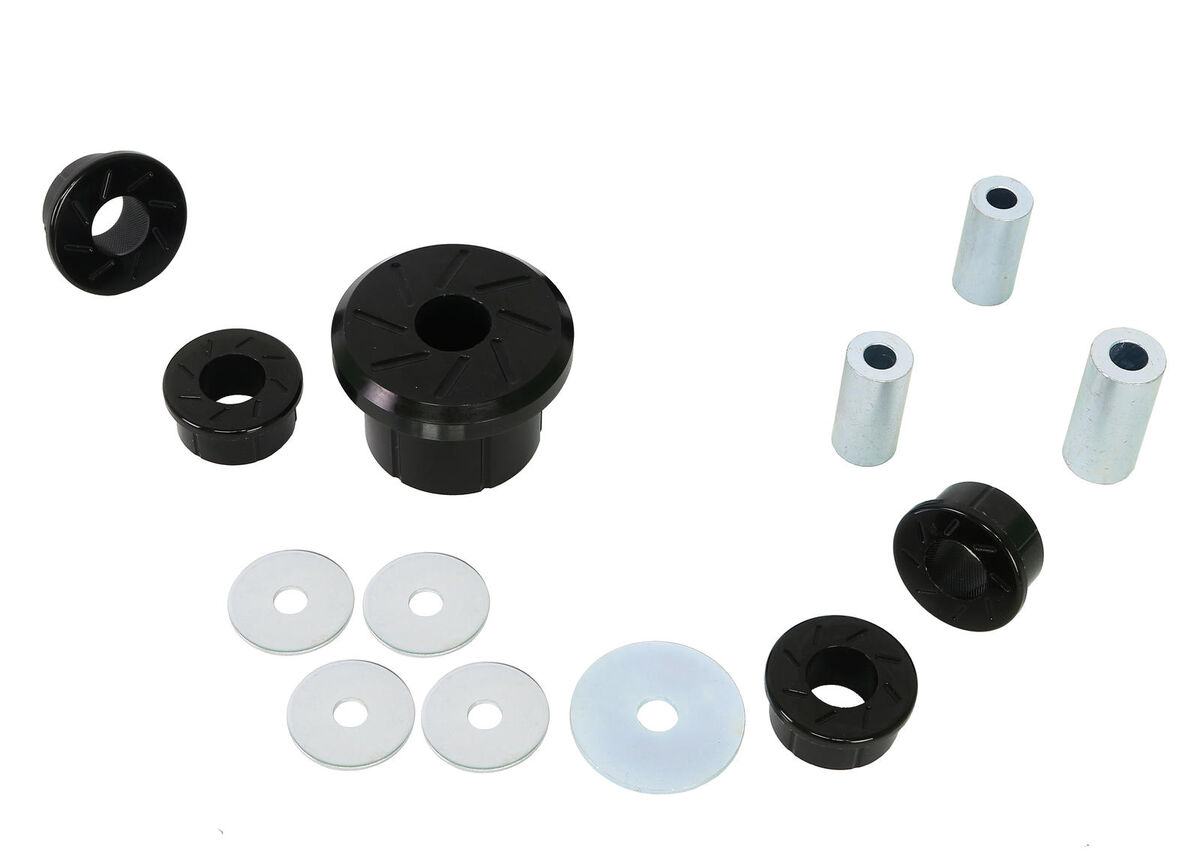

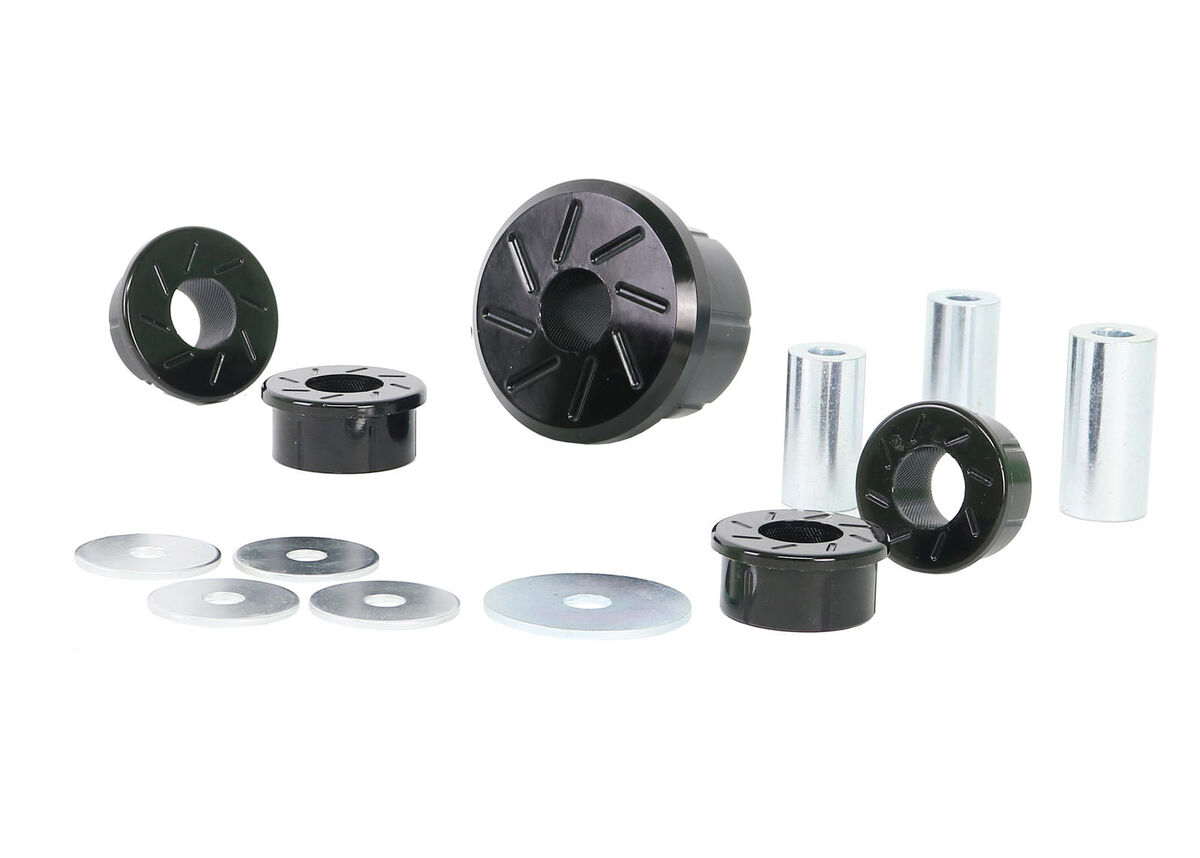

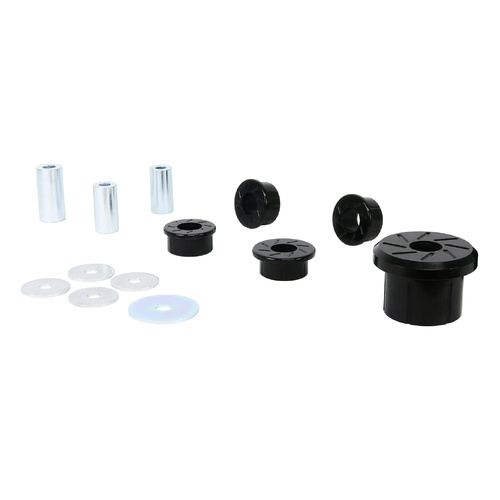

Components Per5 Bushings, 3 Tubes, 5 Washers
Kits Required1
Sub brandPerformance
Product NoteBuilt tough for better durability and long-lasting performance; the perfect, complete upgrade. Includes: 5 Bushings, 3 Tubes & 5 Washers
EAN9319924468393
  • Lifetime Warranty
Brand Whiteline
SKU KDT982
Unit Of Measure Kit
