Whiteline Rear Differential Mount - Bushing Kit to Suit Ford Falcon/Fairlane AU

SKU: KDT971

Benefit Note: Whiteline's differential bushing solutions ensure pinion angles are maintained while delivering an improved gear shift resulting in reduced initial torque loss and greater power transfer to the wheels.


Kit Specifications

Bush Type 7 - Pin Bush With & Without Spigot 8 - Stepped OD Shackle Bushing 16 - Shell Without Flange Bushing
Bush Quantity 1 mm 1 mm 2 mm
OD (A) 65 mm AI=52.8 AII=28 mm 71.6 mm
ID (B) 28 mm 19 mm 14.4 mm
Length (C) 10 mm 74.5 mm 45.6 mm
Flange Thickness (D) 13 mm 1.6 mm
Flange OD (E) 68.5 mm 84 mm
C/Tube Quantity 1 1 1
C/Tube ODxIDxL 19x12.2x74 mm 19x12.2x74 mm 19x12.2x74 mm
Similar Bushing Size Click Here Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 7 - Pin Bush With & Without Spigot
Bushing Type 8 - Stepped OD Shackle Bushing
Bushing Type 16 - Shell Without Flange Bushing

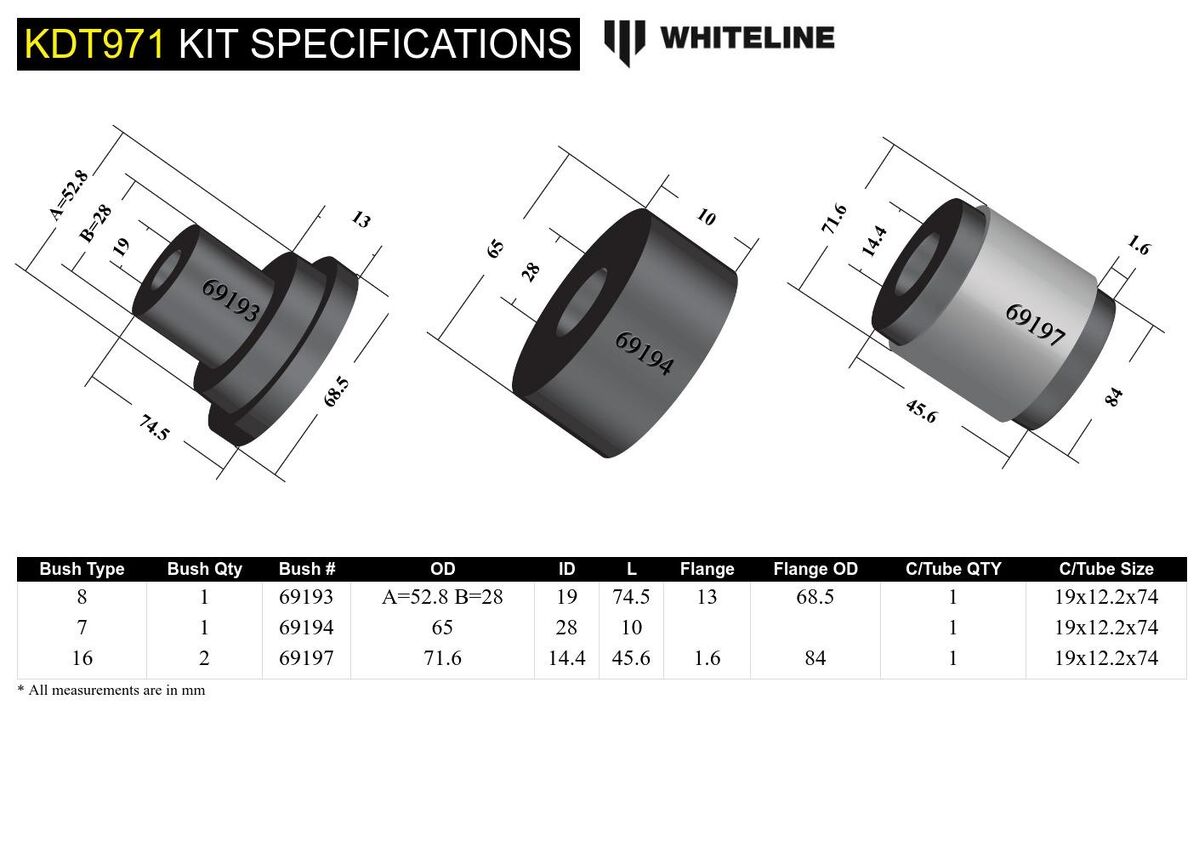

Bushing Design Dimensions (mm)

Bush Type 7 8 16
QTY 1 1 2
OD (A) 65 AI=52.8 AII=28 71.6
ID (B) 28 19 14.4
Length (C) 10.0 74.5 45.6
FL (D) 13 1.6
FLOD (E) 68.5 84
C/Tube Qty 1 1 1
C/Tube Size 19x12.2x74 19x12.2x74 19x12.2x74
Similar Bushings Click Here Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 7
Bushing Type 8
Bushing Type 16

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.61kg1.34lbs
Length10cm3.94"
Width26cm10.24"
Height16cm6.3"

Misc. Product Information

More Information
SKUKDT971

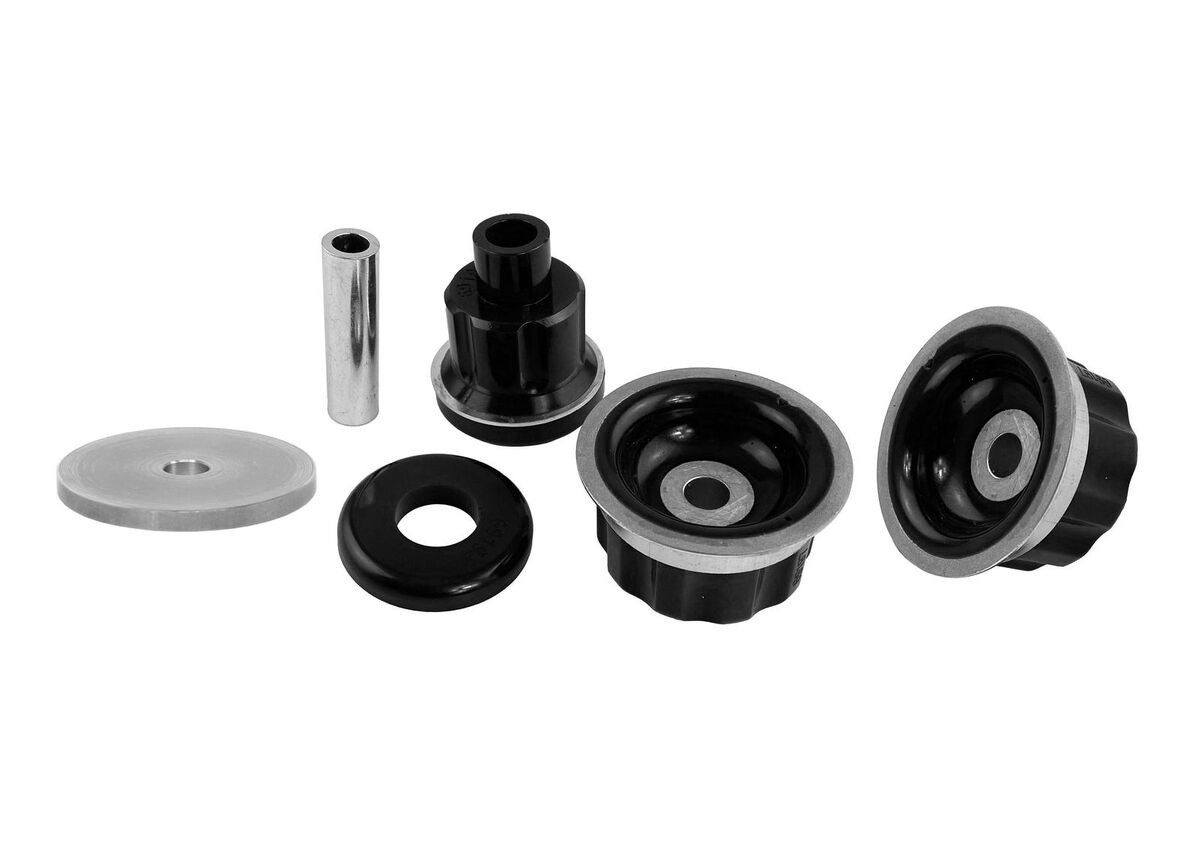

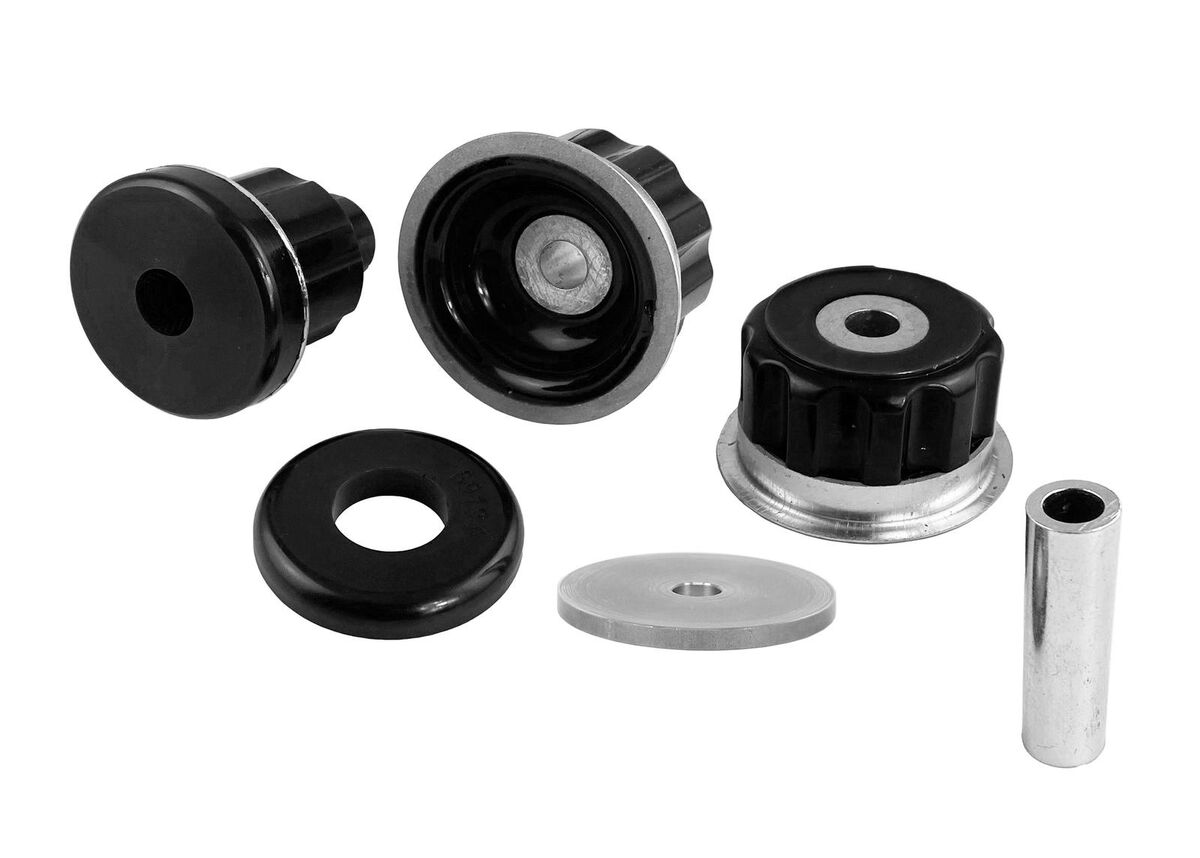

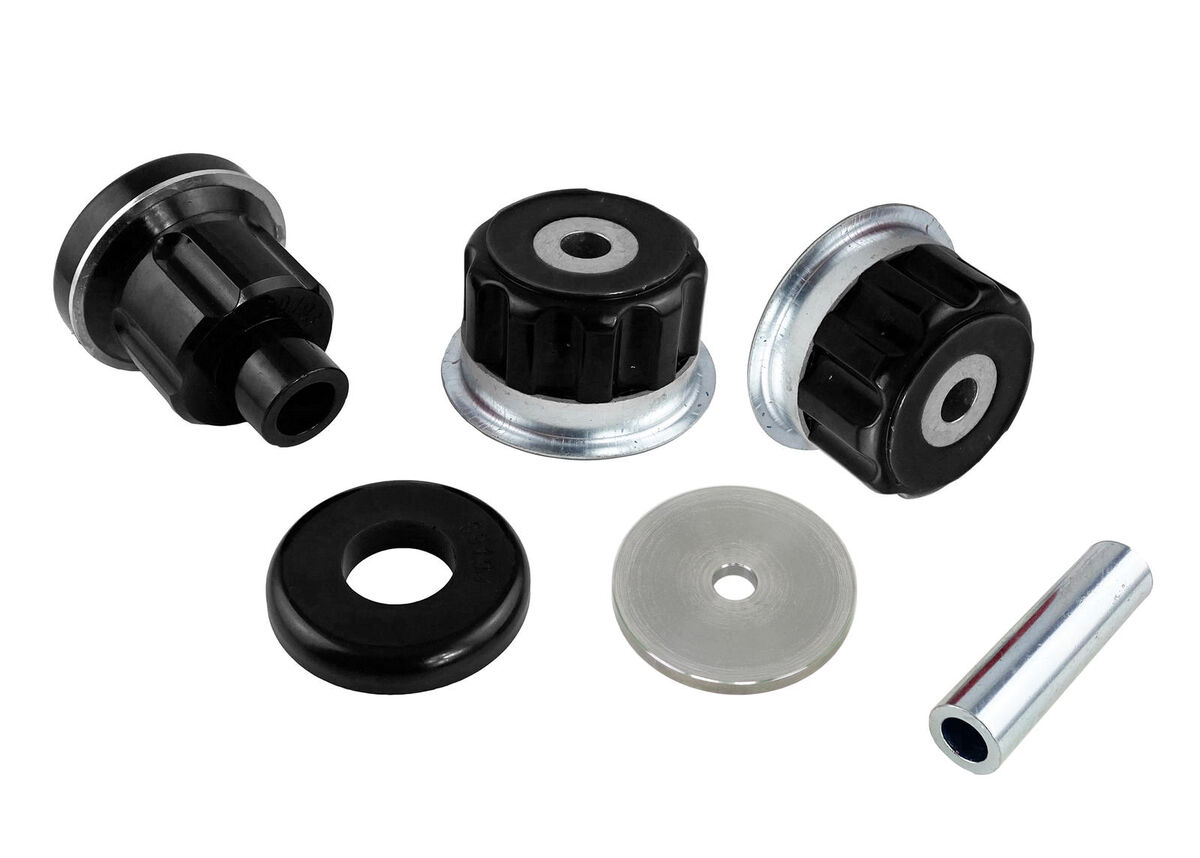

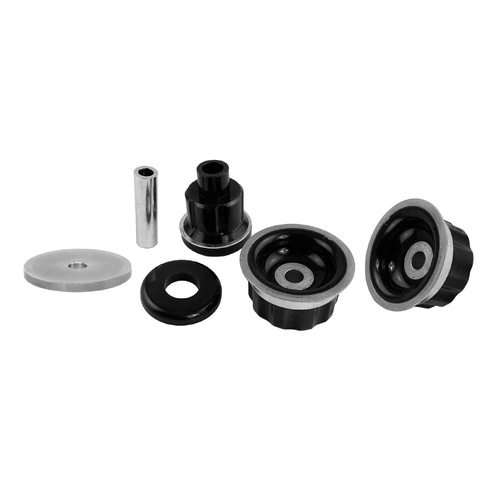

Components Per4 Bushings, 1 Tube, 1 Washer
Kits Required1
Sub brandPerformance
Product NoteCreates a consistent drive no matter the surface; the perfect, complete upgrade. Includes: 4 Bushings, 1 Tube & 1 Washer
EAN9319924466092
  • Lifetime Warranty
Brand Whiteline
SKU KDT971
Unit Of Measure Kit
