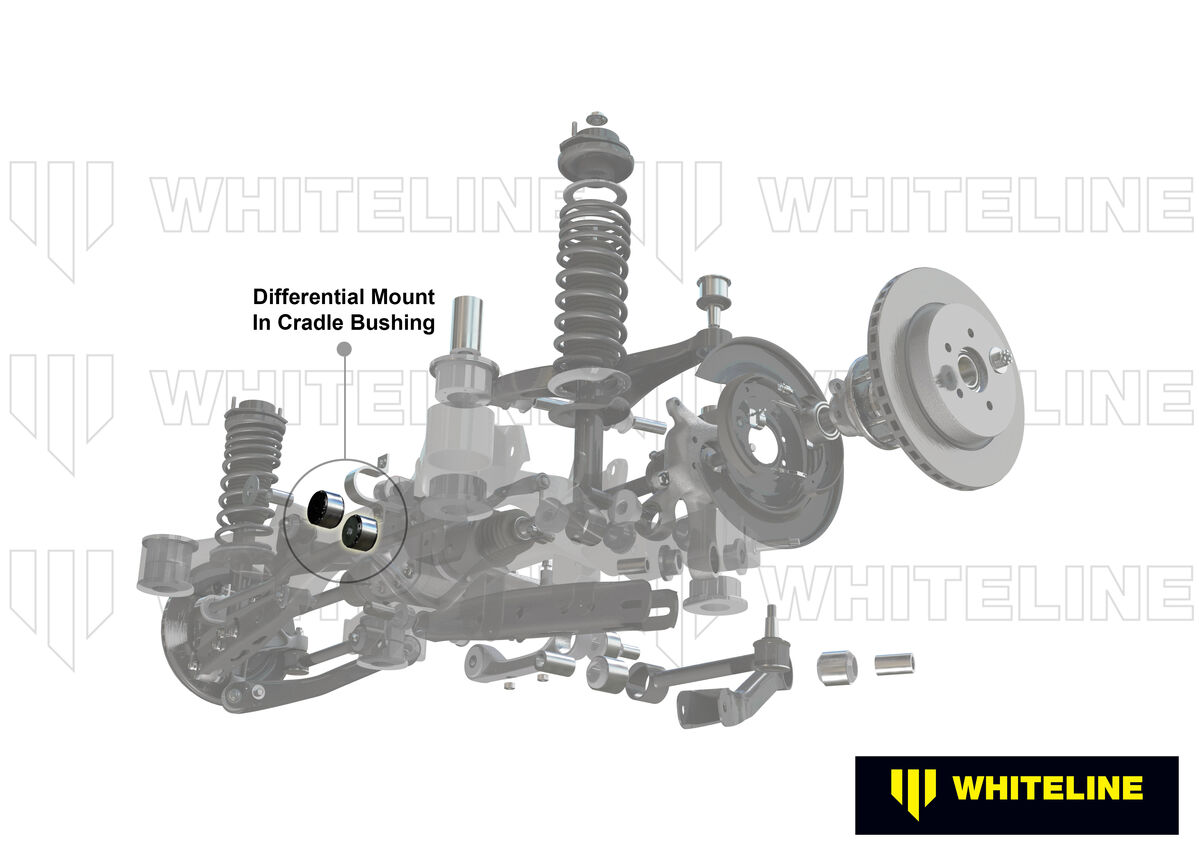

Benefit Note: Whiteline's differential bushing solutions ensure pinion angles are maintained while delivering an improved gear shift resulting in reduced initial torque loss and greater power transfer to the wheels.

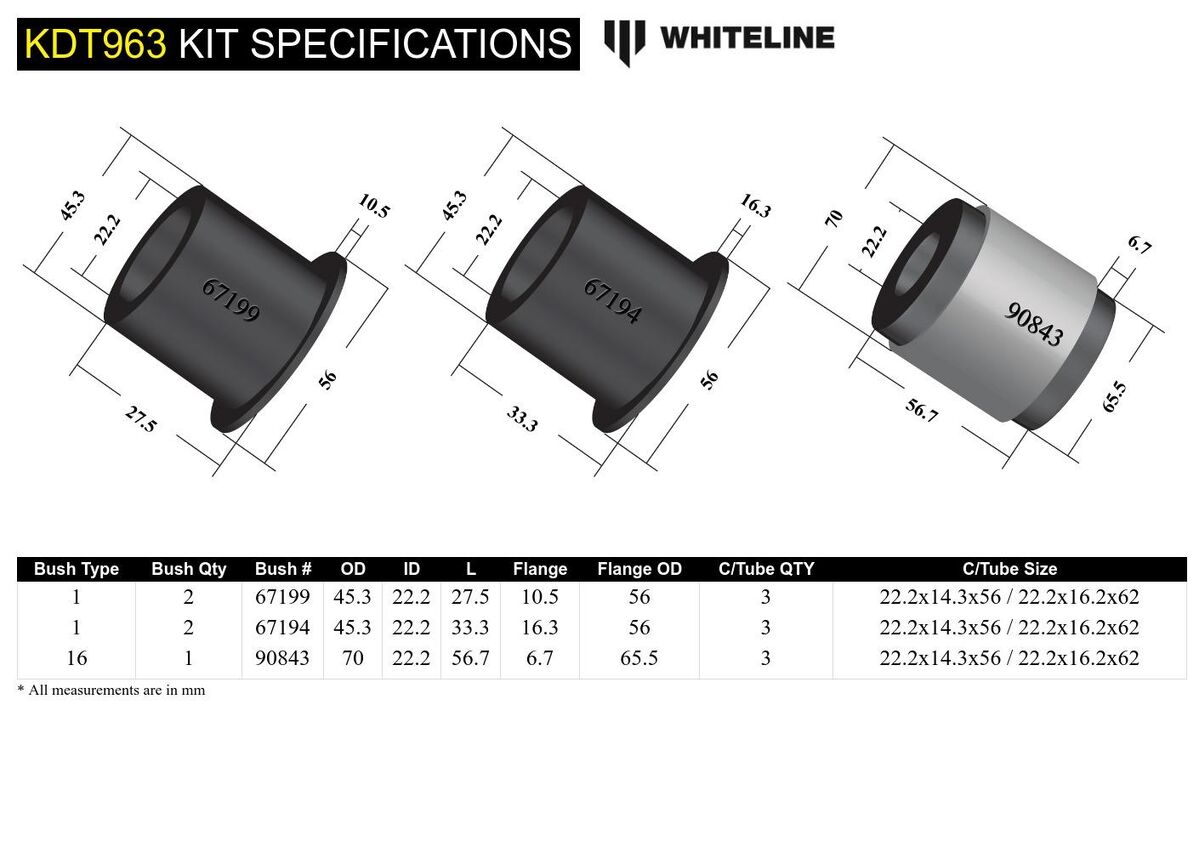

Kit Specifications

Bush Type	1 - Shackle Bushing	1 - Shackle Bushing	16 - Shell Without Flange Bushing
Bush Quantity	2 mm	2 mm	1 mm
OD (A)	45.3 mm	45.3 mm	70 mm
ID (B)	22.2 mm	22.2 mm	22.2 mm
Length (C)	27.5 mm	33.3 mm	56.7 mm
Flange Thickness (D)	10.5 mm	16.3 mm	6.7 mm
Flange OD (E)	56 mm	56 mm	65.5 mm
C/Tube Quantity	3	3	3
C/Tube ODxIDxL	22.2x14.3x56 / 22.2x16.2x62 mm	22.2x14.3x56 / 22.2x16.2x62 mm	22.2x14.3x56 / 22.2x16.2x62 mm
Similar Bushing Size	Click Here	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Design Dimensions (mm)

Bush Type	1	1	16
QTY	2	2	1
OD (A)	45.3	45.3	70
ID (B)	22.2	22.2	22.2
Length (C)	27.5	33.3	56.7
FL (D)	10.5	16.3	6.7
FLOD (E)	56	56	65.5
C/Tube Qty	3	3	3
C/Tube Size	22.2x14.3x56 / 22.2x16.2x62	22.2x14.3x56 / 22.2x16.2x62	22.2x14.3x56 / 22.2x16.2x62
Similar Bushings	Click Here	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

Units	cm/kg	in/lbs
Weight	0.965kg	2.13lbs
Length	10cm	3.94"
Width	26cm	10.24"
Height	16cm	6.3"

Misc. Product Information

More Information

SKU	KDT963

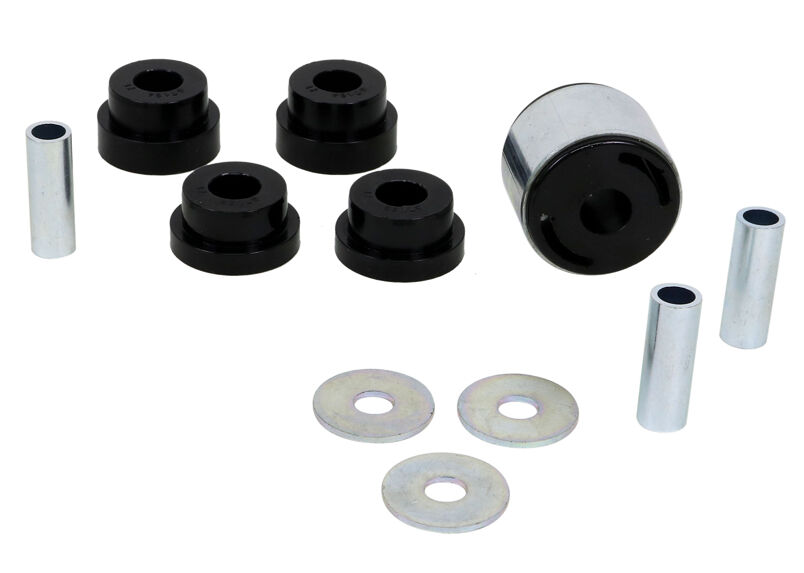

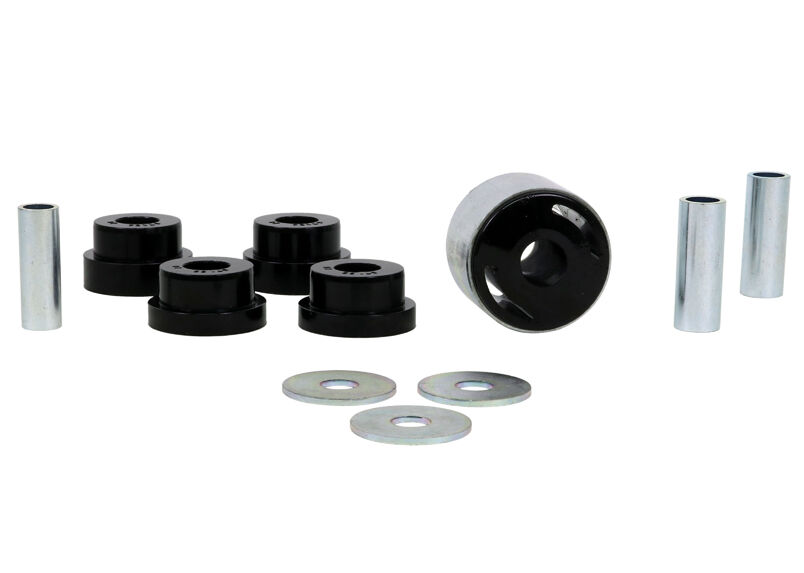

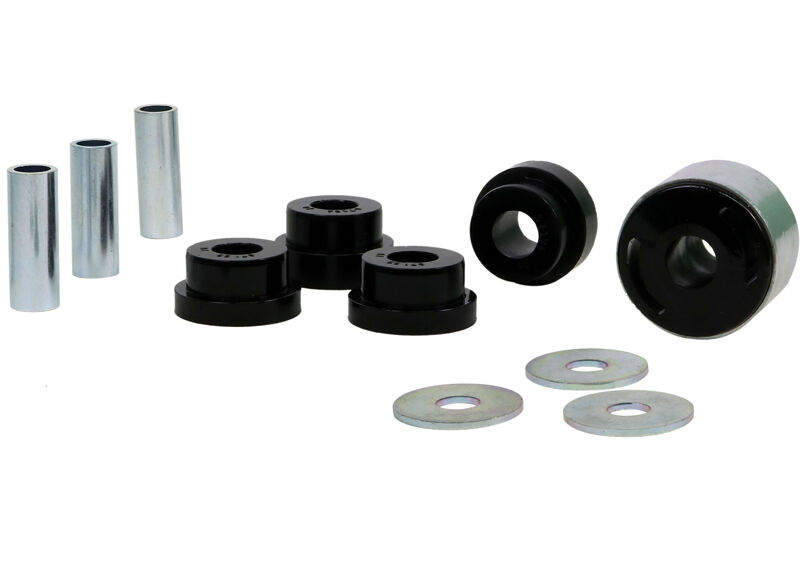

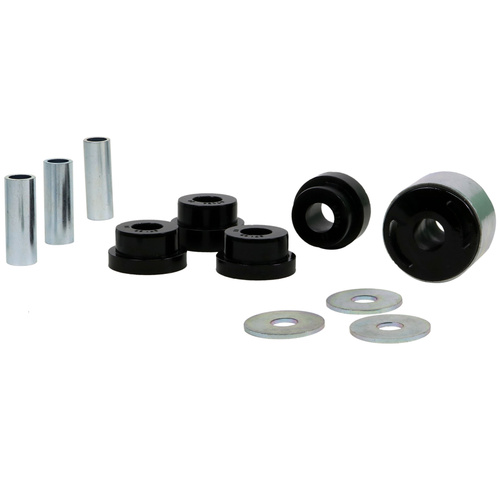

Components Per	1 Shell Bushing, 4 Bushings, 3 Tubes, 3 Washers
Kits Required	1
Sub brand	Performance
Product Note	Boosts handling and performance, while optimising suspension geometry; the perfect, complete upgrade. Includes: 1 Shell Bushing, 4 Bushings, 3 Tubes & 3 Washers
EAN	9319924450497
