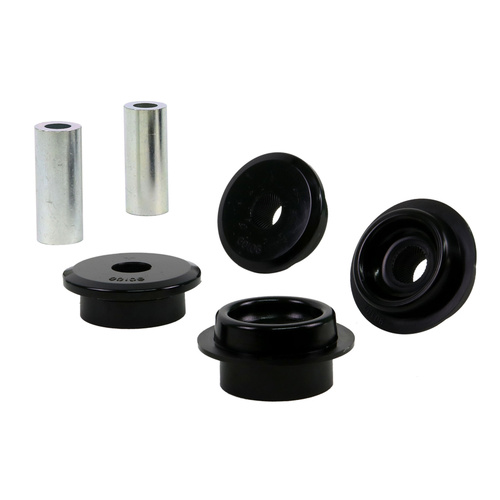

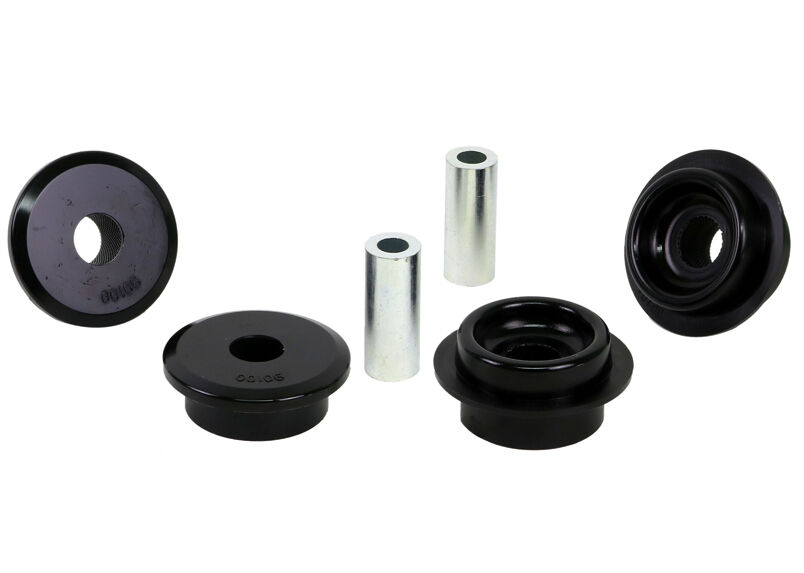

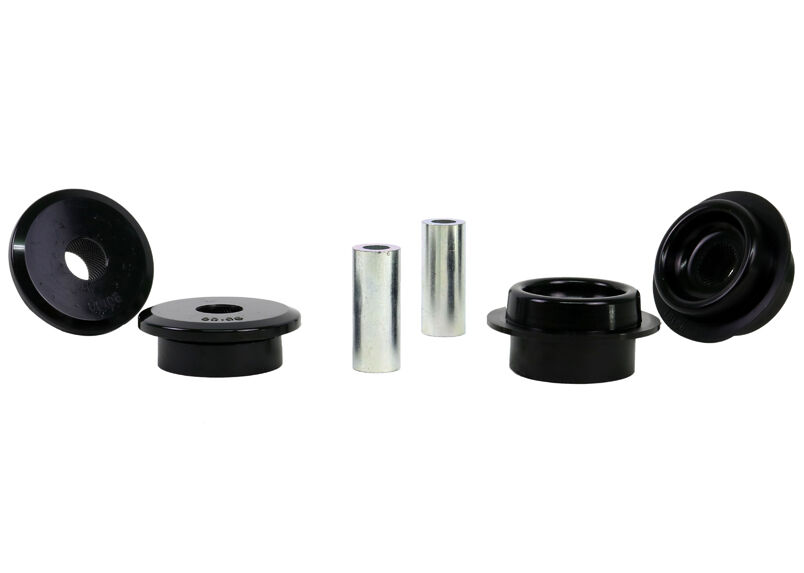

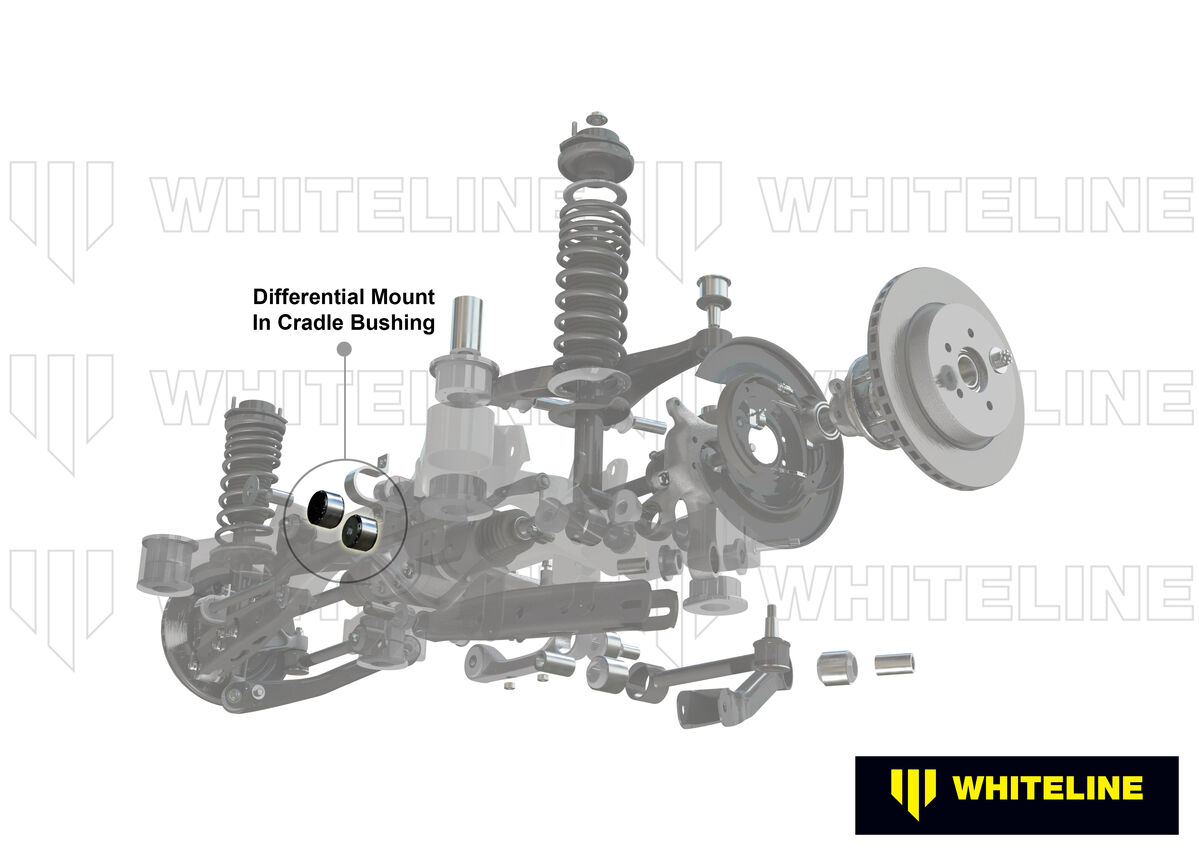

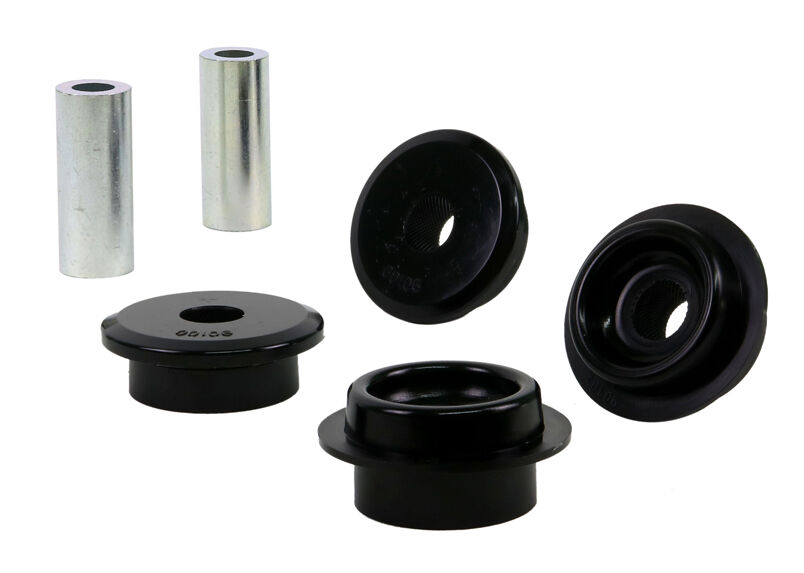

Whiteline Rear Differential Mount - Bushing Kit to Suit Mazda MX-5 NA, NB

SKU: KDT954

Benefit Note: Whiteline's differential bushing solutions ensure pinion angles are maintained while delivering an improved gear shift resulting in reduced initial torque loss and greater power transfer to the wheels.


Kit Specifications

Bush Type 1 - Shackle Bushing 1 - Shackle Bushing
Bush Quantity 2 mm 2 mm
OD (A) 66 mm 66 mm
ID (B) 25.4 mm 25.4 mm
Length (C) 43.4 mm 29.3 mm
Flange Thickness (D) 21.6 mm 8.5 mm
Flange OD (E) 90.5 mm 86 mm
C/Tube Quantity 2 2
C/Tube ODxIDxL 25.4x14.3x64 mm 25.4x14.3x64 mm
Similar Bushing Size Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing
Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 1 1
QTY 2 2
OD (A) 66 66
ID (B) 25.4 25.4
Length (C) 43.4 29.3
FL (D) 21.6 8.5
FLOD (E) 90.5 86
C/Tube Qty 2 2
C/Tube Size 25.4x14.3x64 25.4x14.3x64
Similar Bushings Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.9kg1.98lbs
Length10cm3.94"
Width26cm10.24"
Height16cm6.3"

Misc. Product Information

More Information
SKUKDT954
Components Per4 Bushings, 2 Tubes
Kits Required1
Sub brandPerformance
Product NoteCreates a consistent drive no matter the surface; the perfect, complete upgrade. Includes: 4 Bushings & 2 Tubes
EAN9319924436842
  • 3 years warranty or up to 60,000km
Brand Whiteline
SKU KDT954
Unit Of Measure Kit
