Whiteline Rear Differential Mount - Bushing Kit to Suit Nissan 350Z, 370Z and Skyline

SKU: KDT911

Benefit Note: Whiteline's differential bushing solutions ensure pinion angles are maintained while delivering an improved gear shift resulting in reduced initial torque loss and greater power transfer to the wheels.

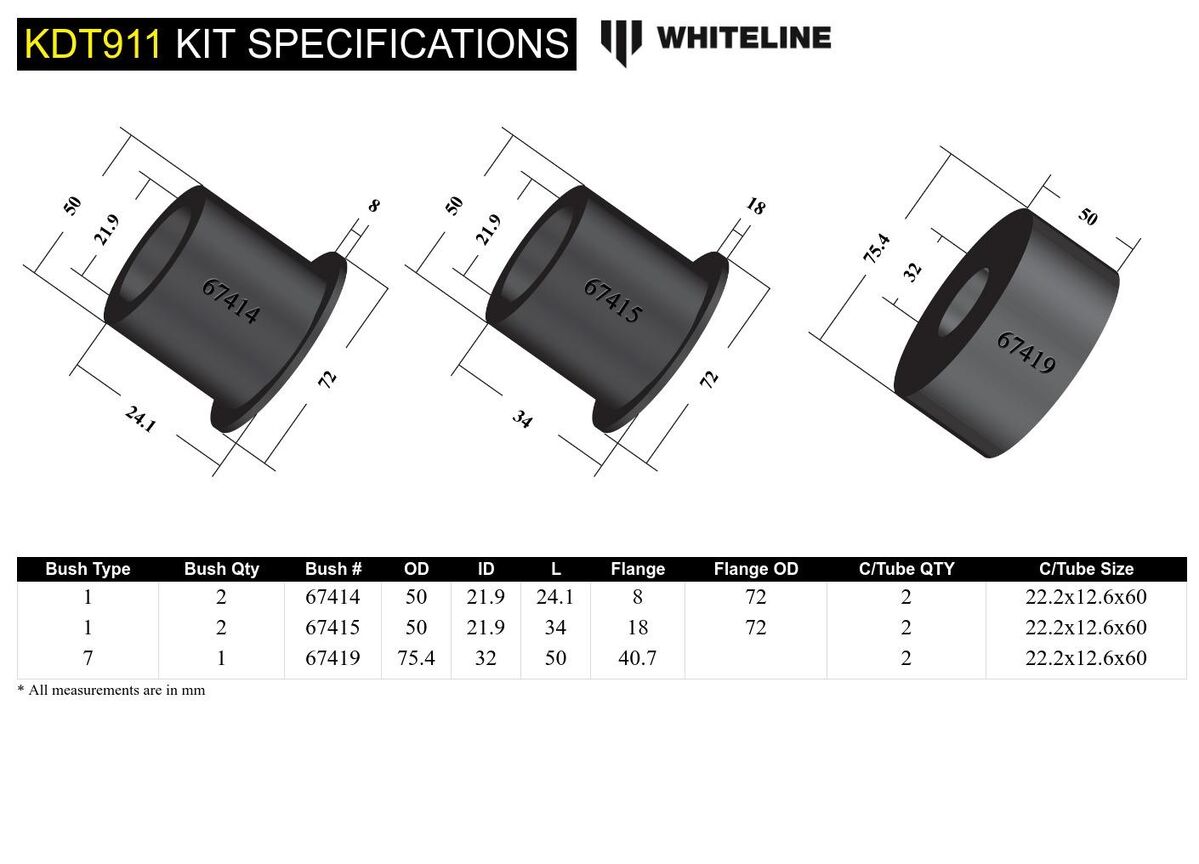

Kit Specifications

Bush Type 1 - Shackle Bushing 1 - Shackle Bushing 7 - Pin Bush With & Without Spigot
Bush Quantity 2 mm 2 mm 1 mm
OD (A) 50 mm 50 mm 75.4 mm
ID (B) 21.9 mm 21.9 mm 32 mm
Length (C) 34 mm 24.1 mm 50 mm
Flange Thickness (D) 18 mm 8 mm 40.7 mm
Flange OD (E) 72 mm 72 mm
C/Tube Quantity 2 2 2
C/Tube ODxIDxL 22.2x12.6x60 mm 22.2x12.6x60 mm 22.2x12.6x60 mm
Similar Bushing Size Click Here Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing
Bushing Type 1 - Shackle Bushing
Bushing Type 7 - Pin Bush With & Without Spigot

Bushing Design Dimensions (mm)

Bush Type 1 1 7
QTY 2 2 1
OD (A) 50 50 75.4
ID (B) 21.9 21.9 32
Length (C) 34.0 24.1 50.0
FL (D) 18 8 40.7
FLOD (E) 72 72
C/Tube Qty 2 2 2
C/Tube Size 22.2x12.6x60 22.2x12.6x60 22.2x12.6x60
Similar Bushings Click Here Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1
Bushing Type 7

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.84kg1.85lbs
Length10cm3.94"
Width26cm10.24"
Height16cm6.3"

Misc. Product Information

More Information
SKUKDT911
Components Per5 Bushings, 2 Tubes
Kits Required1
Sub brandPerformance
Product NoteMaximises grip and stability for better control; the perfect, complete upgrade. Includes: 5 Bushings & 2 Tubes
EAN9319924384952
  • 3 years warranty or up to 60,000km
Brand Whiteline
SKU KDT911
Unit Of Measure Kit
