Benefit Note: Whiteline's differential bushing solutions ensure pinion angles are maintained while delivering an improved gear shift resulting in reduced initial torque loss and greater power transfer to the wheels.

Kit Specifications

Bush Type	7 - Pin Bush With & Without Spigot	1 - Shackle Bushing	1 - Shackle Bushing
Bush Quantity	1 mm	2 mm	2 mm
OD (A)	75.4 mm	50.2 mm	50.2 mm
ID (B)	32 mm	12.2 mm	12.2 mm
Length (C)	50 mm	34.5 mm	24.5 mm
Flange Thickness (D)		18 mm	8 mm
Flange OD (E)		72 mm	72 mm
C/Tube Quantity
C/Tube ODxIDxL
Similar Bushing Size	Click Here	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Design Dimensions (mm)

Bush Type	7	1	1
QTY	1	2	2
OD (A)	75.4	50.2	50.2
ID (B)	32	12.2	12.2
Length (C)	50.0	34.5	24.5
FL (D)		18	8
FLOD (E)		72	72
C/Tube Qty
C/Tube Size
Similar Bushings	Click Here	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

Units	cm/kg	in/lbs
Weight	1.123kg	2.48lbs
Length	21cm	8.27"
Width	10cm	3.94"
Height	20cm	7.87"

Misc. Product Information

More Information

SKU	KDT911M
Components Per	5 Bushings
Kits Required	1
Sub brand	Performance

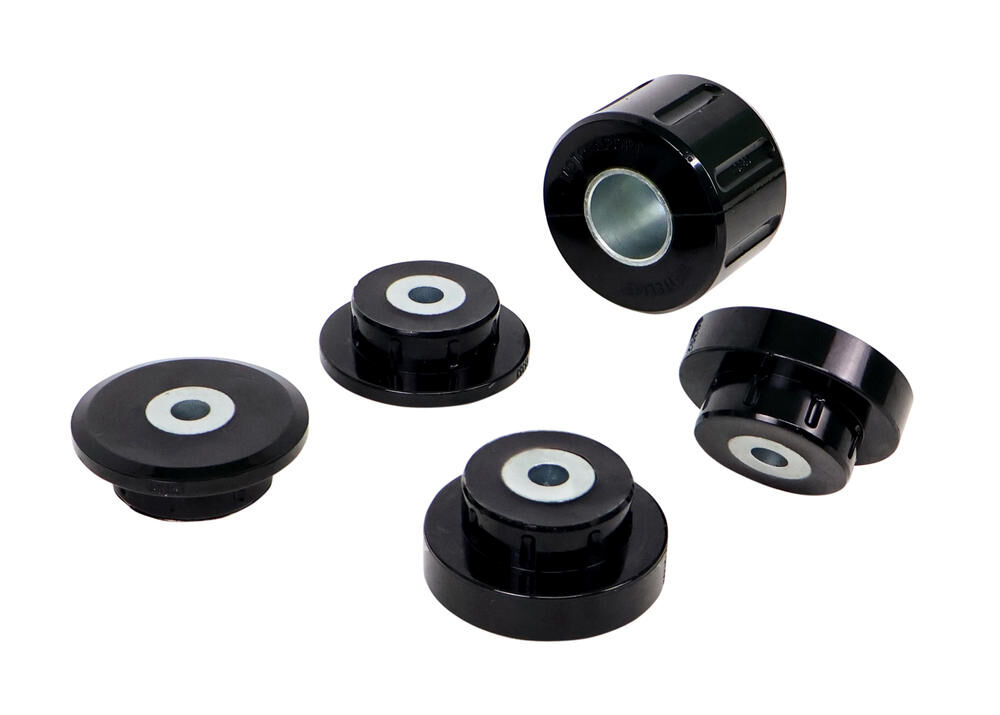

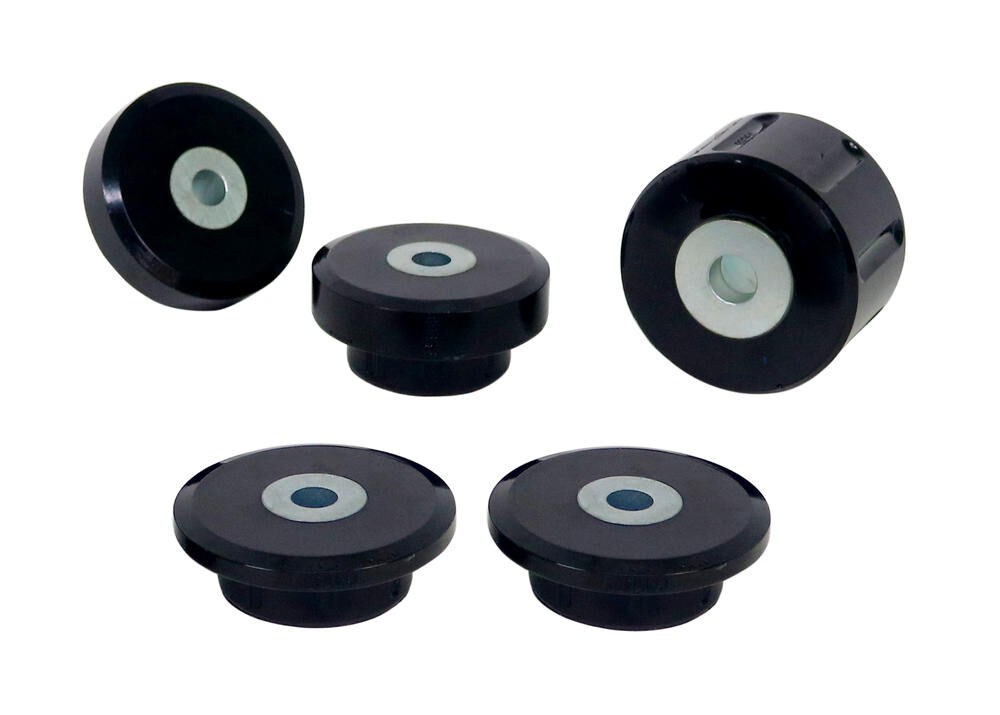

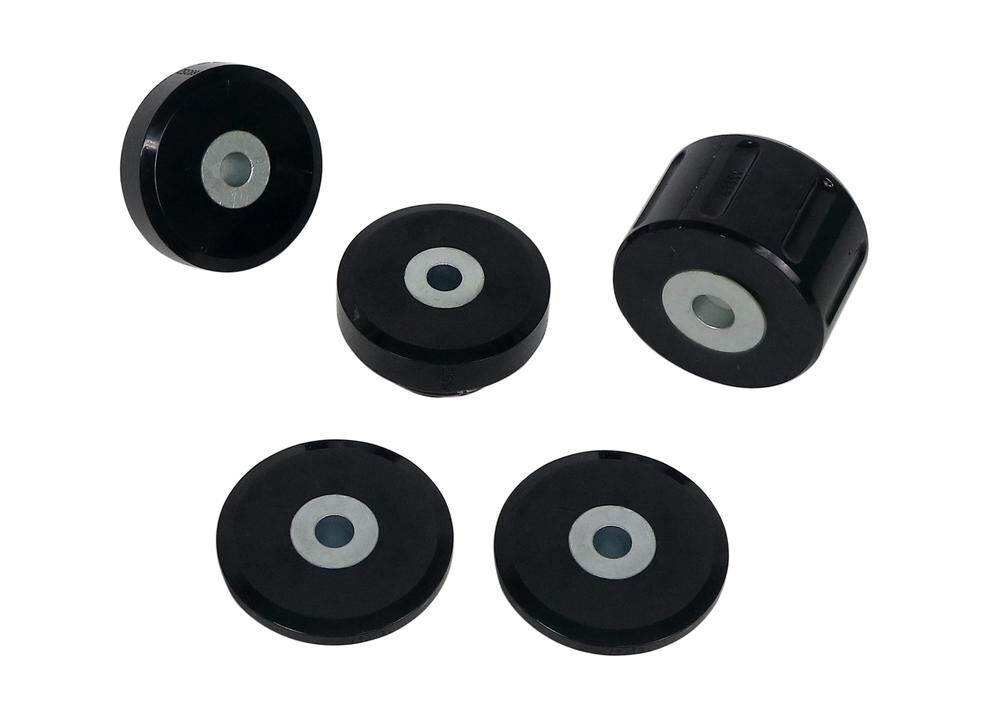

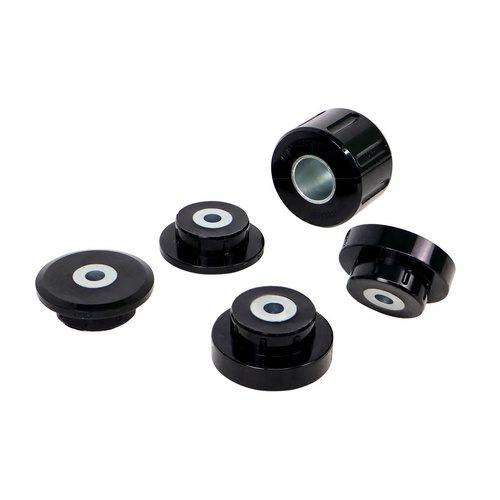

Product Note	Creates a consistent drive no matter the surface; the perfect, complete upgrade. Includes: 5 Bushings
EAN	9319924478514
