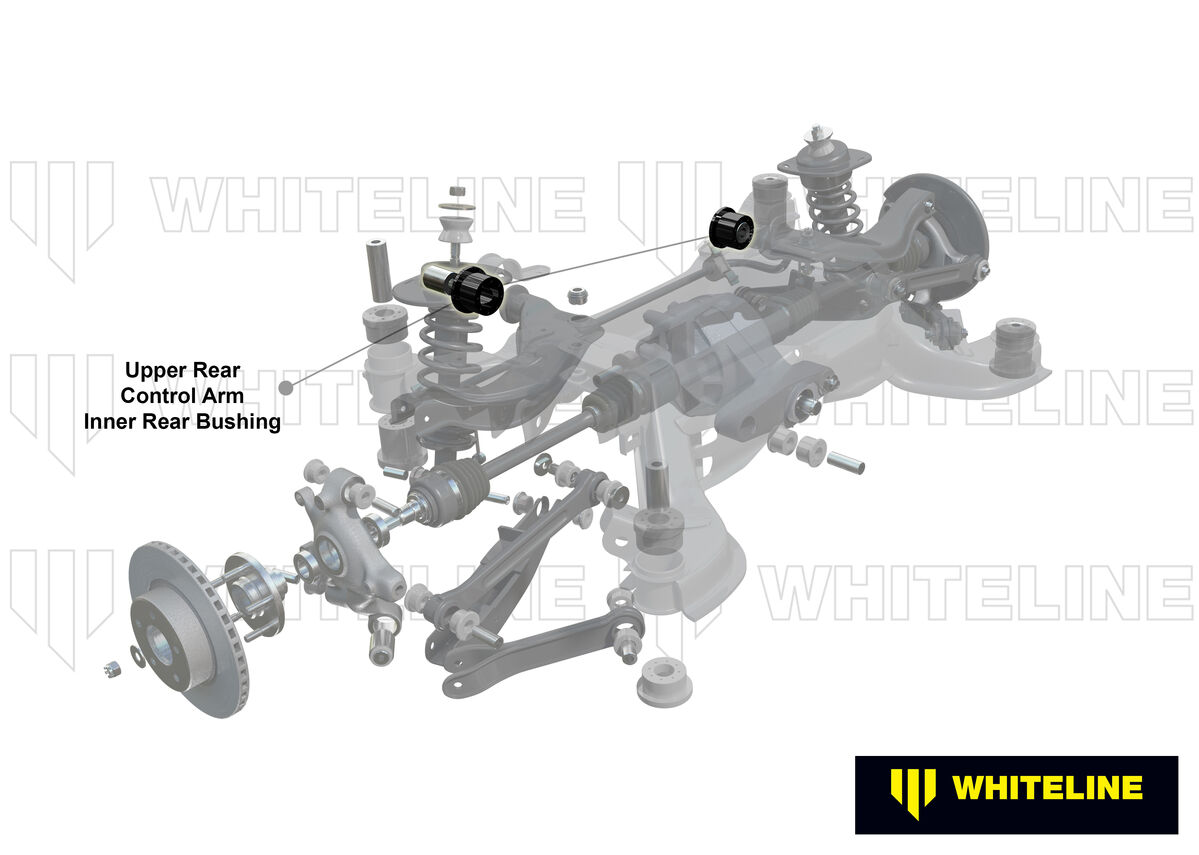

Whiteline Rear Control Arm Upper Rear - Inner Rear Bushing Kit to Suit Chevrolet Camaro FR 5th Gen

SKU: W63348

Benefit Note: Suffering uneven tyre wear, unbalanced braking or a less predictable vehicle while cornering. It could be your suspension bushings have failed. Replace these worn parts with Whiteline synthetic elastomer bushings with core characteristics ensuring superior elasticity, memory and outright durability that offer a safer more predictable vehicle.


Kit Specifications

Bush Type 1 - Shackle Bushing
Bush Quantity 2 mm
OD (A) 71.8 mm
ID (B) 39.5 mm
Length (C) 62.5 mm
Flange Thickness (D) 6.2 mm
Flange OD (E) 82.4 mm
C/Tube Quantity 2
C/Tube ODxIDxL 40x20.5x50 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 1
QTY 2
OD (A) 71.8
ID (B) 39.5
Length (C) 62.5
FL (D) 6.2
FLOD (E) 82.4
C/Tube Qty 2
C/Tube Size 40x20.5x50
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight1.23kg2.71lbs
Length10cm3.94"
Width26cm10.24"
Height16cm6.3"

Misc. Product Information

More Information
SKUW63348

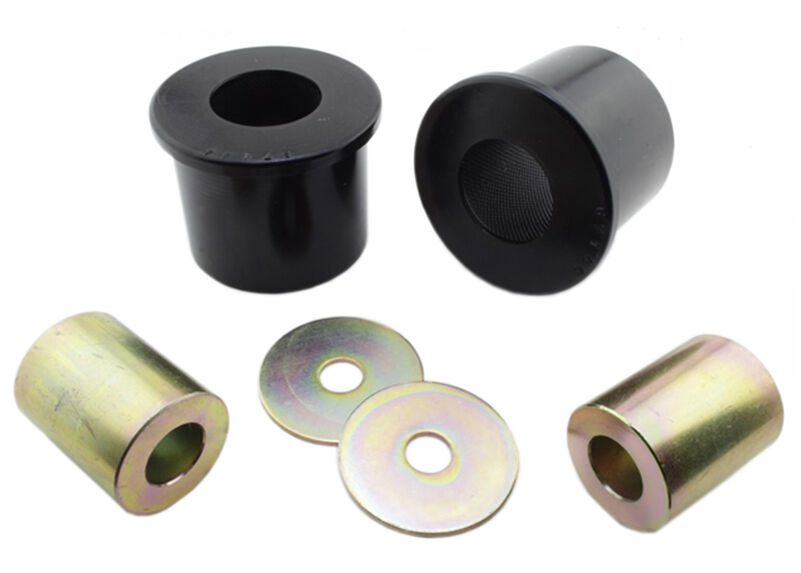

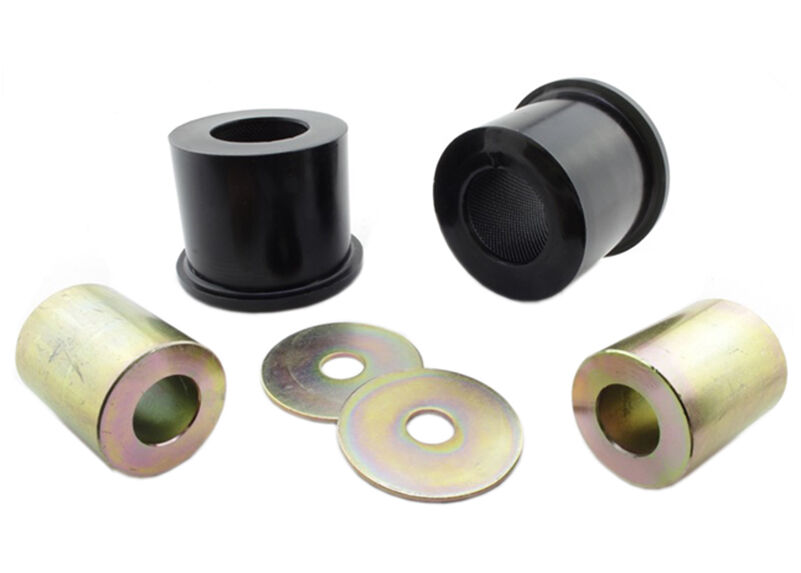

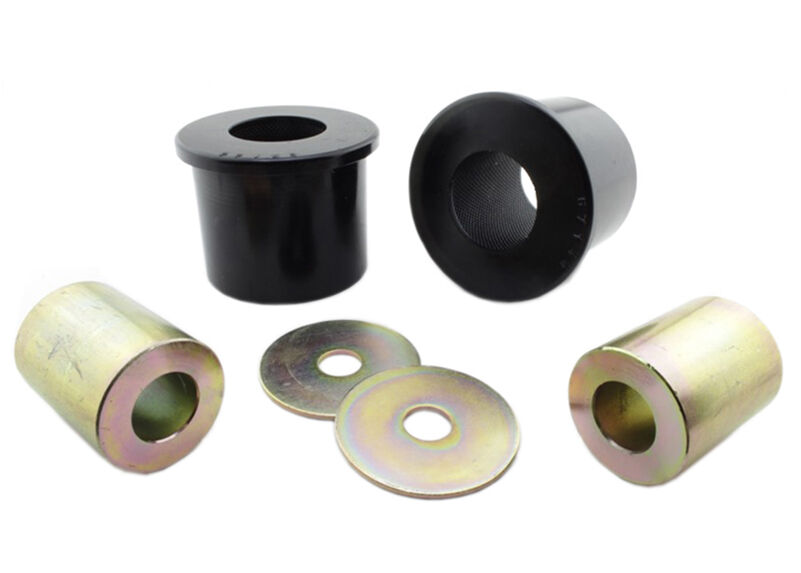

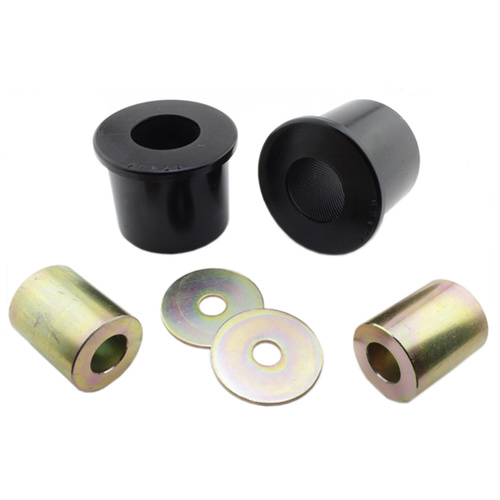

Components Per2 Bushings, 2 Tubes, 2 Washers
Kits Required1
Sub brandReplacement
Product NoteMaximises tyre contact with the road, improving cornering and grip; the perfect, complete upgrade. Includes: 2 Bushings, 2 Tubes, 2 Washers
EAN9319924377435
  • Lifetime Warranty
Brand Whiteline
SKU W63348
Unit Of Measure Kit
