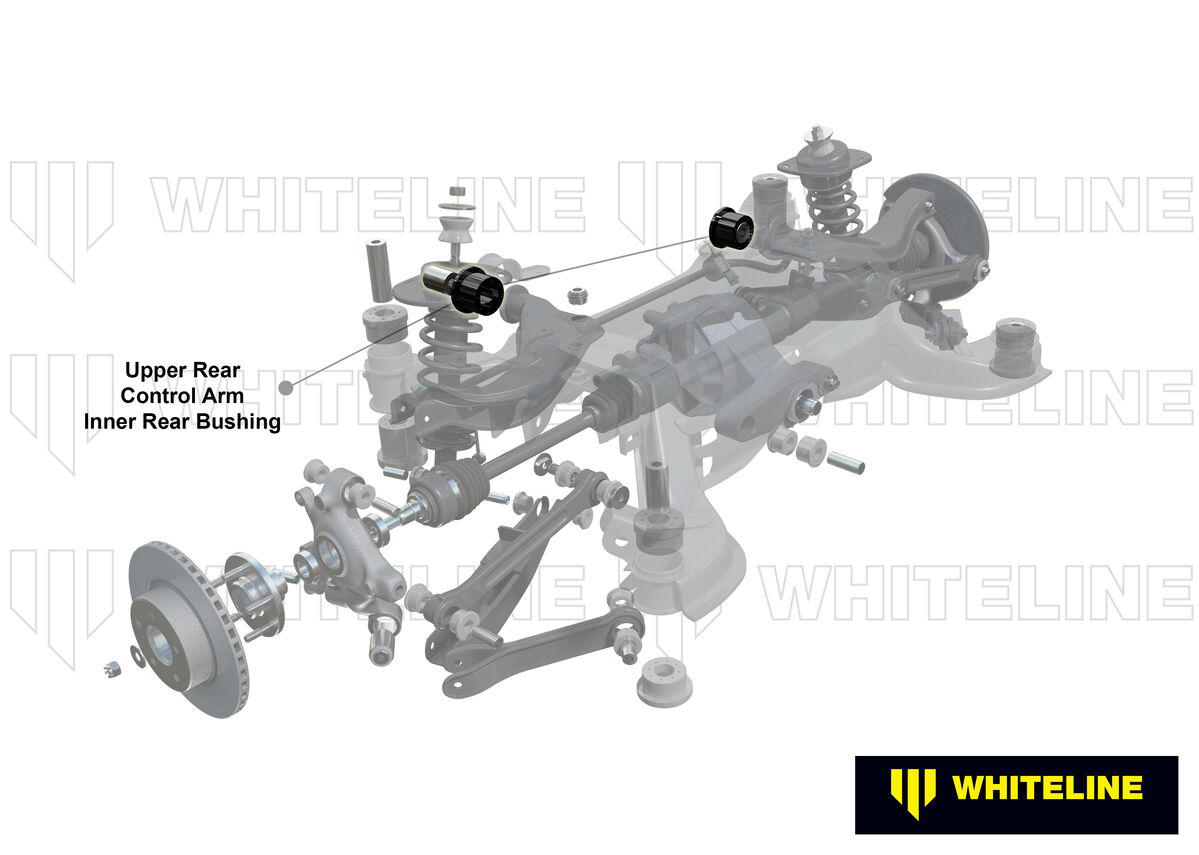

Whiteline Rear Control Arm Upper Rear - Inner Rear Bushing Kit to Suit Holden Commodore VE, VF and HSV

SKU: W63156

Benefit Note: Suffering uneven tyre wear, unbalanced braking or a less predictable vehicle while cornering. It could be your suspension bushings have failed. Replace these worn parts with Whiteline synthetic elastomer bushings with core characteristics ensuring superior elasticity, memory and outright durability that offer a safer more predictable vehicle.

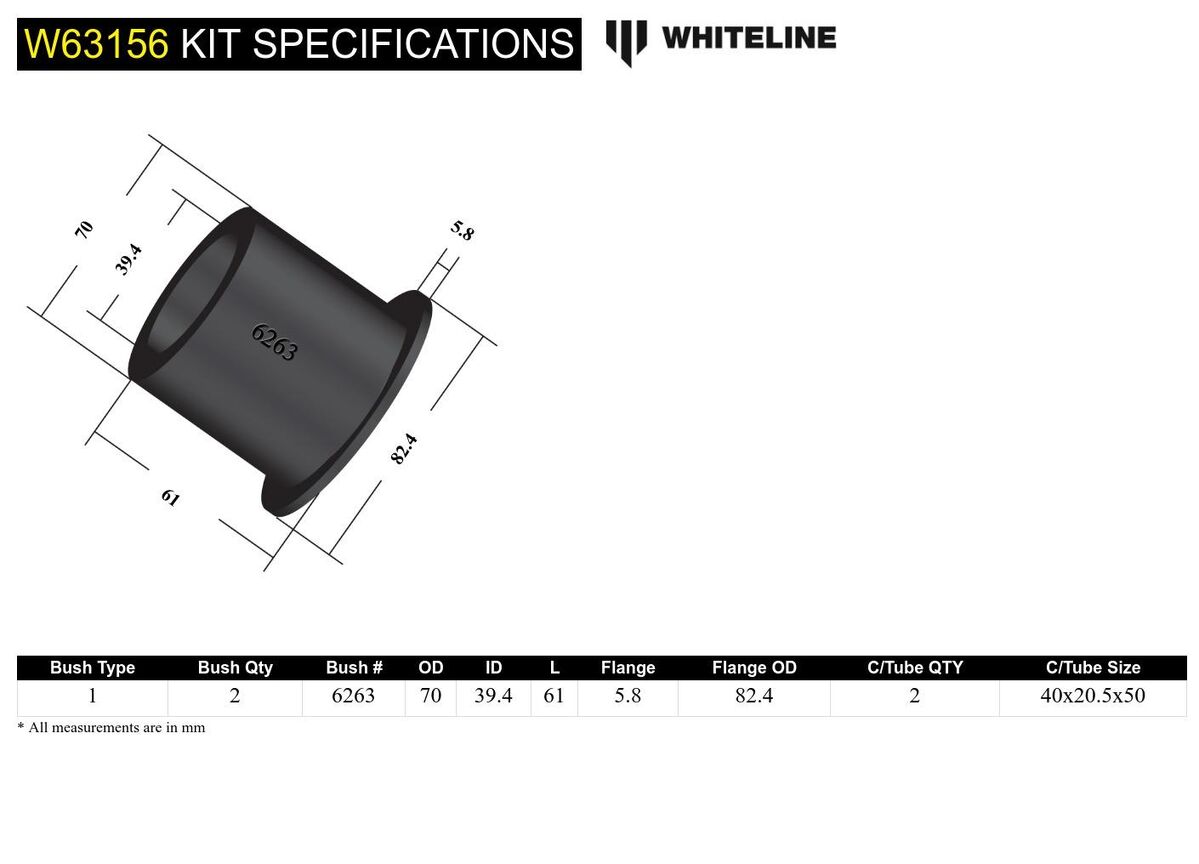

Kit Specifications

Bush Type 1 - Shackle Bushing
Bush Quantity 2 mm
OD (A) 70 mm
ID (B) 39.4 mm
Length (C) 61 mm
Flange Thickness (D) 5.8 mm
Flange OD (E) 82.4 mm
C/Tube Quantity 2
C/Tube ODxIDxL 40x20.5x50 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 1
QTY 2
OD (A) 70
ID (B) 39.4
Length (C) 61.0
FL (D) 5.8
FLOD (E) 82.4
C/Tube Qty 2
C/Tube Size 40x20.5x50
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight1.182kg2.61lbs
Length10cm3.94"
Width26cm10.24"
Height16cm6.3"

Misc. Product Information

More Information
SKUW63156
Components Per2 Bushings, 2 Tubes
Kits Required1
Sub brandReplacement
Product NoteEnhances steering response, delivering sharper handling and more predictable vehicle dynamics; the perfect, complete upgrade. Includes: 2 Bushings, 2 Tubes
EAN9319924355082
  • Lifetime Warranty
Brand Whiteline
SKU W63156
Unit Of Measure Kit
