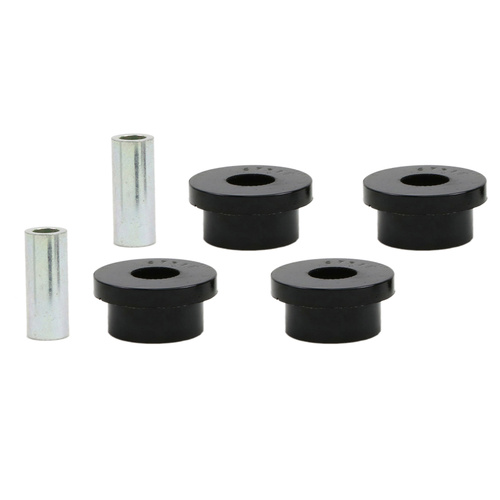

Whiteline Rear Control Arm Upper Rear - Inner Bushing Kit to Suit Mitsubishi Lancer Evo 4 5 6 7 8 9

SKU: W0591

Benefit Note: Suffering uneven tyre wear, unbalanced braking or a less predictable vehicle while cornering. It could be your suspension bushings have failed. Replace these worn parts with Whiteline synthetic elastomer bushings with core characteristics ensuring superior elasticity, memory and outright durability that offer a safer more predictable vehicle.

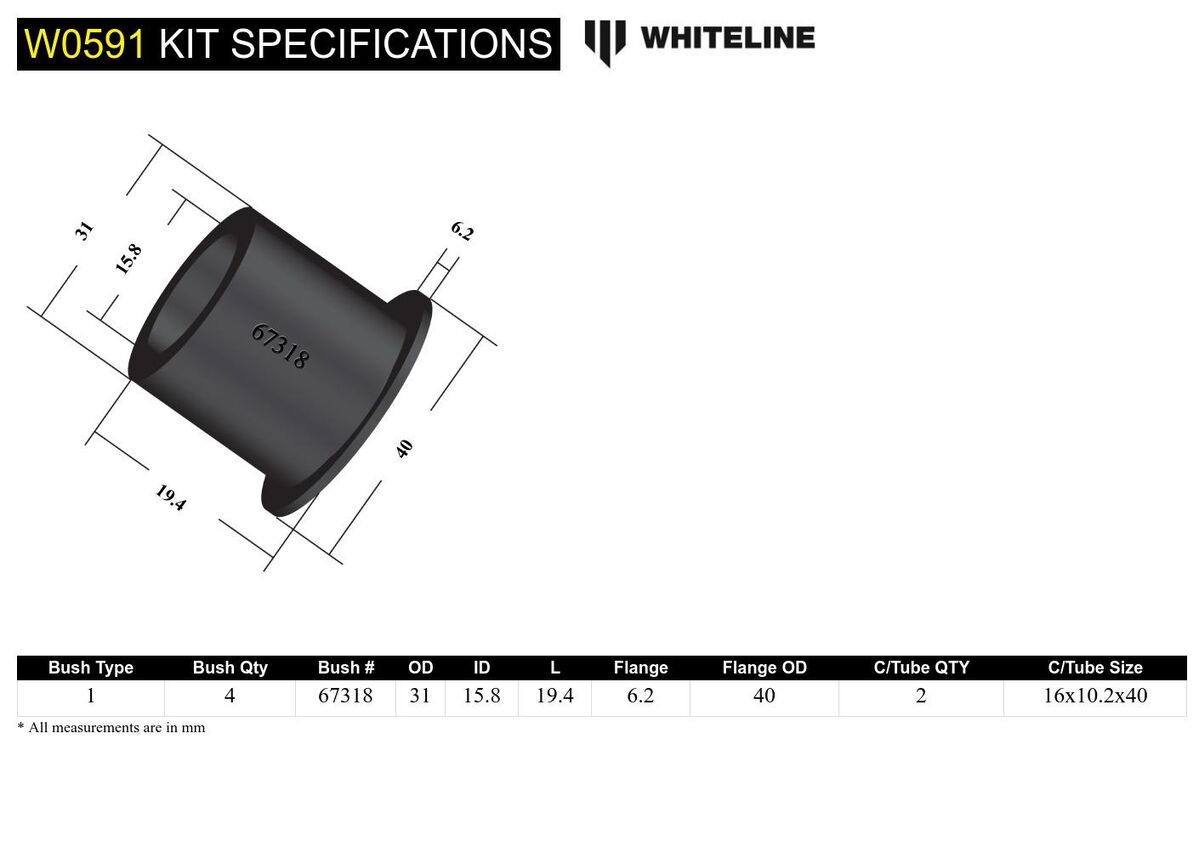

Kit Specifications

Bush Type 1 - Shackle Bushing
Bush Quantity 4 mm
OD (A) 31 mm
ID (B) 15.8 mm
Length (C) 19.4 mm
Flange Thickness (D) 6.2 mm
Flange OD (E) 40 mm
C/Tube Quantity 2
C/Tube ODxIDxL 16x10.2x40 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 1
QTY 4
OD (A) 31
ID (B) 15.8
Length (C) 19.4
FL (D) 6.2
FLOD (E) 40
C/Tube Qty 2
C/Tube Size 16x10.2x40
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.15kg0.33lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW0591
Components Per4 Bushings, 2 Tubes
Kits Required1
Sub brandPerformance
Product NoteEnhances steering response, delivering sharper handling and more predictable vehicle dynamics; the perfect, complete upgrade. Includes: 4 Bushings, 2 Tubes
EAN9319924344772
  • Lifetime Warranty
Brand Whiteline
SKU W0591
Unit Of Measure Kit
