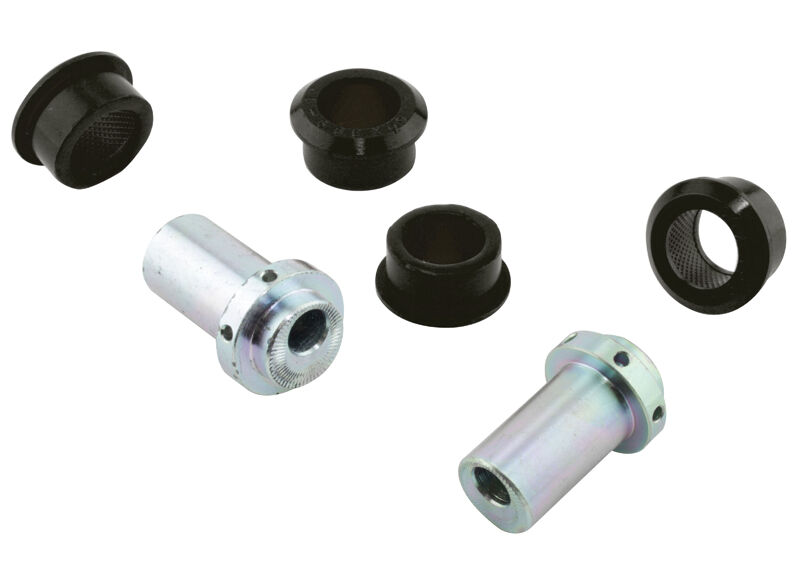

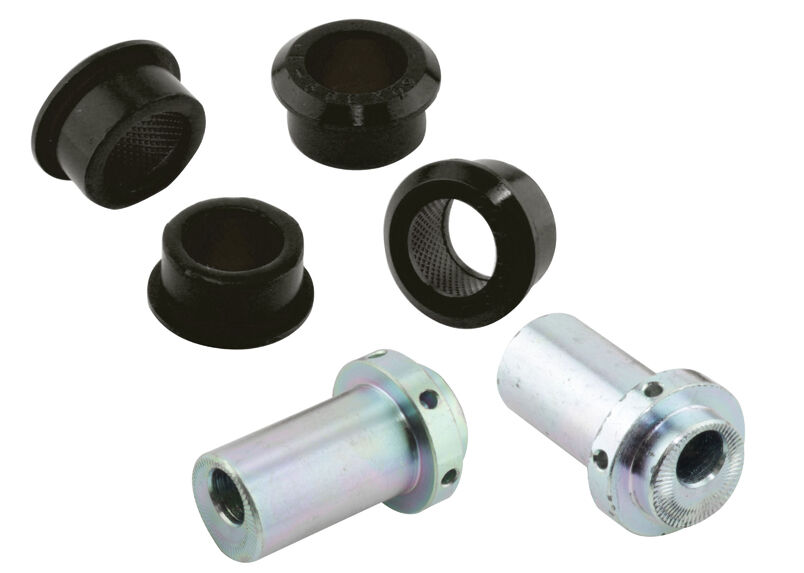

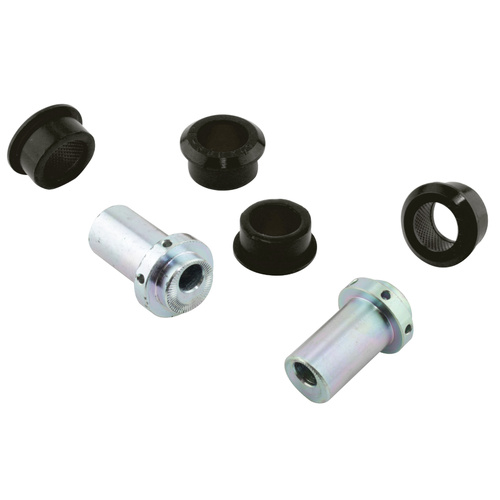

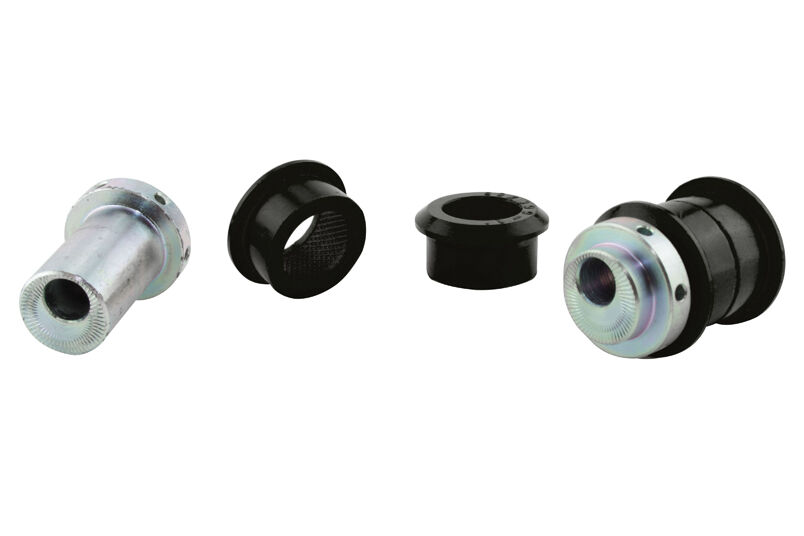

Whiteline Rear Control Arm Upper - Outer Bushing Double Offset Camber Kit to Suit Subaru Liberty and Outback

SKU: KCA399

Benefit Note: Whiteline adjustable camber kits allow for easy on-car adjustment and fine tuning of camber settings resulting in improved traction, increased cornering grip and better tyre life - ultimately improving overall performance. The kit includes low compliance synthetic elastomer bushings which maintain preferred alignment settings as well as enhanced steering response.


Kit Specifications

Bush Type 1 - Shackle Bushing
Bush Quantity 4 mm
OD (A) 34 mm
ID (B) 24.4 mm
Length (C) 20.8 mm
Flange Thickness (D) 5.2 mm
Flange OD (E) 41 mm
C/Tube Quantity 2
C/Tube ODxIDxL 25x12.2x56 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing
Alignment Alignment Adjustment Type Alignment On Car Adjustable
Camber Eccentric Yes

Bushing Design Dimensions (mm)

Bush Type 1
QTY 4
OD (A) 34
ID (B) 24.4
Length (C) 20.8
FL (D) 5.2
FLOD (E) 41
C/Tube Qty 2
C/Tube Size 25x12.2x56
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.454kg1lbs
Length7cm2.76"
Width14cm5.51"
Height20cm7.87"

Misc. Product Information

More Information
SKUKCA399
Components Per4 Bushings, 2 Tubes
Kits Required1
Sub brandPerformance
Product NoteEnsures long-lasting durability, matter matter the purpose; the perfect, complete upgrade. Includes: 4 Bushings, 2 Tubes
EAN9319924347735
  • Lifetime Warranty
Brand Whiteline
SKU KCA399
Unit Of Measure Kit
