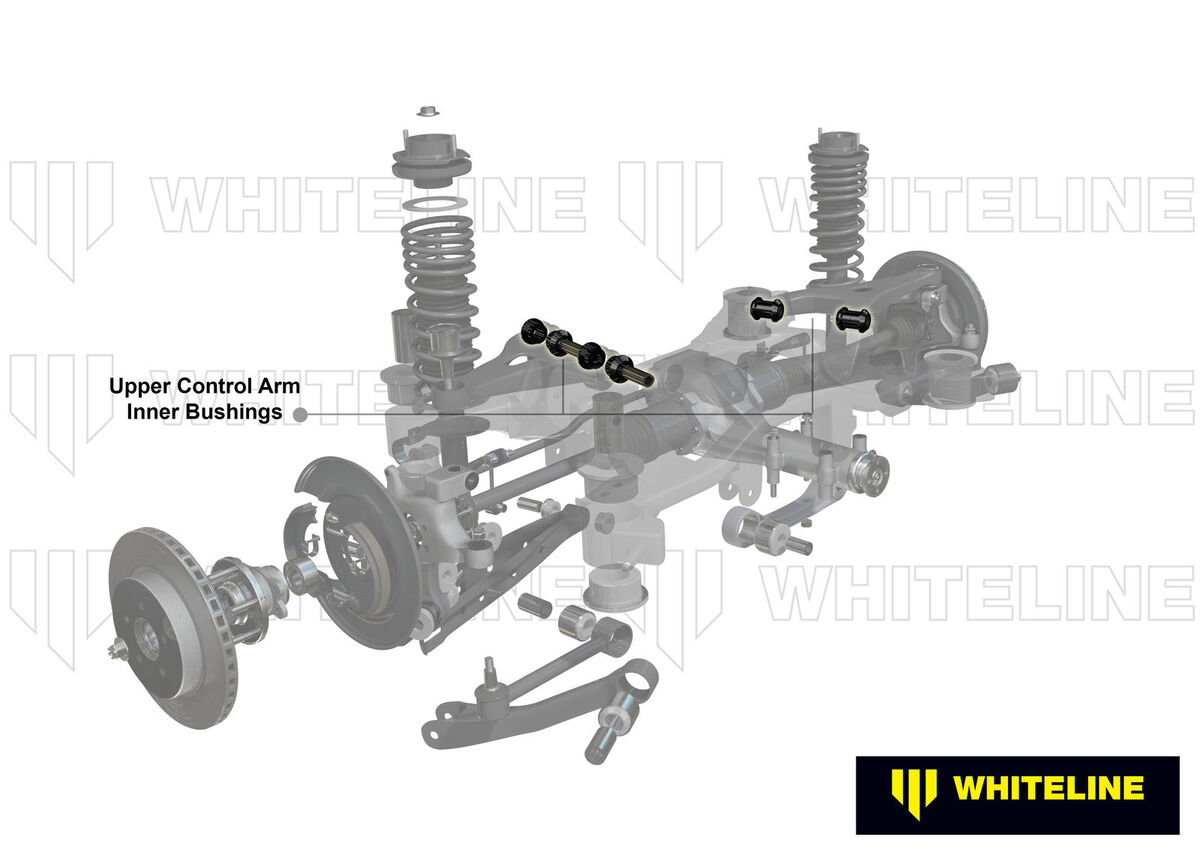

Whiteline Rear Control Arm Upper - Inner Bushings Double Offset Camber to Suit Subaru BRZ, Forester, Impreza, Levorg, Liberty and Toyota 86

SKU: KCA326

Benefit Note: Whiteline adjustable camber kits provide the ability to fine tune camber settings for optimum tyre contact resulting in improved vehicle handling and increased tyre life. The kit includes low compliance synthetic elastomer bushings which help maintain preferred alignment settings as well as providing enhanced steering response.


Kit Specifications

Bush Type 1 - Shackle Bushing 1 - Shackle Bushing
Bush Quantity 4 mm 4 mm
OD (A) 34 mm 34 mm
ID (B) 21.8 mm 21.8 mm
Length (C) 29.5 mm 24.9 mm
Flange Thickness (D) 15 mm 9.4 mm
Flange OD (E) 46.9 mm 46.8 mm
C/Tube Quantity 2 / 2 2 / 2
C/Tube ODxIDxL 22.2x12x49.60 / 22x12x59.40 mm 22.2x12x49.60 / 22x12x59.40 mm
Similar Bushing Size Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing
Bushing Type 1 - Shackle Bushing
Alignment Alignment Adjustment Type Alignment On Car Adjustable
Camber Eccentric Yes
Camber Eccentric Yes

Bushing Design Dimensions (mm)

Bush Type 1 1
QTY 4 4
OD (A) 34 34
ID (B) 21.8 21.8
Length (C) 29.5 24.9
FL (D) 15 9.4
FLOD (E) 46.9 46.8
C/Tube Qty 2 / 2 2 / 2
C/Tube Size 22.2x12x49.60 / 22x12x59.40 22.2x12x49.60 / 22x12x59.40
Similar Bushings Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight1.151kg2.54lbs
Length10cm3.94"
Width26cm10.24"
Height16cm6.3"

Misc. Product Information

More Information
SKUKCA326

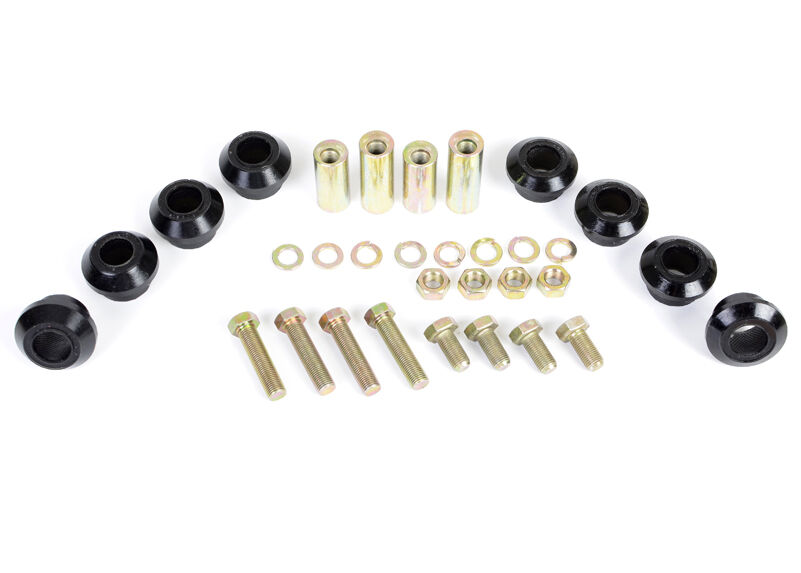

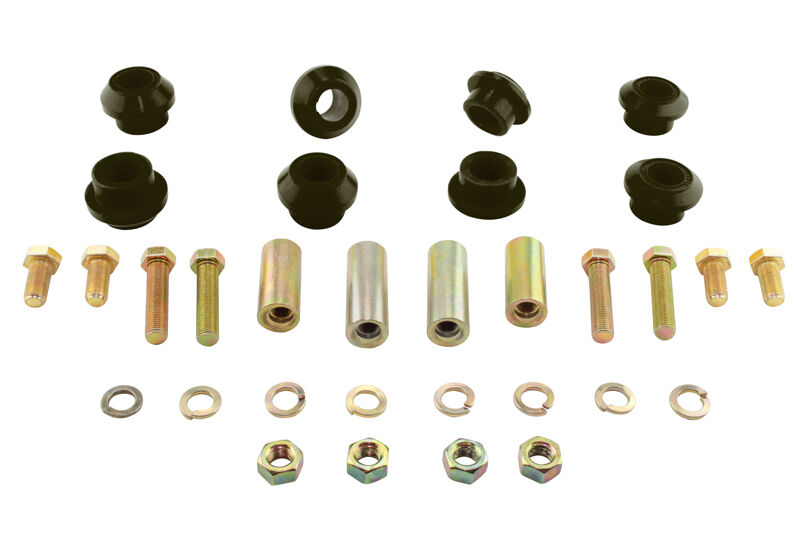

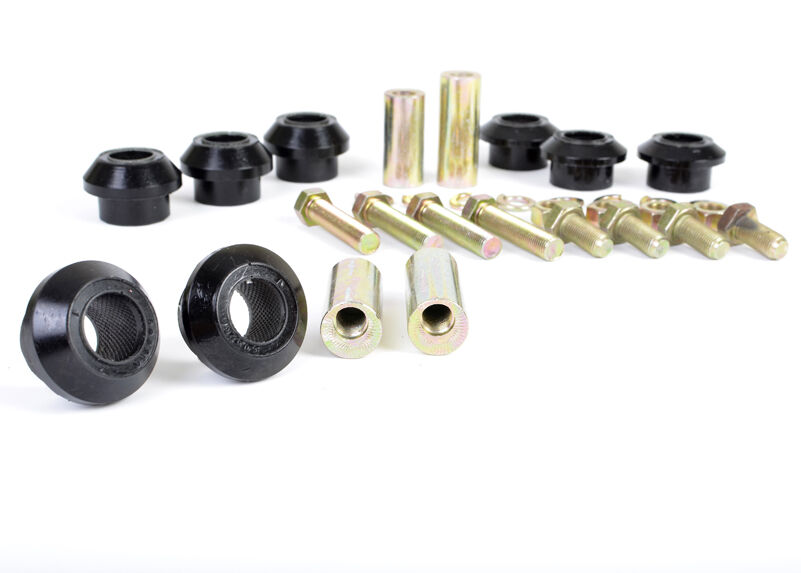

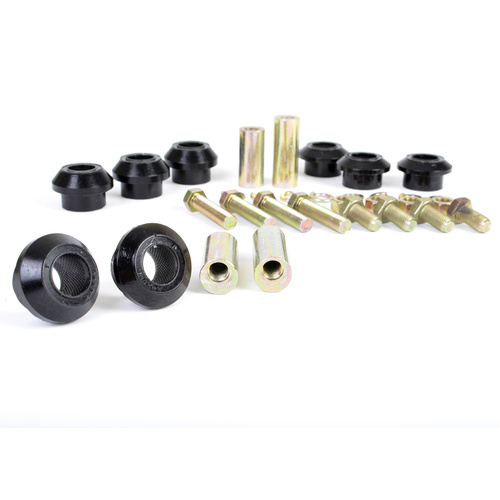

Components Per8 Bushings, 4 Tubes, 8 Bolts, 8 Washers, 4 Nuts
Kits Required1
Sub brandPerformance
Product NoteMaximises tyre contact with the road, improving cornering and grip; the perfect, complete upgrade. Includes: 8 Bushings, 4 Tubes, 8 Bolts, 8 Washers, 4 Nuts
EAN9319924358847
  • Lifetime Warranty
Brand Whiteline
SKU KCA326
Unit Of Measure Each
