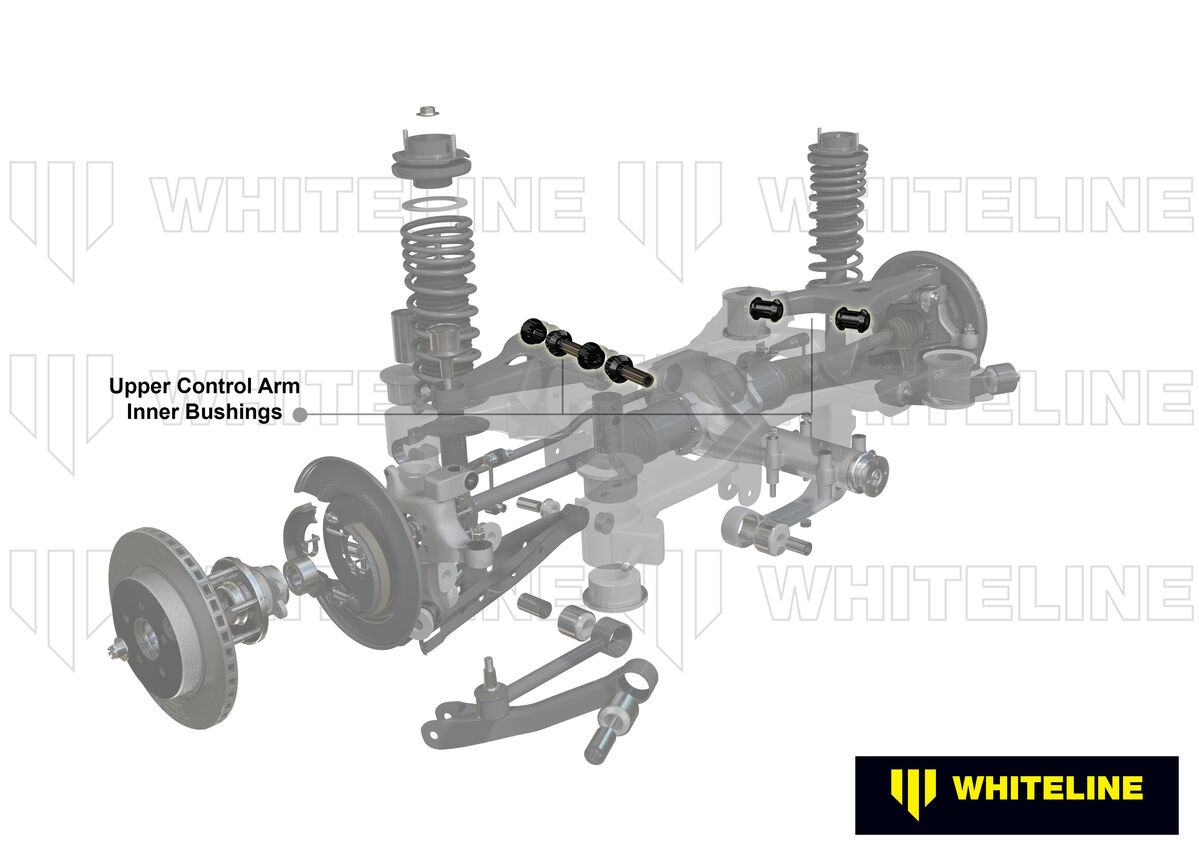

Whiteline Rear Control Arm Upper - Inner Bushing Kit to Suit Honda S2000 AP

SKU: W63444

Benefit Note: Suffering uneven tyre wear, unbalanced braking or a less predictable vehicle while cornering. It could be your suspension bushings have failed. Replace these worn parts with Whiteline synthetic elastomer bushings with core characteristics ensuring superior elasticity, memory and outright durability that offer a safer more predictable vehicle.


Kit Specifications

Bush Type 1 - Shackle Bushing 1 - Shackle Bushing
Bush Quantity 4 mm 4 mm
OD (A) 42.1 mm 42.5 mm
ID (B) 22.2 mm 22.2 mm
Length (C) 30.7 mm 25 mm
Flange Thickness (D) 15 mm 9.8 mm
Flange OD (E) 54.4 mm 54.4 mm
C/Tube Quantity 4 4
C/Tube ODxIDxL 22.2x12.2x57 mm 22.2x12.2x57 mm
Similar Bushing Size Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing
Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 1 1
QTY 4 4
OD (A) 42.1 42.5
ID (B) 22.2 22.2
Length (C) 30.7 25.0
FL (D) 15 9.8
FLOD (E) 54.4 54.4
C/Tube Qty 4 4
C/Tube Size 22.2x12.2x57 22.2x12.2x57
Similar Bushings Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.8kg1.76lbs
Length10cm3.94"
Width26cm10.24"
Height16cm6.3"

Misc. Product Information

More Information
SKUW63444

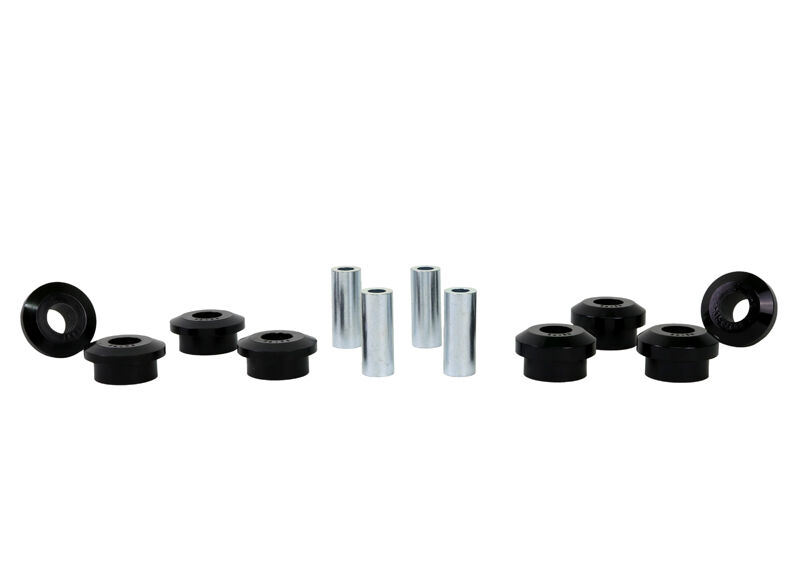

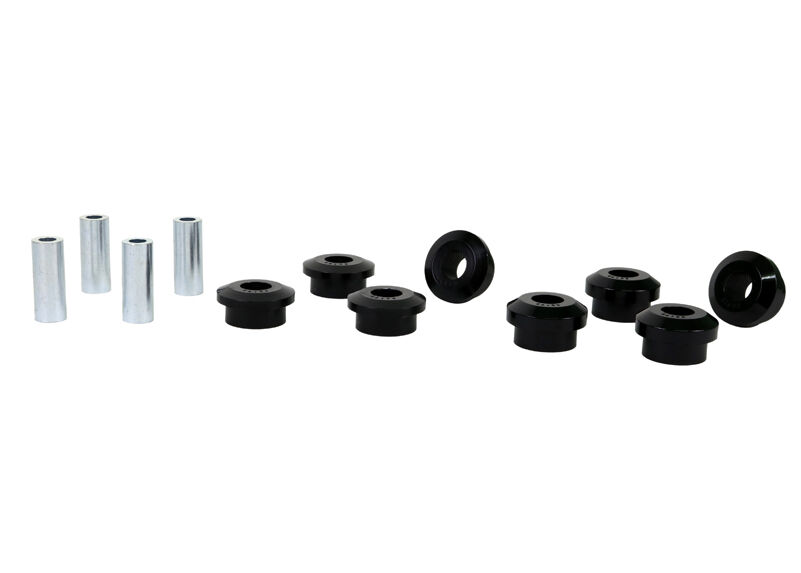

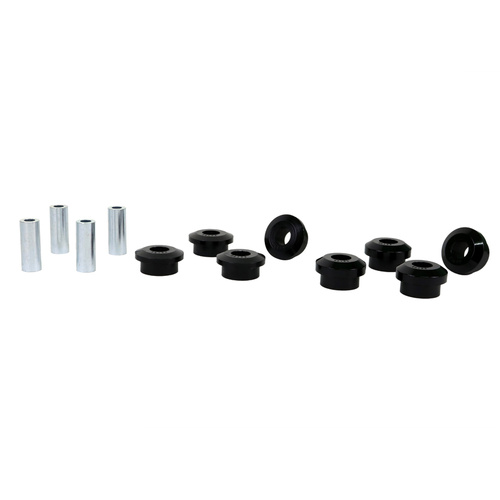

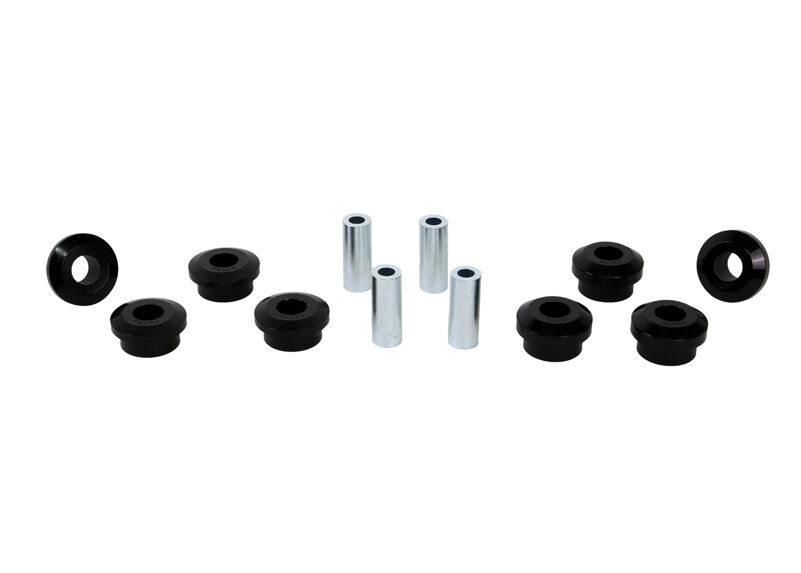

Components Per8 Bushings, 4 Tubes
Kits Required1
Sub brandReplacement
Product NoteGreatly increases control and confidence; the perfect, complete upgrade. Includes: 8 Bushings, 4 Tubes
EAN9319924398522
  • Lifetime Warranty
Brand Whiteline
SKU W63444
Unit Of Measure Kit
