Whiteline Rear Control Arm Upper - Inner Bushing Kit to Suit Mitsubishi Pajero NM-NX

SKU: W63417A

Benefit Note: Suffering uneven tyre wear, unbalanced braking or a less predictable vehicle while cornering. It could be your suspension bushings have failed. Replace these worn parts with Whiteline synthetic elastomer bushings with core characteristics ensuring superior elasticity, memory and outright durability that offer a safer more predictable vehicle.

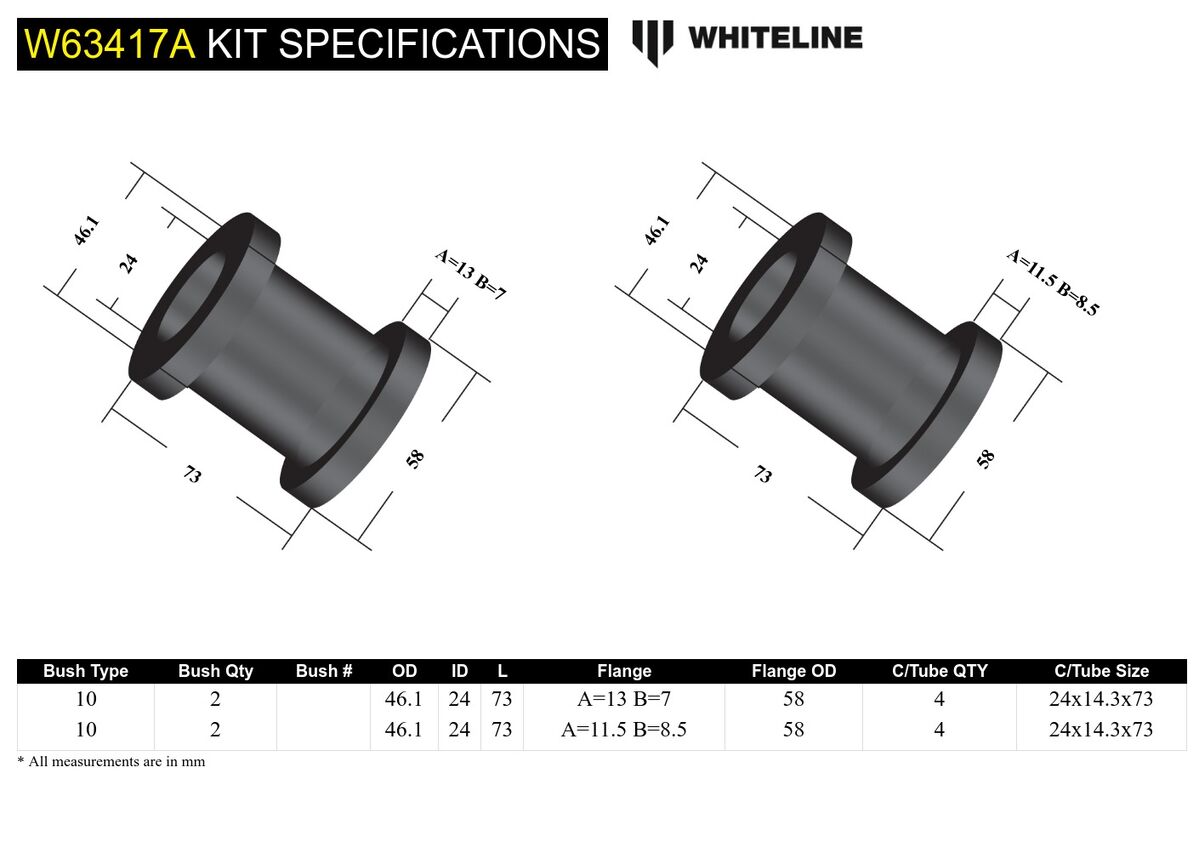

Kit Specifications

Bush Type 10 - Cotton Reel With & Without Tapper Bushing 10 - Cotton Reel With & Without Tapper Bushing
Bush Quantity 2 mm 2 mm
OD (A) 46.1 mm 46.1 mm
ID (B) 24 mm 24 mm
Length (C) 73 mm 73 mm
Flange Thickness (D) DI=11.5 DII=8.5 mm DI=13 DII=7 mm
Flange OD (E) 58 mm 58 mm
C/Tube Quantity 4 4
C/Tube ODxIDxL 24x14.3x73 mm 24x14.3x73 mm
Similar Bushing Size Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 10 - Cotton Reel With & Without Tapper Bushing
Bushing Type 10 - Cotton Reel With & Without Tapper Bushing

Bushing Design Dimensions (mm)

Bush Type 10 10
QTY 2 2
OD (A) 46.1 46.1
ID (B) 24 24
Length (C) 73.0 73.0
FL (D) DI=11.5 DII=8.5 DI=13 DII=7
FLOD (E) 58 58
C/Tube Qty 4 4
C/Tube Size 24x14.3x73 24x14.3x73
Similar Bushings Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 10

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight1.14kg2.51lbs
Length10cm3.94"
Width26cm10.24"
Height16cm6.3"

Misc. Product Information

More Information
SKUW63417A

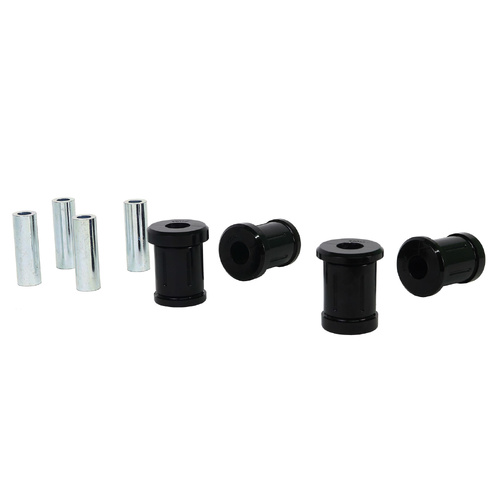

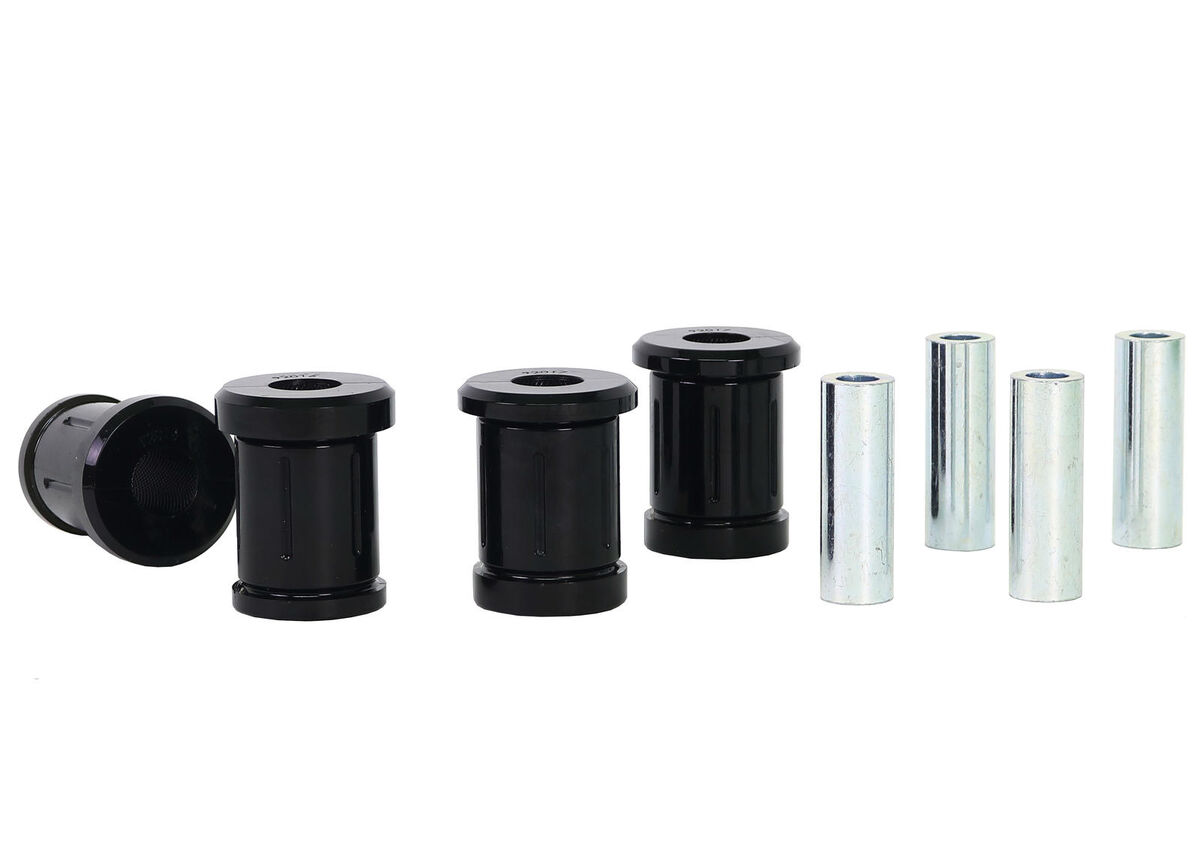

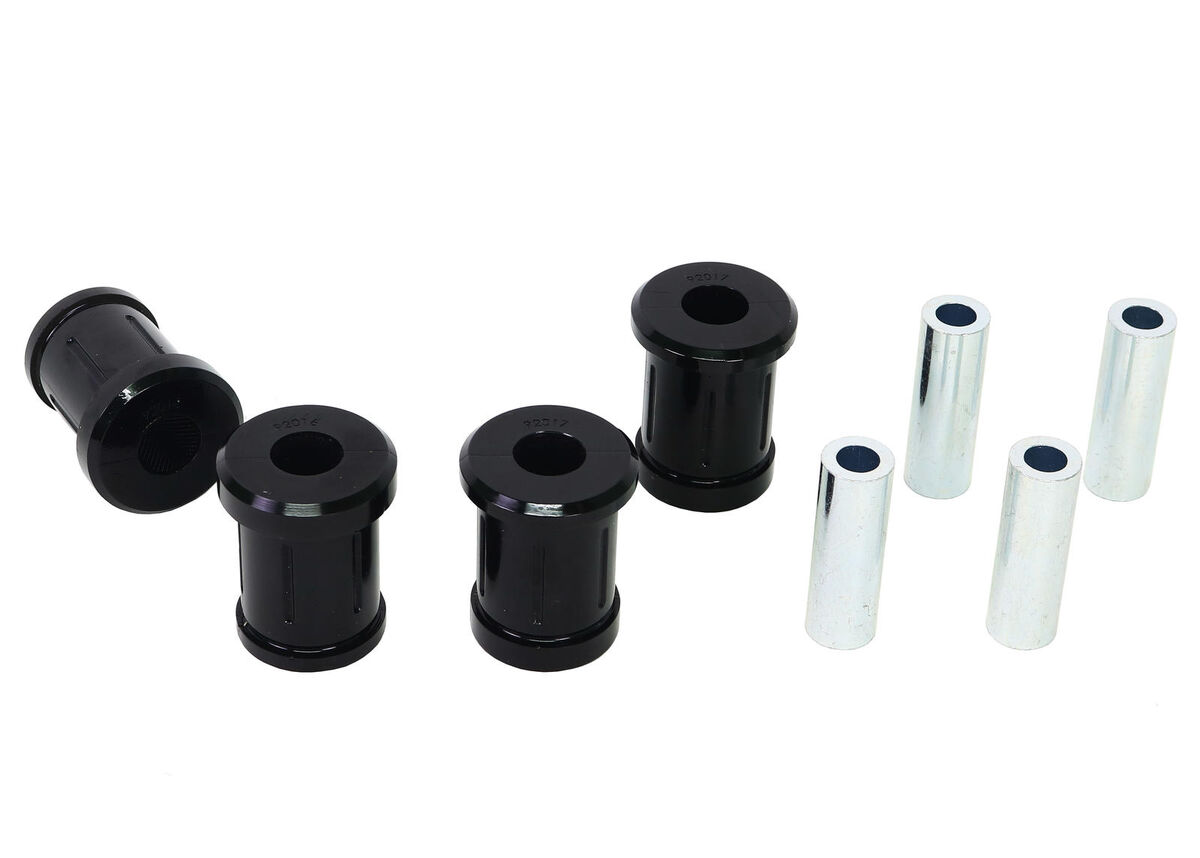

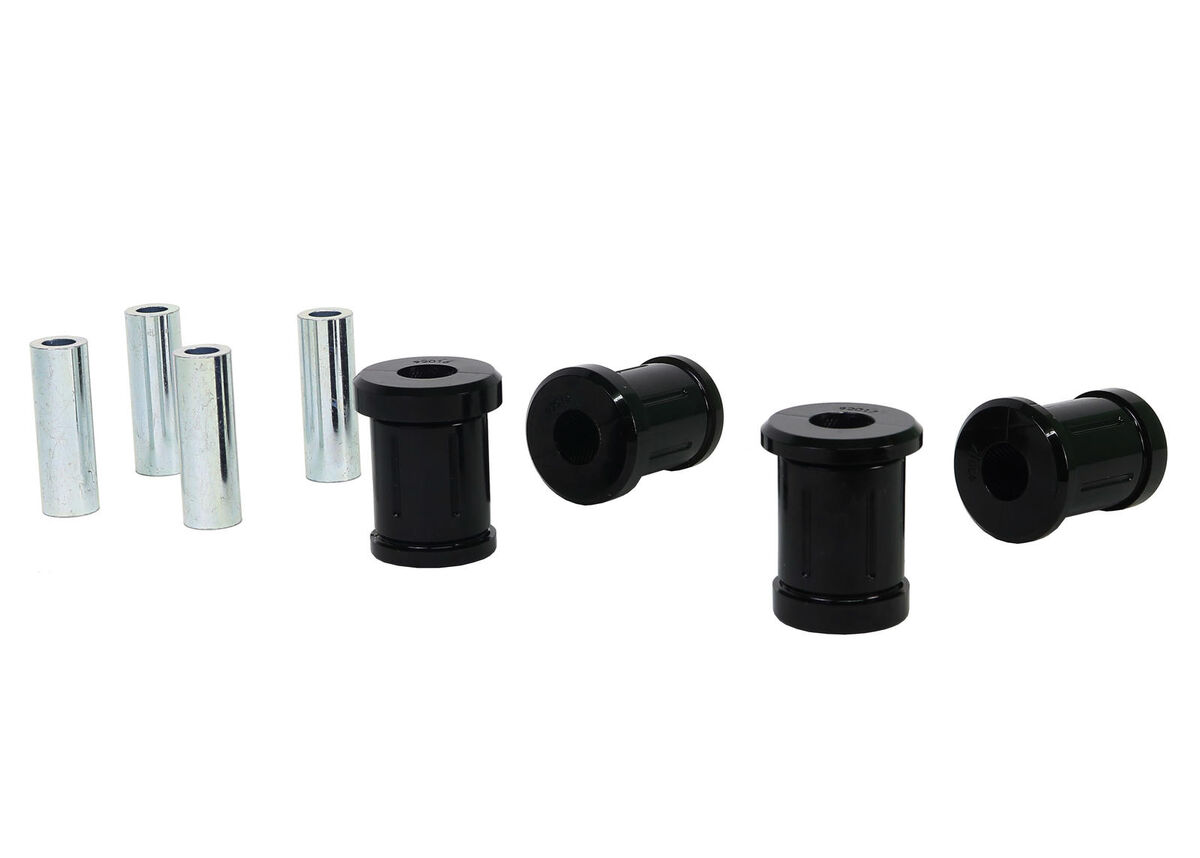

Components Per4 Bushings, 4 Tubes
Kits Required1
Sub brandReplacement
Product NoteEnhances steering response, delivering sharper handling and more predictable vehicle dynamics; the perfect, complete upgrade. Includes: 4 Bushings, 4 Tubes
EAN9319924467662
  • Lifetime Warranty
Brand Whiteline
SKU W63417A
Unit Of Measure Kit
