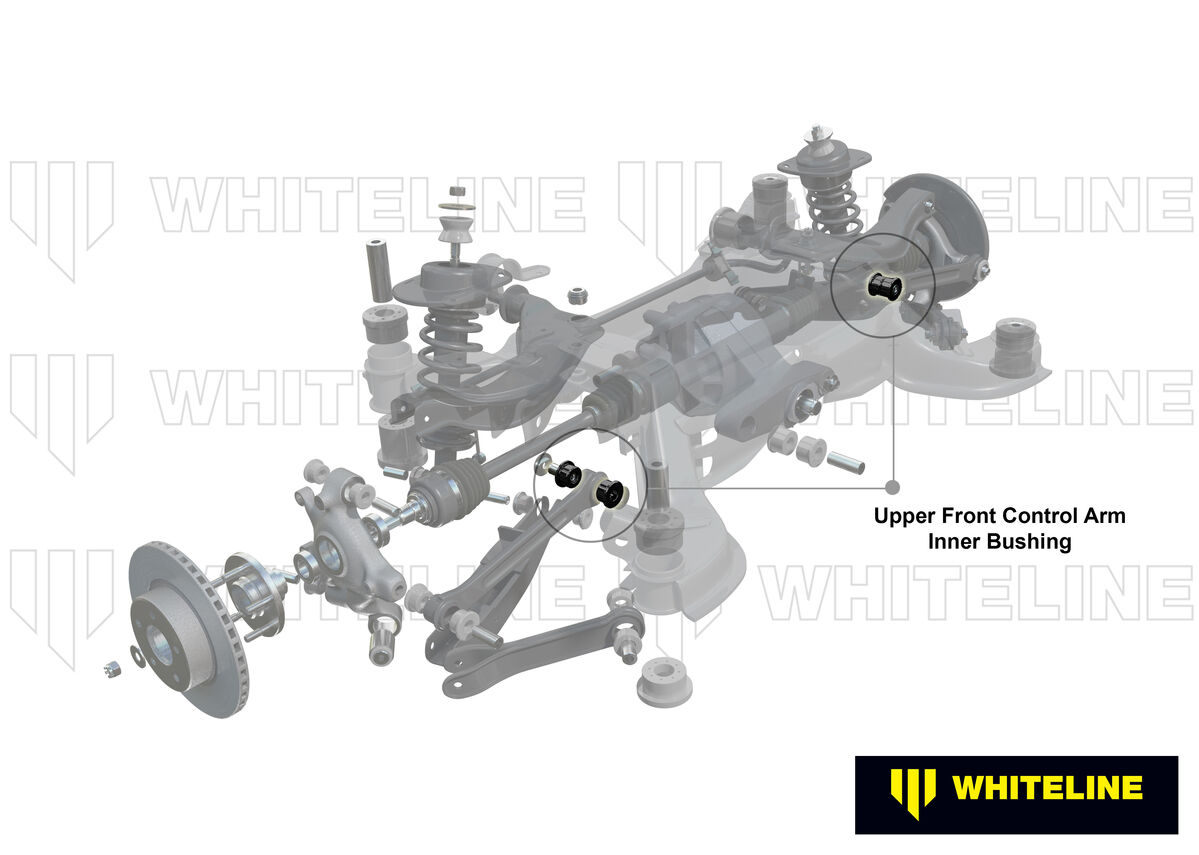

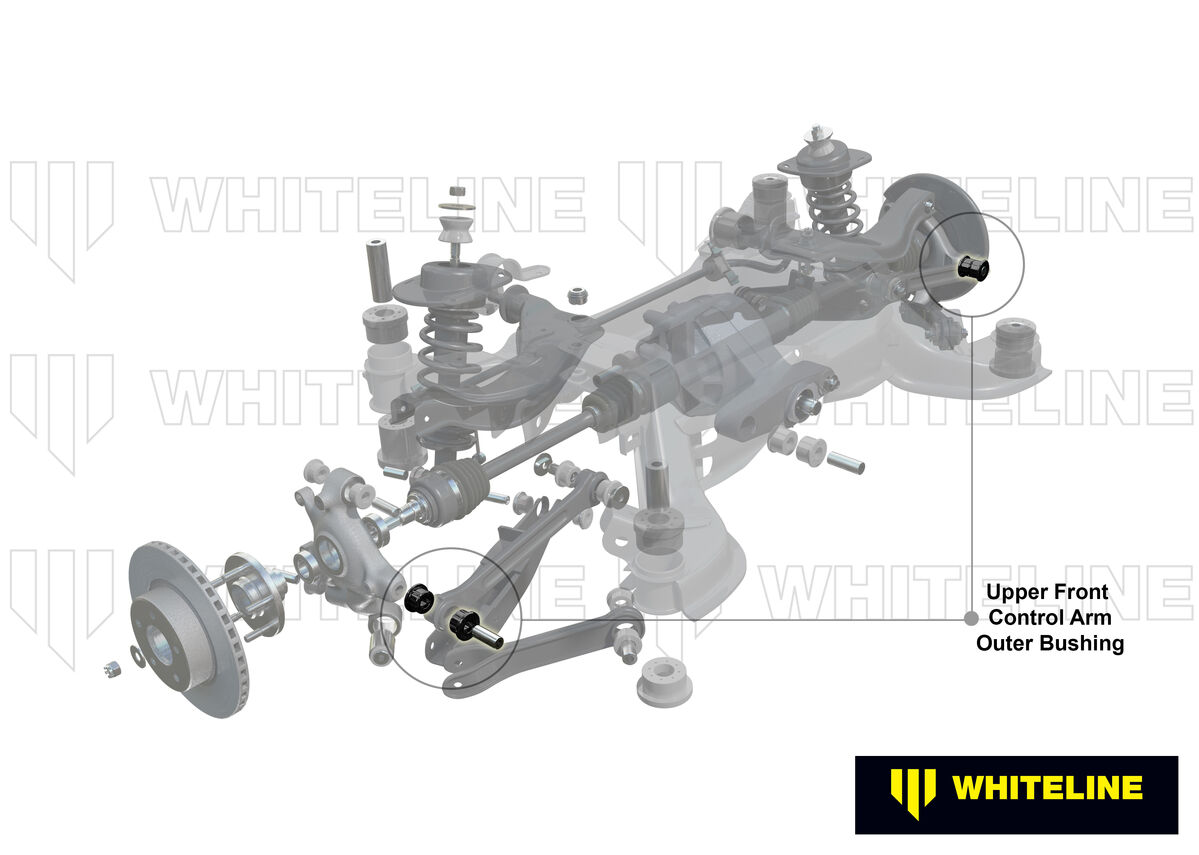

Whiteline Rear Control Arm Upper Front - Bushing Kit to Suit Holden Commodore VE, VF and HSV

SKU: W63157

Benefit Note: Suffering uneven tyre wear, unbalanced braking or a less predictable vehicle while cornering. It could be your suspension bushings have failed. Replace these worn parts with Whiteline synthetic elastomer bushings with core characteristics ensuring superior elasticity, memory and outright durability that offer a safer more predictable vehicle.


Kit Specifications

Bush Type 1 - Shackle Bushing
Bush Quantity 4 mm
OD (A) 36.9 mm
ID (B) 25.5 mm
Length (C) 24.4 mm
Flange Thickness (D) 5.4 mm
Flange OD (E) 46 mm
C/Tube Quantity 2
C/Tube ODxIDxL 25.4x14.2x51 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 1
QTY 4
OD (A) 36.9
ID (B) 25.5
Length (C) 24.4
FL (D) 5.4
FLOD (E) 46
C/Tube Qty 2
C/Tube Size 25.4x14.2x51
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.49kg1.08lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW63157
Components Per4 Bushings, 2 Tubes
Kits Required1
Sub brandReplacement

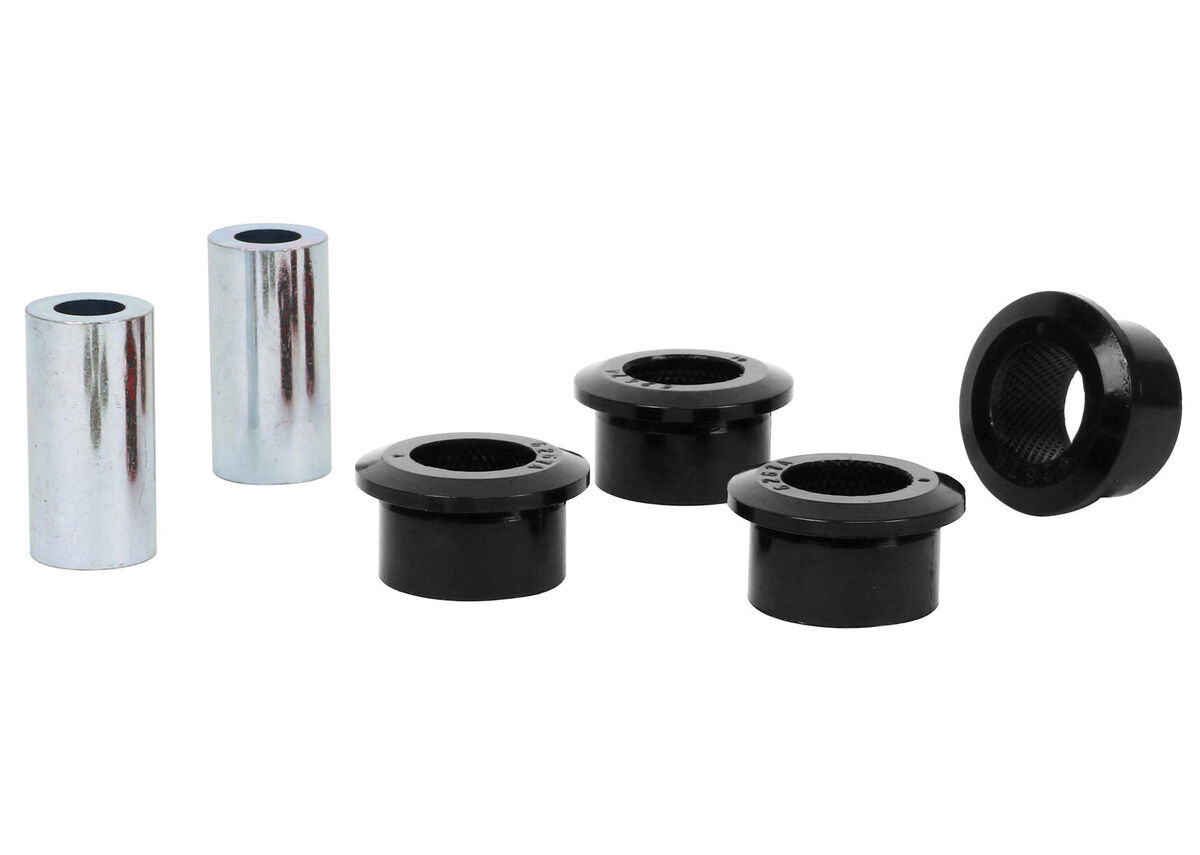

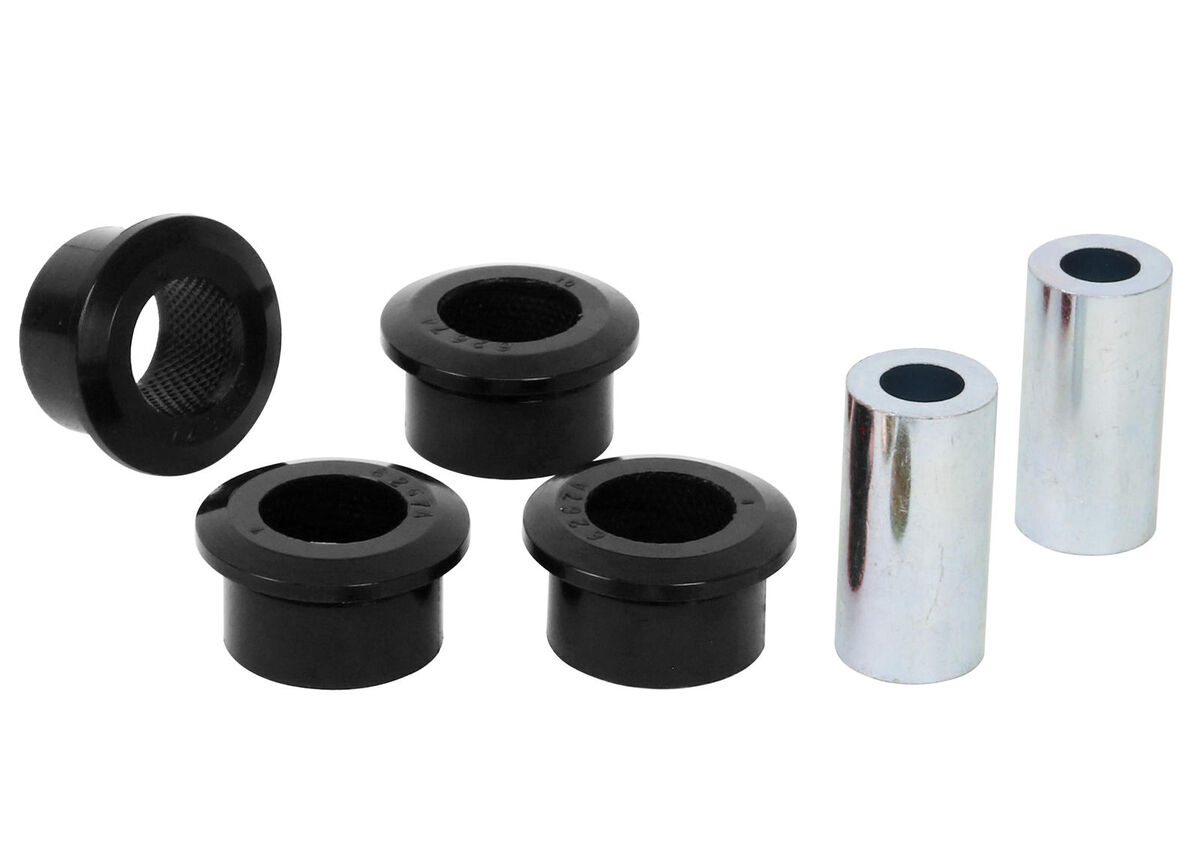

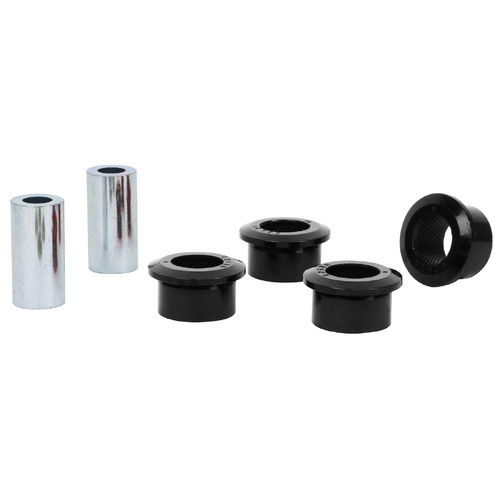

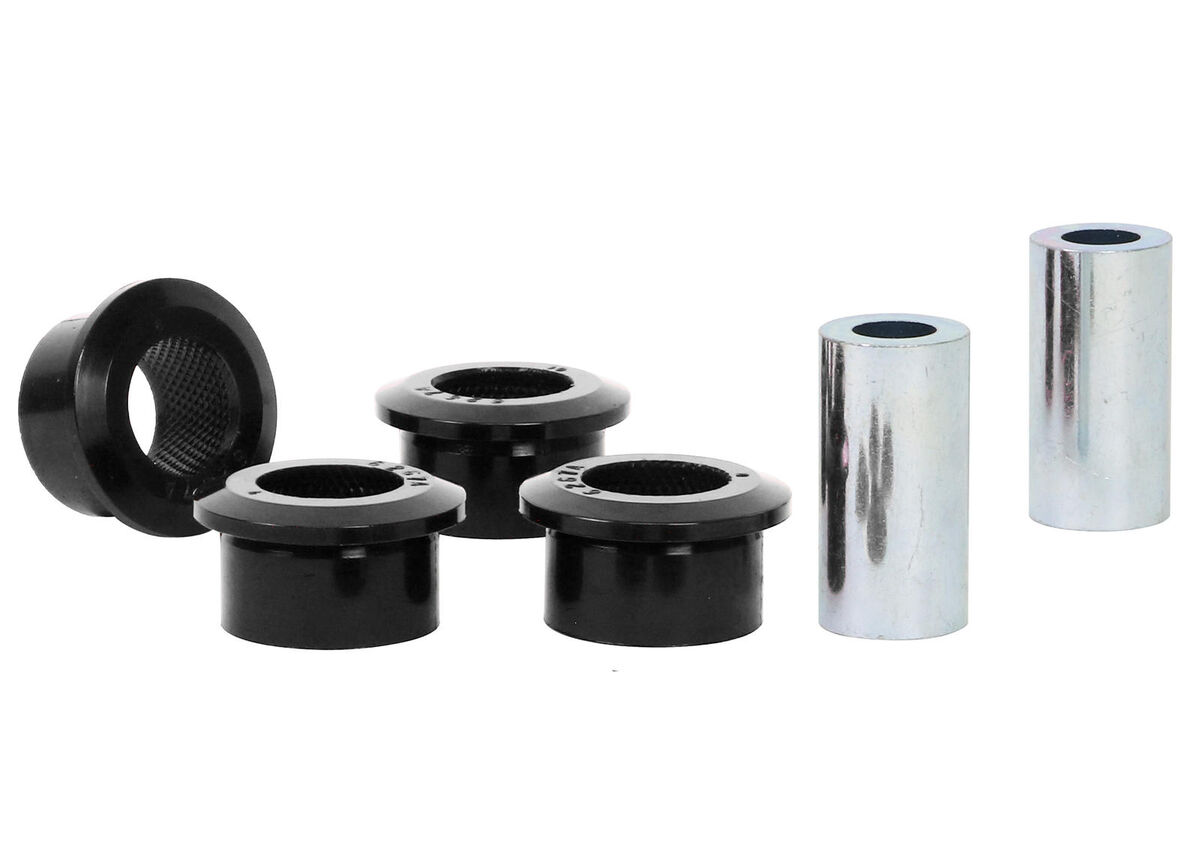

Product NoteGreatly increases control and confidence; the perfect, complete upgrade. Includes: 4 Bushings, 2 Tubes, 4 Washers
EAN9319924355099
  • Lifetime Warranty
Brand Whiteline
SKU W63157
Unit Of Measure Kit
