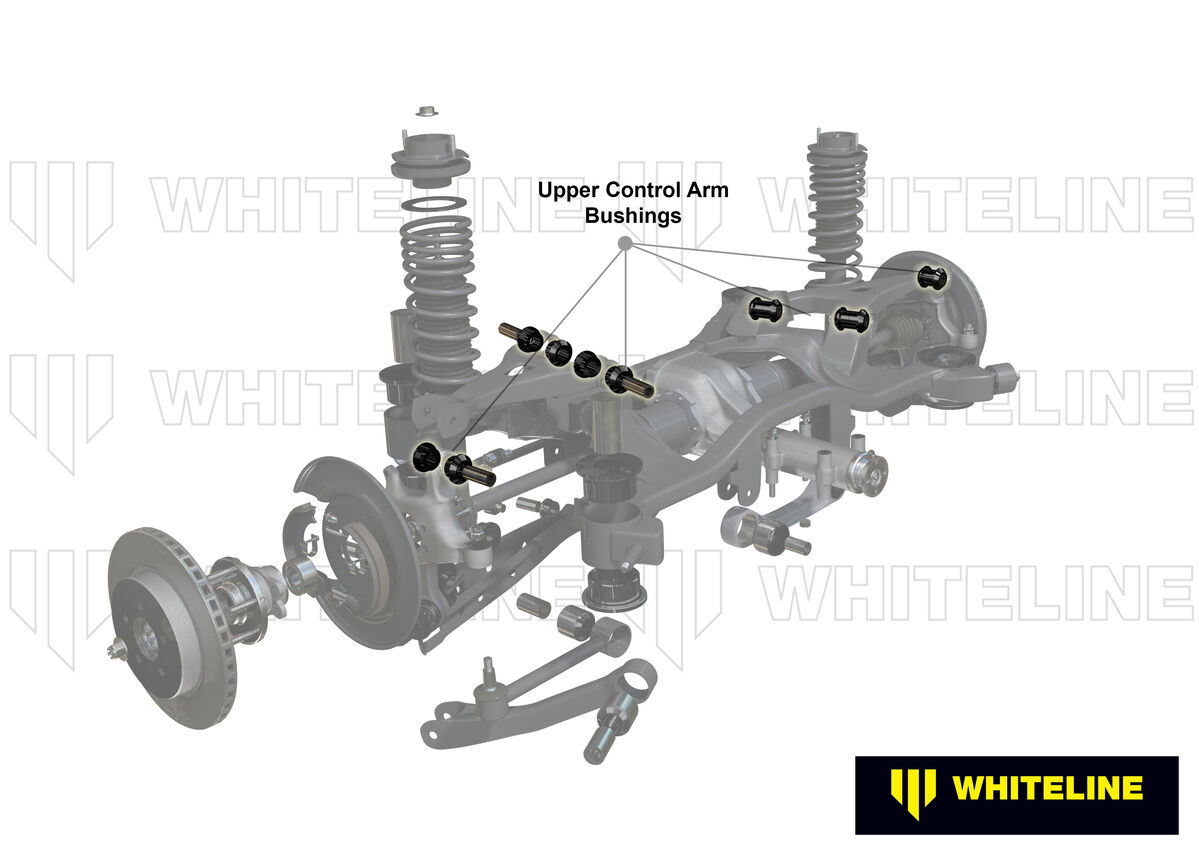

Whiteline Rear Control Arm Upper - Bushing Kit Double Offset to Suit Chrysler 300C and Dodge Challenger, Charger

SKU: W63342

Benefit Note: Suffering uneven tyre wear, unbalanced braking or a less predictable vehicle while cornering. It could be your suspension bushings have failed. Replace these worn parts with Whiteline synthetic elastomer bushings with core characteristics ensuring superior elasticity, memory and outright durability that offer a safer more predictable vehicle.


Kit Specifications

Bush Type 16 - Shell Without Flange Bushing
Bush Quantity 4 mm
OD (A) 39.5 mm
ID (B) 21.5 mm
Length (C) 39 mm
Flange Thickness (D) 5 mm
Flange OD (E) 33 mm
C/Tube Quantity 2 / 2
C/Tube ODxIDxL 22.2x12.2x38.5 / 22.2x12.2x38.5 (THREAD) mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 16 - Shell Without Flange Bushing
Alignment Alignment Adjustment Type Alignment On Car Adjustable
Camber Eccentric Yes

Bushing Design Dimensions (mm)

Bush Type 16
QTY 4
OD (A) 39.5
ID (B) 21.5
Length (C) 39.0
FL (D) 5
FLOD (E) 33
C/Tube Qty 2 / 2
C/Tube Size 22.2x12.2x38.5 / 22.2x12.2x38.5 (THREAD)
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 16

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.898kg1.98lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW63342

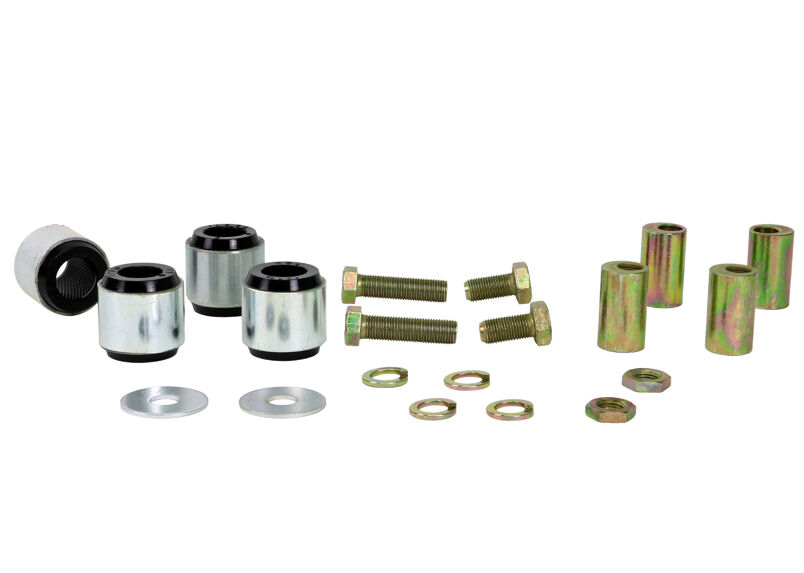

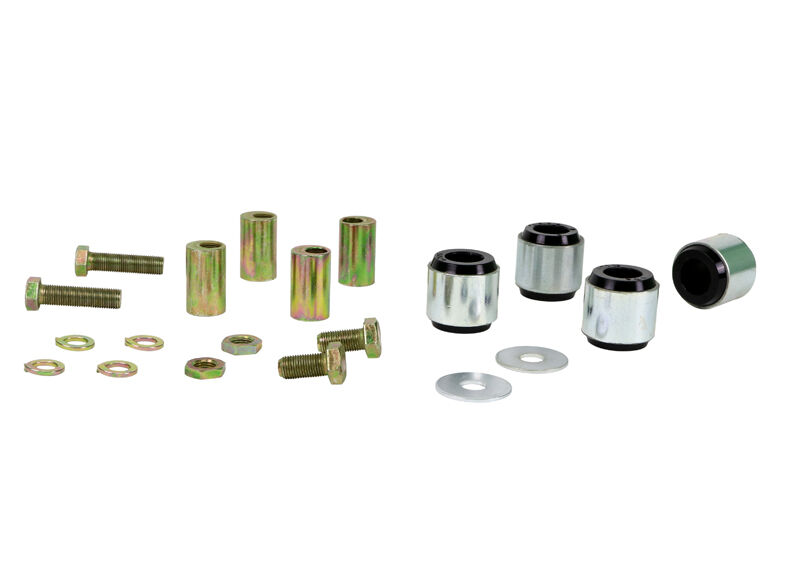

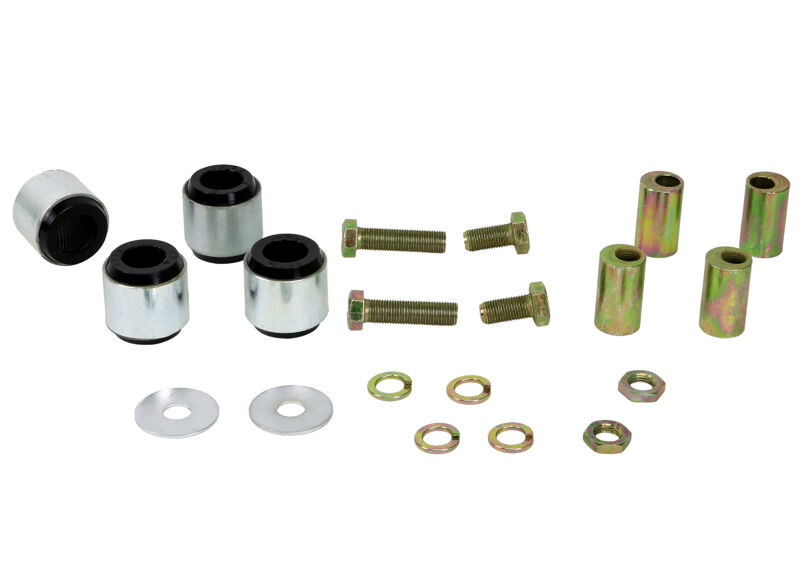

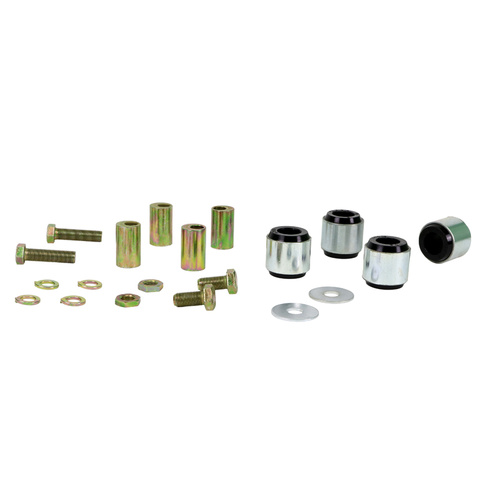

Components Per4 Shell Bushings, 4 Tubes
Kits Required1
Sub brandReplacement
Product NoteGreatly increases control and confidence; the perfect, complete upgrade. Includes: 4 Shell Bushings, 4 Tubes
EAN9319924375578
  • Lifetime Warranty
Brand Whiteline
SKU W63342
Unit Of Measure Kit
