Whiteline Rear Control Arm Upper - Bushing Double Offset Camber Kit to Suit Honda Civic 7th Gen and Integra DC5

SKU: KCA368

Benefit Note: Whiteline adjustable camber kits allow for easy on-car adjustment and fine tuning of camber settings resulting in improved traction, increased cornering grip and better tyre life - ultimately improving overall performance. The kit includes low compliance synthetic elastomer bushings which maintain preferred alignment settings as well as enhanced steering response.


Kit Specifications

Bush Type 1 - Shackle Bushing 1 - Shackle Bushing
Bush Quantity 2 mm 2 mm
OD (A) 42 mm 42 mm
ID (B) 24 mm 24 mm
Length (C) 19.5 mm 22 mm
Flange Thickness (D) 5 mm 6.5 mm
Flange OD (E) 48 mm 48 mm
C/Tube Quantity 2 2
C/Tube ODxIDxL 25.1x12.2x47 mm 25.1x12.2x47 mm
Similar Bushing Size Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing
Bushing Type 1 - Shackle Bushing
Alignment Alignment Adjustment Type Alignment On Car Adjustable
Camber Eccentric Yes
Camber Eccentric Yes

Bushing Design Dimensions (mm)

Bush Type 1 1
QTY 2 2
OD (A) 42 42
ID (B) 24 24
Length (C) 19.5 22.0
FL (D) 5 6.5
FLOD (E) 48 48
C/Tube Qty 2 2
C/Tube Size 25.1x12.2x47 25.1x12.2x47
Similar Bushings Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.413kg0.91lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUKCA368

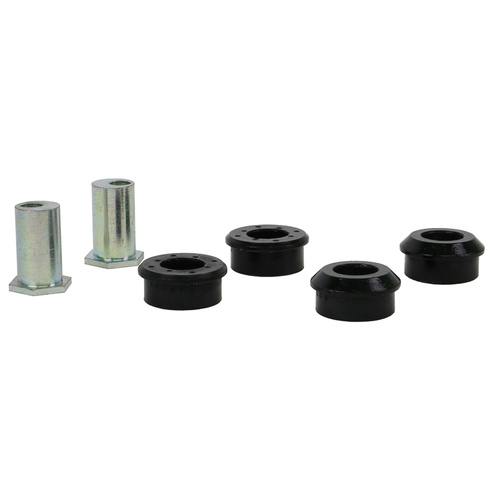

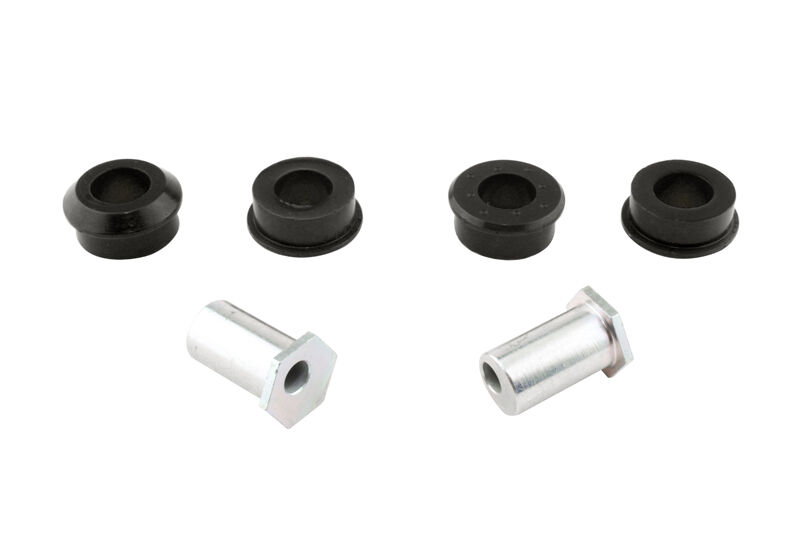

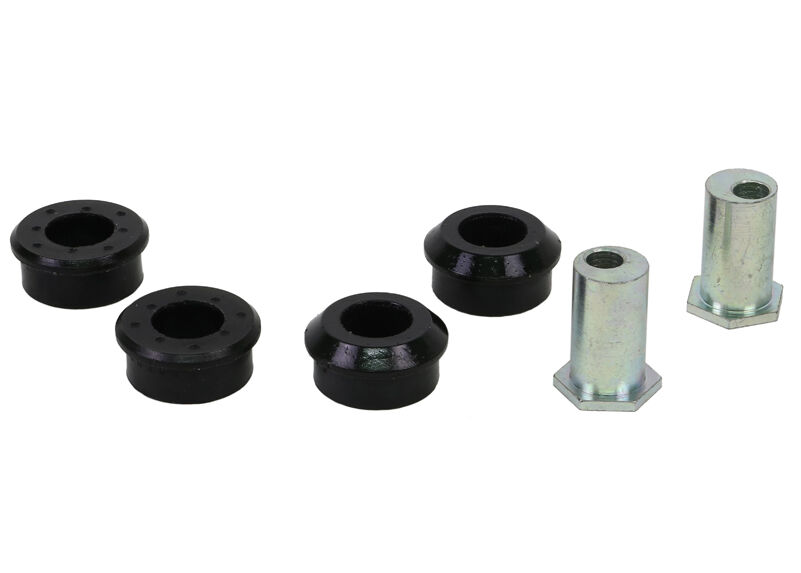

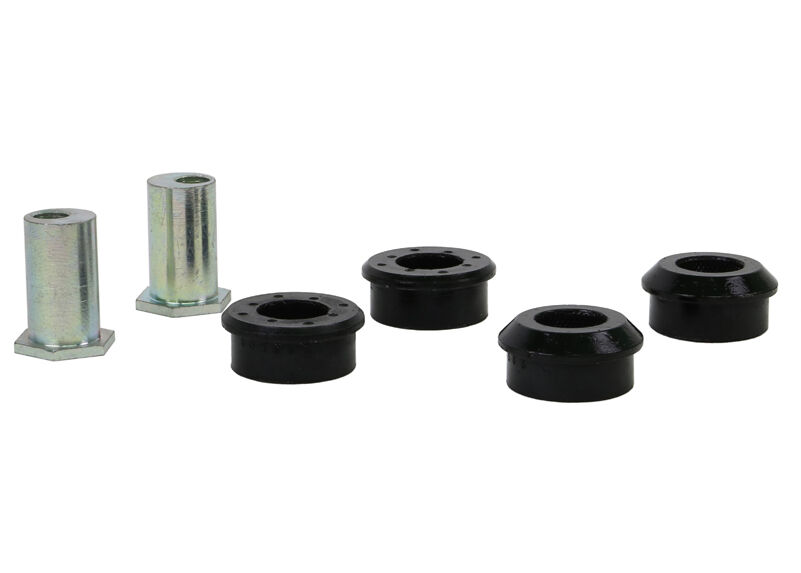

Components Per4 Bushings, 2 Tubes
Kits Required1
Sub brandPerformance
Product NoteEnsures long-lasting durability, matter matter the purpose; the perfect, complete upgrade. Includes: 4 Bushings, 2 Tubes
EAN9319924342709
  • Lifetime Warranty
Brand Whiteline
SKU KCA368
Unit Of Measure Kit
