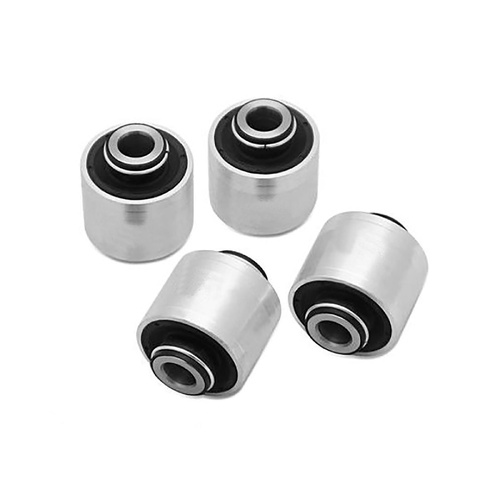

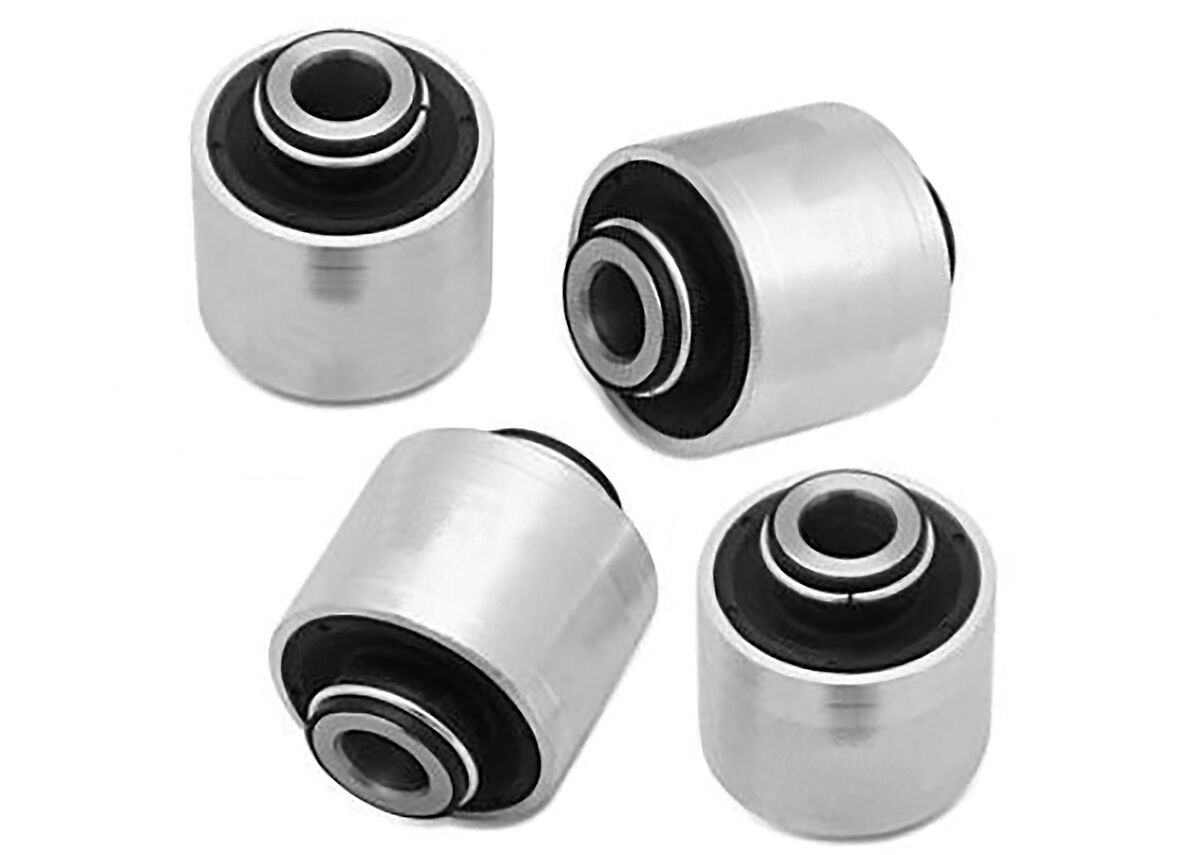

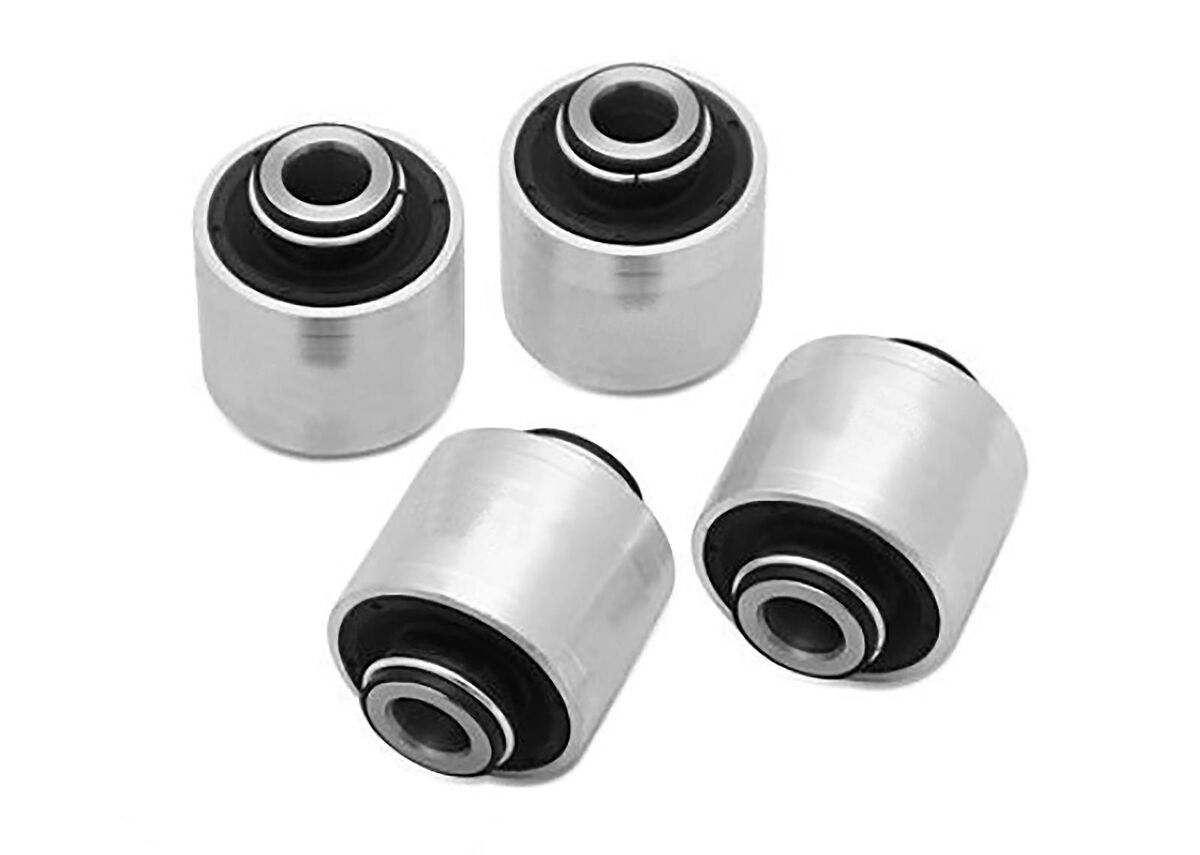

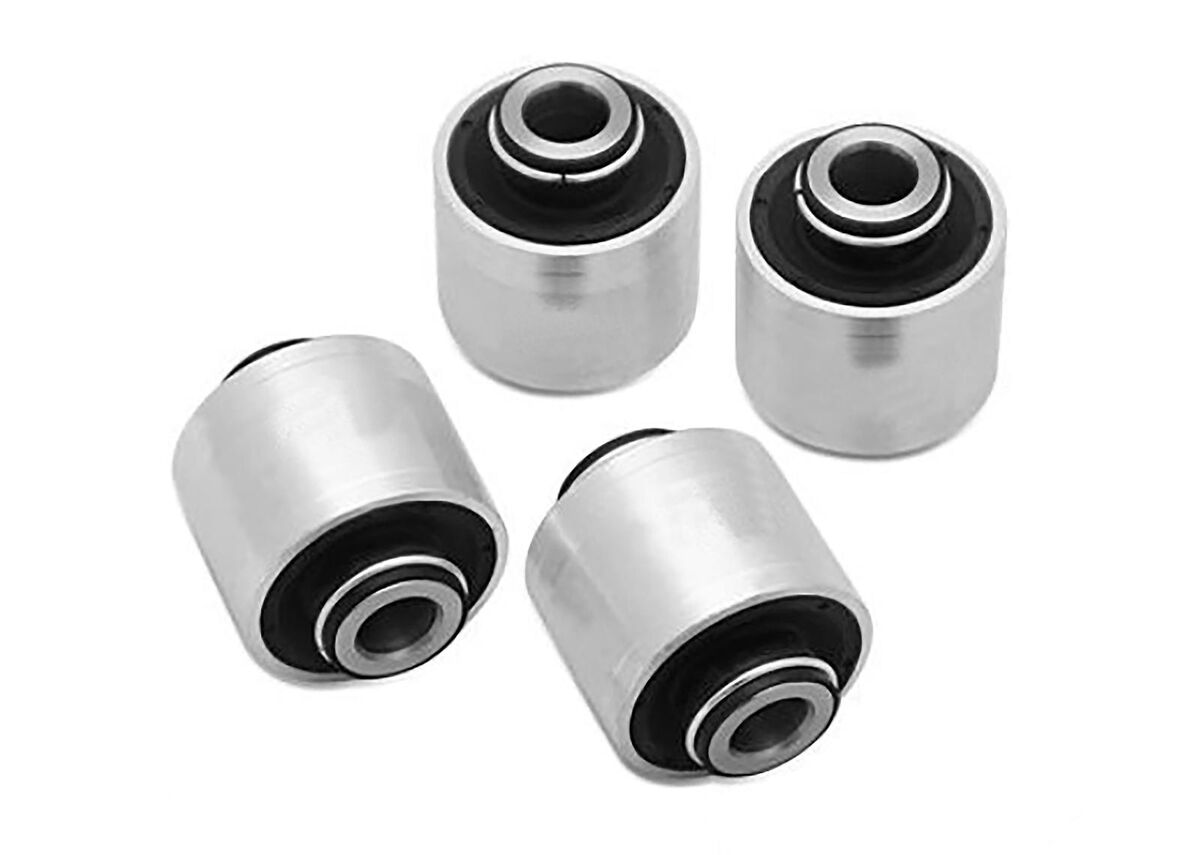

Whiteline Rear Control Arm Upper and Lower Front - Outer Bearing kit to Suit Mazda MX-5 ND

SKU: W62719

Benefit Note: Upgrade your ND Miata's rear suspension with this Rear Knuckle Bearing Kit, engineered to replace the factory spherical bearings with a higher-precision, zero-play solution. While the OEM bearings offer smooth articulation, they can still develop play, wear under repeated high-load use, and allow small but critical alignment changes during cornering. This Whiteline kit utilizes premium motorsport-grade spherical assemblies designed for maximum durability, minimal friction, and absolute consistency at the limit. By eliminating bearing slop and unwanted compliance, this upgrade ensures precise suspension geometry, sharper feedback, and the confidence to drive your tyres to their full potential grip-lap after lap.


Kit Specifications

Bush Type 16 - Shell Without Flange Bushing
Bush Quantity 4 mm
OD (A) 41.2 mm
ID (B) 12.3 mm
Length (C) 50 mm
Flange Thickness (D) 9 mm
Flange OD (E)
C/Tube Quantity
C/Tube ODxIDxL
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 16 - Shell Without Flange Bushing

Bushing Design Dimensions (mm)

Bush Type 16
QTY 4
OD (A) 41.2
ID (B) 12.3
Length (C) 50.0
FL (D) 9
FLOD (E)
C/Tube Qty
C/Tube Size
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 16

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight1.19kg2.62lbs
Length39cm15.35"
Width3cm1.18"
Height20cm7.87"

Misc. Product Information

More Information
SKUW62719
Components Per4 Bearings
Kits Required1
Sub brandReplacement
Product NoteMaximises tyre contact with the road, improving cornering and grip; the perfect, complete upgrade. Includes: 4 Bearings
EAN9319924470327
  • 3 years warranty or up to 60,000km
Brand Whiteline
SKU W62719
Unit Of Measure Kit
