Whiteline Rear Control Arm - Outer Bushing Kit Double Offset to Suit BMW 3 Series, M3 E36, E46 and Z4 E85, E86

SKU: W62384

Benefit Note: Suffering uneven tyre wear, unbalanced braking or a less predictable vehicle while cornering. It could be your suspension bushings have failed. Replace these worn parts with Whiteline synthetic elastomer bushings with core characteristics ensuring superior elasticity, memory and outright durability that offer a safer more predictable vehicle.


Kit Specifications

Bush Type 16 - Shell Without Flange Bushing
Bush Quantity 2 mm
OD (A) 45.5 mm
ID (B) 22.2 mm
Length (C) 58.4 mm
Flange Thickness (D) 9 mm
Flange OD (E) 30 mm
C/Tube Quantity 2
C/Tube ODxIDxL 22.2x11.9x57 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 16 - Shell Without Flange Bushing
Alignment Alignment Adjustment Type Alignment On Car Adjustable
Camber Eccentric Yes

Bushing Design Dimensions (mm)

Bush Type 16
QTY 2
OD (A) 45.5
ID (B) 22.2
Length (C) 58.4
FL (D) 9
FLOD (E) 30
C/Tube Qty 2
C/Tube Size 22.2x11.9x57
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 16

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.76kg1.68lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW62384

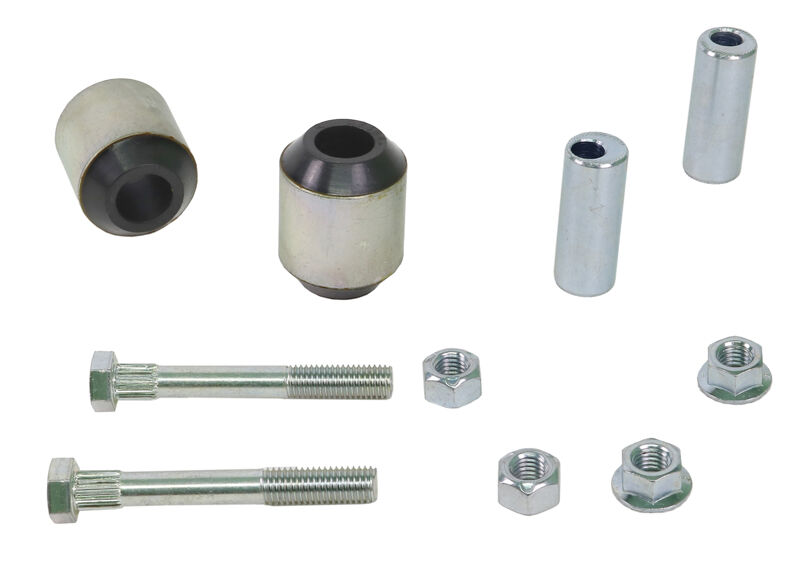

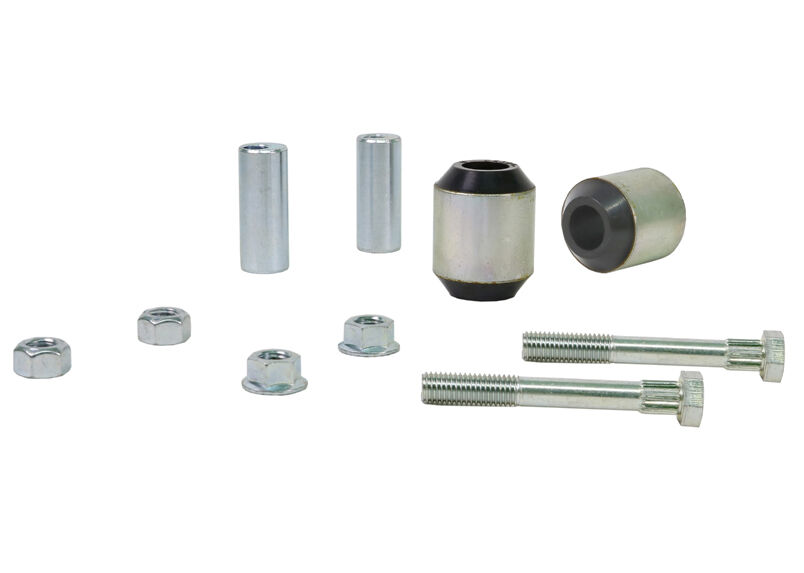

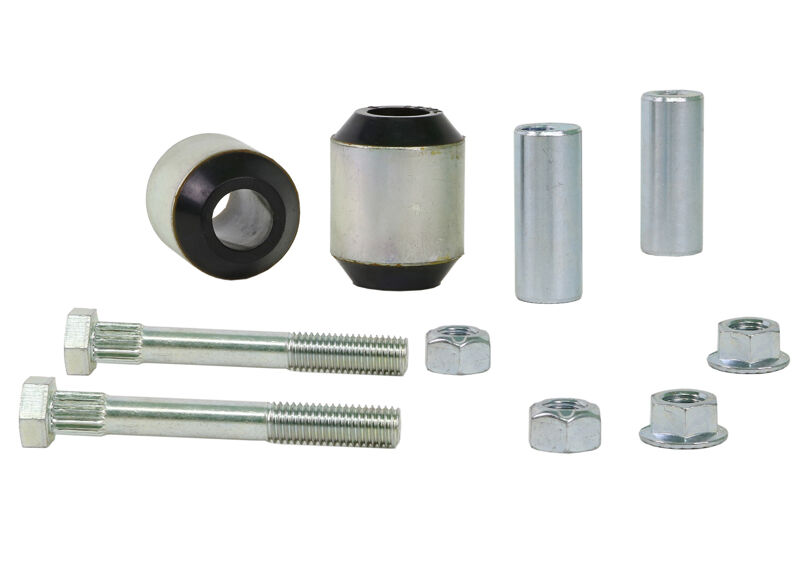

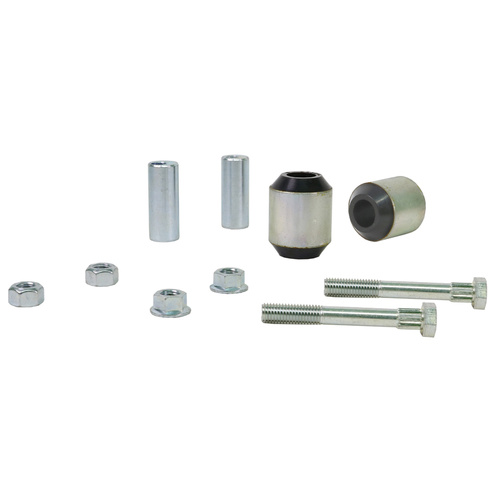

Components Per2 Shell Bushings, 2 Tubes, 2 Bolts, 4 Nuts
Kits Required1
Sub brandReplacement
Product NoteMaximises grip and stability for better control; the perfect, complete upgrade. Includes: 2 Shell Bushings, 2 Tubes, 2 Bolts & 4 Nuts
EAN9319924354597
  • Lifetime Warranty
Brand Whiteline
SKU W62384
Unit Of Measure Kit
