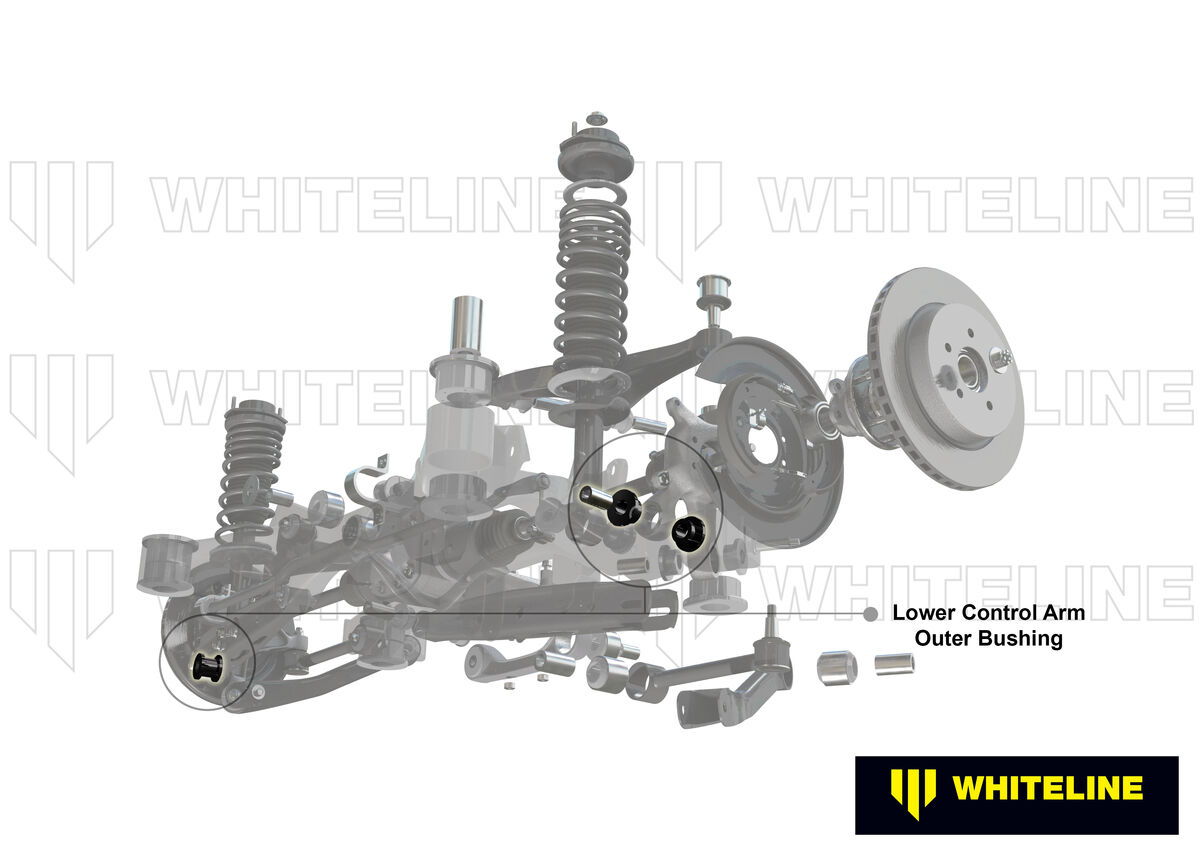

Whiteline Rear Control Arm Lower Rear - Outer Bushing Kit to Suit Subaru Liberty and Outback

SKU: W63394

Benefit Note: Suffering uneven tyre wear, unbalanced braking or a less predictable vehicle while cornering. It could be your suspension bushings have failed. Replace these worn parts with Whiteline synthetic elastomer bushings with core characteristics ensuring superior elasticity, memory and outright durability that offer a safer more predictable vehicle.

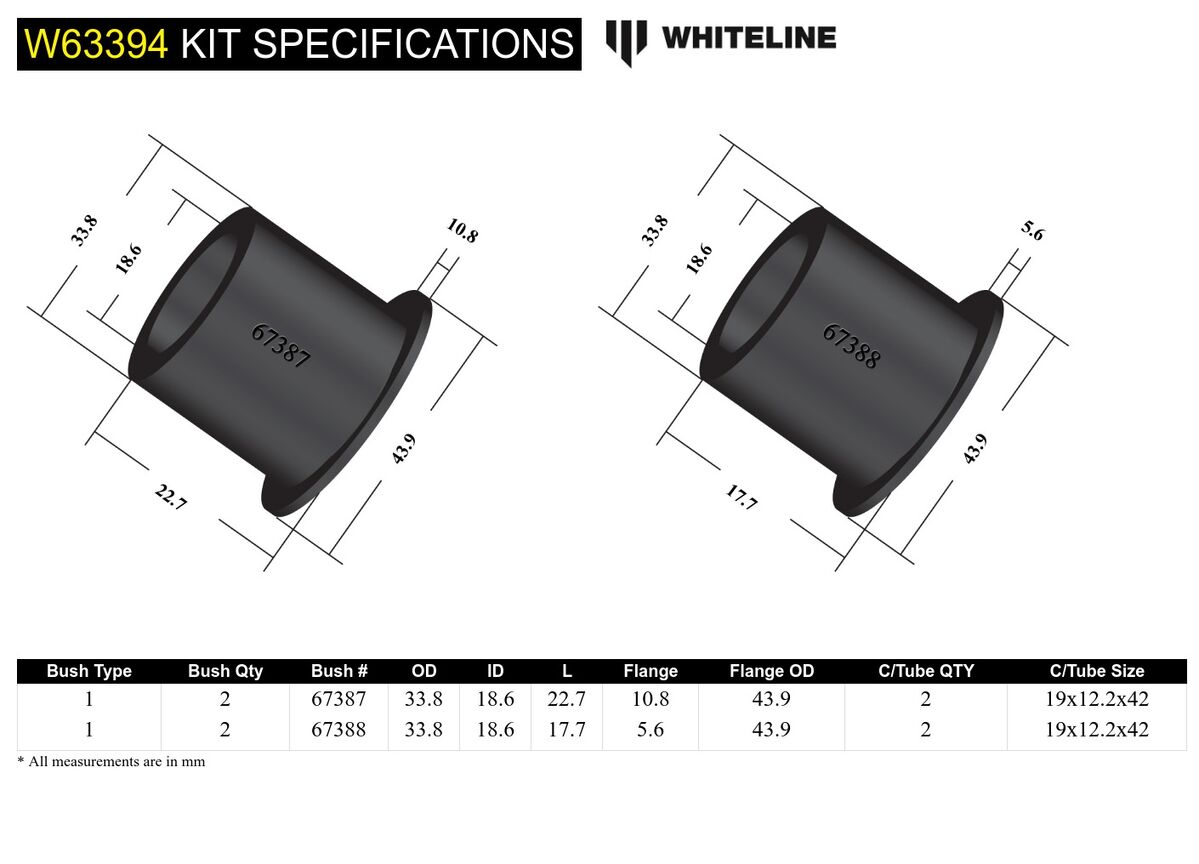

Kit Specifications

Bush Type 1 - Shackle Bushing 1 - Shackle Bushing
Bush Quantity 2 mm 2 mm
OD (A) 33.8 mm 33.8 mm
ID (B) 18.6 mm 18.6 mm
Length (C) 22.7 mm 17.7 mm
Flange Thickness (D) 10.8 mm 5.6 mm
Flange OD (E) 43.9 mm 43.9 mm
C/Tube Quantity 2 2
C/Tube ODxIDxL 19x12.2x42 mm 19x12.2x42 mm
Similar Bushing Size Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing
Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 1 1
QTY 2 2
OD (A) 33.8 33.8
ID (B) 18.6 18.6
Length (C) 22.7 17.7
FL (D) 10.8 5.6
FLOD (E) 43.9 43.9
C/Tube Qty 2 2
C/Tube Size 19x12.2x42 19x12.2x42
Similar Bushings Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.153kg0.34lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW63394

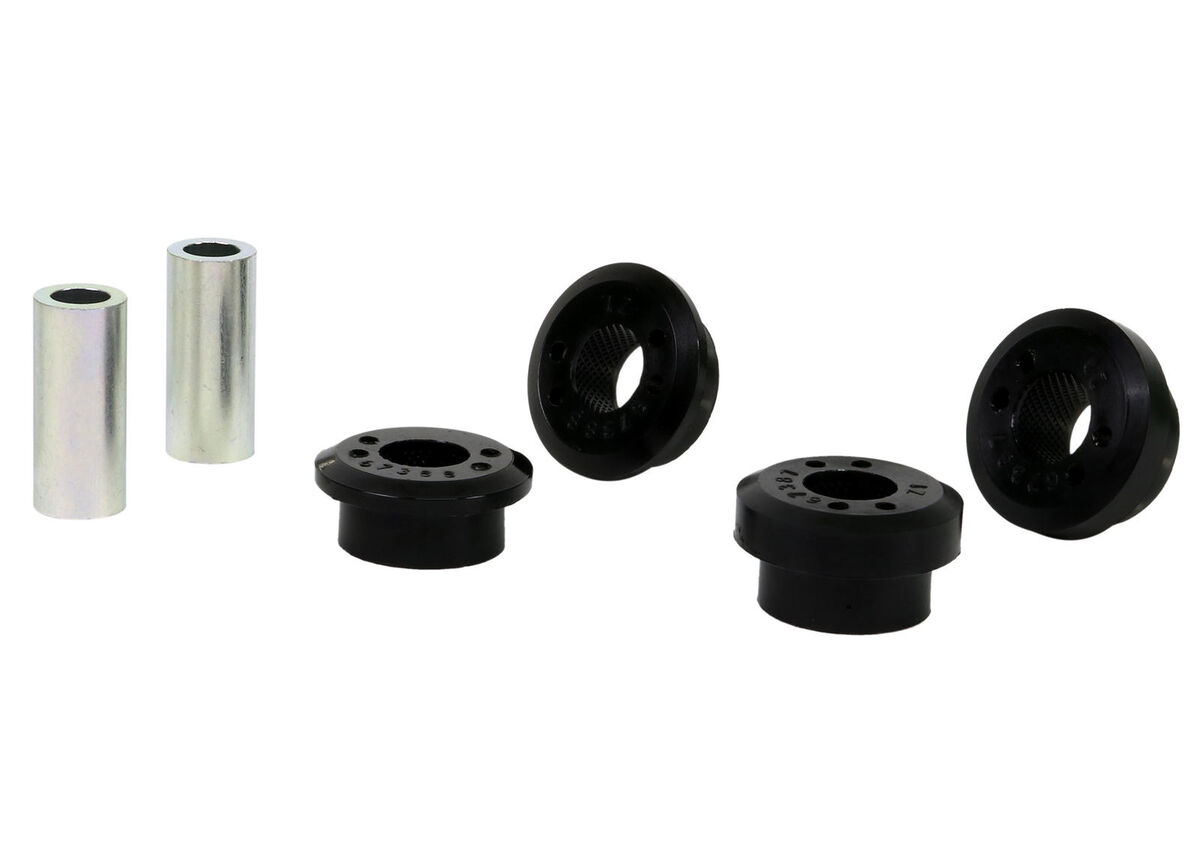

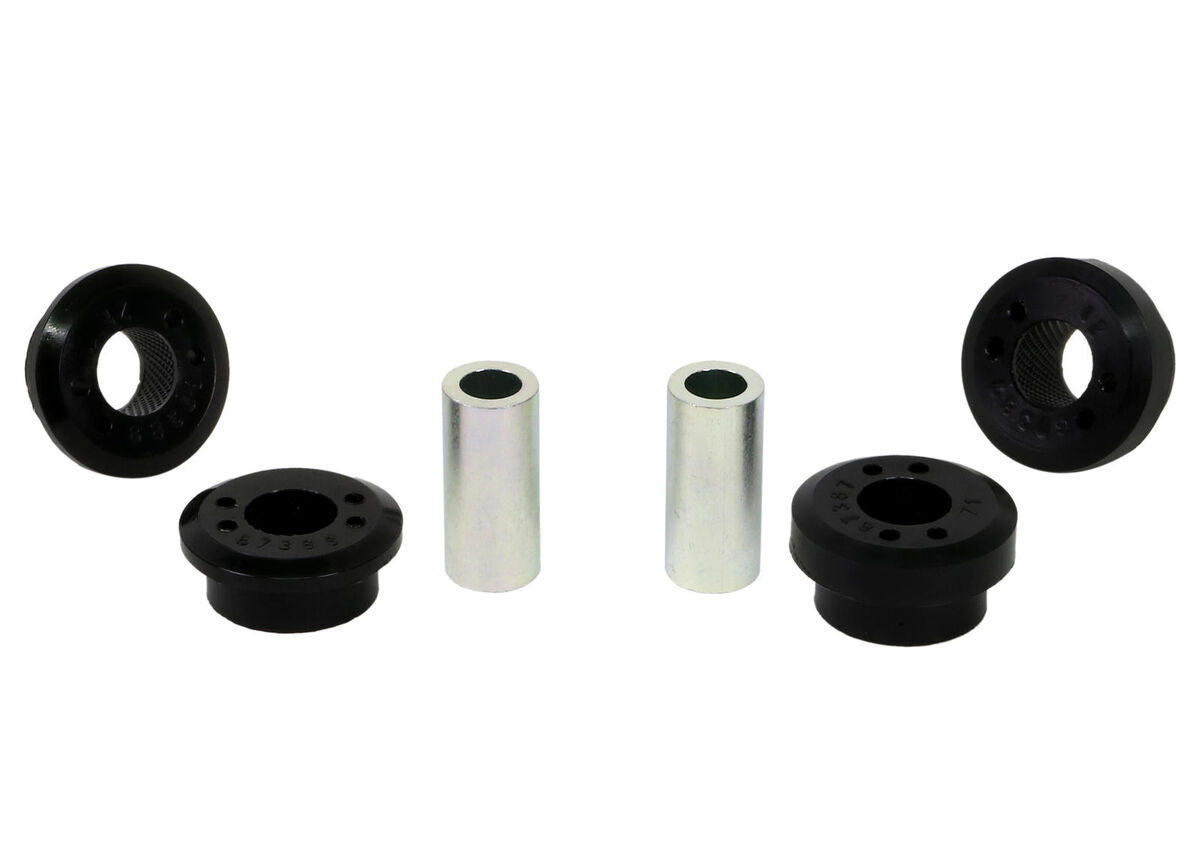

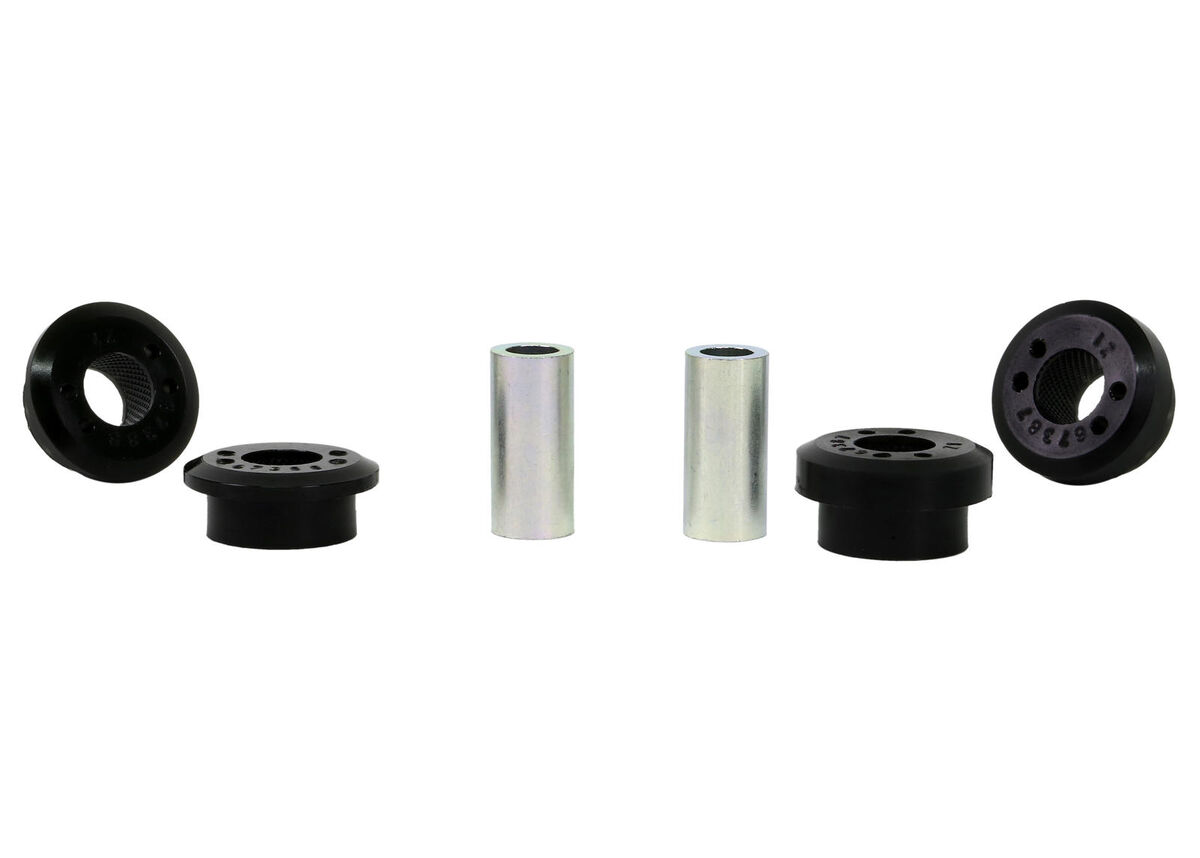

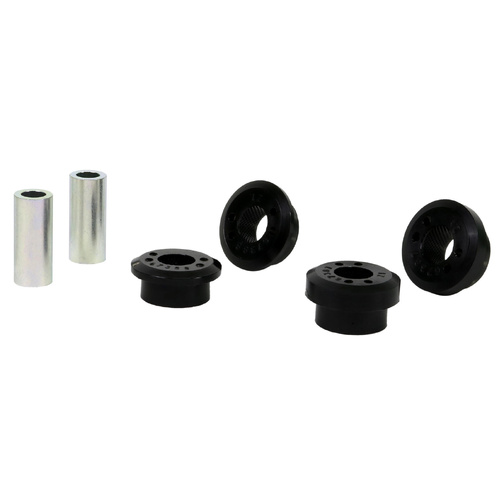

Components Per4 Bushings, 2 Tubes
Kits Required1
Sub brandReplacement
Product NoteGreatly increases control and confidence; the perfect, complete upgrade. Includes: 4 Bushings, 2 Tubes
EAN9319924383726
  • Lifetime Warranty
Brand Whiteline
SKU W63394
Unit Of Measure Kit
