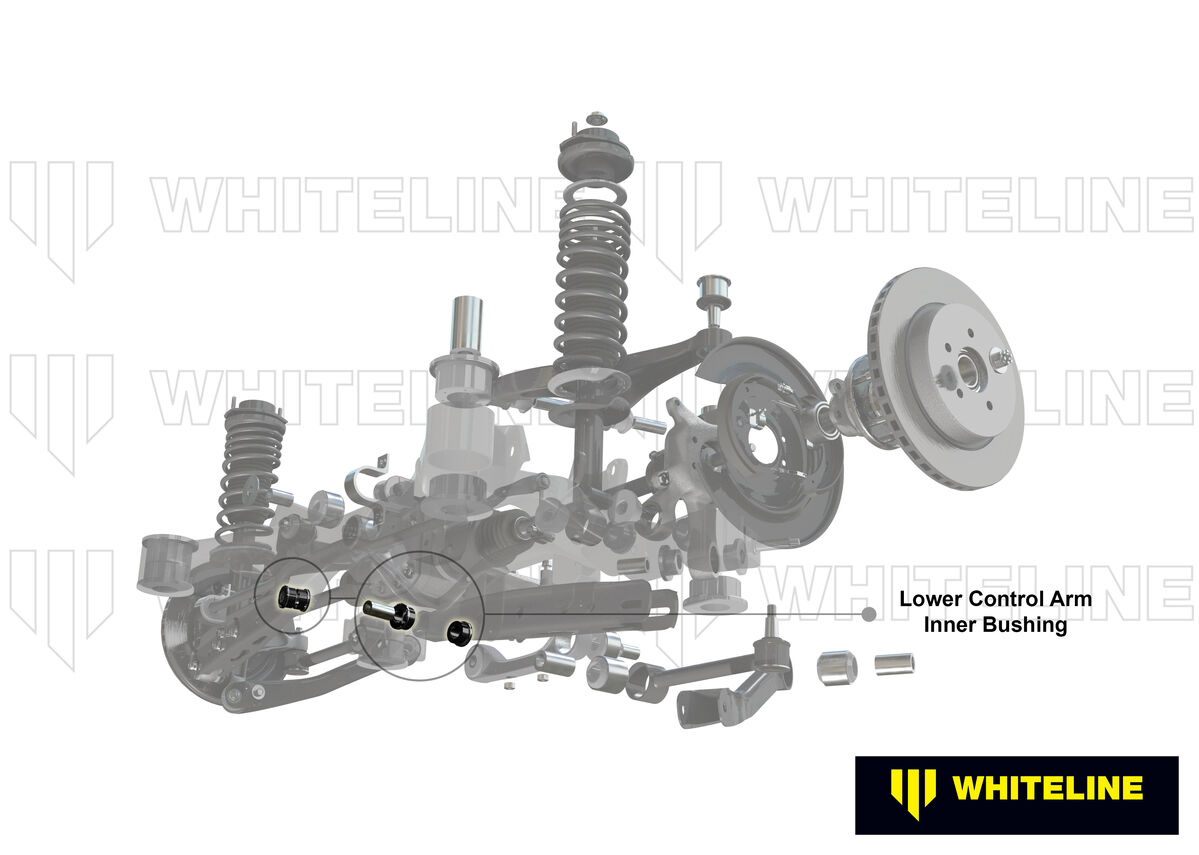

Whiteline Rear Control Arm Lower Rear - Inner Bushing Kit to Suit Subaru BRZ, Impreza, Levorg, Liberty and Toyota 86

SKU: W63428

Benefit Note: Suffering uneven tyre wear, unbalanced braking or a less predictable vehicle while cornering. It could be your suspension bushings have failed. Replace these worn parts with Whiteline synthetic elastomer bushings with core characteristics ensuring superior elasticity, memory and outright durability that offer a safer more predictable vehicle.


Kit Specifications

Bush Type 1 - Shackle Bushing
Bush Quantity 4 mm
OD (A) 33.8 mm
ID (B) 22.2 mm
Length (C) 19.9 mm
Flange Thickness (D) 4.9 mm
Flange OD (E) 41 mm
C/Tube Quantity 2
C/Tube ODxIDxL 22.2x12.2x41.8 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 1
QTY 4
OD (A) 33.8
ID (B) 22.2
Length (C) 19.9
FL (D) 4.9
FLOD (E) 41
C/Tube Qty 2
C/Tube Size 22.2x12.2x41.8
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.333kg0.73lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW63428

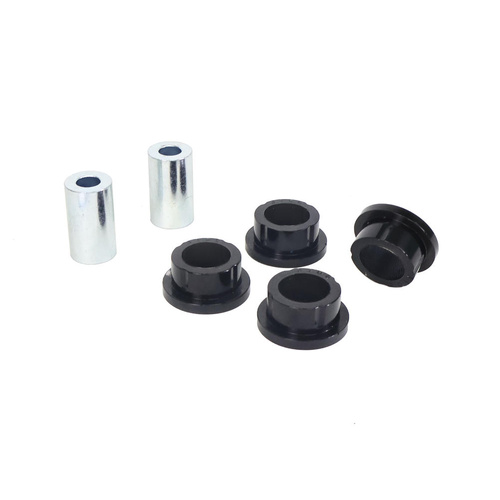

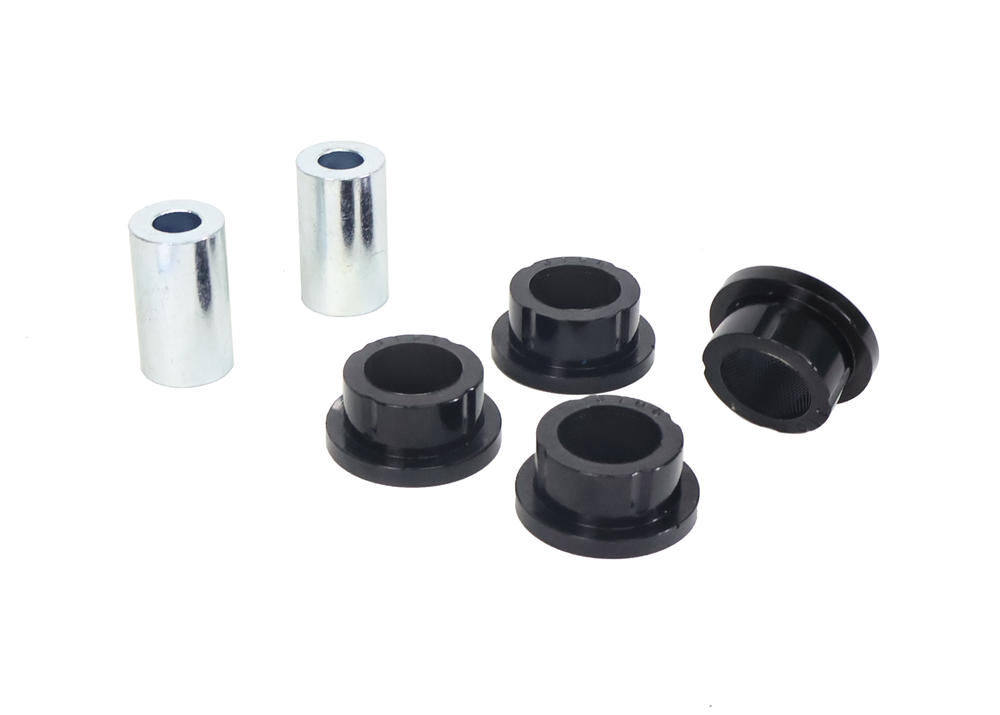

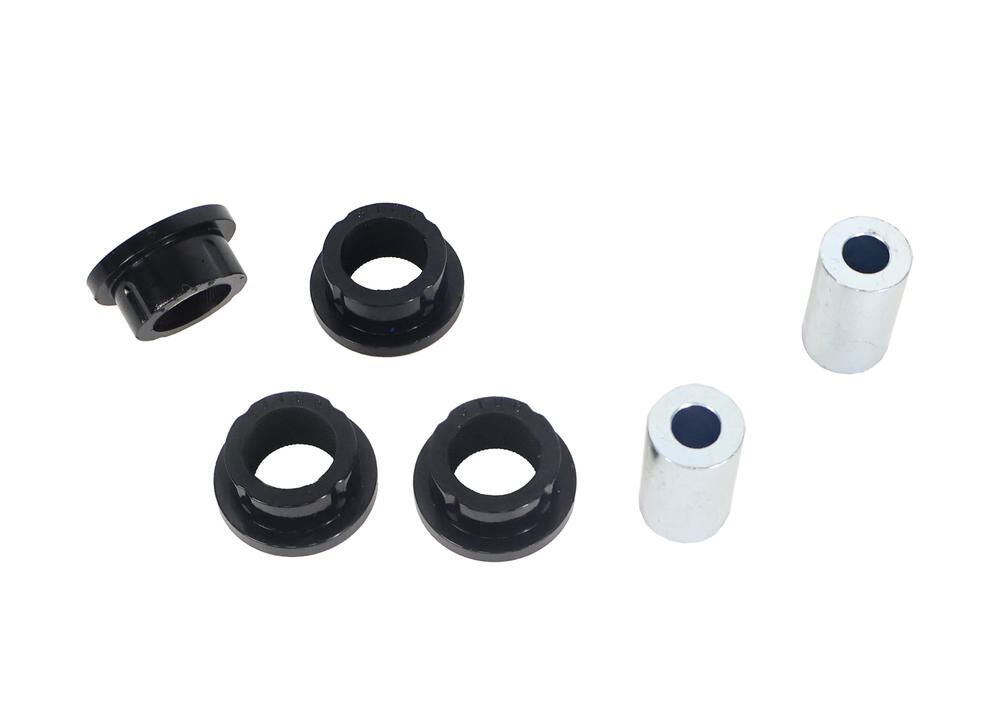

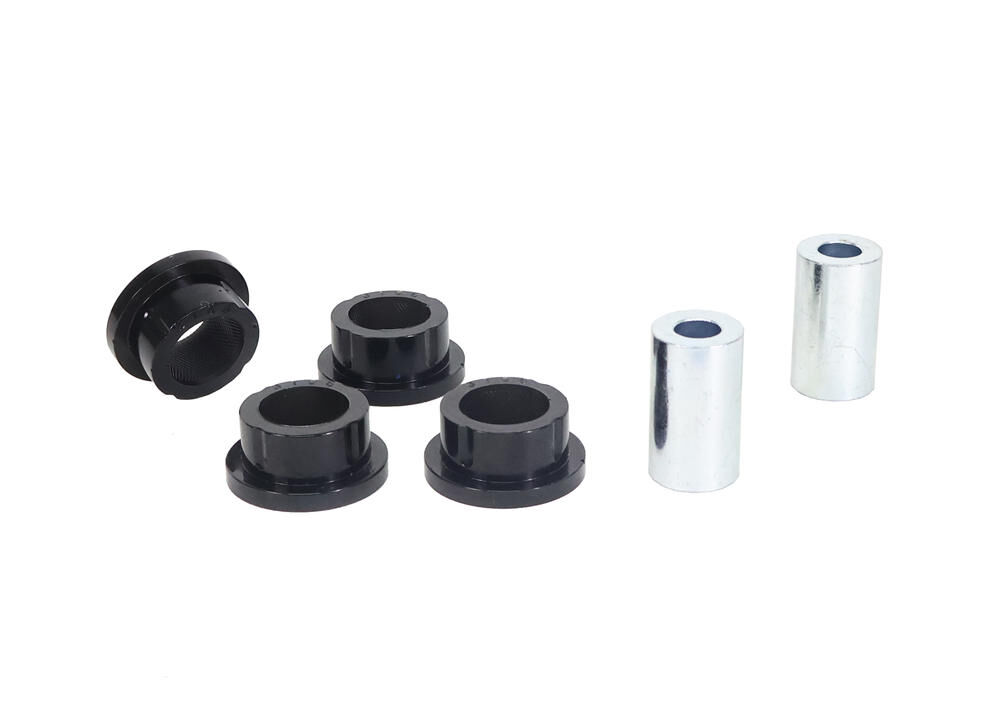

Components Per4 Bushings, 2 Tubes
Kits Required1
Sub brandReplacement
Product NoteEnhances steering response, delivering sharper handling and more predictable vehicle dynamics; the perfect, complete upgrade. Includes: 4 Bushings, 2 Tubes
EAN9330074011000
  • Lifetime Warranty
Brand Whiteline
SKU W63428
Unit Of Measure Kit
