Whiteline Rear Control Arm Lower Rear - Bushing Kit to Suit Nissan Pathfinder R51

SKU: W63405

Benefit Note: Suffering uneven tyre wear, unbalanced braking or a less predictable vehicle while cornering. It could be your suspension bushings have failed. Replace these worn parts with Whiteline synthetic elastomer bushings with core characteristics ensuring superior elasticity, memory and outright durability that offer a safer more predictable vehicle.


Kit Specifications

Bush Type 16 - Shell Without Flange Bushing 1 - Shackle Bushing
Bush Quantity 2 mm 4 mm
OD (A) 44.8 mm 39.8 mm
ID (B) 25 mm 27 mm
Length (C) 51.7 mm 27 mm
Flange Thickness (D) 5 mm 8.3 mm
Flange OD (E) 41.6 mm 46.8 mm
C/Tube Quantity 2 / 2 2 / 2
C/Tube ODxIDxL 25.4x14.2x51 / 27x14.2x56 mm 25.4x14.2x51 / 27x14.2x56 mm
Similar Bushing Size Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 16 - Shell Without Flange Bushing
Bushing Type 1 - Shackle Bushing

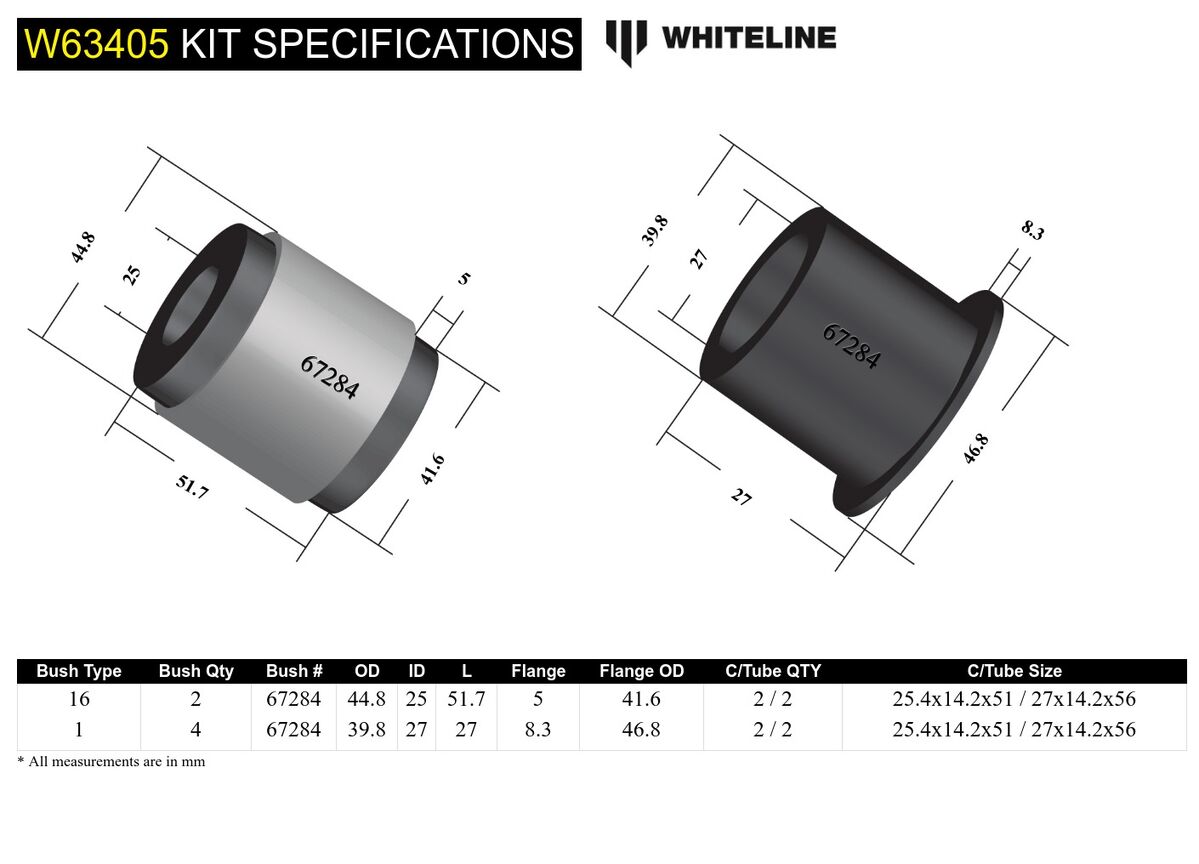

Bushing Design Dimensions (mm)

Bush Type 16 1
QTY 2 4
OD (A) 44.8 39.8
ID (B) 25 27
Length (C) 51.7 27.0
FL (D) 5 8.3
FLOD (E) 41.6 46.8
C/Tube Qty 2 / 2 2 / 2
C/Tube Size 25.4x14.2x51 / 27x14.2x56 25.4x14.2x51 / 27x14.2x56
Similar Bushings Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1
Bushing Type 16

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight1.245kg2.74lbs
Length10cm3.94"
Width26cm10.24"
Height16cm6.3"

Misc. Product Information

More Information
SKUW63405

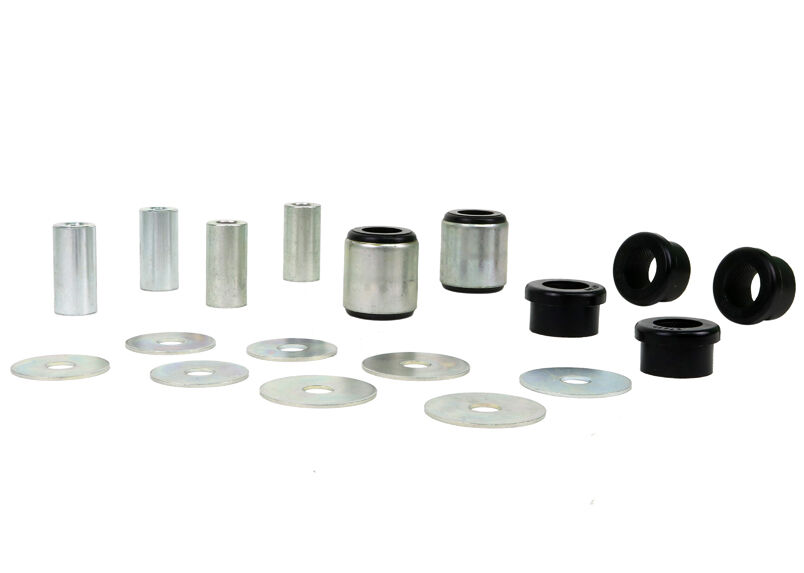

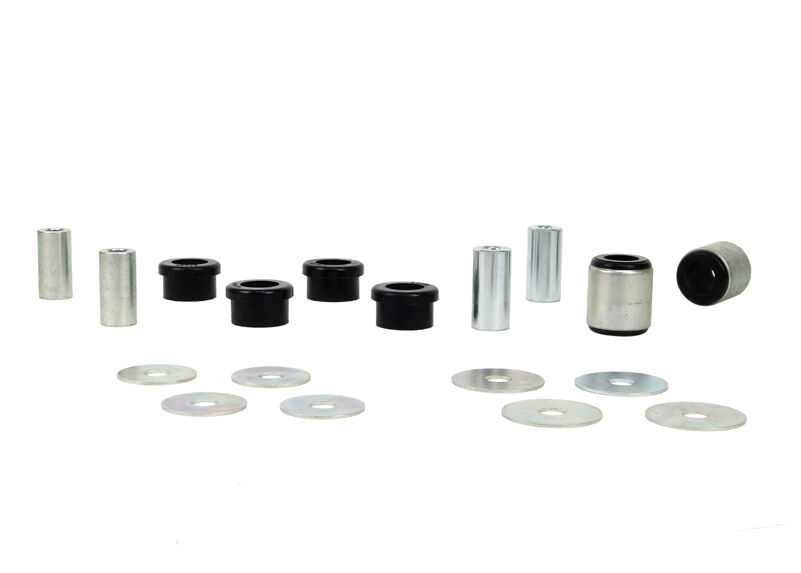

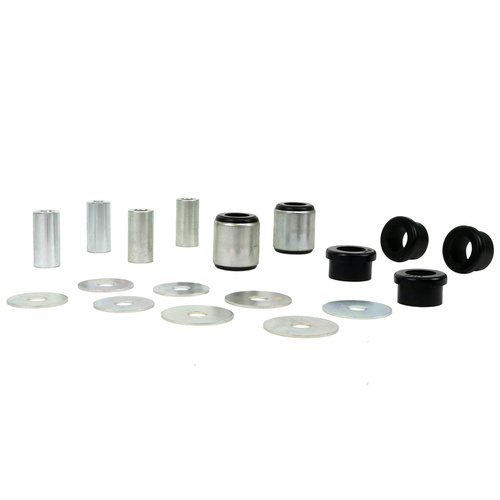

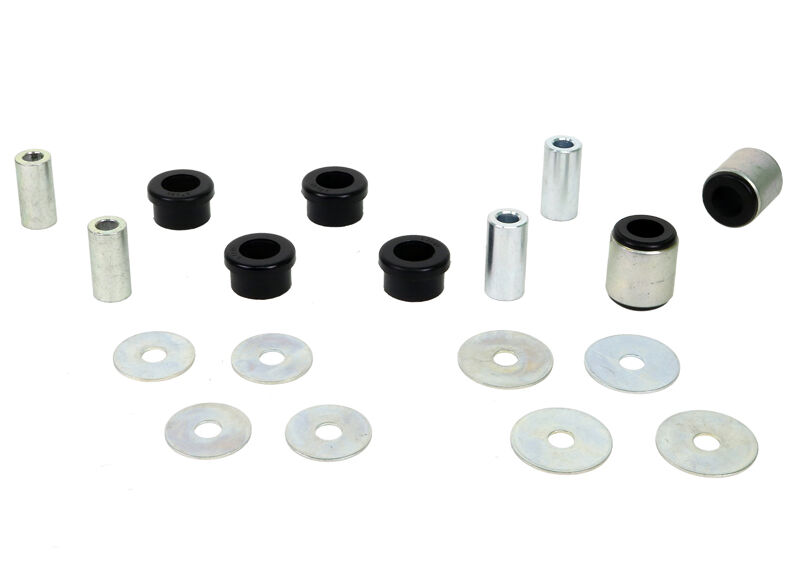

Components Per2 Shell Bushings, 4 Bushings, 4 Tubes, 8 Washers
Kits Required1
Sub brandReplacement
Product NoteGreatly increases control and confidence; the perfect, complete upgrade. Includes: 2 Shell Bushings, 4 Bushings, 4 Tubes, 8 Washers
EAN9330074011178
  • Lifetime Warranty
Brand Whiteline
SKU W63405
Unit Of Measure Kit
