Whiteline Rear Control Arm Lower - Outer Bushing Kit to Suit Honda Civic 7th Gen and CR-V RD1-RD7

SKU: W63382

Benefit Note: Suffering uneven tyre wear, unbalanced braking or a less predictable vehicle while cornering. It could be your suspension bushings have failed. Replace these worn parts with Whiteline synthetic elastomer bushings with core characteristics ensuring superior elasticity, memory and outright durability that offer a safer more predictable vehicle.

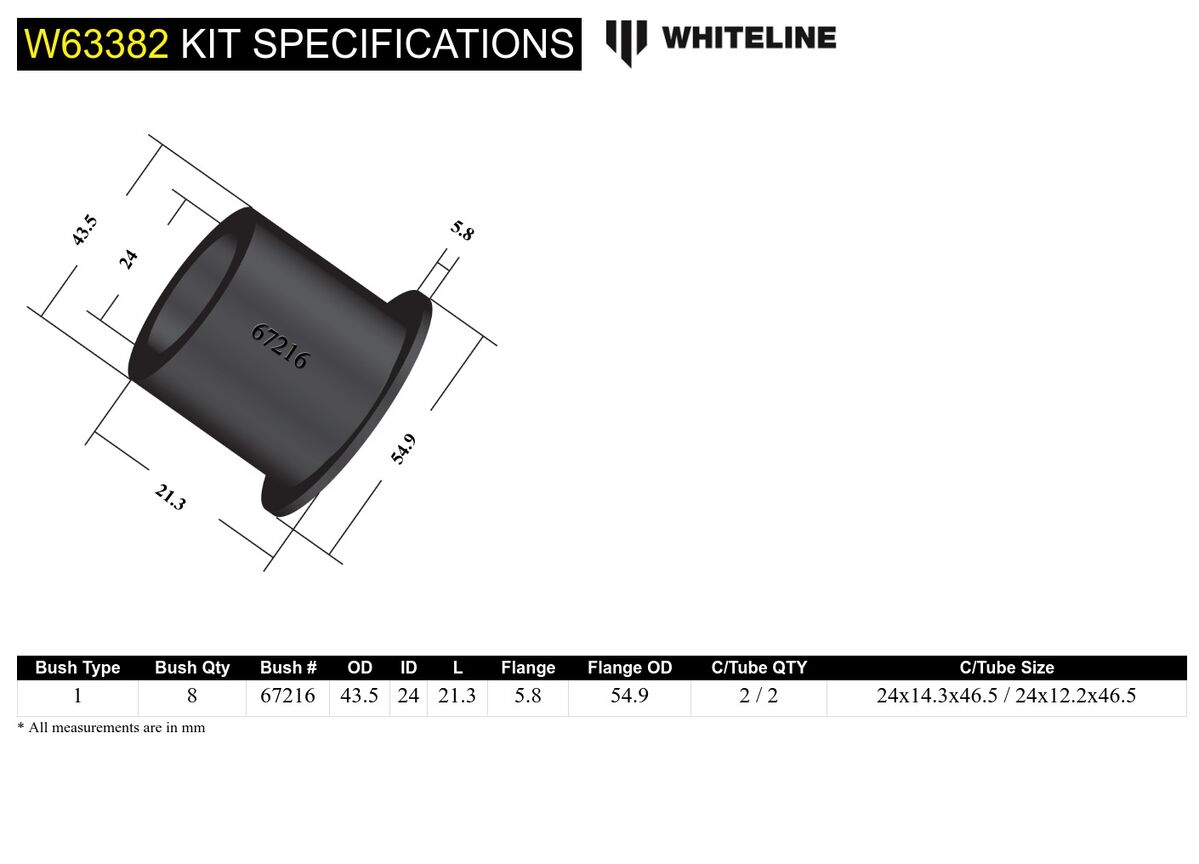

Kit Specifications

Bush Type 1 - Shackle Bushing
Bush Quantity 8 mm
OD (A) 43.5 mm
ID (B) 24 mm
Length (C) 21.3 mm
Flange Thickness (D) 5.8 mm
Flange OD (E) 54.9 mm
C/Tube Quantity 2 / 2
C/Tube ODxIDxL 24x14.3x46.5 / 24x12.2x46.5 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 1
QTY 8
OD (A) 43.5
ID (B) 24
Length (C) 21.3
FL (D) 5.8
FLOD (E) 54.9
C/Tube Qty 2 / 2
C/Tube Size 24x14.3x46.5 / 24x12.2x46.5
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.7kg1.54lbs
Length10cm3.94"
Width16cm6.3"
Height26cm10.24"

Misc. Product Information

More Information
SKUW63382

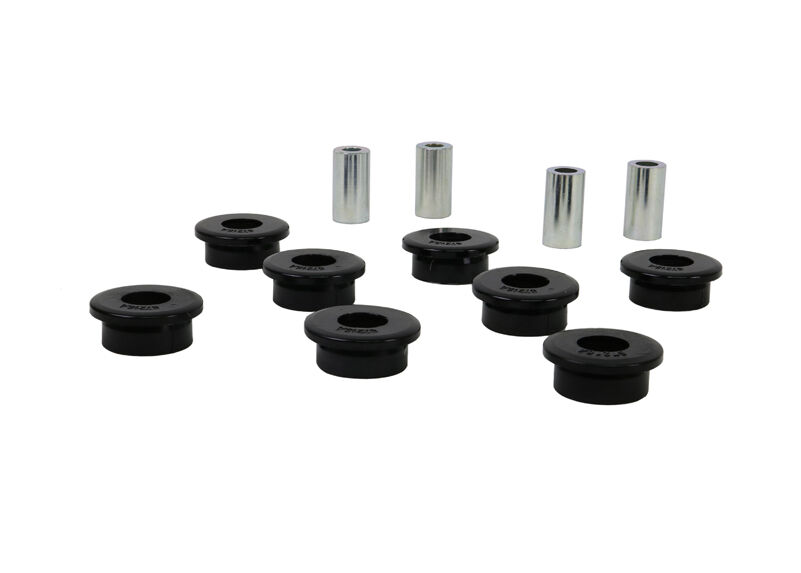

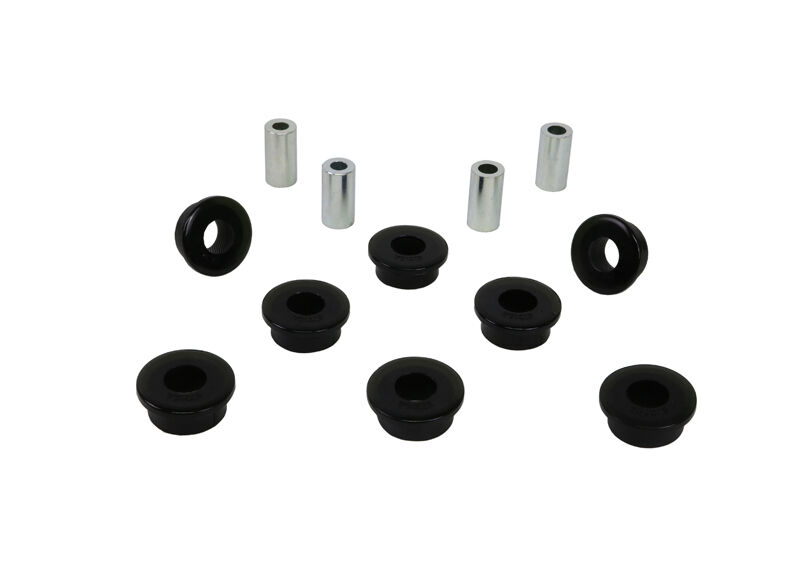

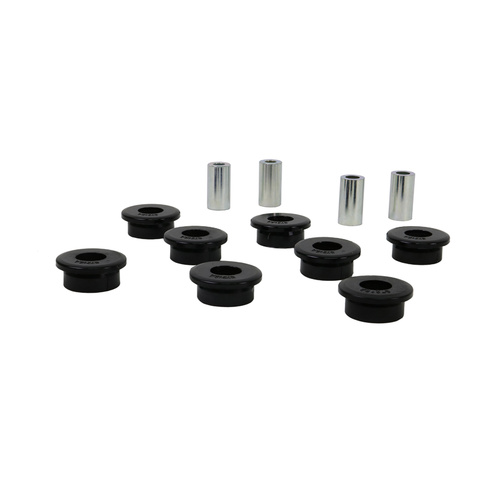

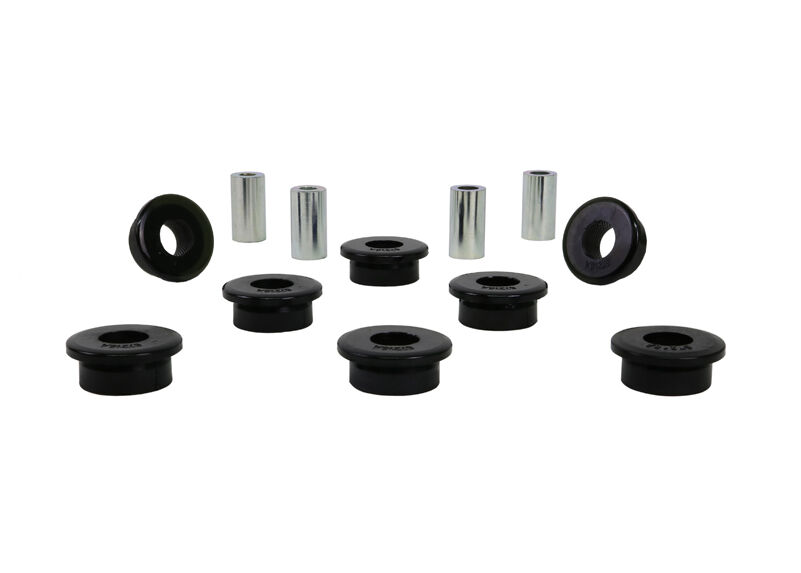

Components Per8 Bushings, 4 Tubes
Kits Required1
Sub brandReplacement
Product NoteMaximises tyre contact with the road, improving cornering and grip; the perfect, complete upgrade. Includes: 8 Bushings, 4 Tubes
EAN9319924383276
  • Lifetime Warranty
Brand Whiteline
SKU W63382
Unit Of Measure Kit
