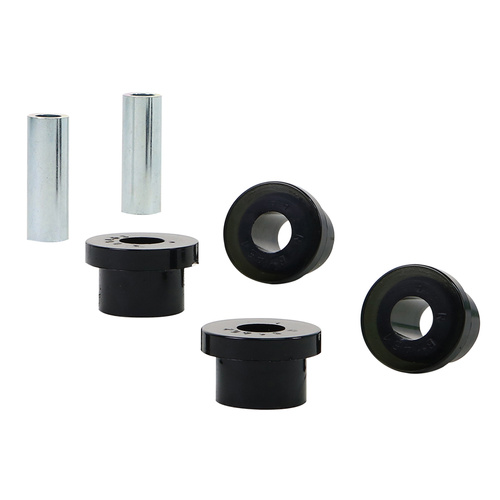

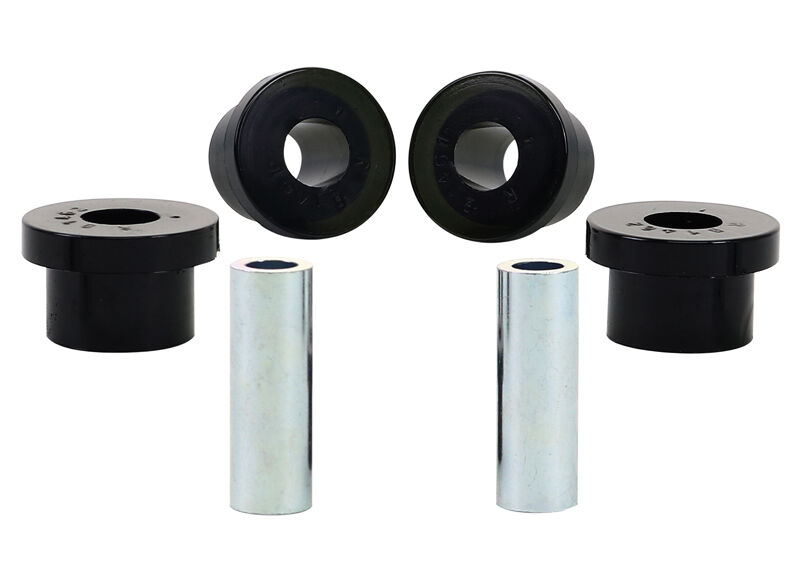

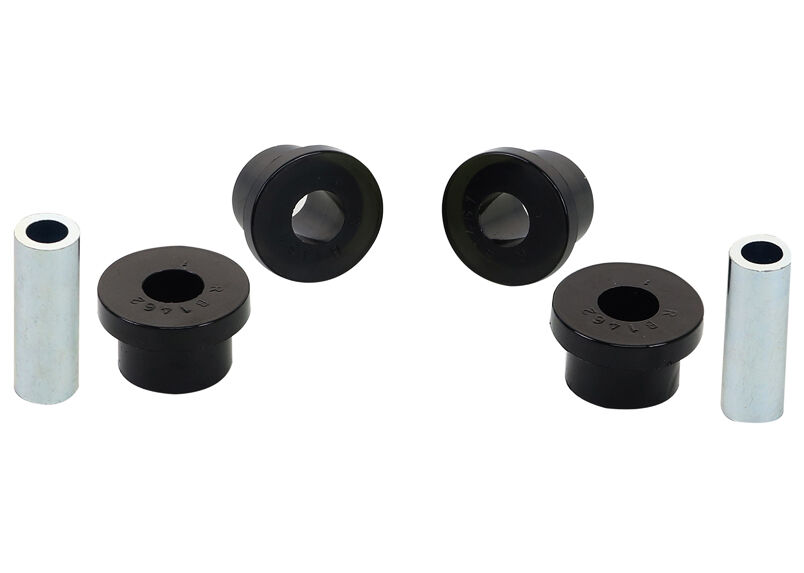

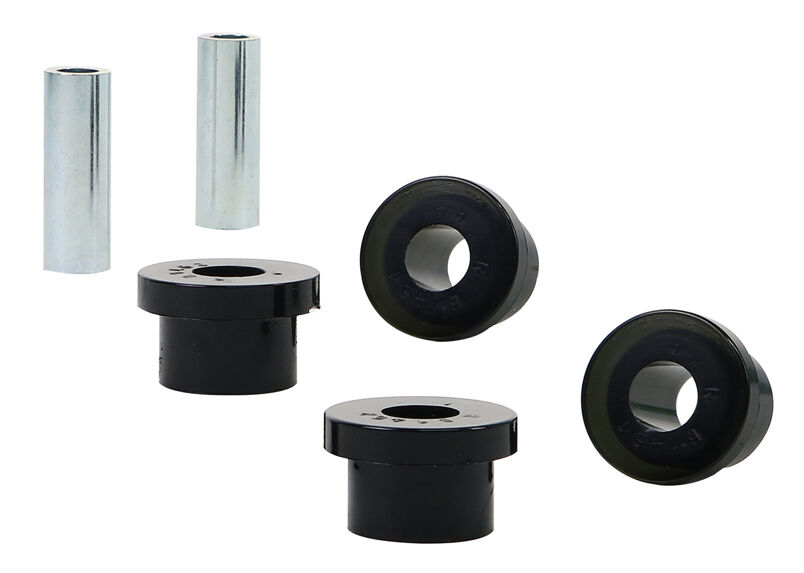

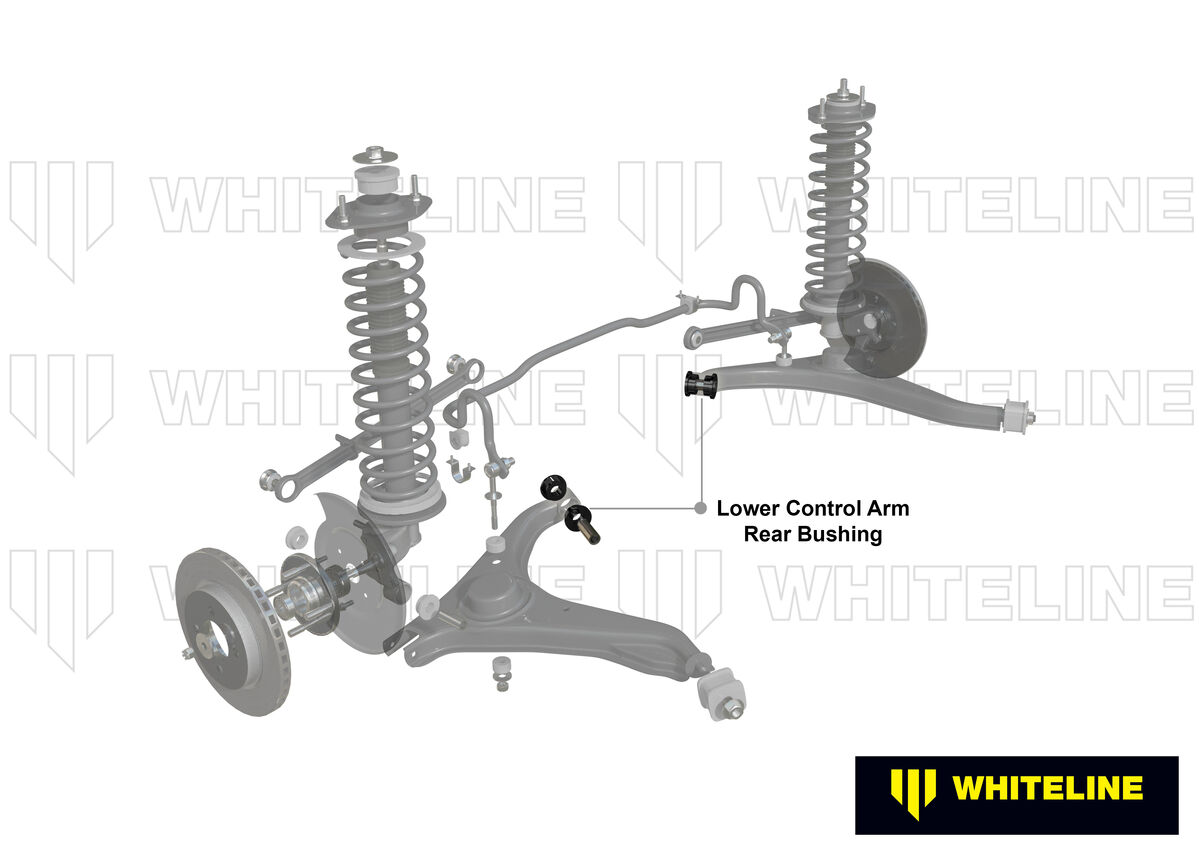

Whiteline Rear Control Arm Lower - Inner Rear Bushing Kit to Suit Holden Barina, Suzuki Cultus and Swift

SKU: W61461

Benefit Note: Suffering uneven tyre wear, unbalanced braking or a less predictable vehicle while cornering. It could be your suspension bushings have failed. Replace these worn parts with Whiteline synthetic elastomer bushings with core characteristics ensuring superior elasticity, memory and outright durability that offer a safer more predictable vehicle.


Kit Specifications

Bush Type 1 - Shackle Bushing 1 - Shackle Bushing
Bush Quantity 2 mm 2 mm
OD (A) 30.5 mm 30.5 mm
ID (B) 16 mm 16 mm
Length (C) 25.5 mm 23.5 mm
Flange Thickness (D) 8 mm 6 mm
Flange OD (E) 40 mm 40 mm
C/Tube Quantity 2 2
C/Tube ODxIDxL 16x10.2x50 mm 16x10.2x50 mm
Similar Bushing Size Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing
Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 1 1
QTY 2 2
OD (A) 30.5 30.5
ID (B) 16 16
Length (C) 25.5 23.5
FL (D) 8 6
FLOD (E) 40 40
C/Tube Qty 2 2
C/Tube Size 16x10.2x50 16x10.2x50
Similar Bushings Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.198kg0.44lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW61461
Components Per4 Bushings, 2 Tubes
Kits Required1
Sub brandReplacement
Product NoteDelivers a balanced mix of comfort, precision, and durability; the perfect, complete upgrade. Includes: 4 Bushings, 2 Tubes
EAN9319924353958
  • Lifetime Warranty
Brand Whiteline
SKU W61461
Unit Of Measure Kit
