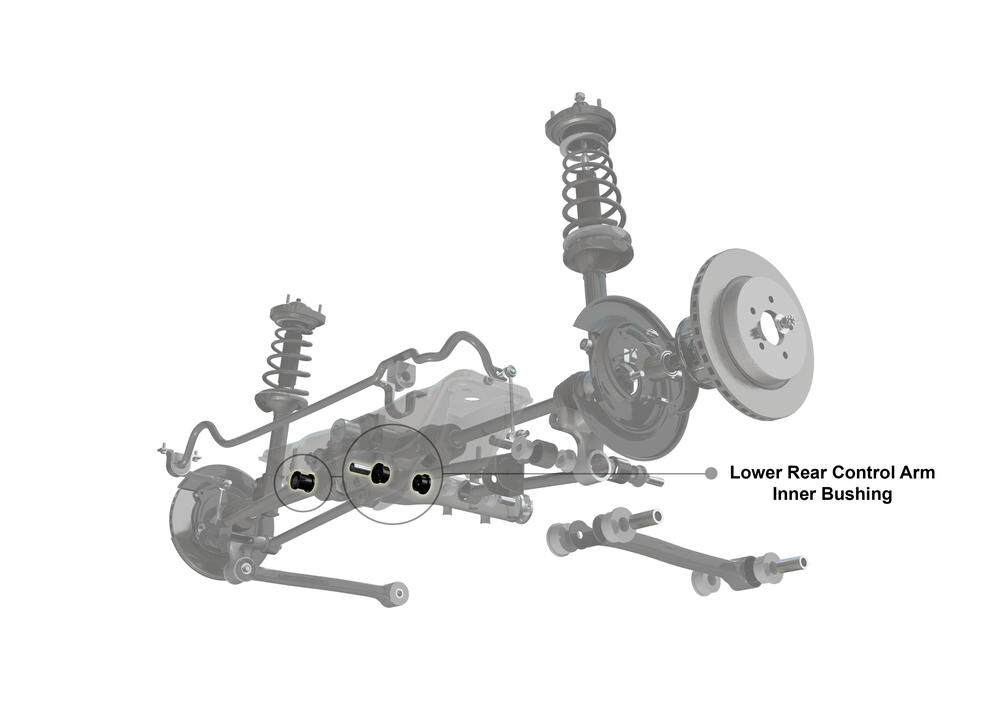

Whiteline Rear Control Arm Lower - Inner Bushing Kit to Suit Mazda MX-5 ND

SKU: W63620

Benefit Note: Suffering uneven tyre wear, unbalanced braking or a less predictable vehicle while cornering. It could be your suspension bushings have failed. Replace these worn parts with Whiteline synthetic elastomer bushings with core characteristics ensuring superior elasticity, memory and outright durability that offer a safer more predictable vehicle.


Kit Specifications

Bush Type 16 - Shell Without Flange Bushing
Bush Quantity 2 mm
OD (A) 32.2 mm
ID (B) 19 mm
Length (C) 55 mm
Flange Thickness (D) DI=7.5 DII=5.5 mm
Flange OD (E)
C/Tube Quantity 2
C/Tube ODxIDxL 19x12.3x55 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 16 - Shell Without Flange Bushing

Bushing Design Dimensions (mm)

Bush Type 16
QTY 2
OD (A) 32.2
ID (B) 19
Length (C) 55.0
FL (D) DI=7.5 DII=5.5
FLOD (E)
C/Tube Qty 2
C/Tube Size 19x12.3x55
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 16

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.31kg0.68lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW63620

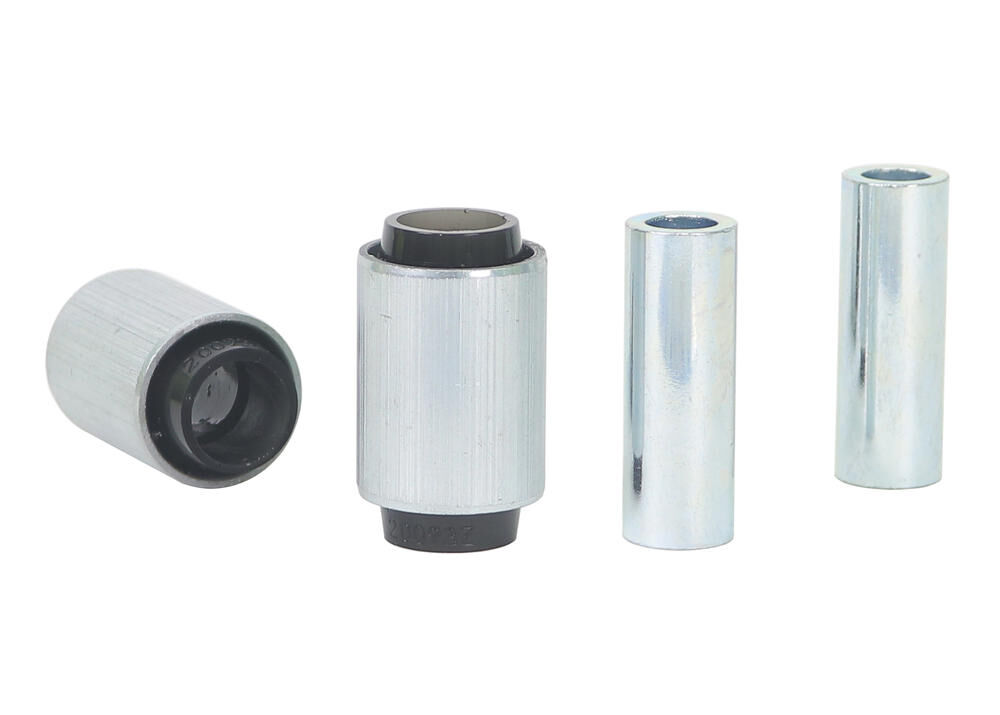

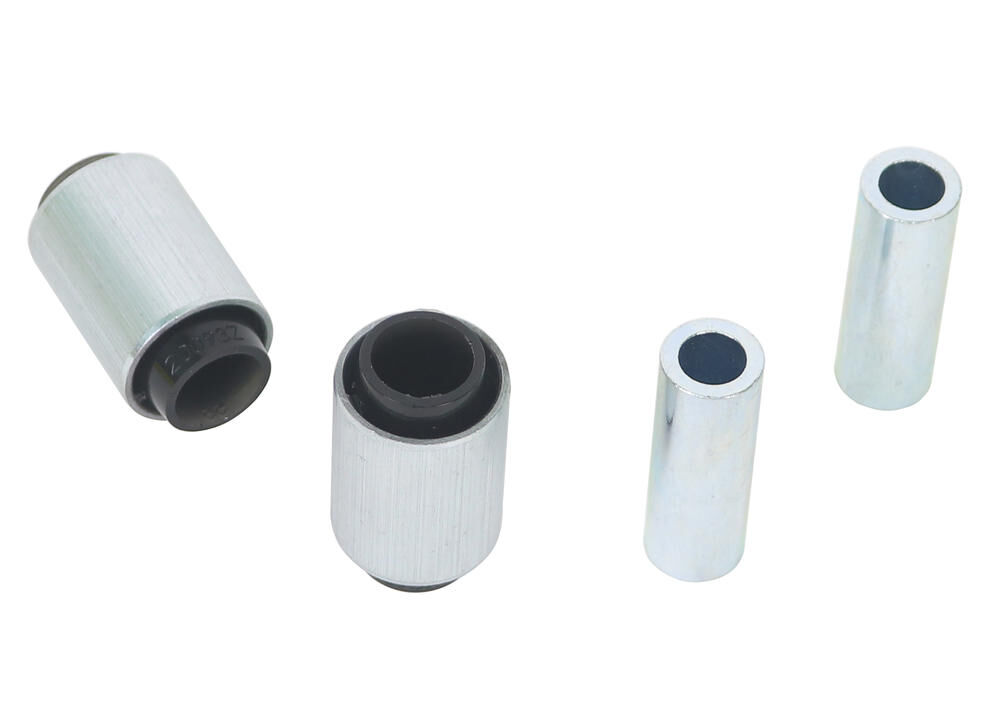

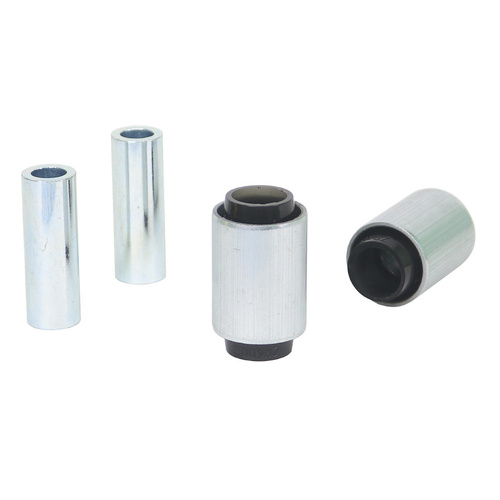

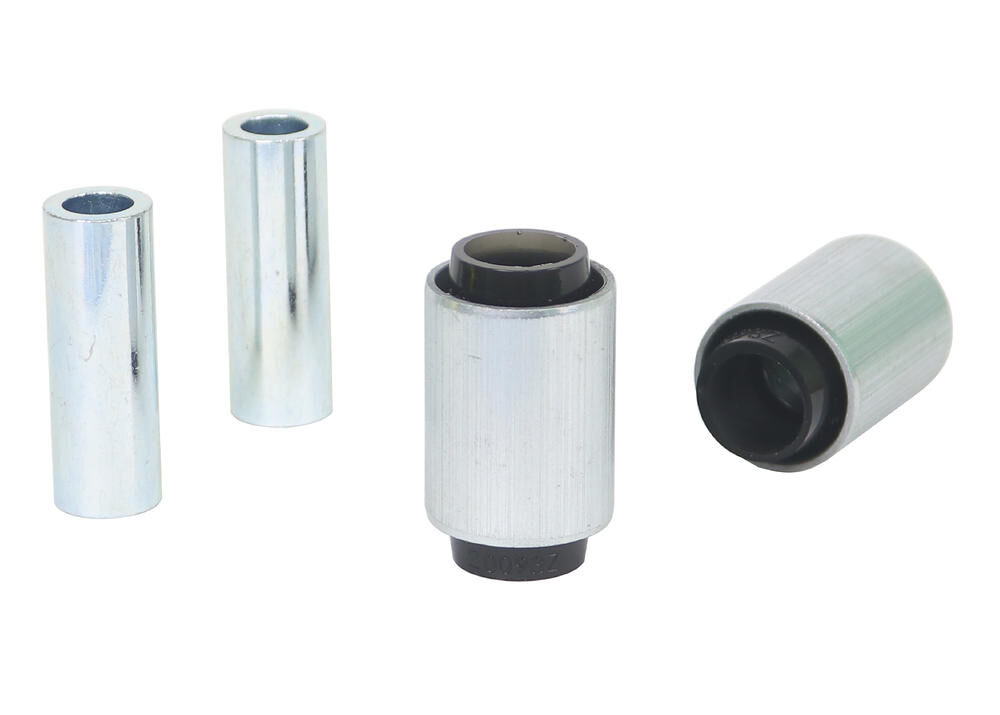

Components Per2 Bushings, 2 Tubes
Kits Required1
Sub brandReplacement
Product NoteEnsures long-lasting durability, matter matter the purpose; the perfect, complete upgrade. Includes: 2 Bushings, 2 Tubes
EAN9319924475278
  • Lifetime Warranty
Brand Whiteline
SKU W63620
Unit Of Measure Kit
