Whiteline Rear Control Arm Lower - Inner Bushing Kit to Suit Ford Falcon/Fairlane AU

SKU: W62701

Benefit Note: Suffering uneven tyre wear, unbalanced braking or a less predictable vehicle while cornering. It could be your suspension bushings have failed. Replace these worn parts with Whiteline synthetic elastomer bushings with core characteristics ensuring superior elasticity, memory and outright durability that offer a safer more predictable vehicle.

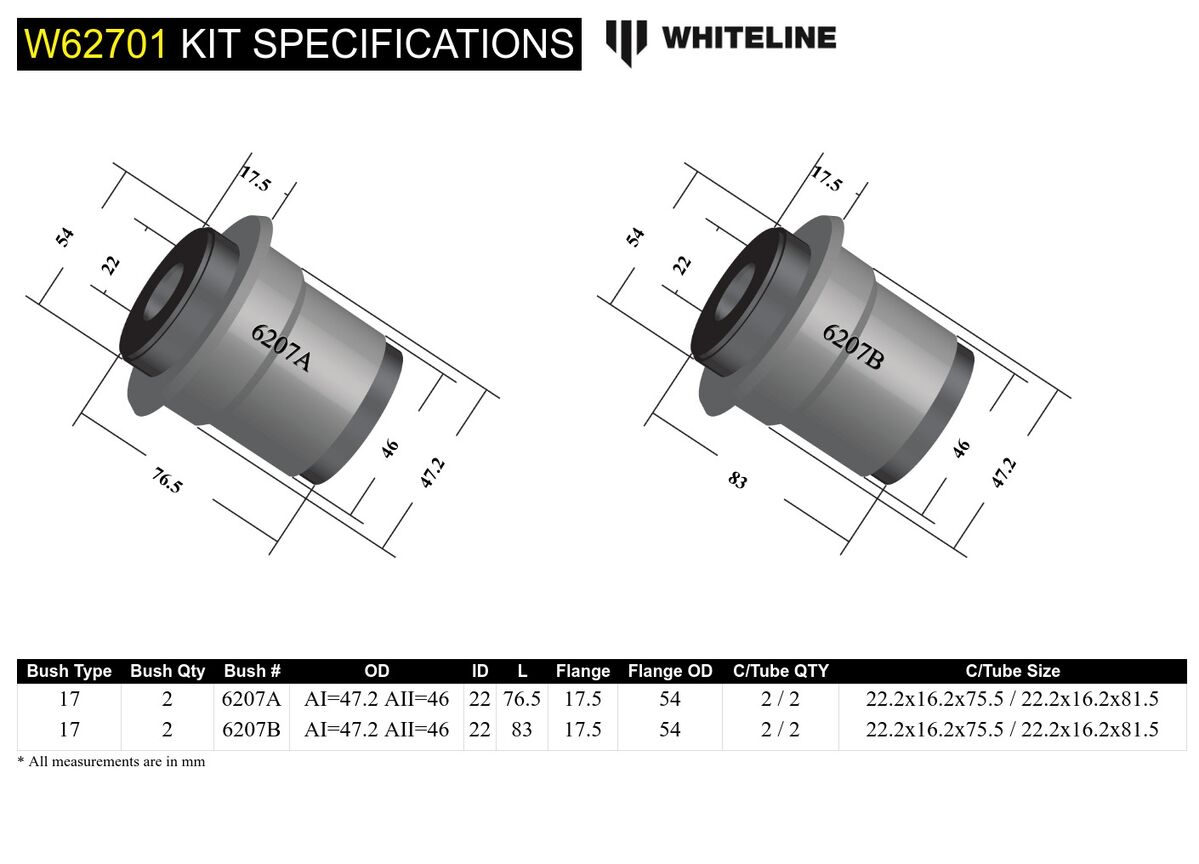

Kit Specifications

Bush Type 17 - Shell With Flange Bushing 17 - Shell With Flange Bushing
Bush Quantity 2 mm 2 mm
OD (A) AI=47.2 AII=46 mm AI=47.2 AII=46 mm
ID (B) 22 mm 22 mm
Length (C) 83 mm 76.5 mm
Flange Thickness (D) 17.5 mm 17.5 mm
Flange OD (E) 54 mm 54 mm
C/Tube Quantity 2 / 2 2 / 2
C/Tube ODxIDxL 22.2x16.2x75.5 / 22.2x16.2x81.5 mm 22.2x16.2x75.5 / 22.2x16.2x81.5 mm
Similar Bushing Size Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 17 - Shell With Flange Bushing
Bushing Type 17 - Shell With Flange Bushing

Bushing Design Dimensions (mm)

Bush Type 17 17
QTY 2 2
OD (A) AI=47.2 AII=46 AI=47.2 AII=46
ID (B) 22 22
Length (C) 83.0 76.5
FL (D) 17.5 17.5
FLOD (E) 54 54
C/Tube Qty 2 / 2 2 / 2
C/Tube Size 22.2x16.2x75.5 / 22.2x16.2x81.5 22.2x16.2x75.5 / 22.2x16.2x81.5
Similar Bushings Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 17

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight1.264kg2.79lbs
Length10cm3.94"
Width26cm10.24"
Height16cm6.3"

Misc. Product Information

More Information
SKUW62701
Components Per4 Shell Bushings, 4 Tubes
Kits Required1
Sub brandReplacement
Product NoteEnsures long-lasting durability, matter matter the purpose; the perfect, complete upgrade. Includes: 4 Shell Bushings, 4 Tubes
EAN9319924354740
  • Lifetime Warranty
Brand Whiteline
SKU W62701
Unit Of Measure Kit
