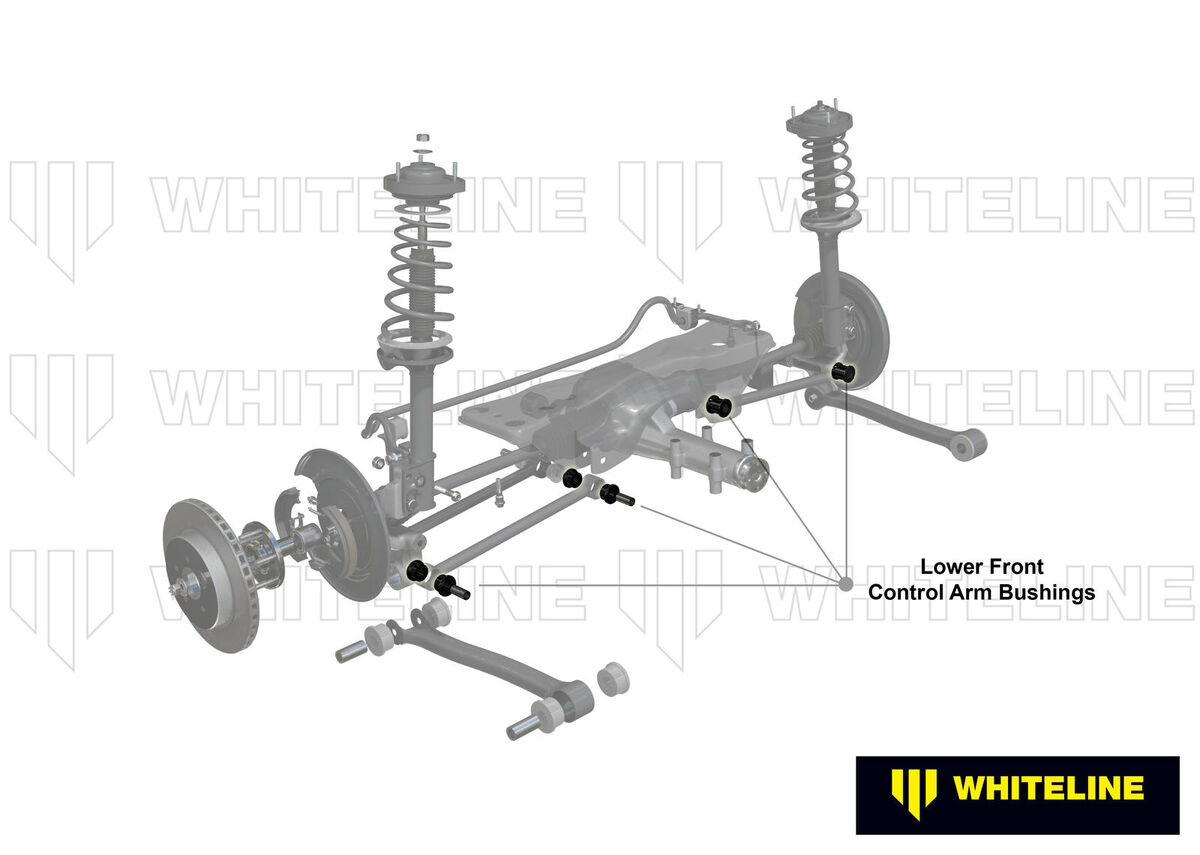

Whiteline Rear Control Arm Lower Front - Bushing Kit to Suit Toyota Camry, Aurion and Kluger

SKU: W63220

Benefit Note: Suffering uneven tyre wear, unbalanced braking or a less predictable vehicle while cornering. It could be your suspension bushings have failed. Replace these worn parts with Whiteline synthetic elastomer bushings with core characteristics ensuring superior elasticity, memory and outright durability that offer a safer more predictable vehicle.


Kit Specifications

Bush Type 1 - Shackle Bushing 1 - Shackle Bushing
Bush Quantity 4 mm 4 mm
OD (A) 28 mm 35 mm
ID (B) 19 mm 22.2 mm
Length (C) 20.8 mm 21.5 mm
Flange Thickness (D) 6.2 mm 6.5 mm
Flange OD (E) 35.8 mm 45 mm
C/Tube Quantity 2 / 2 2 / 2
C/Tube ODxIDxL 22.2x14.3x43 / 19x14.3x43 mm 19x14.3x43 / 22.2x14.3x43 mm
Similar Bushing Size Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing
Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 1 1
QTY 4 4
OD (A) 28 35
ID (B) 19 22.2
Length (C) 20.8 21.5
FL (D) 6.2 6.5
FLOD (E) 35.8 45
C/Tube Qty 2 / 2 2 / 2
C/Tube Size 22.2x14.3x43 / 19x14.3x43 19x14.3x43 / 22.2x14.3x43
Similar Bushings Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.375kg0.83lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW63220

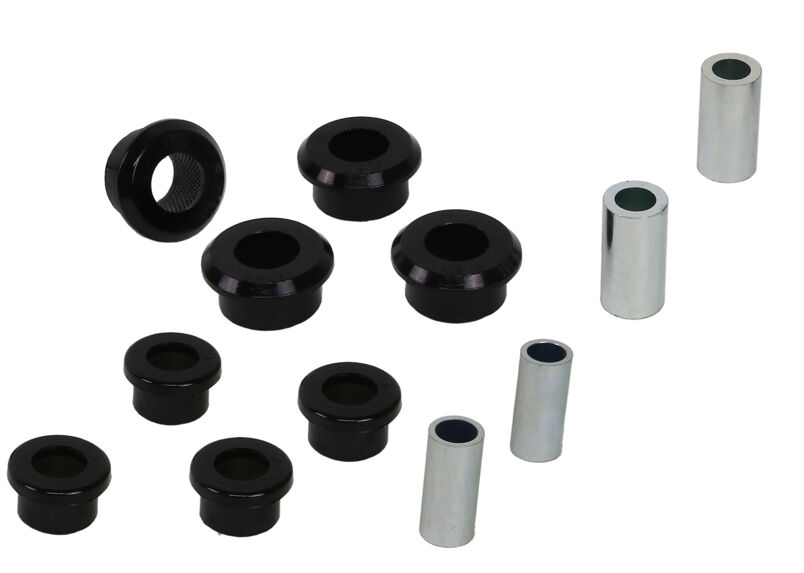

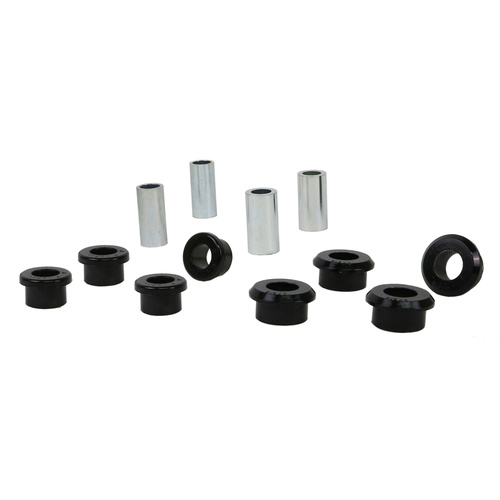

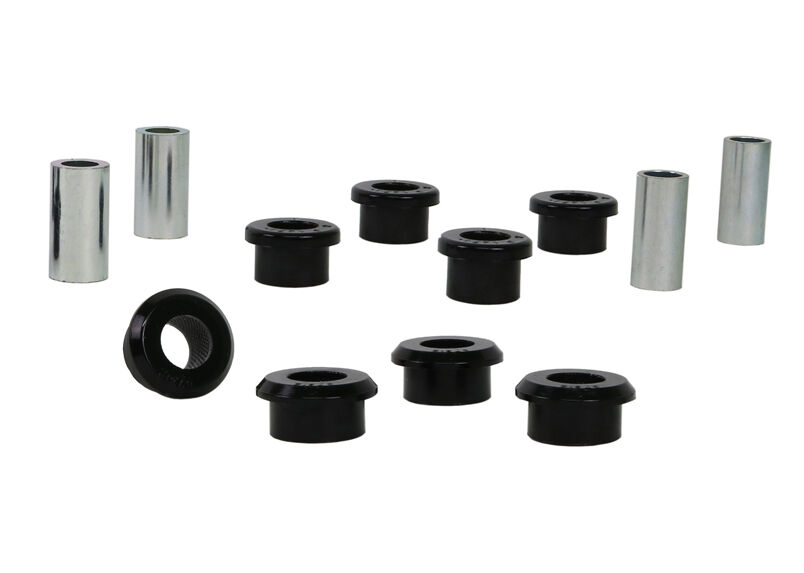

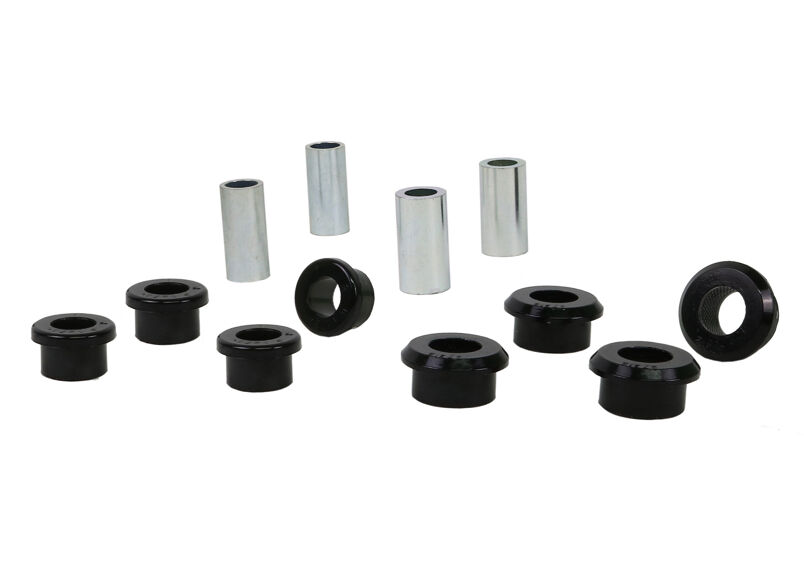

Components Per8 Bushings, 4 Tubes
Kits Required1
Sub brandReplacement
Product NoteMaximises tyre contact with the road, improving cornering and grip; the perfect, complete upgrade. Includes: 8 Bushings, 4 Tubes
EAN9319924376056
  • Lifetime Warranty
Brand Whiteline
SKU W63220
Unit Of Measure Kit
