Whiteline Rear Control Arm Lower Front and Rear - Outer Bushing Kit Double Offset to Suit Holden Commodore VE, VF and HSV

SKU: W63430

Benefit Note: Providing +/- 1.5deg camber adjustment (on car), Whiteline's kit is the economical solution for correcting alignment and prolonging tyre life especially on vehicles which are lowered, load carrying and/ or running expensive low profile tyres.


Kit Specifications

Bush Type 1 - Shackle Bushing
Bush Quantity 8 mm
OD (A) 36.9 mm
ID (B) 25.5 mm
Length (C) 24.4 mm
Flange Thickness (D) 5.4 mm
Flange OD (E) 46 mm
C/Tube Quantity 4
C/Tube ODxIDxL 25.4x12.2x51 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing
Alignment Alignment Adjustment Type Alignment On Car Adjustable
Camber Eccentric No

Bushing Design Dimensions (mm)

Bush Type 1
QTY 8
OD (A) 36.9
ID (B) 25.5
Length (C) 24.4
FL (D) 5.4
FLOD (E) 46
C/Tube Qty 4
C/Tube Size 25.4x12.2x51
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.792kg1.75lbs
Length10cm3.94"
Width26cm10.24"
Height16cm6.3"

Misc. Product Information

More Information
SKUW63430

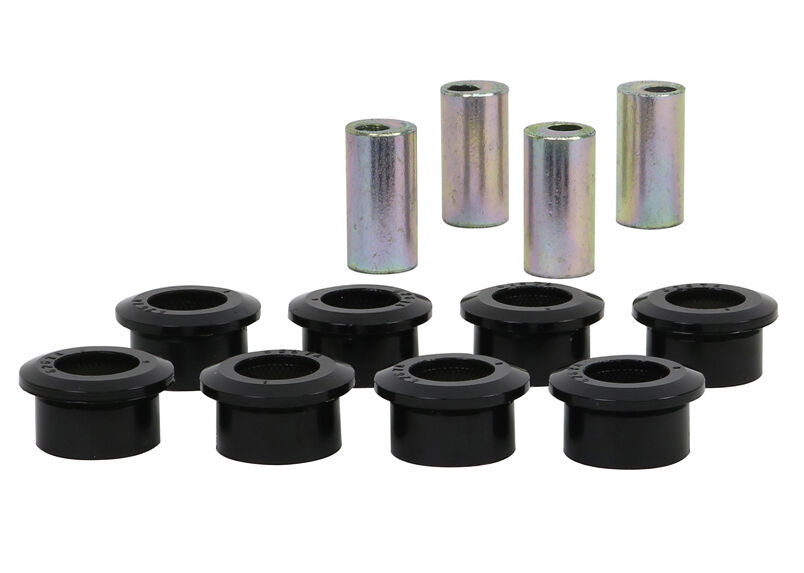

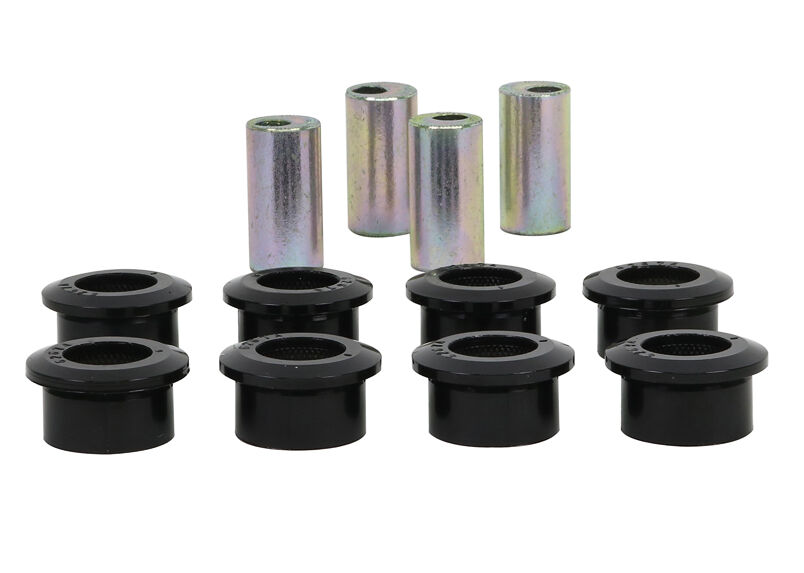

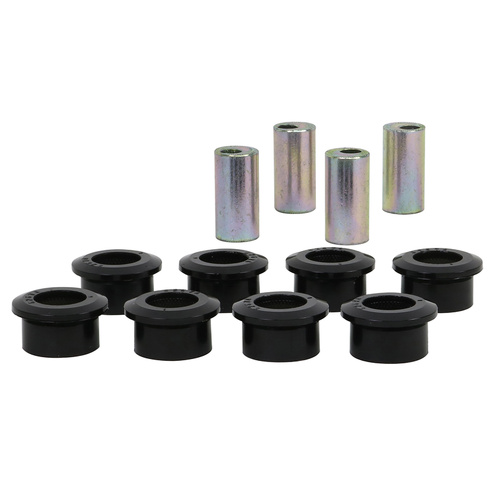

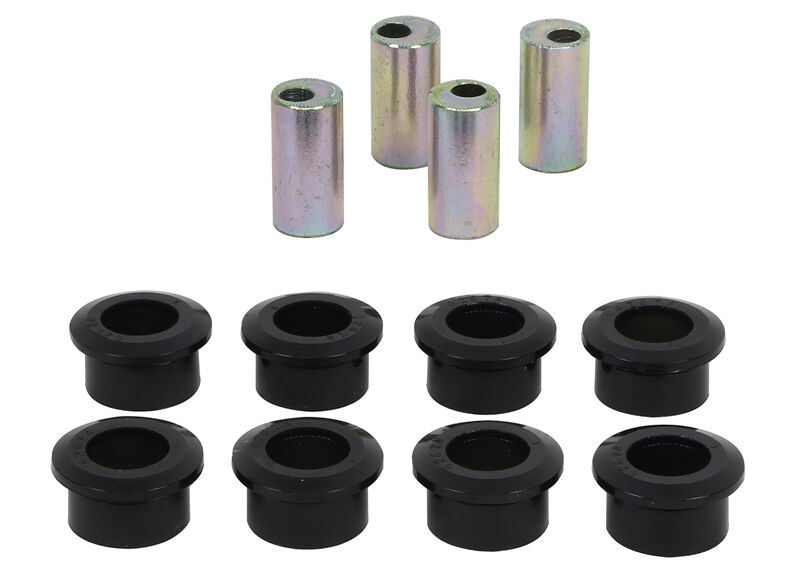

Components Per8 Bushings, 4 Tubes
Kits Required1
Sub brandReplacement
Product NoteMaximises tyre contact with the road, improving cornering and grip; the perfect, complete upgrade. Includes: 8 Bushings, 4 Tubes
EAN9319924391141
  • Lifetime Warranty
Brand Whiteline
SKU W63430
Unit Of Measure Kit
