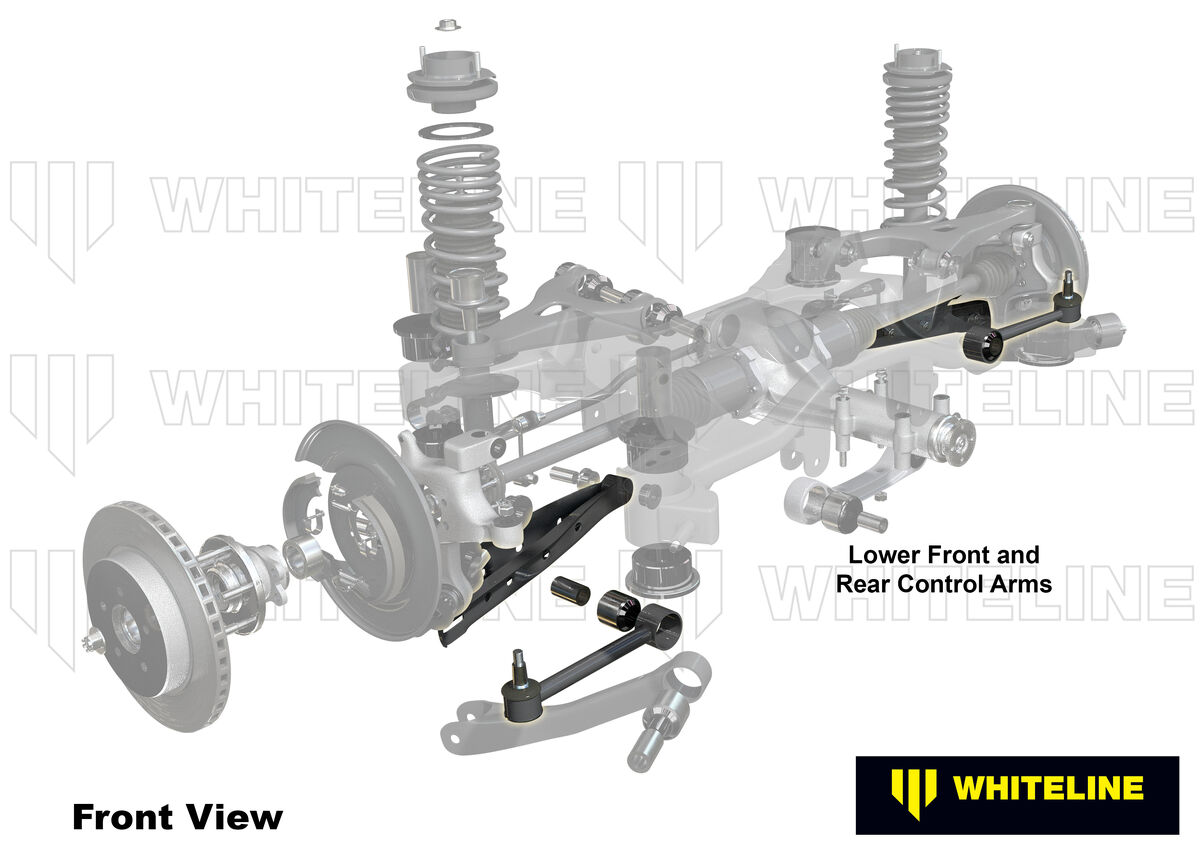

Whiteline Rear Control Arm Lower Front and Rear - Arm Service Kit to Suit Whiteline Control Arms KTA124

SKU: KSK124

Benefit Note: Suffering uneven tyre wear, unbalanced braking or a less predictable vehicle while cornering. It could be your suspension bushings have failed. Replace these worn parts with Whiteline synthetic elastomer bushings with core characteristics ensuring superior elasticity, memory and outright durability that offer a safer more predictable vehicle.

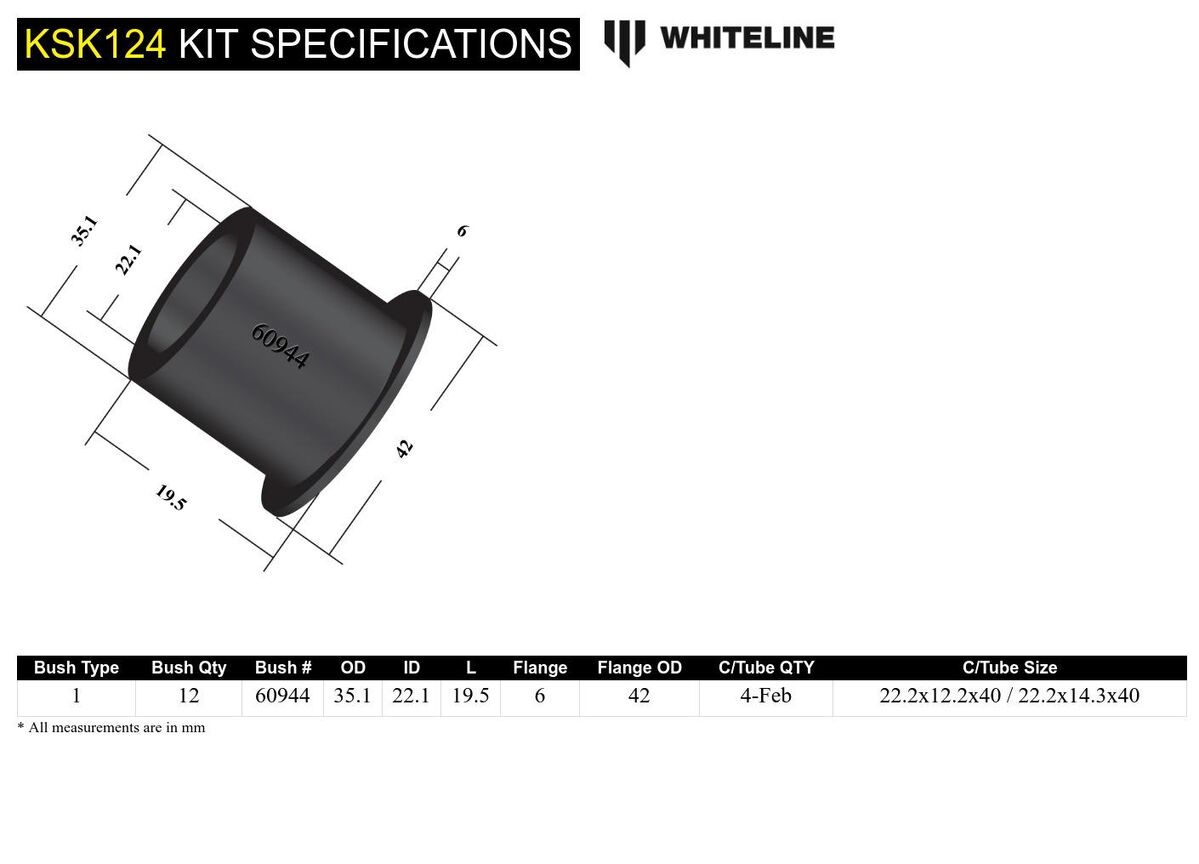

Kit Specifications

Bush Type 1 - Shackle Bushing
Bush Quantity 12 mm
OD (A) 35.1 mm
ID (B) 22.1 mm
Length (C) 19.5 mm
Flange Thickness (D) 6 mm
Flange OD (E) 42 mm
C/Tube Quantity 4 / 2
C/Tube ODxIDxL 22.2x12.2x40 / 22.2x14.3x40 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 1
QTY 12
OD (A) 35.1
ID (B) 22.1
Length (C) 19.5
FL (D) 6
FLOD (E) 42
C/Tube Qty 4 / 2
C/Tube Size 22.2x12.2x40 / 22.2x14.3x40
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.805kg1.77lbs
Length10cm3.94"
Width26cm10.24"
Height16cm6.3"

Misc. Product Information

More Information
SKUKSK124

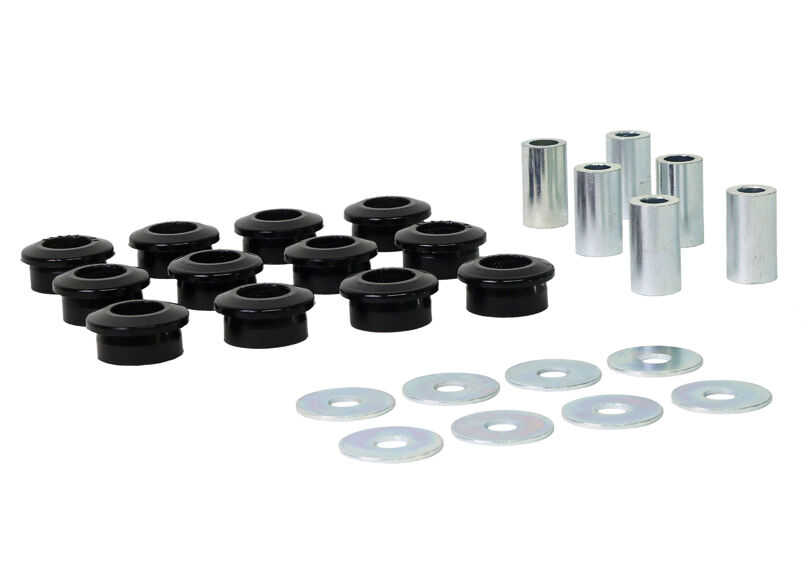

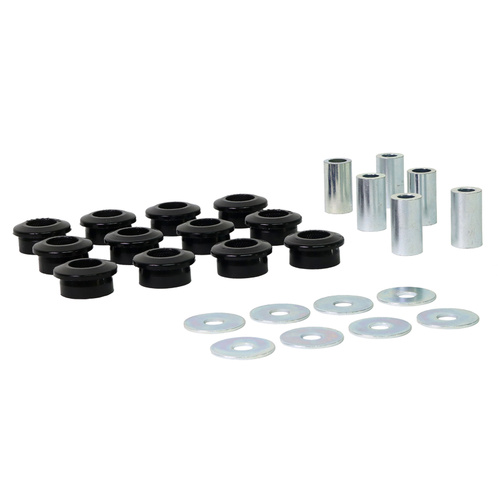

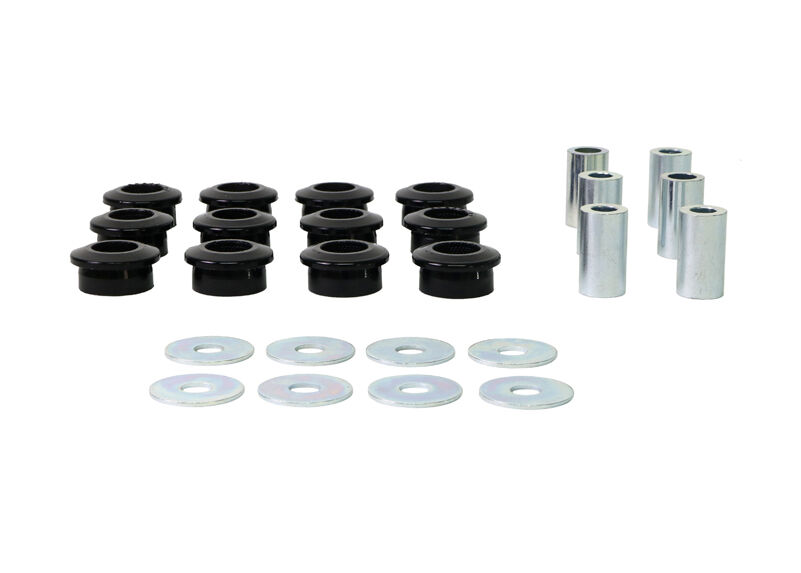

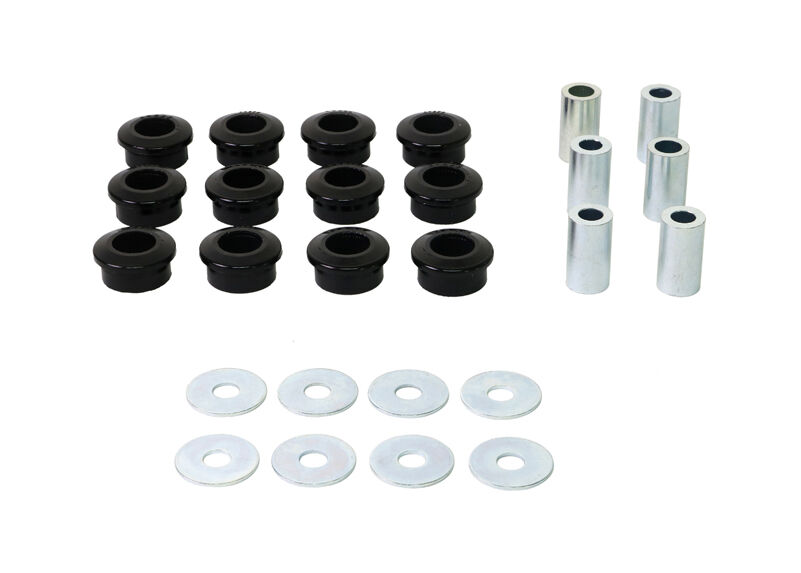

Components Per12 Bushings, 6 tubes, 8 Washers
Kits Required1
Sub brandPerformance
Product NoteEnhances steering response, delivering sharper handling and more predictable vehicle dynamics; the perfect, complete upgrade. Includes: 12 Bushings, 6 tubes, 8 Washers
EAN9319924454044
  • Lifetime Warranty
Brand Whiteline
SKU KSK124
Unit Of Measure Kit
