Whiteline Rear Control Arm Lower - Bushing Kit to Suit Hyundai Excel X3

SKU: W63605

Benefit Note: Suffering uneven tyre wear, unbalanced braking or a less predictable vehicle while cornering. It could be your suspension bushings have failed. Replace these worn parts with Whiteline synthetic elastomer bushings with core characteristics ensuring superior elasticity, memory and outright durability that offer a safer more predictable vehicle.


Kit Specifications

Bush Type 1 - Shackle Bushing
Bush Quantity 8 mm
OD (A) 32.2 mm
ID (B) 19 mm
Length (C) 19 mm
Flange Thickness (D) 5 mm
Flange OD (E) 39.8 mm
C/Tube Quantity 4
C/Tube ODxIDxL 19x12.5x40 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 1
QTY 8
OD (A) 32.2
ID (B) 19
Length (C) 19.0
FL (D) 5
FLOD (E) 39.8
C/Tube Qty 4
C/Tube Size 19x12.5x40
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.234kg0.52lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW63605
Components Per8 Bushings, 4 Tubes
Kits Required2
Sub brandReplacement

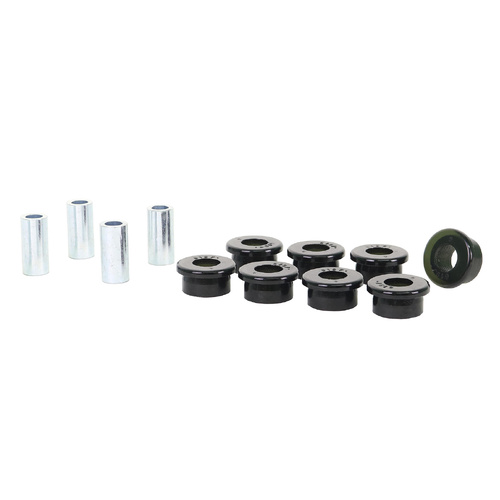

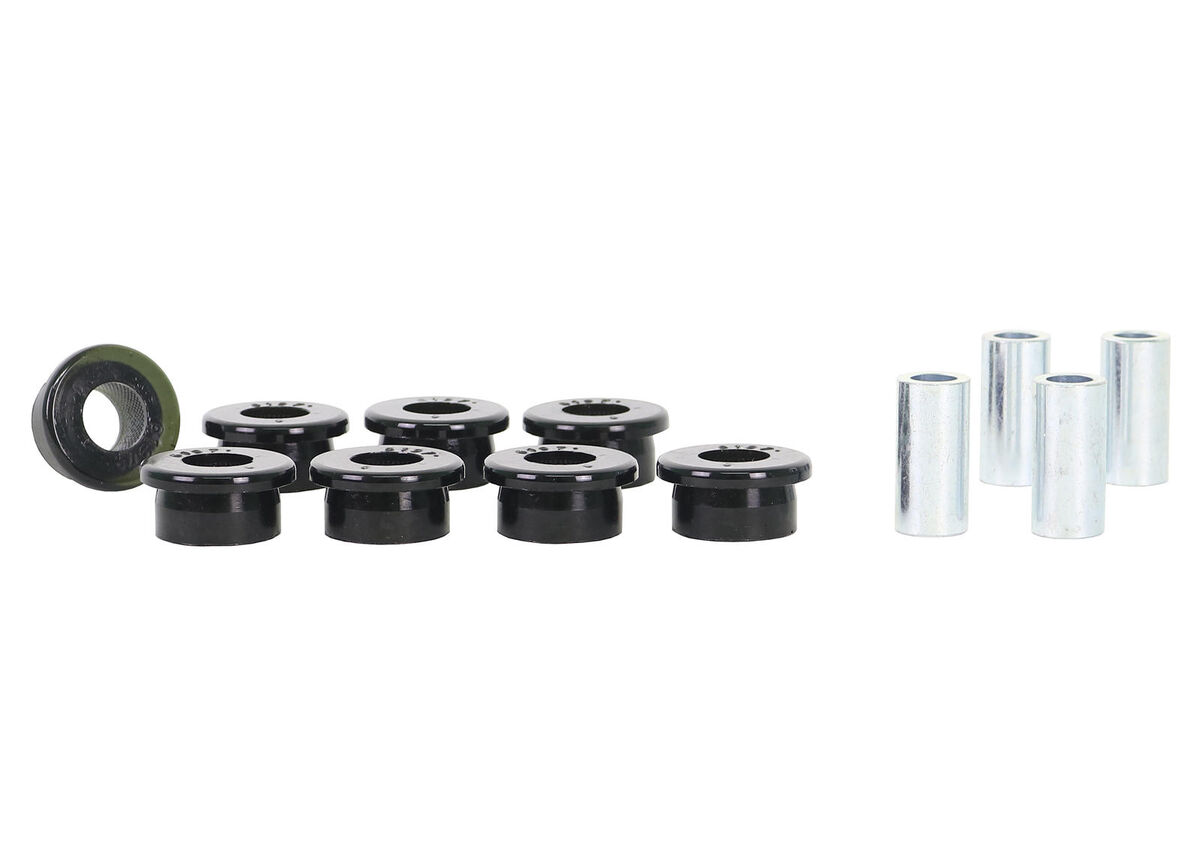

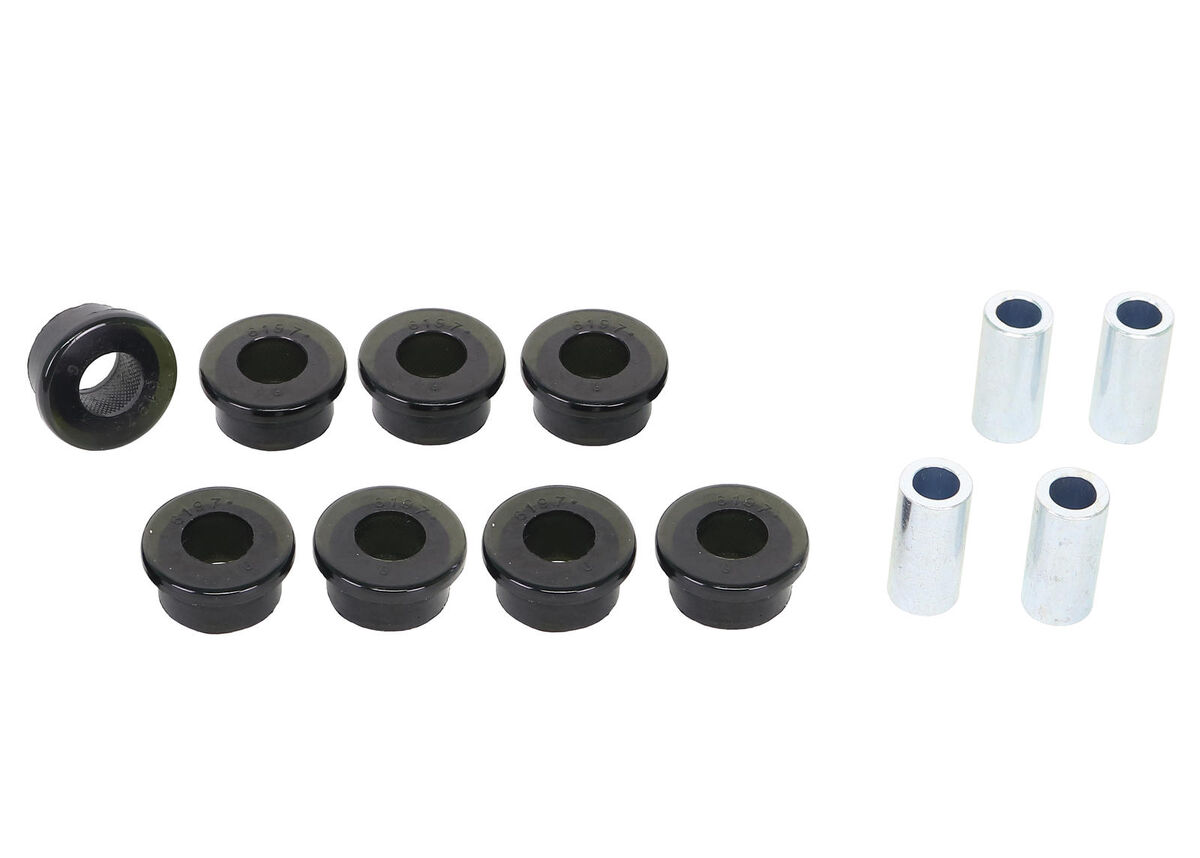

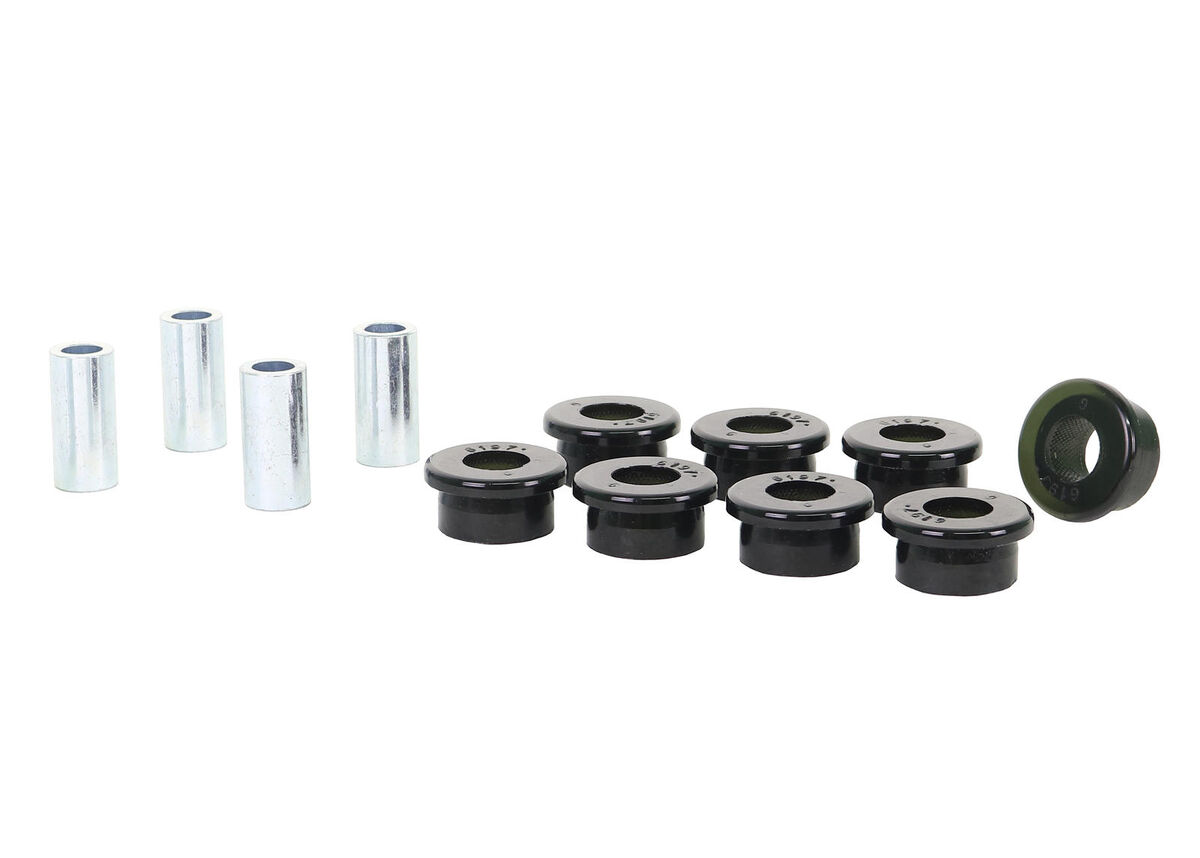

Product NoteEnhances steering response, delivering sharper handling and more predictable vehicle dynamics; the perfect, complete upgrade. Includes: 8 Bushings, 4 Tubes
EAN9319924464111
  • Lifetime Warranty
Brand Whiteline
SKU W63605
Unit Of Measure Kit
